Lang Manufacturing (Middleby)  |  Clamshell  |  SKU: CCSE12A

Lang Manufacturing (Middleby) CCSE12A Clamshell Electric Griddles

$11,254.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Flyer Installation & operation Owner's manual Product guide Buying guide Middleby financial flyer Warranty sheet
Related Searches
Commercial Grills Electric Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) Restaurant Equipment Tortilla Griddles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

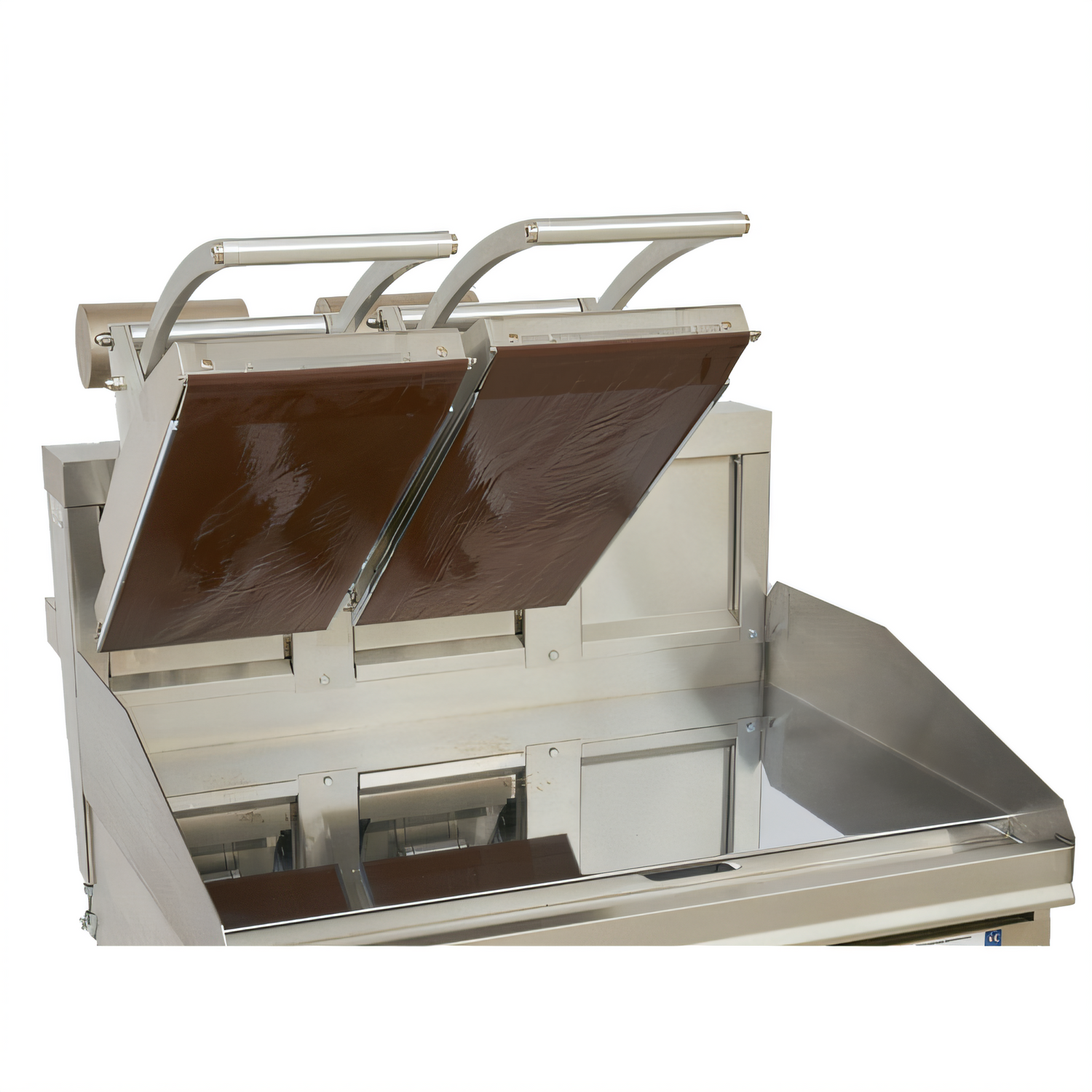

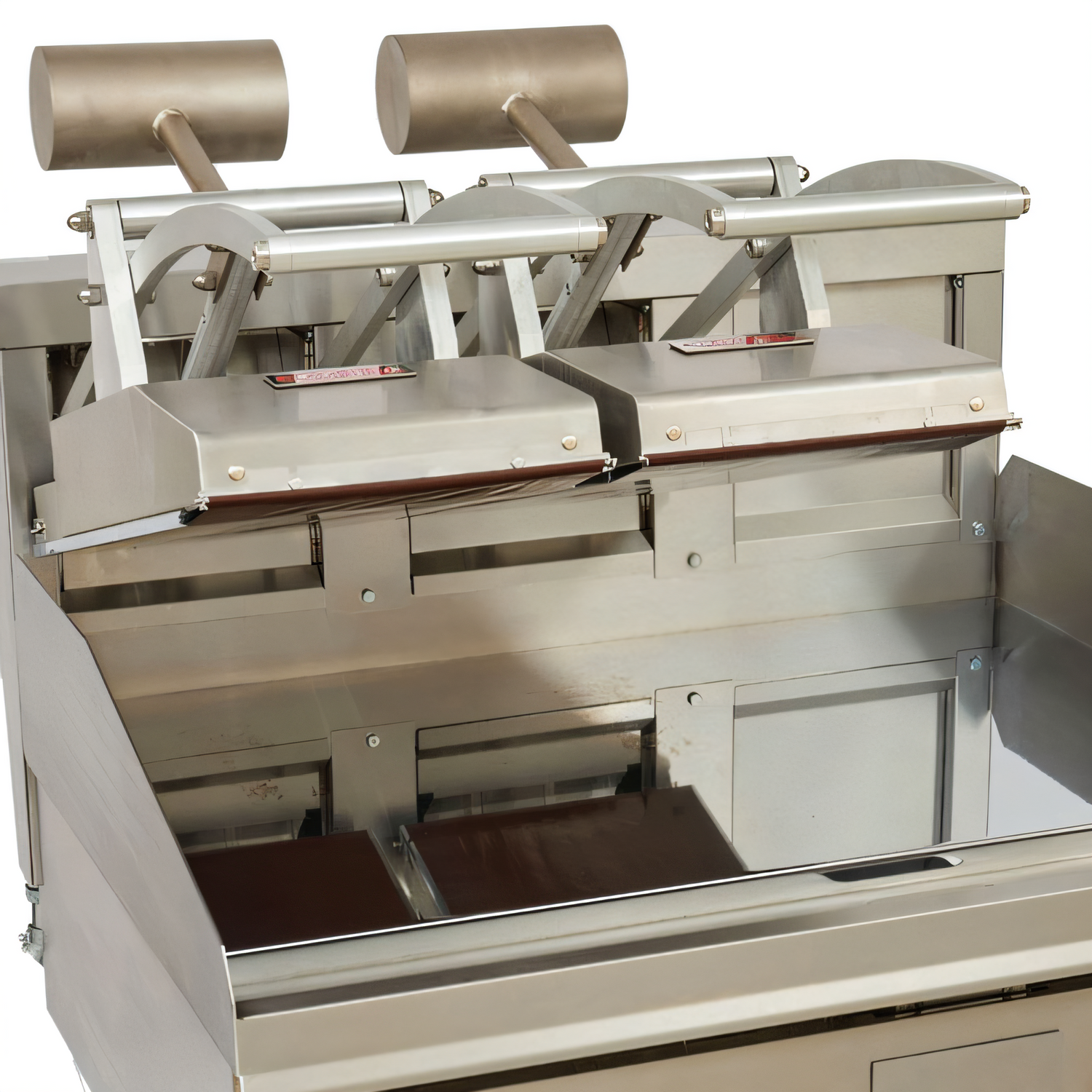

Lang CCSE12 Contact Clamshell

Factory-mounted electric hood for Lang gas or electric griddles

Turn your Lang flat top into a high-output, two-sided cooking station. The CCSE12 applies contact heat and the ideal amount of pressure from above, cutting cook times in half while locking in flavor and moisture—no flipping required.

Why your line needs it

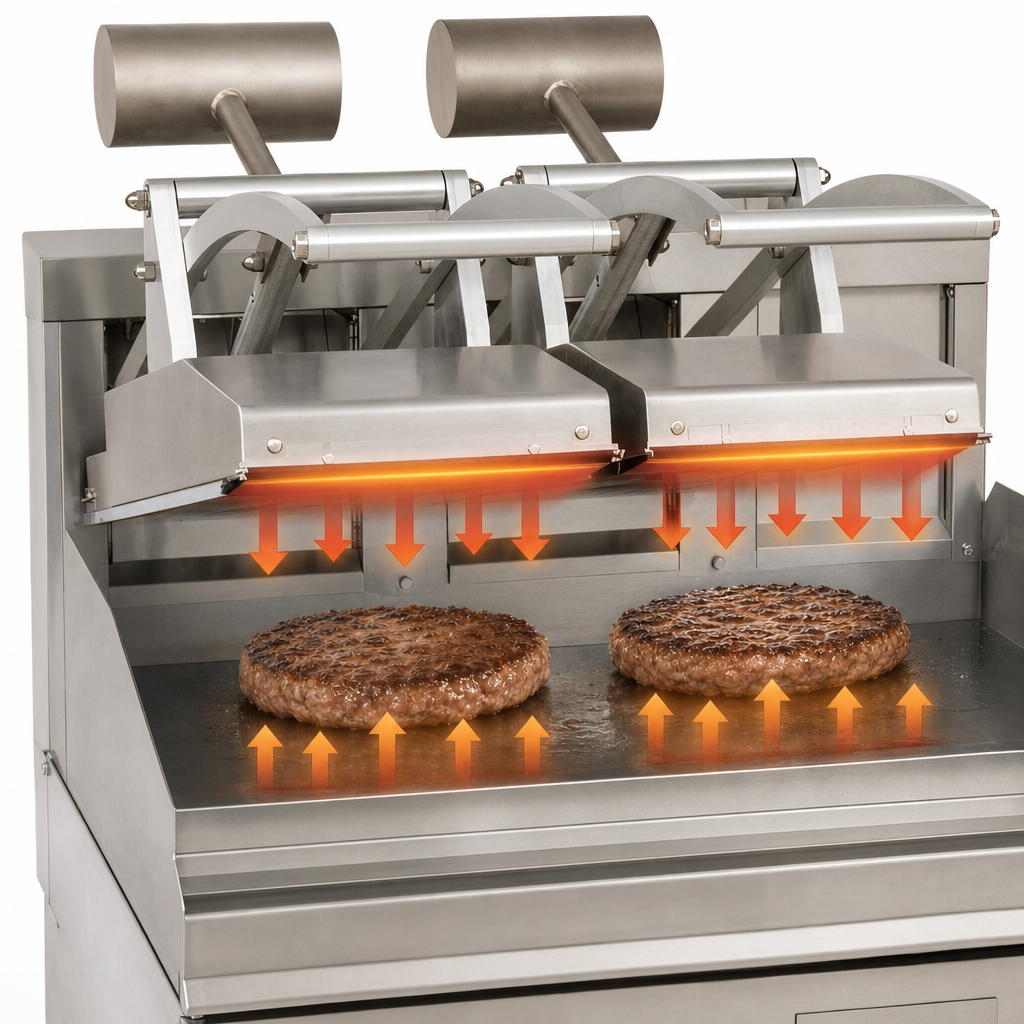

  • Double-sided cooking delivers up to 50 % faster ticket times.
  • Self-levelling platen stays perfectly parallel to the griddle and handles items up to 3 in (76 mm) thick.
  • Weighted, adjustable “Hammer” handle guarantees uniform pressure every time.
  • Independent digital control box lets you dial in temperatures to 500 °F (260 °C).
  • 11 in × 21.5 in (279 × 546 mm) contact area—adds 1.64 ft² of productive space per hood.
  • Tool-free platen leveling and (2) easy-fit non-stick sheets simplify change-outs and cleaning.
  • Corrosion-resistant stainless steel construction—built, tested and certified in the USA.

Real-world time savings at 350 °F

  • Quarter-lb frozen hamburger patty: 3 min 45 sec vs 8 min on a flat griddle.
  • Slack 6 oz chicken breast: 3 min 30 sec vs 10 min on a flat griddle.

Ideal for

  • Burgers & sliders
  • Chicken, pork or steak filets
  • Bacon strips
  • Grilled sandwiches & paninis
  • Warming wraps & quesadillas

Specifications

Model CCSE12 Contact Clamshell (electric)
Cooking surface 11 in W × 21.5 in D (279 × 546 mm) – 1.64 ft² / 1 524 cm²
Product capacity Up to 3 in (76 mm) thickness
Temperature range Ambient to 500 °F (260 °C)
Heating element Steel platen, 4.2 kW
Electrical 208 V 1 Ø 20.2 A • 240 V 1 Ø 17.5 A • 480 V 1 Ø 8.8 A, 60 Hz, field-wired
Control Remotely mounted digital control box (one per hood; up to two hoods per box)
Construction Stainless steel body, tool-free adjustable platen
Weight Approx. 80 lb (36 kg) per hood
Certifications cETLus, ETL-Sanitation
Warranty 1-year parts & labor

Replacement non-stick sheet kit (10-pack) – part # CCSE12C-10NS – available separately.

Ordering note: The CCSE12 is factory-installed on new Lang gas or electric griddles. Please specify the quantity and mounting positions at time of griddle purchase. Installs with one control box for every two hoods; additional hoods require additional boxes.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Clamshell

Certifications

cETLus, ETL-Sanitation

Height

28.5in

Width

11.0in

Depth

33.8in

Shipping Weight

78.0lbs

Width Cooking Surface (side - side)

10" - 24"

Platen or Clamshells

1

Controls

thermostatic controls

Specifications

Griddle Contact Clamshell Hood, electric, 11"W x 21.5"D, steel plate, heating up to 500*F, with remotely mounted digital control box, exclusive platen leveling feature with 3-inch "flat-landing" approach, includes (2) non-stick sheets, 4.2kW, cETLus, ETL-Sanitation (factory mounted on Lang Gas or Electric Griddles - must specify number and location)
