Lang Manufacturing (Middleby) 272T LG Series Gas Griddles
Description

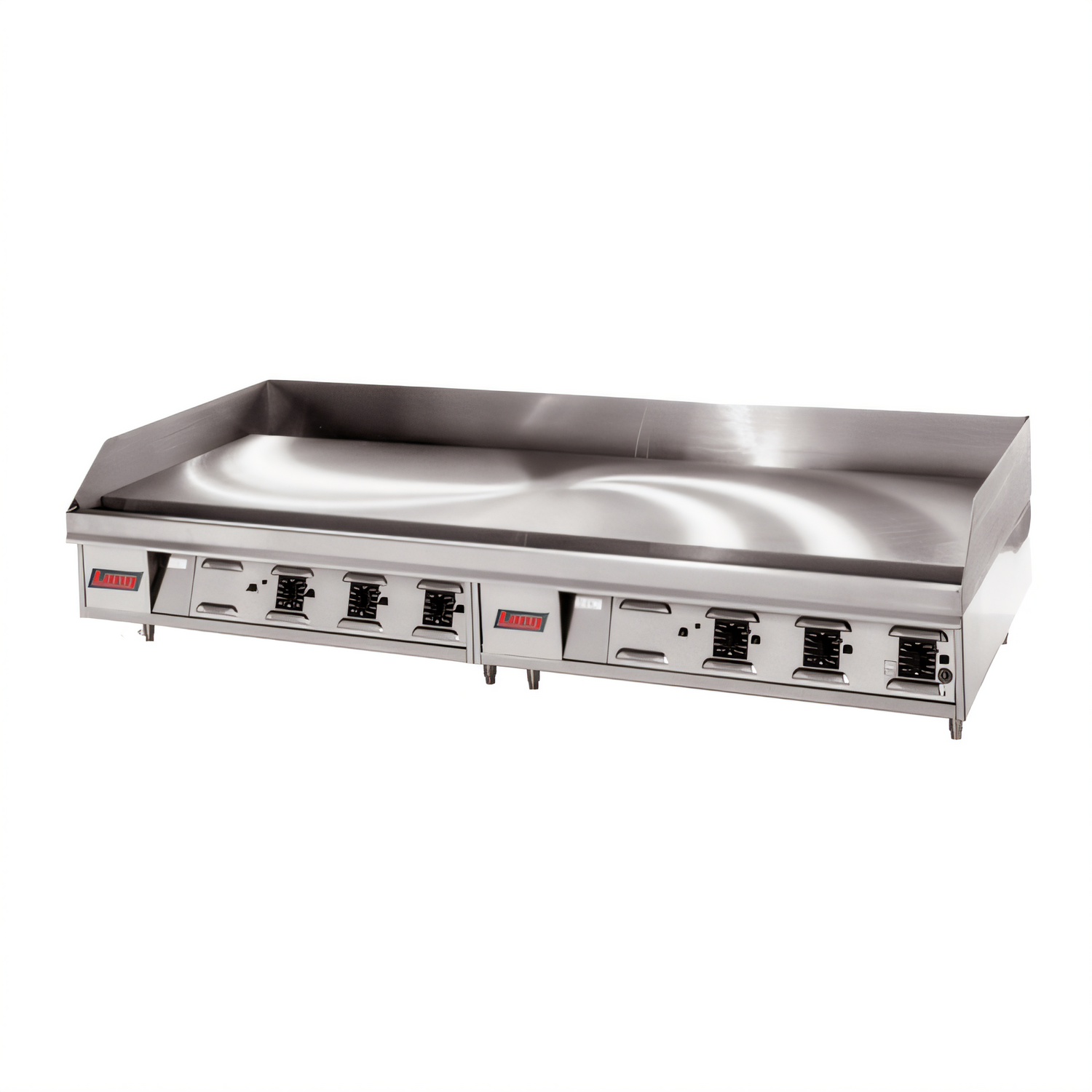

LG Series 72" Gas Countertop Griddle
Model 272T | Lang Manufacturing (Middleby)Engineered for the busiest volume lines, the 72-inch LG Series brings true production power to your countertop. A full 1" thick steel plate, six independently-controlled snap-action zones and an industry-leading 162,000 BTU output deliver the speed, recovery and precision you need for flawless pancakes at breakfast and seared proteins at dinner service—all day, every day.
Performance & Construction
- Massive 72" W × 23" D cooking surface—6 sq ft of usable plate.

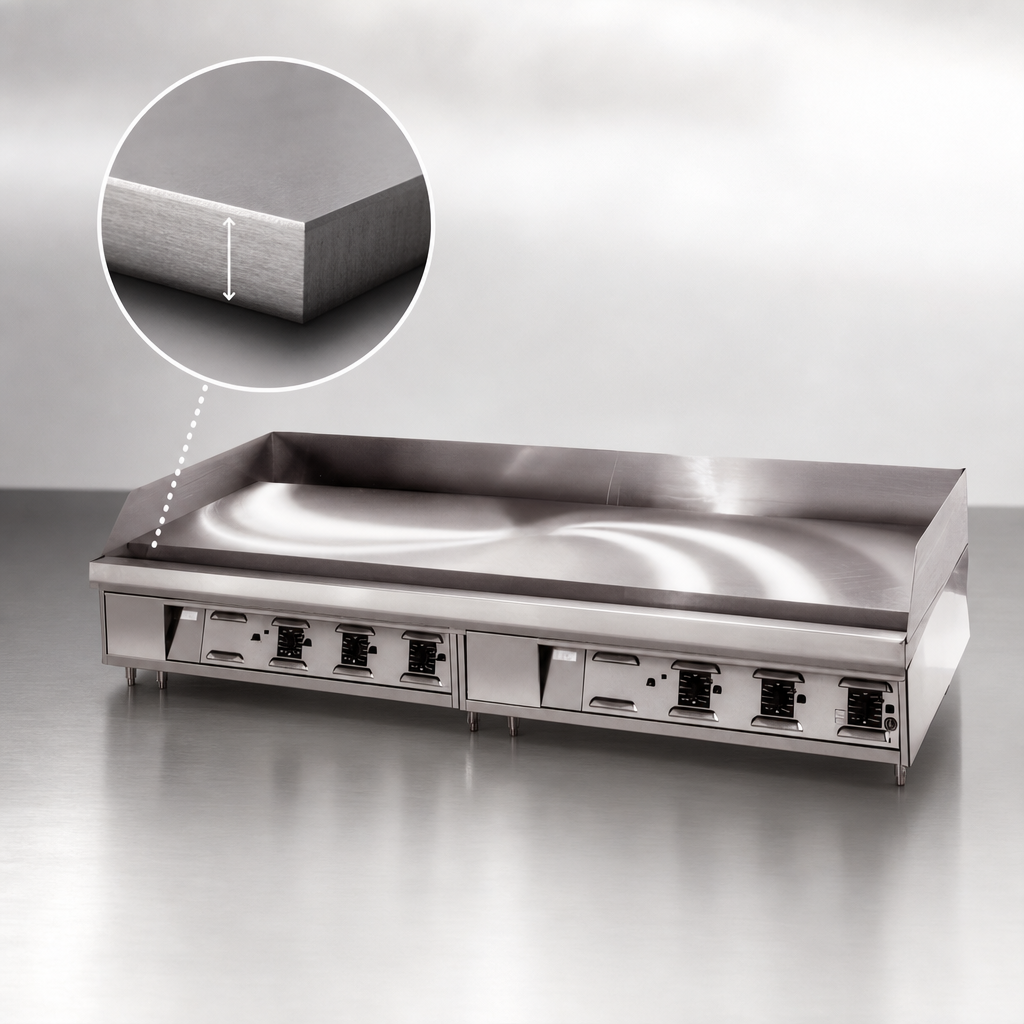

- 1" (25 mm) thick polished steel plate with sensors embedded just 3/16" from the surface for instant feedback and rapid heat recovery.

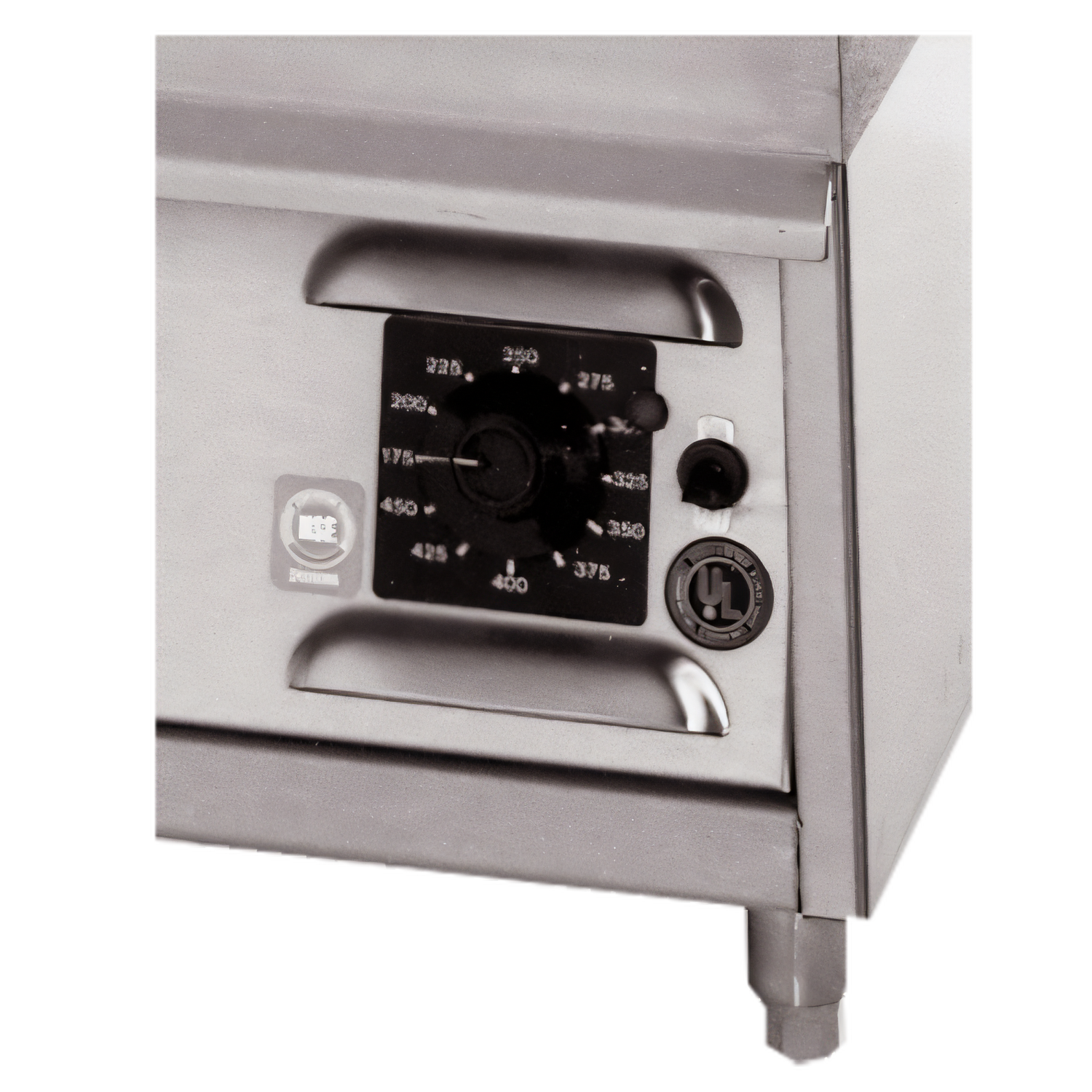

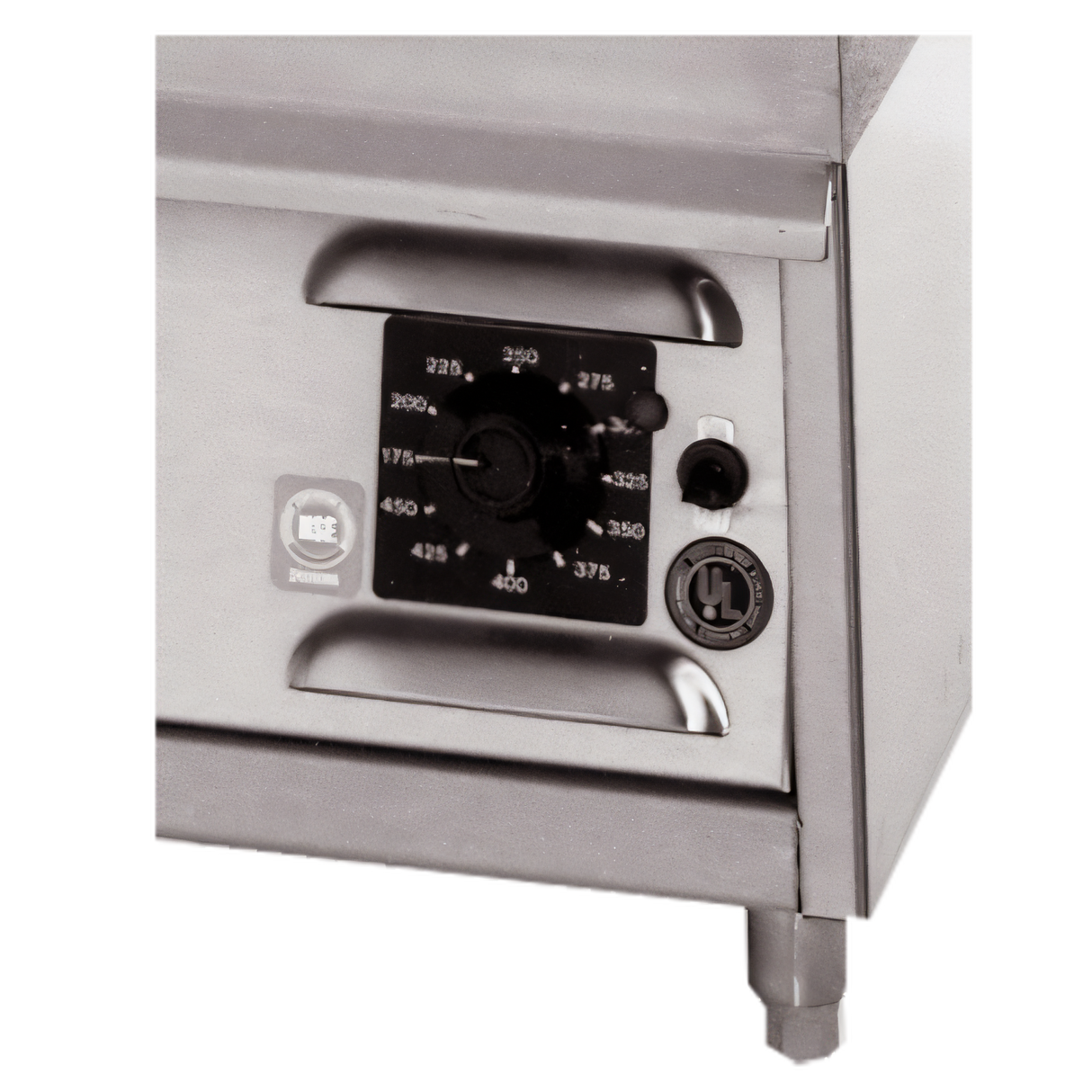

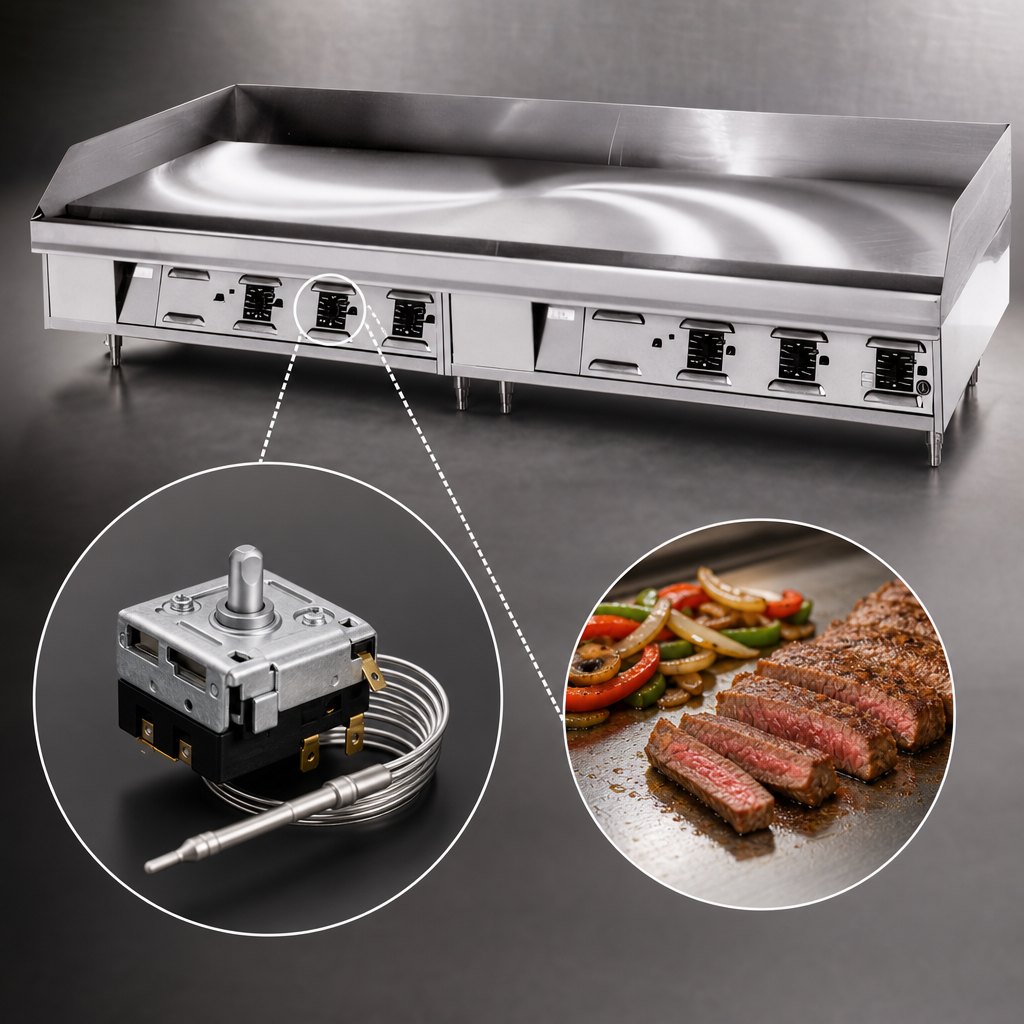

- Embedded electric snap-action thermostats (200-450 °F) cycle each 12" zone ON/OFF for ±15 °F accuracy.
- Direct-spark pilot safety—no standing pilot flame, reduced gas use, and safer operation.
- Six burners @ 27,000 BTU each = 162,000 BTU total.
- Welded steel frame clad in easy-clean stainless steel for lasting corrosion resistance.
Operator-Focused Details
- 5" tapered, wrap-around splash guard keeps grease where it belongs.
- 3 ½" wide front grease trough feeds into dual 8-qt stainless steel drawers—remove, empty, and pop back in seconds.
- 4" adjustable stainless steel legs (±1") level the unit on any prep table or equipment stand.
- Standard 120 V, 5-15P plug powers ignition & controls—no hard-wiring required.
Technical Specifications
| Cooking surface (W × D) | 72" × 23" (1,829 mm × 584 mm) |
|---|---|
| Overall dimensions (W × D × H) | 72.1" × 31.6" × 20.2" |
| Plate thickness | 1" T1 armor-grade steel |
| Heat zones | 6 – independently controlled, 12" wide each |
| Temperature range | 200 °F – 450 °F (93 °C – 232 °C) |
| Total BTU | 162,000 BTU/hr (27,000 BTU per zone) |
| Gas connection | ¾" NPT (natural gas or LP – field convertible) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Grease capacity | 2 × 8 qt slide-out drawers |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2 years parts & labor (5 yrs on optional chrome plate) |
| Shipping weight | ≈ 787 lb (357 kg) |
Popular Factory Options
- Mirror-finish chrome plate (5-year surface warranty)
- Clamshell grill hoods (one per 12") for rapid top-heat searing
- Custom grooved plate sections for char-mark presentation
- Stainless equipment stand with casters or adjustable bullet legs
Always refer to the installation manual for gas, electrical and clearance requirements. Specifications subject to change without notice.
