Lang Manufacturing (Middleby) 272S LG Series Gas Griddles
Description

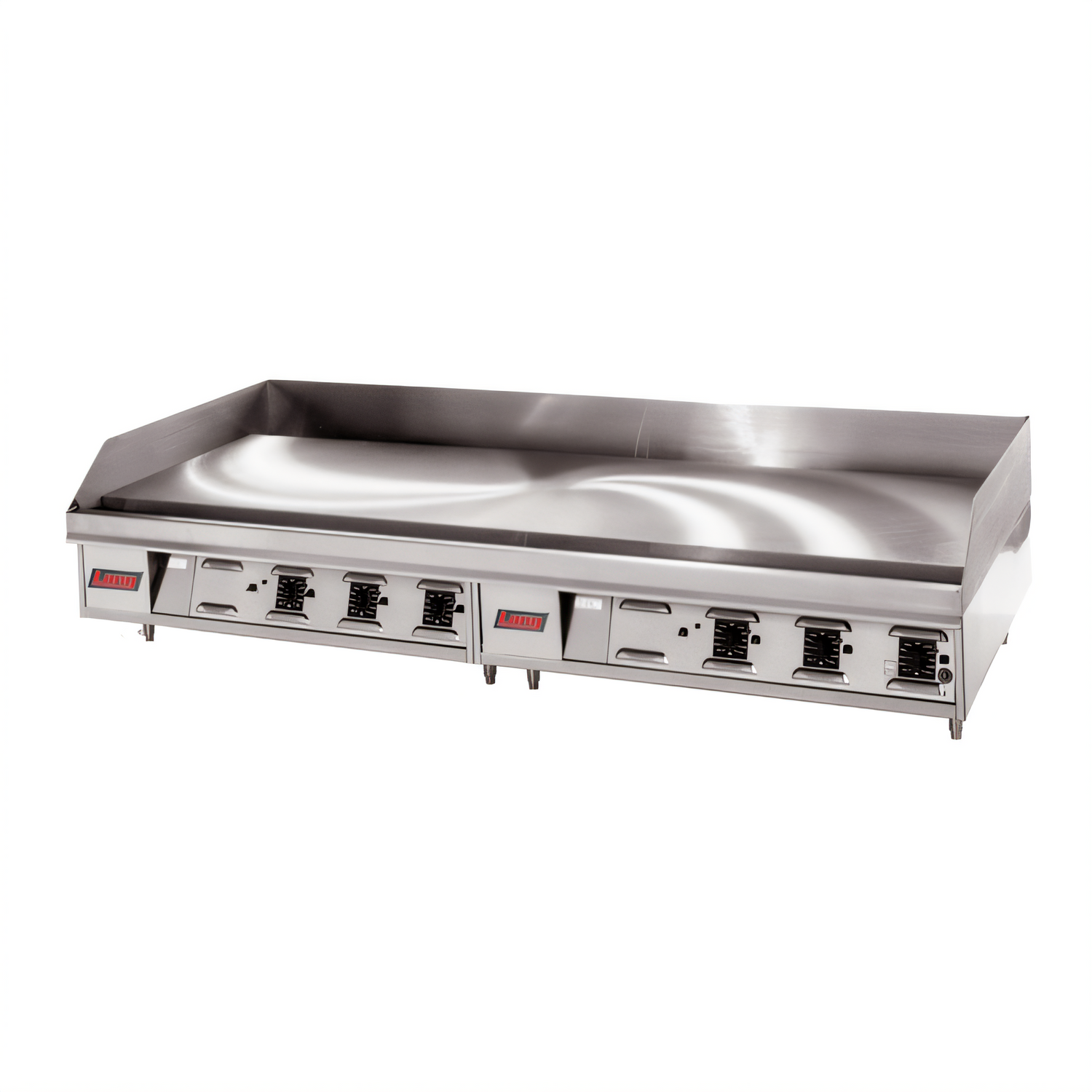

Lang LG Series 72" Gas Countertop Griddle
1" Steel Plate • Solid-State Thermostats • 162,000 BTUEngineered for volume, built for precision. Lang’s LG Series 72" griddle pairs a full-inch steel plate with six independent solid-state controls, letting you hammer through the rush while holding every zone within ±4 °F of set point.
Key Advantages

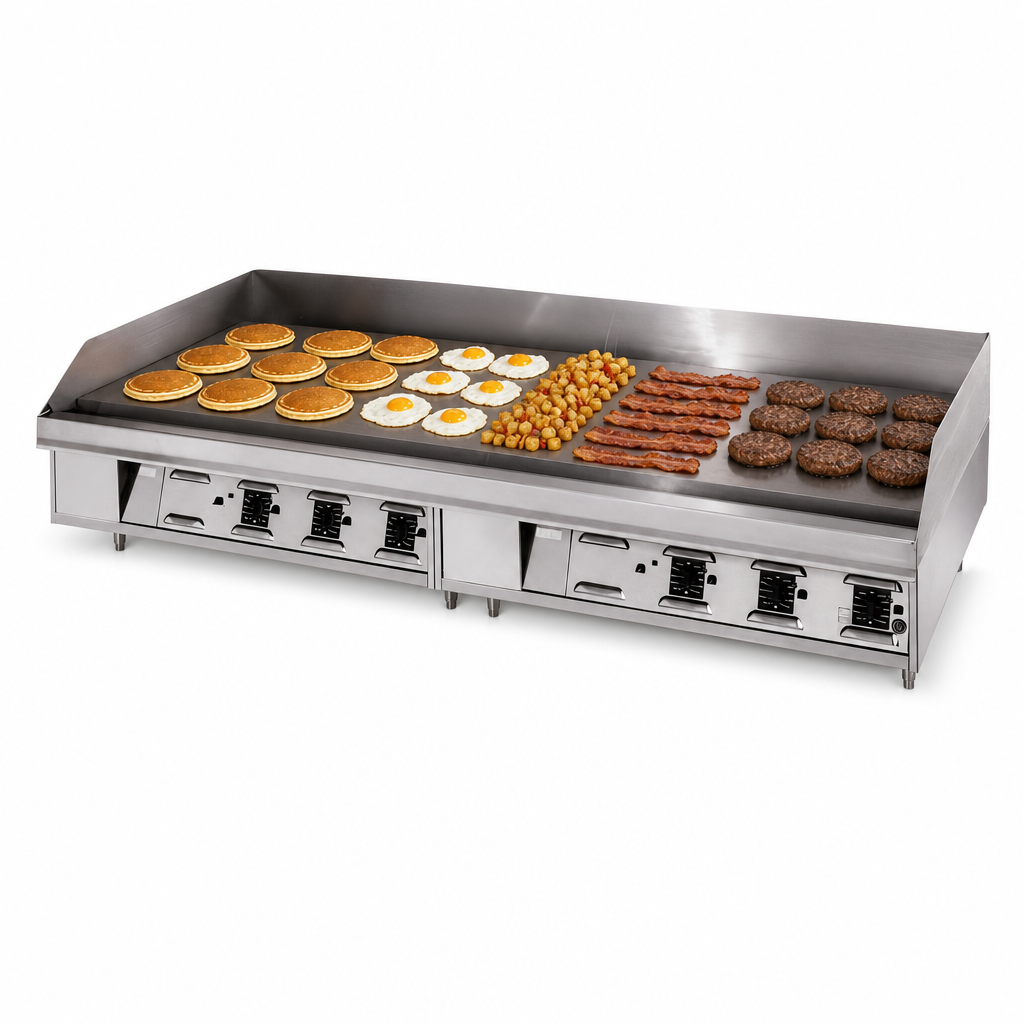

- Sprawling 72" × 23" cook surface - handle breakfast, lunch & dinner all at once

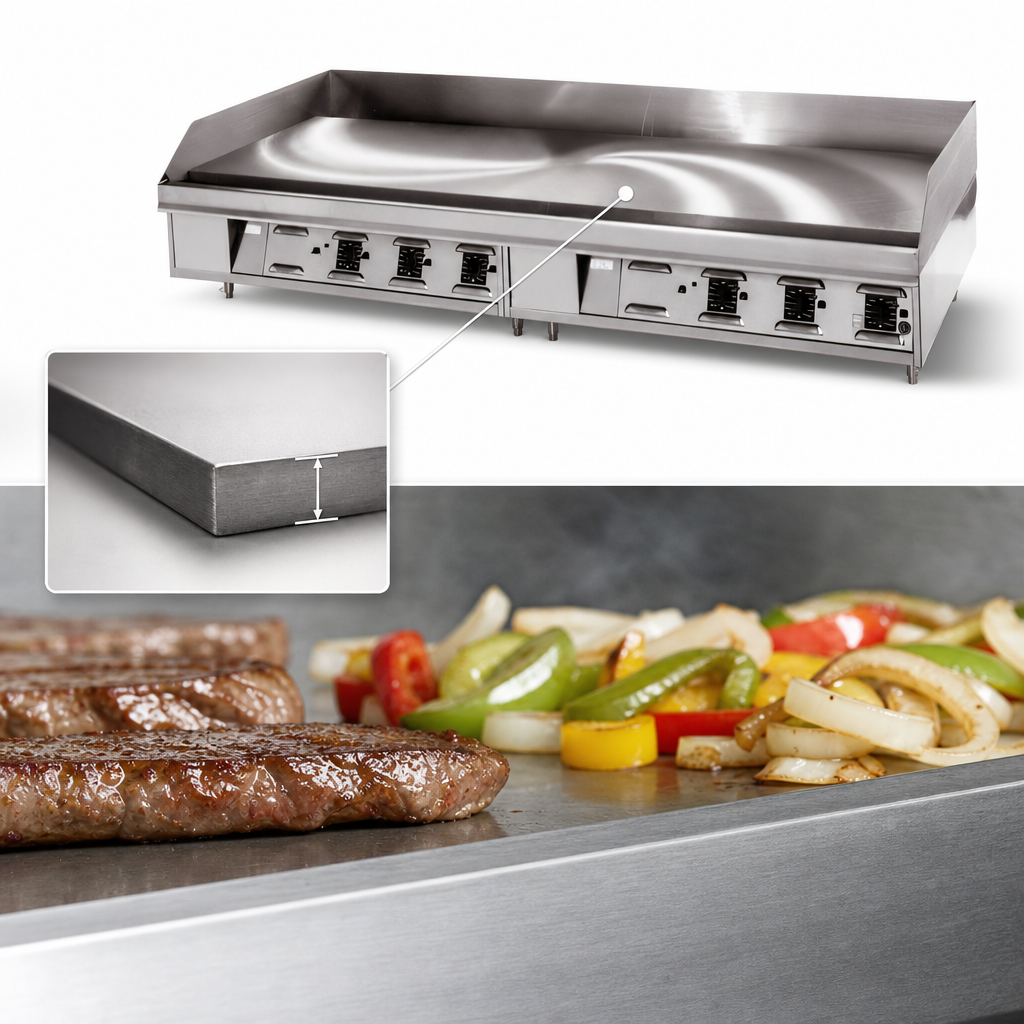

- 1" thick polished steel plate with embedded sensors ⅛" below the surface for lightning-fast recovery

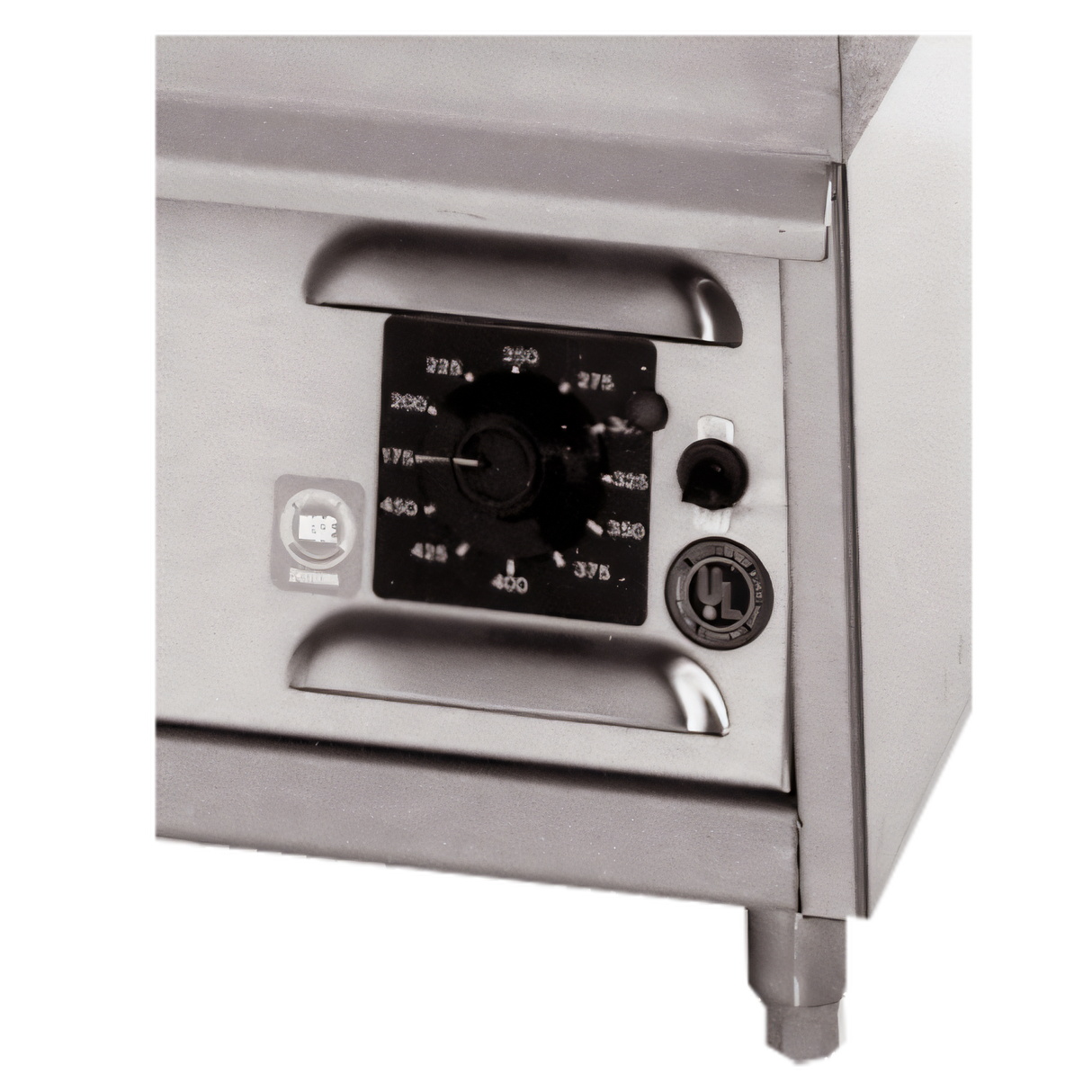

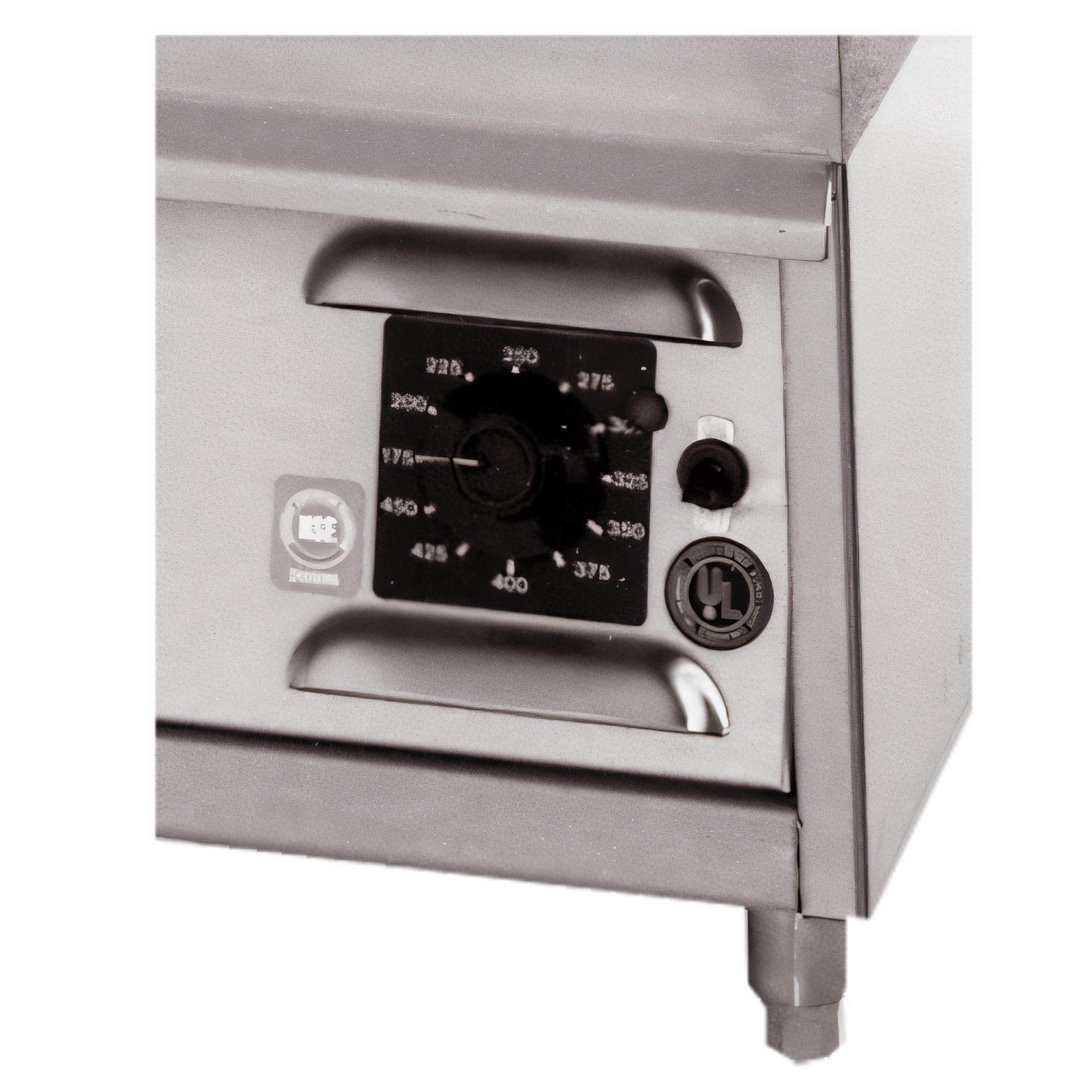

- Six solid-state thermostats, 175–450 °F (79–232 °C) accuracy ±4 °F
- Direct-spark ignition with pilot safety — no standing pilot, less wasted gas
- 162,000 BTU (27,000 BTU per 12" section) for true high-heat searing
- 5" tapered wrap-around splash guard keeps grease off adjacent equipment
- 3½" wide front trough & 8 qt stainless drawer simplify clean-up
- Welded steel frame & stainless exterior resist warping and corrosion
- Cool-touch bullnose & 4" adjustable stainless legs for safe, ergonomic operation
- Plug-and-play 120 V cord set (NEMA 5-15P) powers the controls
Performance You Can Taste
Thick-plate construction stores more heat so every burger, tortilla or pancake hits a blazing-hot surface. Embedded thermocouples feed real-time data to the solid-state controllers, cycling burners more often for steadier temps and faster recovery than mechanical systems.
Options & Upgrades
- Mirror-finish chrome plate (5-year surface warranty)
- Clamshell cooking hoods (one per 12" section)
- Custom grooved plates for char-mark presentation
- Matching stainless stand with legs or locking casters
Technical Specifications
| Cooking Surface (W × D) | 72" × 23" (1829 × 584 mm) |
|---|---|
| Plate Thickness | 1" (25 mm) polished steel |
| Heat Controls | 6 solid-state thermostats, 175–450 °F |
| Total Input | 162,000 BTU/hr (natural gas) |
| Gas Inlet | ¾" NPT, rear |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Overall Dimensions | 72.1" W × 31.6" D × 20.2" H |
| Ship / Installed Weight | 787 lb / 667 lb (357 / 303 kg) |
| Clearances | 5" sides & rear |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2-year parts & labor (5-year chrome surface, if equipped) |
Installation Notes
- Ships for natural gas; LP conversion kit available.
- Must be installed beneath a commercial ventilation hood.
Specifications subject to change without notice. Refer to the owner’s manual and local codes prior to installation.
