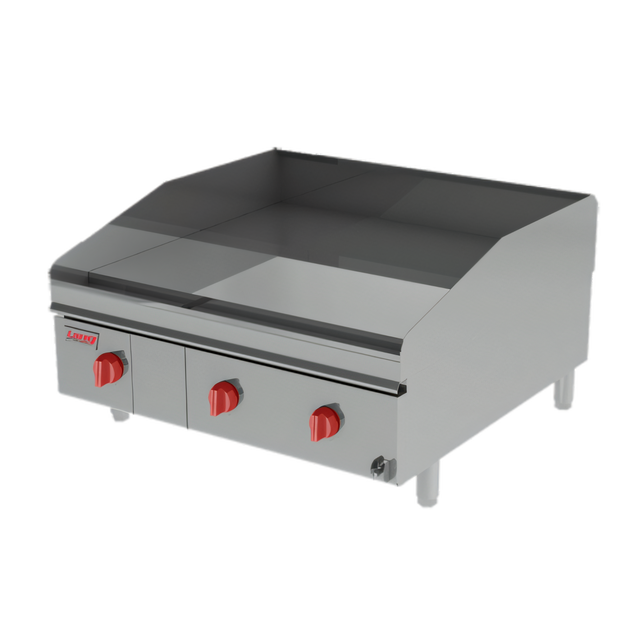

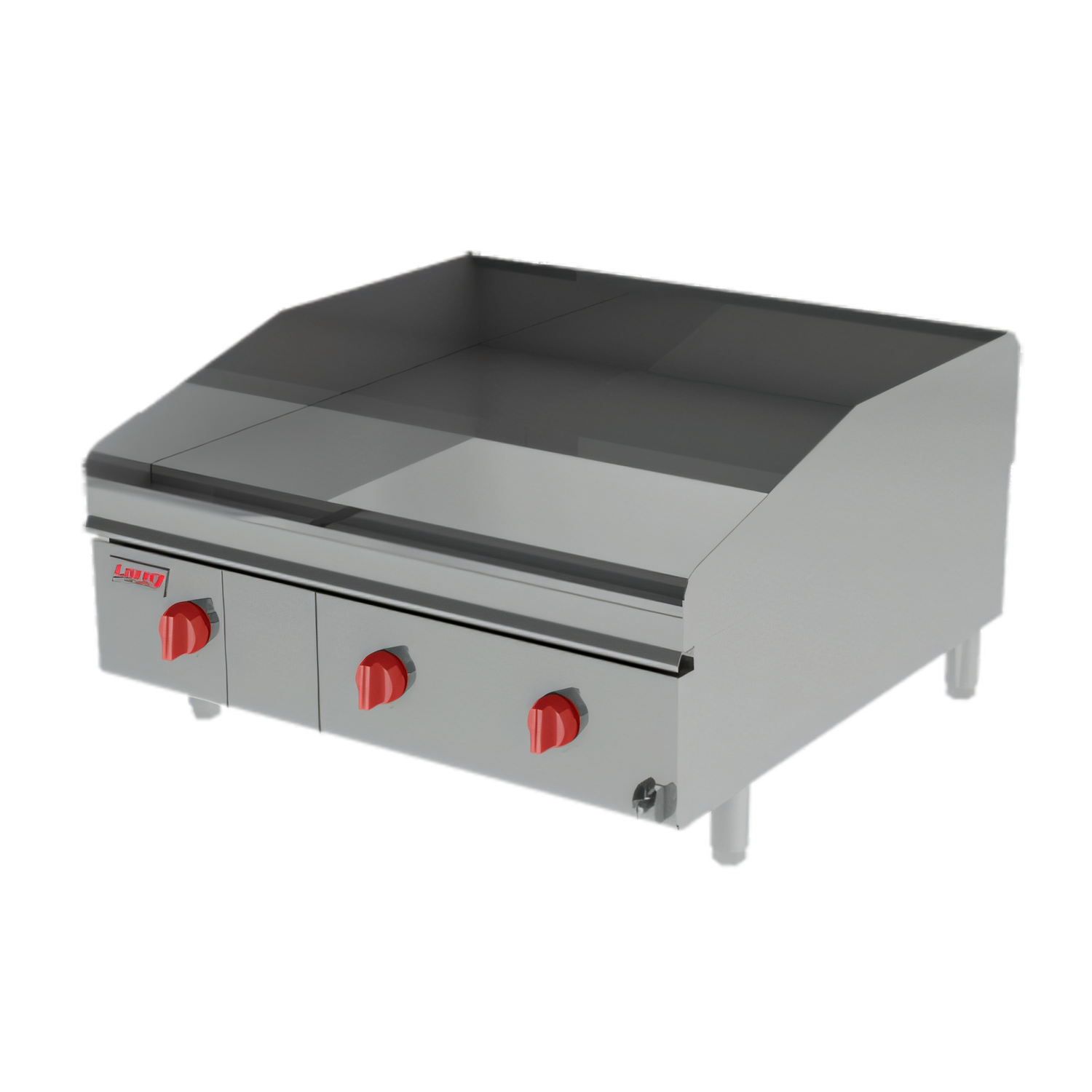

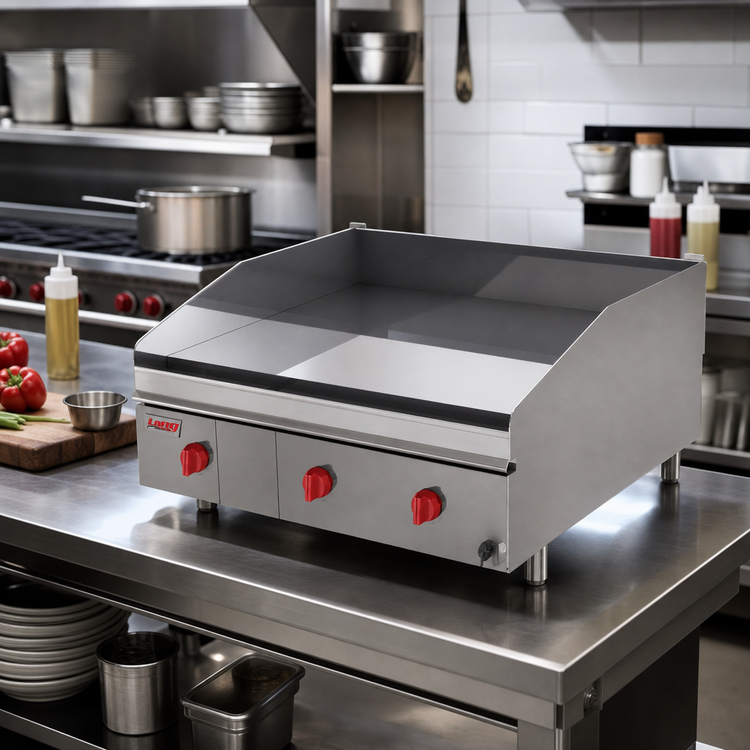

Lang LG Series 60-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Electric Snap-Action Thermostats

SKU: 260ZTDC
$29,909.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 60-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Electric Snap-Action Thermostats

60" W x 30" D Cooking Surface, 175,000 BTU, 120V/60/1-Ph

Built for high-volume cooklines, this 60-inch gas griddle pairs a chrome-plated surface with responsive embedded thermostats and easy-clean grease management.

  • 60" x 30" cooking surface gives you plenty of room for breakfast, lunch, and dinner service.
  • 1" chrome griddle plate helps improve release, simplify cleanup, and reduce flavor transfer.
  • Embedded electric snap-action thermostats provide responsive temperature control.
  • 175,000 BTU output supports fast recovery and demanding commercial use.
  • 5" tapered wrap-around splash guard, front grease trough, and 8 qt. grease drawer help contain mess.
  • Stainless steel exterior and adjustable stainless steel legs are built for busy kitchens.
  • 120V power with NEMA 5-15P connection supports the thermostat and pilot safety system.

Overall Dimensions:

60.0"W x 37.25"D x 16.5"H

Product Weight:

870.0 lb

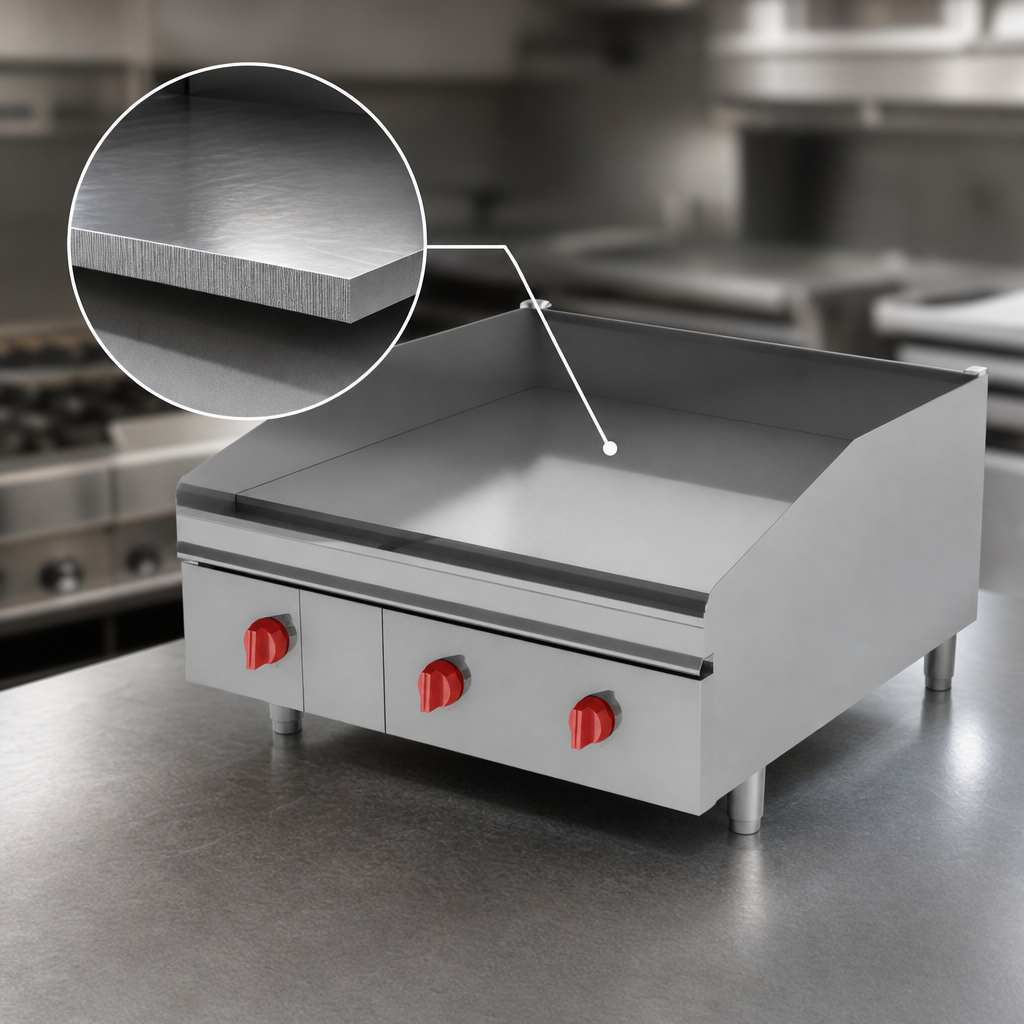

1-Inch Chrome Griddle Plate

Heavy-duty chrome surface delivers excellent food release, faster cleanup, and reduced flavor transfer.

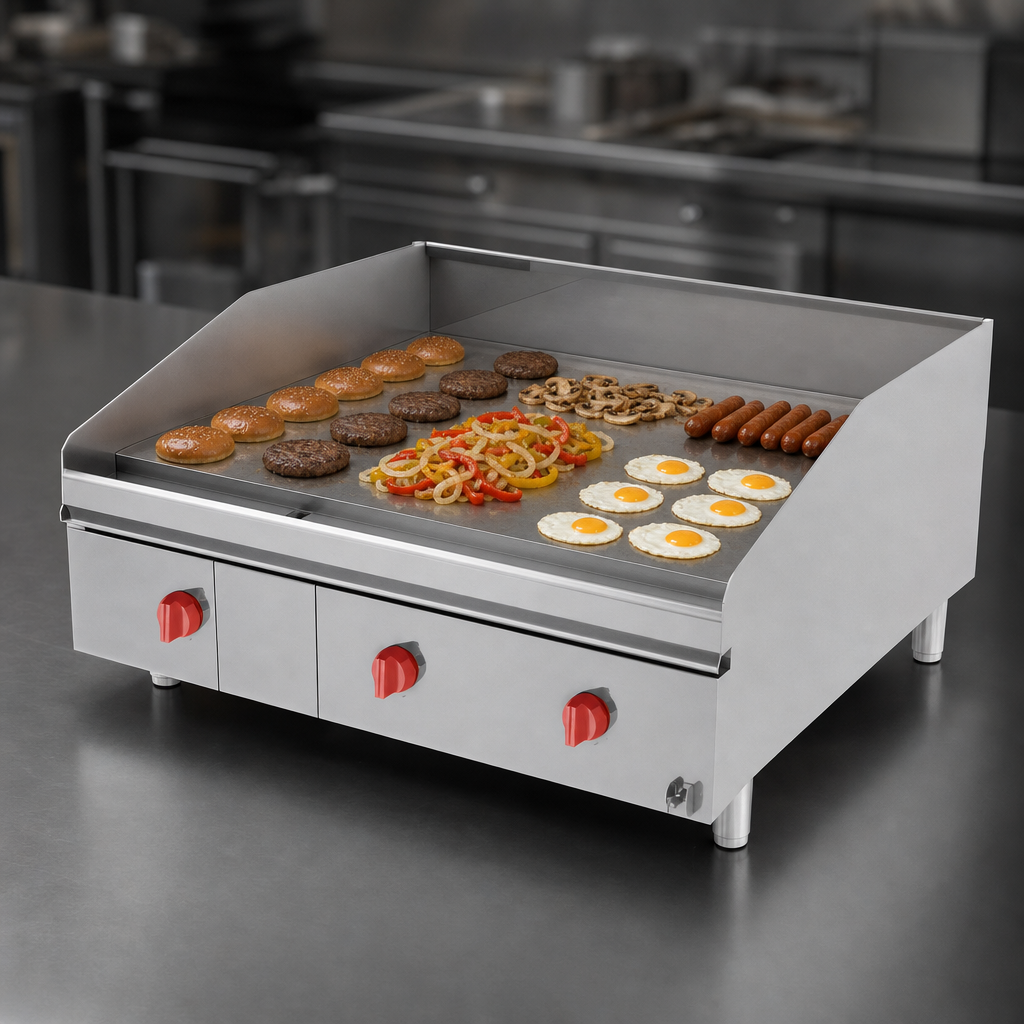

60" x 30" Cooking Surface

Large cooking area is suited to high-volume production and multi-item service.

Embedded Electric Snap-Action Thermostats

Thermostats are embedded in the plate for faster response and more consistent temperature control.

Pilot Safety

Built-in pilot safety adds burner control and requires electric power.

175,000 BTU Output

High heat output supports rapid recovery during peak service periods.

Stainless Steel Exterior

All-stainless exterior provides a durable, professional finish for commercial kitchens.

Grease Management System

Includes a 3-1/2" front grease trough and 8 qt. stainless steel grease drawer for easier cleanup.

Adjustable Stainless Steel Legs

4" legs with 1-5/8" adjustment help with leveling and installation.

Type Griddle
Installation Type Countertop
Cooking Surface Width 60 Inches
Cooking Surface Depth 30 Inches
Controls Embedded Electric Snap-Action Thermostats
Temperature Range 220°F - 550°F
BTU 175,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Stainless Steel
Finish Chrome Plated
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 870 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor; 5-year chrome surface coverage against peeling.

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle has a 60-inch wide by 30-inch deep cooking surface.
It uses a 1-inch thick chrome griddle plate.
The embedded electric snap-action thermostats are rated for 220°F to 550°F.
It includes a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer.
The unit is listed at 120V/60Hz/1-phase and uses a NEMA 5-15P plug.
Lang griddles carry a 2-year parts and labor warranty, and chrome griddle surfaces are covered for 5 years against peeling.
