Lang Manufacturing (Middleby) 260ZSDC LG Series Gas Griddles
Description

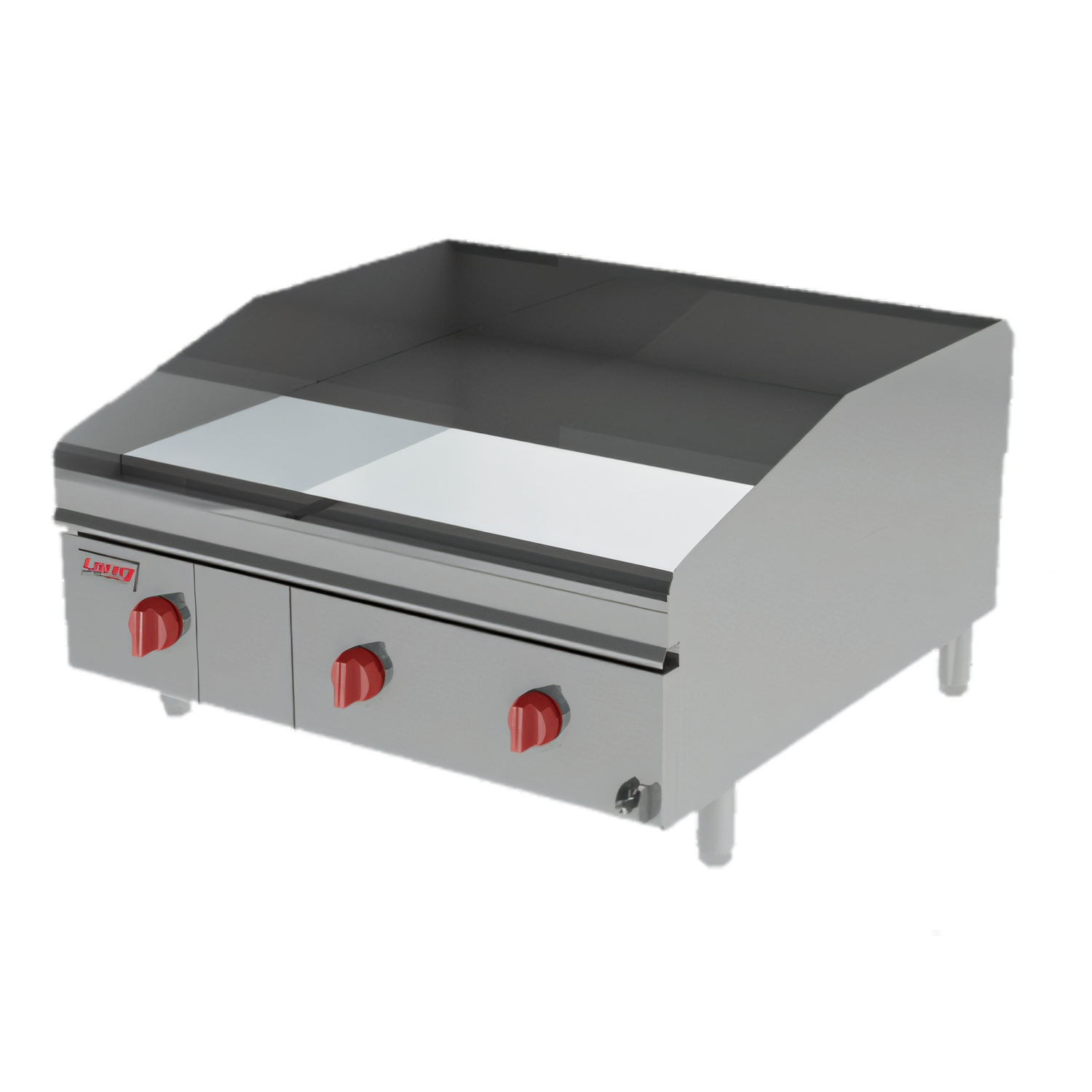

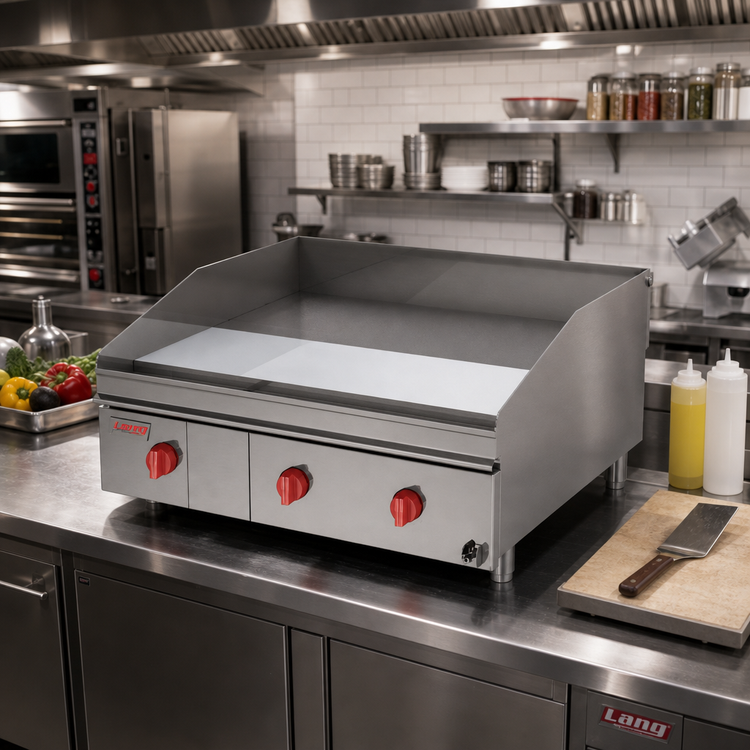

Lang LG Series 60" Gas Countertop Chrome Griddle
Model 260ZSD | Extra-deep 30" plate | 175,000 BTUEngineered for high-volume, multi-menu operations, the Lang LG Series 60" chrome griddle combines a massive 1,800 in² cooking surface with true solid-state precision. Five independent 12" zones react within ±4 °F, so every burger, pancake or steak hits the plate exactly as intended — even during peak rush.
Key Features & Benefits

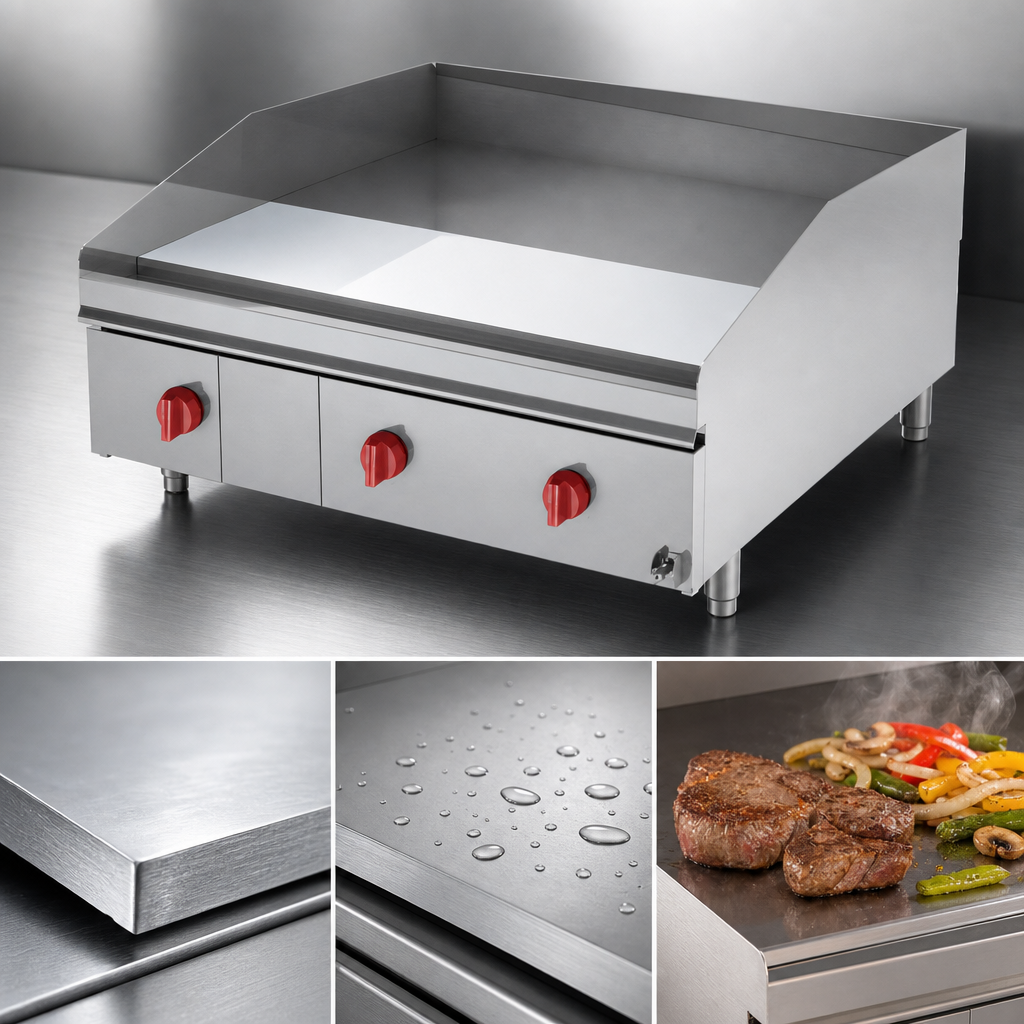

- 1" thick T1 armor-grade steel plate, clad with 2 mil hexavalent chrome for ultra-fast cleanup and 5-year surface warranty

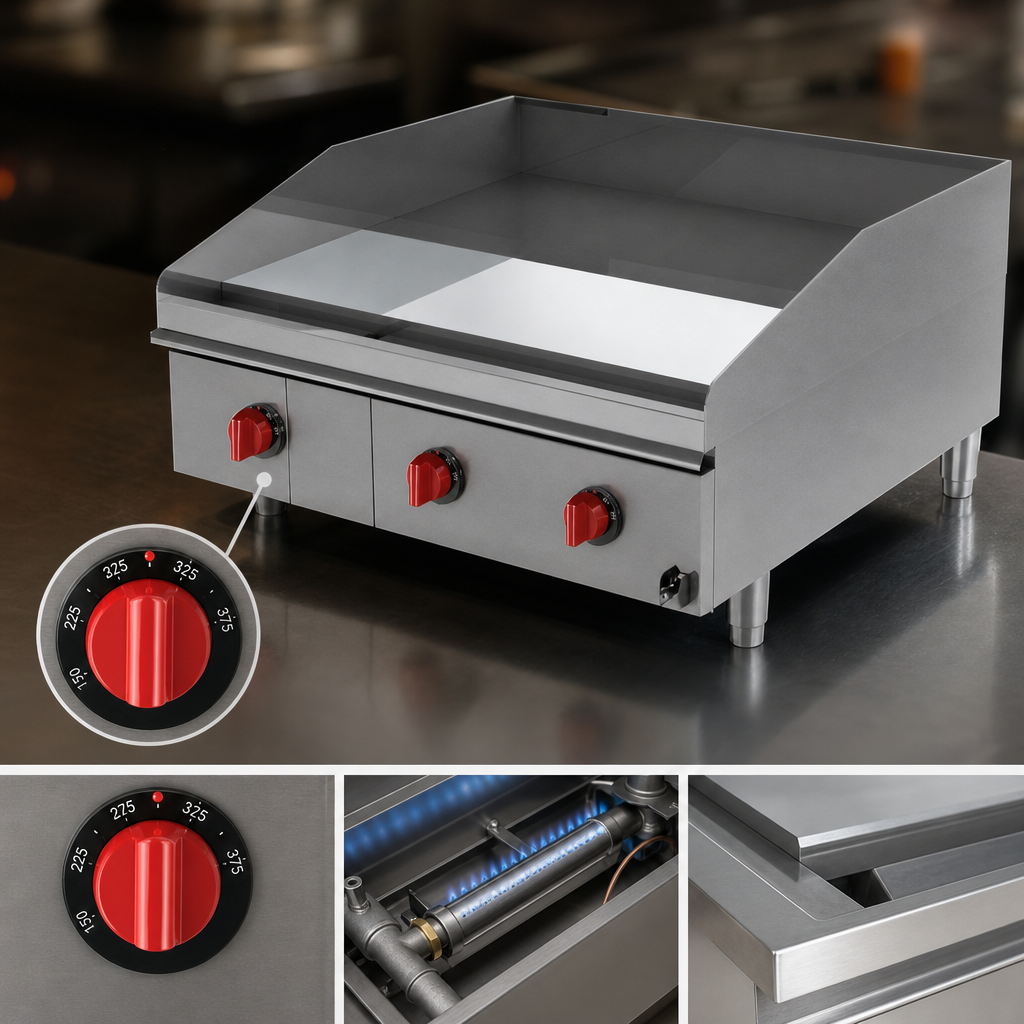

- Five solid-state controlled zones (175–450 °F) with embedded RTD sensors – accuracy ±4 °F
- Direct-spark ignition with pilot safety – eliminates standing pilot, reduces energy & increases safety
- 30" extra-deep plate delivers up to 25 % more cook area than standard depth units
- 5" welded, wrap-around splash guard keeps grease & debris off adjacent equipment
- 3-1/2" wide front trough funnels drippings to an 8 qt. stainless grease drawer for quick turns
- Double-wall stainless body & welded steel frame stand up to continuous commercial duty
- 4" stainless legs with 1-5/8" height adjustment simplify leveling on any counter
- cETLus & ETL-Sanitation listed – built to meet today’s strictest code requirements
- Backed by Lang’s 3-year parts & labor warranty for worry-free ownership
Performance at a Glance
| Cooking surface | 60" W × 30" D (1,800 in²) |
|---|---|
| Zones / burners | 5 zones / 5 burners |
| Plate material | 1" polished chrome over T1 steel |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| Thermostat type | Solid-state; embedded RTD ±4 °F |
| Total gas input | 175,000 BTU/hr | 3/4" NPT connection |
| Electrical | 120 V / 60 Hz / 1-ph • 2 A • NEMA 5-15P cord & plug |
| Overall size (H×W×D) | 17" × 60.1" × 30.4" (without legs) |
| Net weight | ≈ 556 lb / 253 kg |
| Certifications | cETLus, ETL-Sanitation |
Perfect For
- Breakfast-heavy diners and family restaurants
- High-volume quick-service production lines
- Hotel, casino & resort banquet kitchens
- Commissaries and ghost-kitchen build-outs where throughput & cleanup speed are critical
Ask about flexible equipment financing to turn this powerhouse into low, predictable monthly payments.
