Lang Manufacturing (Middleby) 260ZSD LG Series Gas Griddles
Description

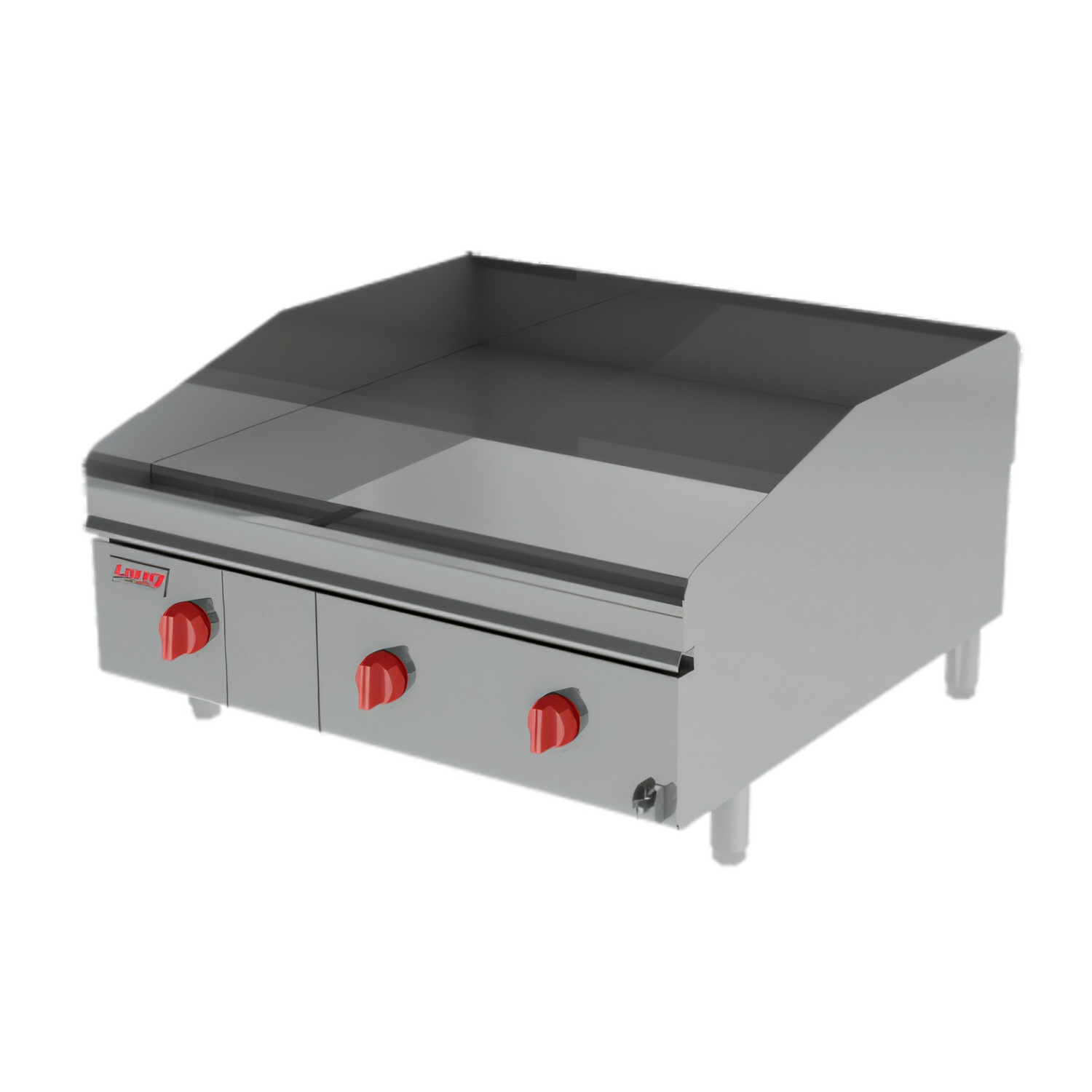

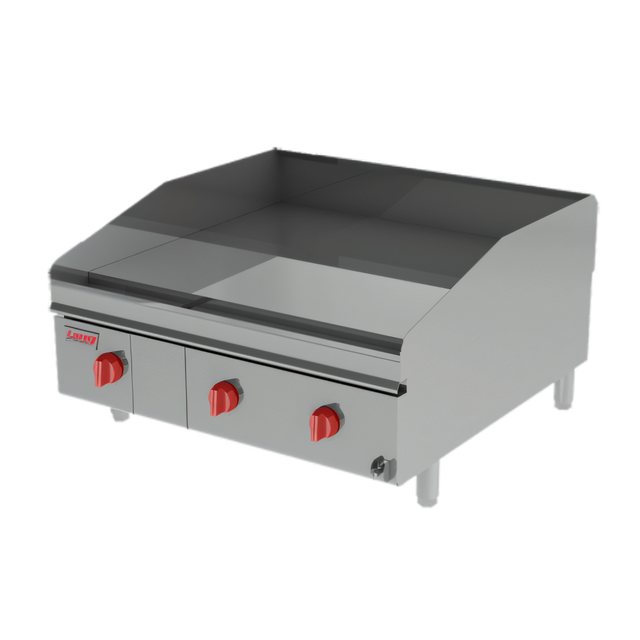

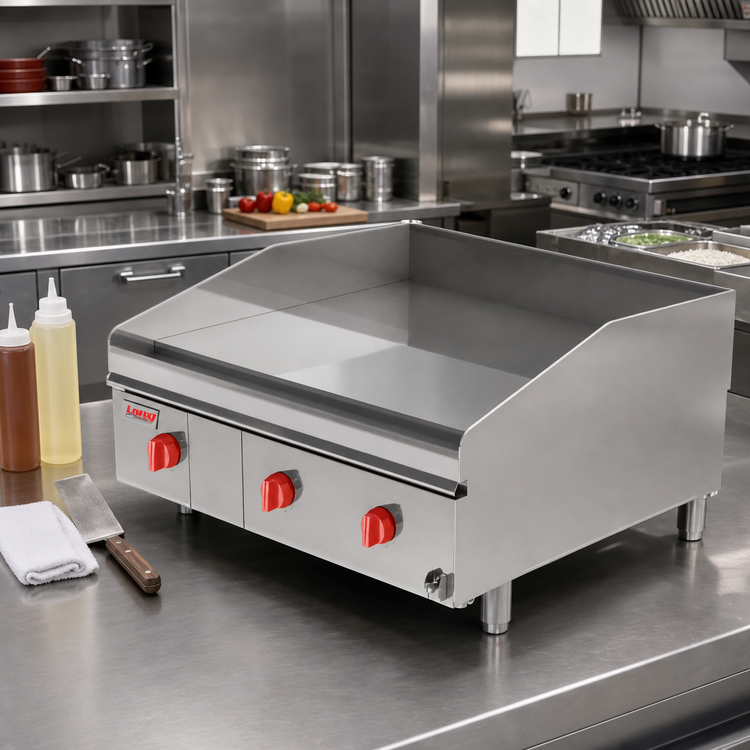

Lang LG Series 60" Extra-Deep Countertop Gas Griddle
1" Smooth Steel Plate • Solid-State Thermostats • 175,000 BTUTackle demanding breakfast, lunch and dinner rushes with the muscle of the Lang LG Series. Its heavy, precision-machined plate and ultra-accurate controls deliver repeatable results shift after shift, while thoughtful grease management and all-stainless exteriors keep the clean-up crew smiling.
Key Performance Benefits
- Expansive 60" W × 30" D (1,800 in²) cooking surface maximizes production capacity.

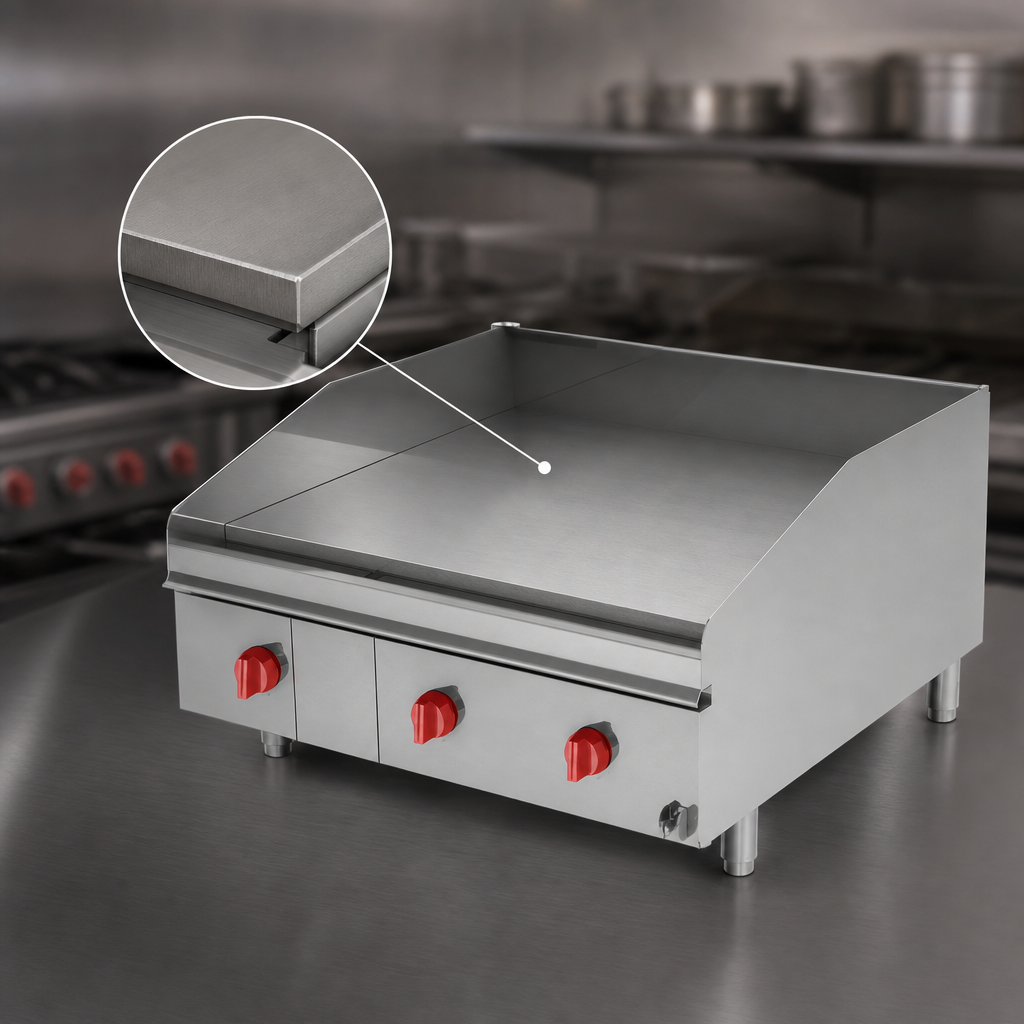

- Full 1" thick steel plate delivers rapid heat recovery and eliminates hot/cold zones.

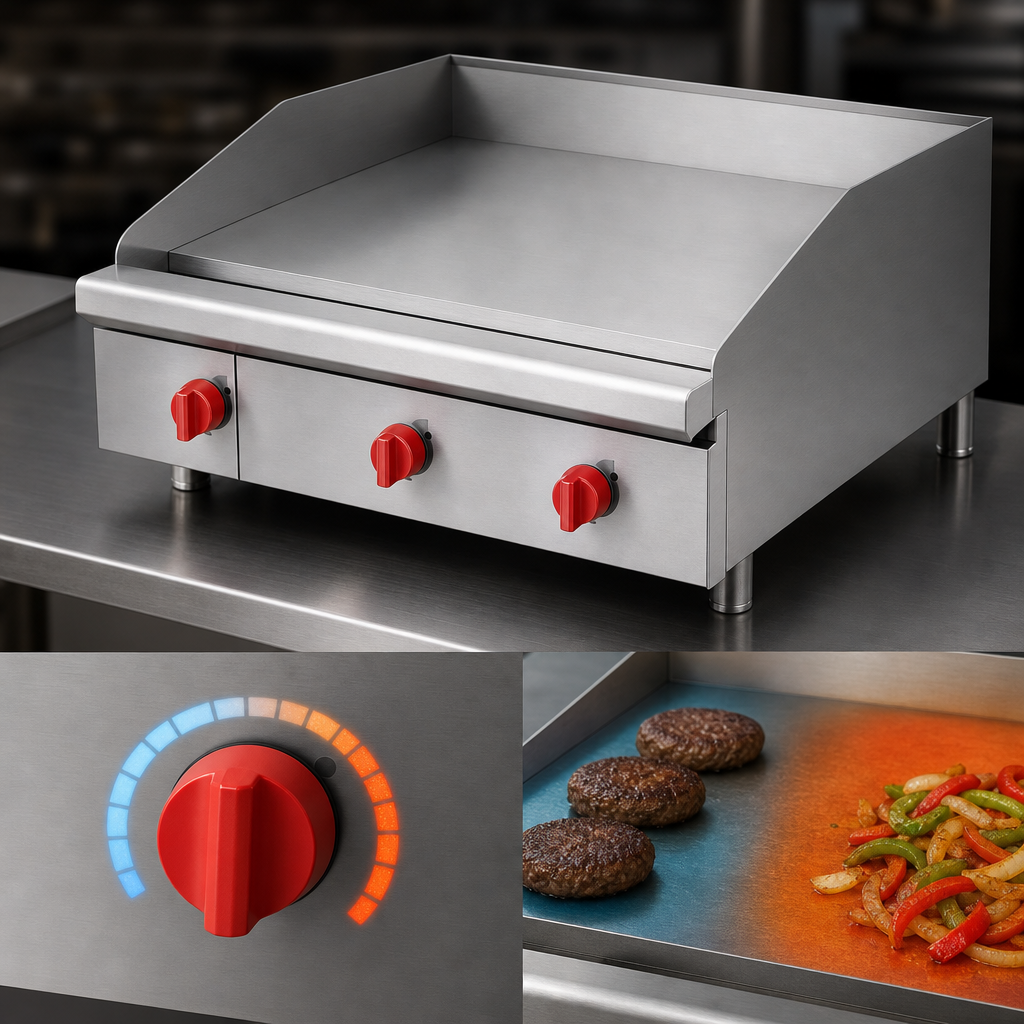

- Solid-state thermostats (175–450 °F) hold set temps within ±4 °F for consistent cooking.
- 5" tapered, wrap-around splash guard contains splatter on all sides.
- 3-1/2" wide front trough channels grease to an 8 qt. stainless drawer for quick, mess-free disposal.
- Welded steel frame with stainless exterior stands up to harsh commercial kitchens.
- 4" adjustable stainless legs (1-5/8" range) allow easy leveling on any counter.
- High-efficiency, aluminized burners every 12" spread 175,000 BTU of even heat.
- Ships with 120 V cord & NEMA 5-15P plug—no separate power drop required for controls.
- cETLus & ETL-Sanitation listed and backed by Lang’s 3-year parts & labor warranty.
Technical Specifications
| Model | LG Series 60" Gas Countertop Griddle |
|---|---|
| Cooking Surface | 60" W × 30" D (1524 mm × 762 mm) |
| Plate Thickness | 1" smooth steel |
| Temperature Range | 175 – 450 °F (79 – 232 °C) |
| Controls | Solid-state thermostats with pilot safety (one per 12" section) |
| Total Gas Input | 175,000 BTU/hr (Natural or Propane – specify) |
| Gas Connection | 3/4" NPT rear connection |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Grease Management | 3-1/2" trough + 8 qt stainless drawer |
| Splash Guard | 5" tapered, wrap-around (welded) |
| Legs | 4" stainless, 1-5/8" adjustable |
| Certifications | cETLus, ETL-Sanitation |
