Lang Manufacturing (Middleby) 260TC LG Series Gas Griddles
$24,927.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Lang Manufacturing (Middleby) 260TC LG Series Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) 260TC LG Series Gas Griddles
$24,927.00
Unit price
/
Unavailable
Description

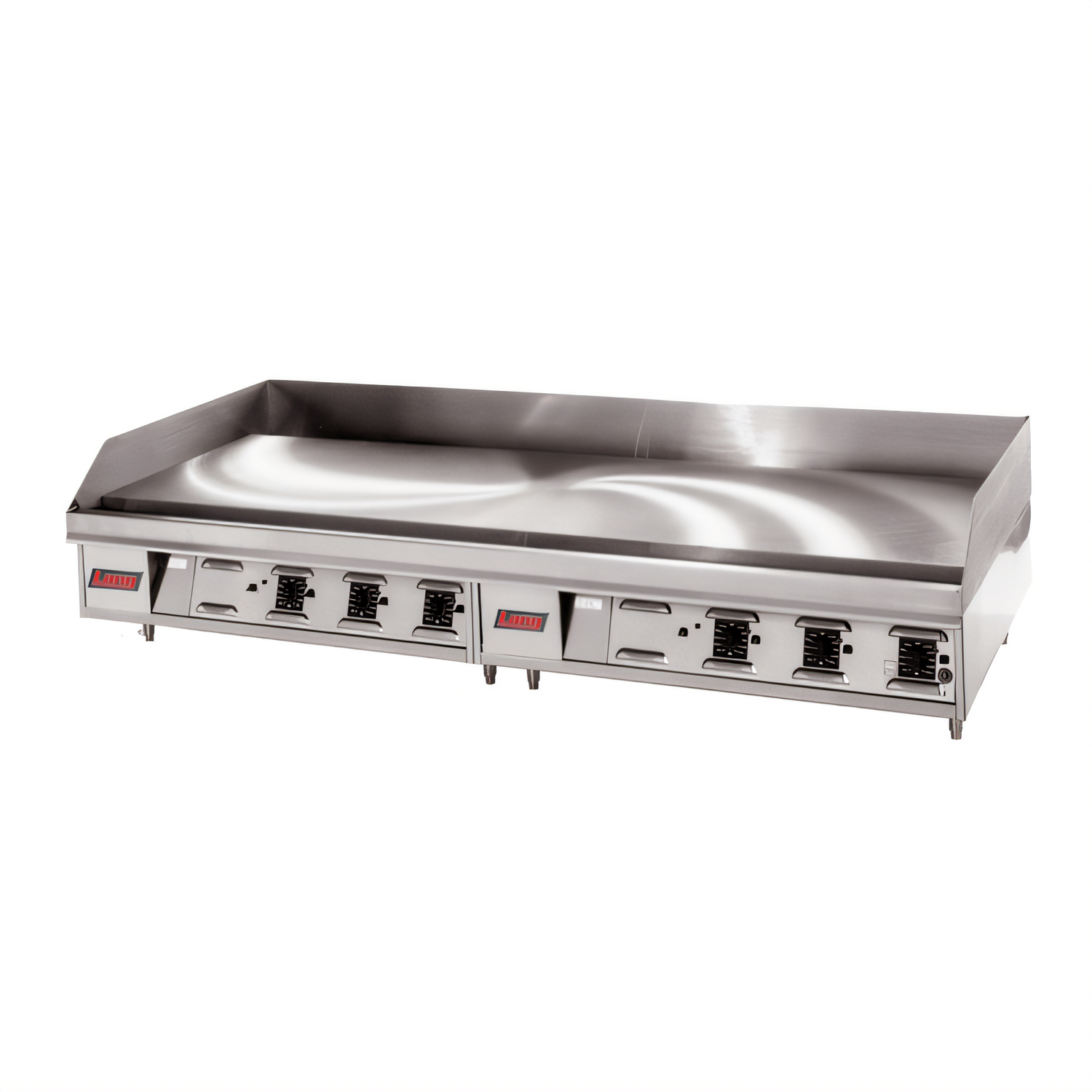

Lang LG Series 60" Gas Countertop Griddle – Chrome Plate
Model 260TC | 135,000 BTU | NSF & UL ListedBuilt for serious volume and precision, the Lang LG Series 60" chrome-plate griddle delivers lightning-fast recovery, pinpoint temperature accuracy, and effortless cleanup—all in a compact, countertop footprint.
Why You’ll Love It

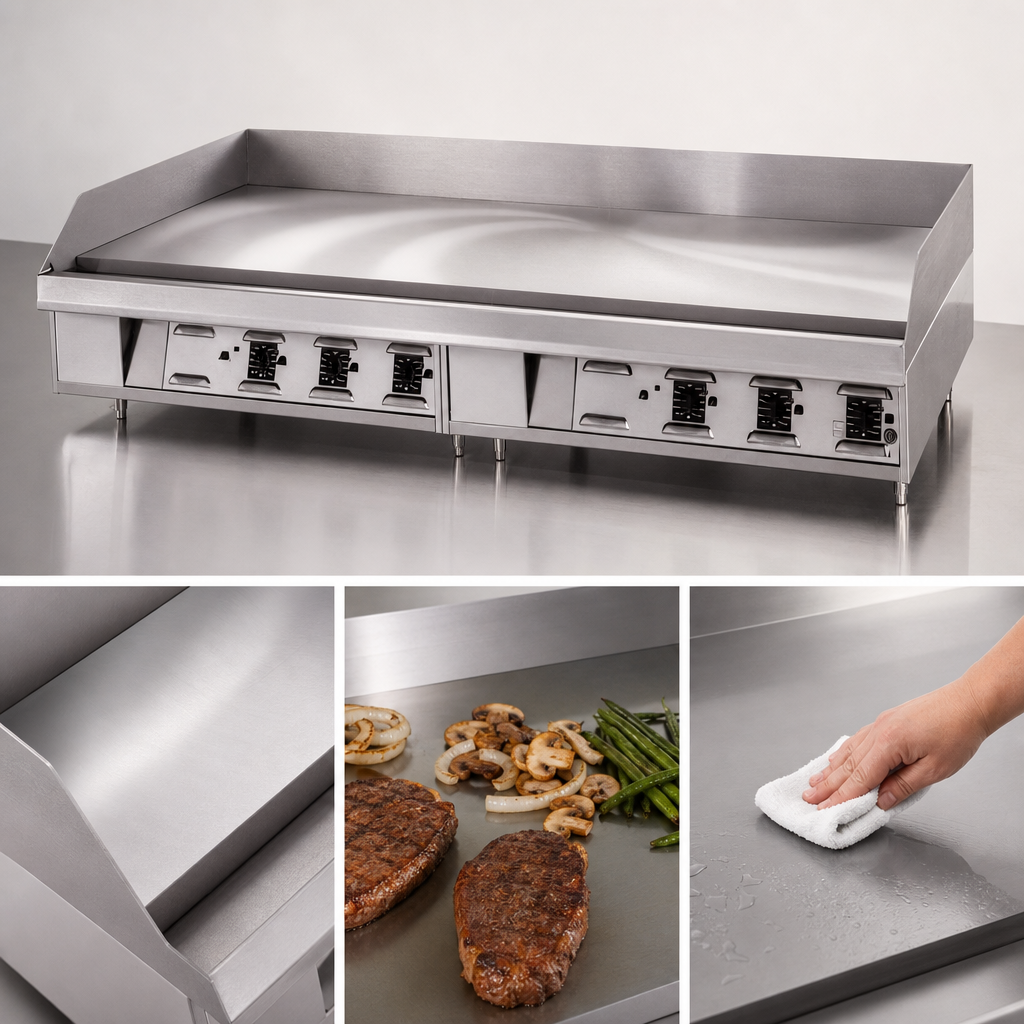

- 1" thick chrome plate retains heat, cleans fast, and carries a 5-year no-peel warranty.
- Embedded electric snap-action thermostats (200–450 °F) react within seconds for consistent results across the entire 60" surface.
- 135,000 BTU burner system with direct-spark ignition—no standing pilots means lower energy use and added safety.
- 23" deep cook zone lets you stage more product without enlarging your cookline.
- 5" wrap-around splash guard plus a 3 ½" wide trough keep grease where it belongs.
- 8 qt. front-mount stainless drawer slides out for quick, mess-free disposal.
- Rugged build: welded steel frame, stainless exterior, and 4" adjustable legs for easy leveling.
- Independent 12" zones give you the versatility to sear, hold, and finish different menu items simultaneously.
Technical Specs

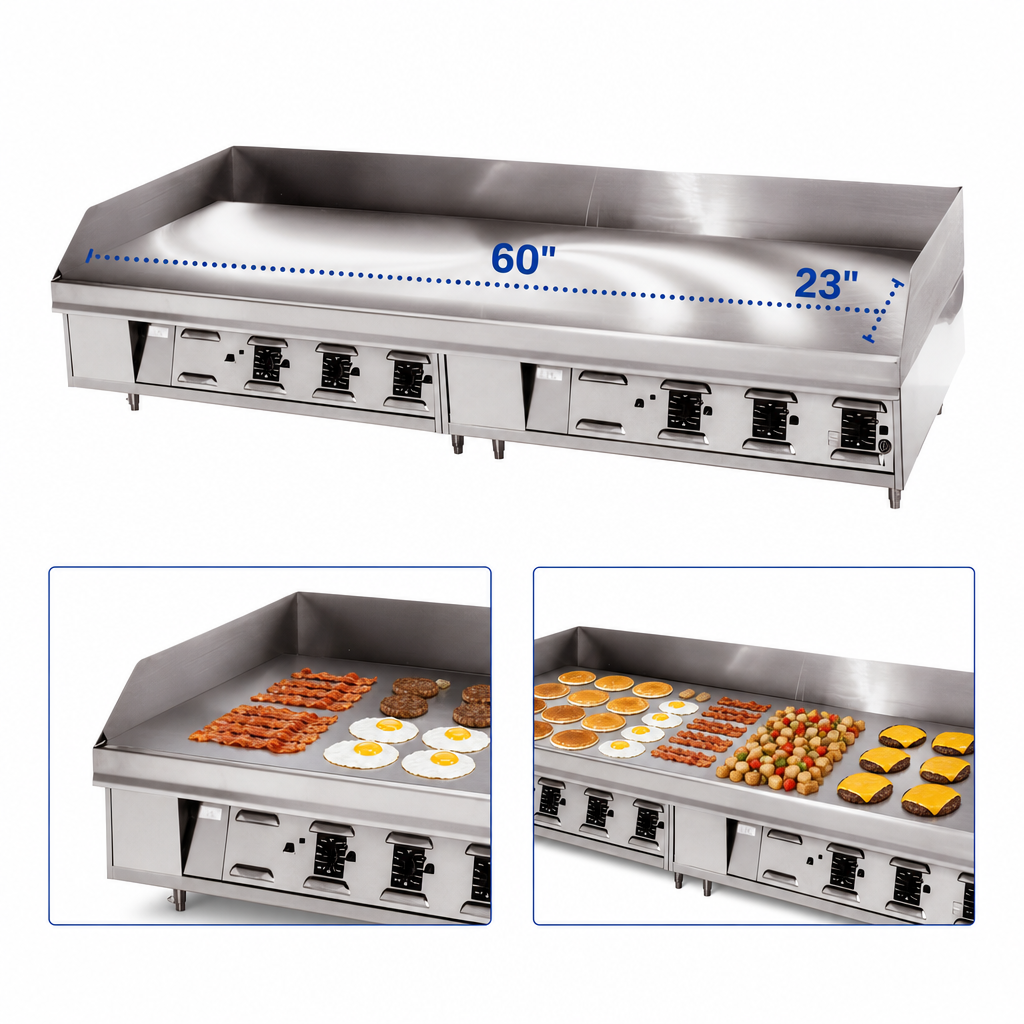

| Cooking surface | 60" W × 23" D (1,520 × 584 mm) |
|---|---|
| Overall dimensions | 60.1" W × 31.6" D × 20.2" H (1,526 × 803 × 513 mm) |
| Plate thickness / material | 1" T1 armor-grade steel, hexavalent chrome finish |
| Heat source | Natural or LP gas, 135,000 BTU/hr |
| Temperature range | 200–450 °F (93–232 °C) |
| Controls | Five embedded snap-action thermostats (one per 12" zone) with pilot safety |
| Grease management | 3 ½" wide front trough & 8 qt. stainless drawer |
| Gas connection | ¾" NPT rear connection (field convertible NG/LP) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P factory-wired plug |
| Shipping / installed weight | 656 lb. ship | 556 lb. installed (298 / 252 kg) |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2 years parts & labor + 5 years on chrome surface (against peeling) |
Popular Add-Ons (sold separately)
- Stainless equipment stand with shelves or casters
- Custom grooved plate sections (12" or 24" widths)
- Clamshell hood(s) for increased throughput
Installation requirement: Maintain 5" clearance on both sides and rear for safe operation and service access.
Professional connection to gas and electric utilities is strongly recommended.
Need flexible payments? Middleby Equipment Financing can turn the full purchase into predictable monthly instalments—ask your sales rep for details.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Brand_name
LG Series
Certifications
cULus, UL EPH
Height
16.4in
Width
60.0in
Depth
30.4in
Shipping Weight
635.0lbs
Cooking Surface Depth (front - back)
20" - 23"
Controls
thermostat / solid state controls
Cooking Surface Width (side - side)
55" - 60"
Griddle Plate Finish
chrome plated
Exterior Finish
all stainless steel exterior
Plate Thickness
1"
Specifications
LG Series Griddle, countertop, gas, 60"W x 23"D cooking surface, 1" thick chrome griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 135,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
