Lang Manufacturing (Middleby)

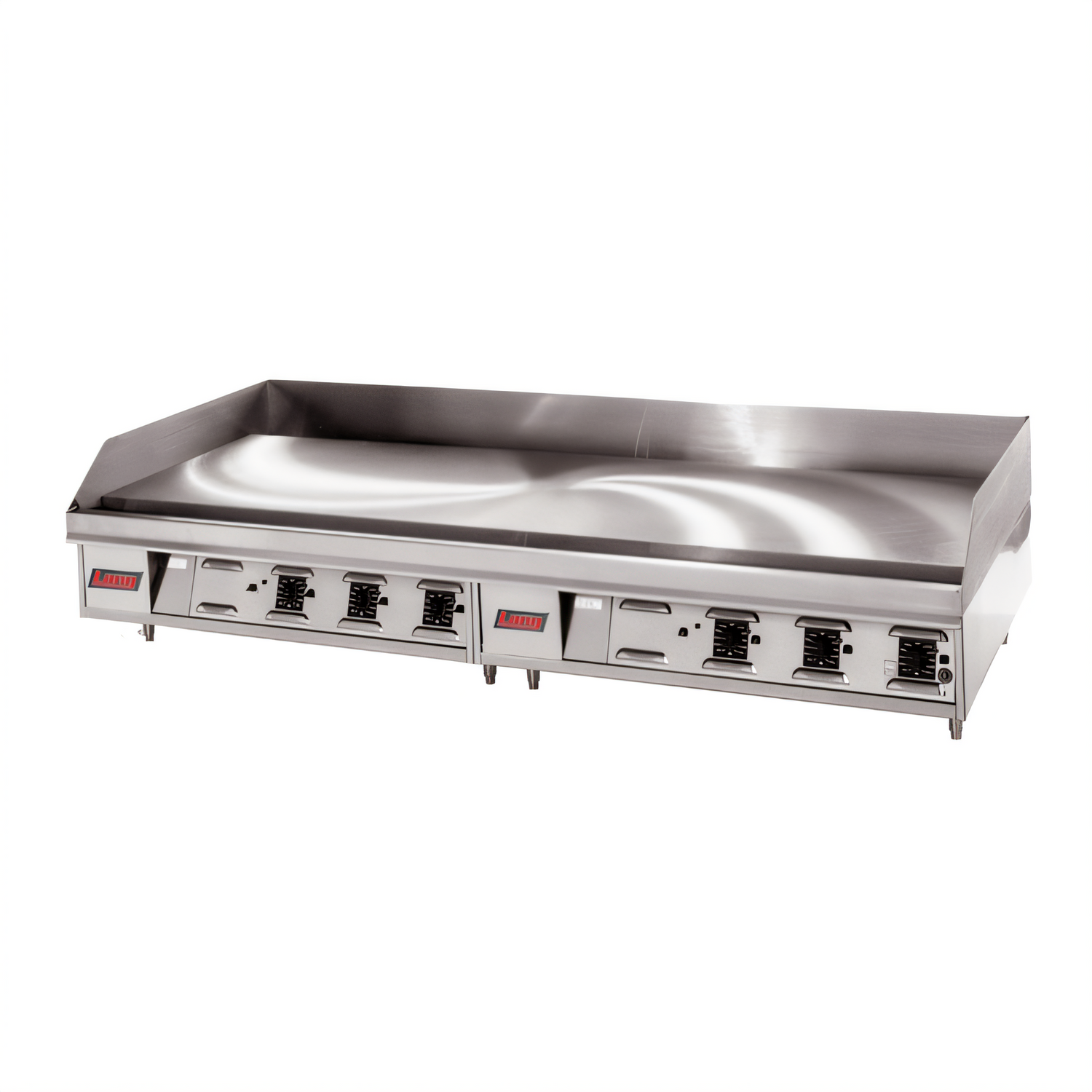

Lang LG Series 60-Inch Gas Countertop Griddle with 1-Inch Steel Plate

SKU: 260T
$14,287.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 60-Inch Gas Countertop Griddle with 1-Inch Steel Plate

60" x 23" Cooking Surface, Embedded Electric Snap-Action Thermostats, 120V

Built for high-volume kitchens, this 60-inch countertop gas griddle combines a thick steel plate with precise thermostatic control for fast recovery and consistent results.

  • 60" x 23" cooking surface supports busy breakfast, lunch, and dinner service.
  • 1" smooth steel griddle plate helps retain heat for more even cooking and better recovery.
  • Embedded electric snap-action thermostats provide 200°F to 450°F temperature control with pilot safety.
  • Welded steel frame and stainless steel exterior are designed for heavy commercial use.
  • 5" tapered wrap-around splash guard, 3-1/2" front grease trough, and 8 qt. grease drawer help simplify cleanup.
  • 120V / 60Hz / 1-phase power with NEMA 5-15P plug.
  • 4" adjustable stainless steel legs help with leveling on the work surface.

Overall Dimensions:

60.0"W x 30.4"D x 16.4"H

Product Weight:

635.0 lb

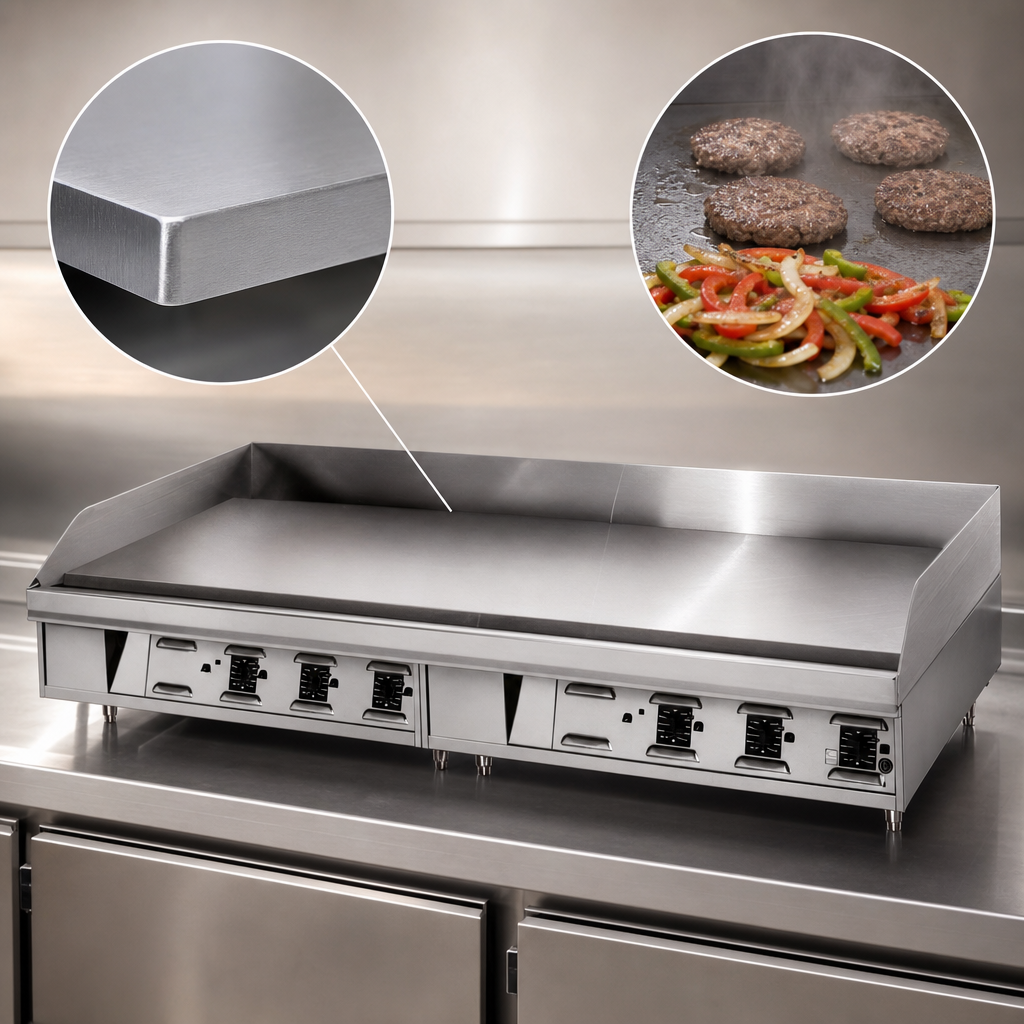

1-Inch Steel Griddle Plate

The thick smooth steel plate retains heat well for consistent surface temperatures and improved recovery.

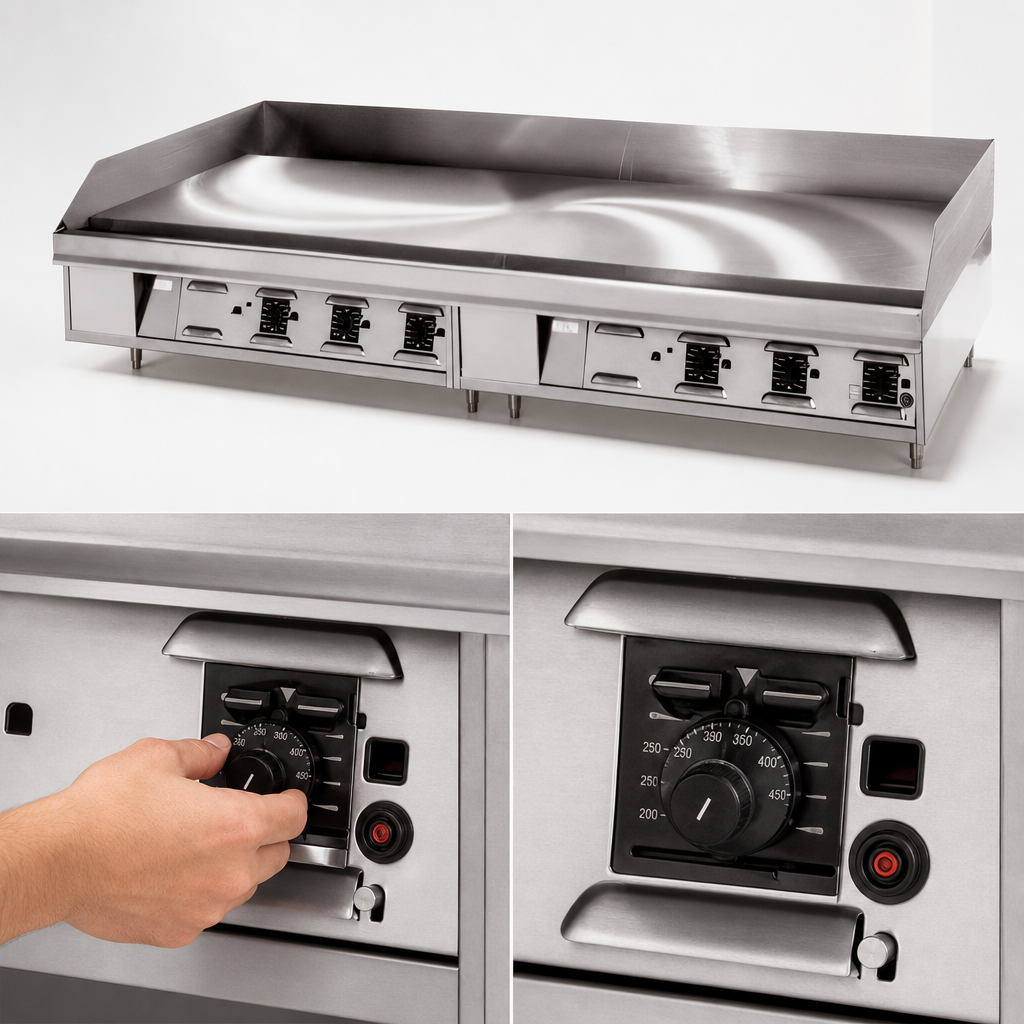

Embedded Electric Snap-Action Thermostats

Thermostatic controls provide responsive temperature management from 200°F to 450°F and include pilot safety.

Heavy-Duty Welded Construction

A welded steel frame provides durability for demanding commercial kitchen use.

Stainless Steel Exterior

The stainless steel exterior helps resist wear and provides a professional finish.

Grease Management System

Includes a 3-1/2" front grease trough and 8 qt. stainless steel grease drawer for easier cleanup.

Wrap-Around Splash Guard

The 5" tapered wrap-around splash guard helps contain grease and food splatter.

Adjustable Stainless Steel Legs

4" adjustable legs help level the unit on the counter.

120V Electrical Connection

Supplied with a 120V/60/1-phase electrical connection and NEMA 5-15P plug.

Type Gas Griddle
Style Countertop
Installation Type Countertop
Cooking Surface Width 60 Inches
Cooking Surface Depth 23 Inches
Plate Thickness 1 Inch
Controls Electric Snap-Action Thermostat
Temperature Range 200°F to 450°F
BTU 135,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Steel
Finish Stainless Steel
Shipping Width 60 Inches
Shipping Depth 31 Inches
Shipping Height 17 Inches
Shipping Weight 635 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Buying guide PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 60 inches wide by 23 inches deep.
The embedded electric snap-action thermostats control the griddle from 200°F to 450°F.
It operates on 120V / 60Hz / 1-phase power and includes a NEMA 5-15P plug.
It includes a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer.
Lang griddles are listed with a 2-year parts and labor warranty.
Yes, the embedded electric snap-action thermostats include pilot safety.
