Lang Manufacturing (Middleby) 260S LG Series Gas Griddles
Description

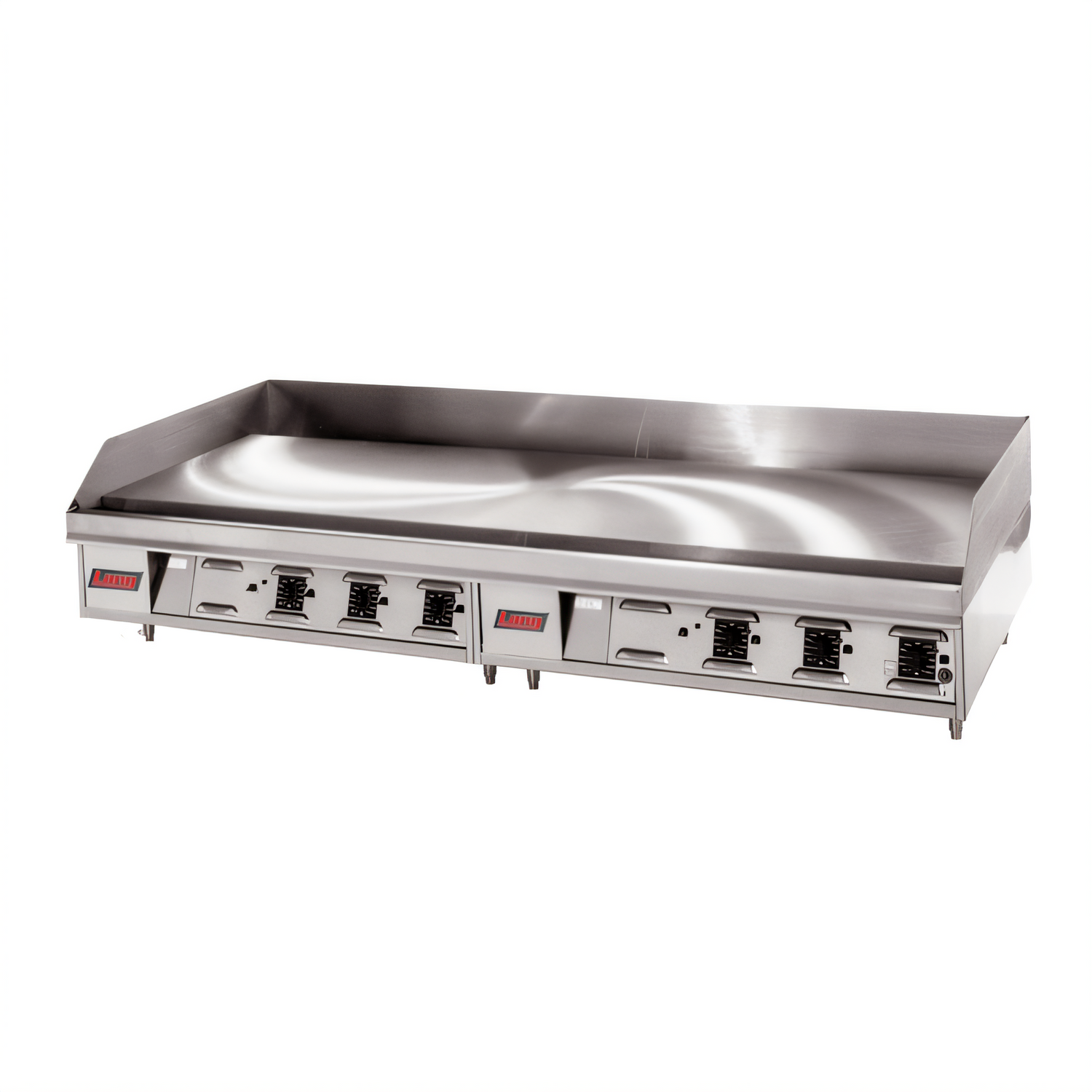

Lang LG Series 60" Gas Countertop Griddle – Solid-State Control
Model 260S | 135,000 BTU | 1" Steel PlateBuilt for kitchens that run at full throttle, the LG Series 60 inch gas griddle delivers pinpoint temperature accuracy, lightning-fast recovery and the legendary durability of Lang Manufacturing.
Key advantages

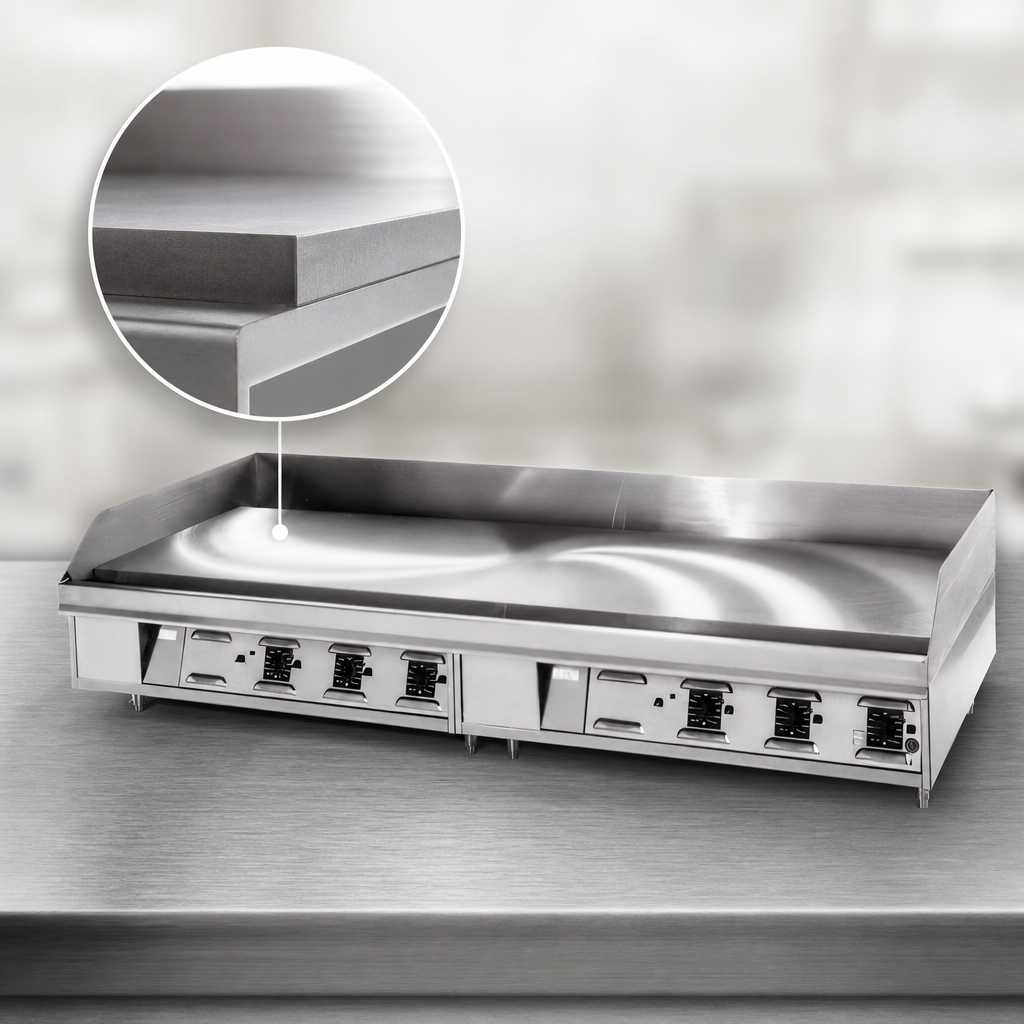

- 1" thick, 23" deep steel plate with embedded sensors only 3/16" below the surface for instant response.
- Solid-state thermostats hold set point within ±4°F across five independent 12" zones (175 – 450°F).
- 27,000 BTU burner under each zone — 135,000 BTU total — for rapid preheat and recovery.
- Direct-spark ignition with automatic pilot safety eliminates standing pilots to save energy.
- 5" tapered wrap-around splash guard plus 3.5" × 1" front trough keep the line clean.
- Two removable 8 qt. stainless grease drawers for quick, mess-free disposal.
- Welded steel frame with all-stainless exterior withstands heavy daily use.
- 4" stainless legs adjust 1" for perfect leveling.
- UL Gas-Fired & NSF listed; proudly made in the USA.
Performance you can taste
Embedded thermocouples sense a 1°F drop and fire the burners instantly, guaranteeing even color, predictable cook times and fewer product rejects — even during peak service.
Specifications

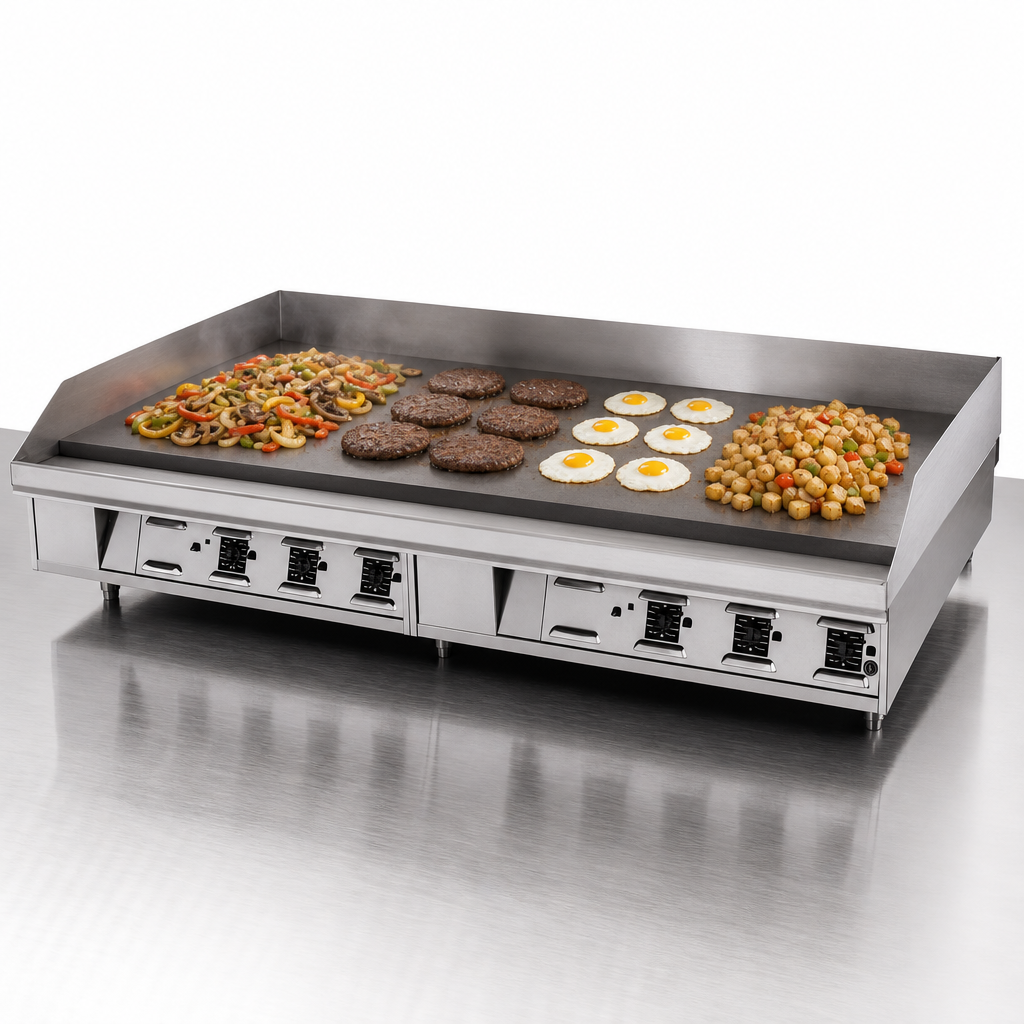

| Cooking surface | 60" W × 23" D (5 × 12" zones) |
|---|---|
| Plate thickness / material | 1" (25 mm) polished steel |
| Temperature range | 175 – 450°F (79 – 232°C) |
| Controls | Solid-state, independent for each zone, ±4°F accuracy |
| Gas input | 135,000 BTU/hr |
| Gas connection | 3/4" NPT (specify Natural or LP at order) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P (ignition & controls) |
| Overall dimensions | 60.1" W × 31.6" D × 20.2" H |
| Net / ship weight | ≈ 556 lb (252 kg) / 656 lb (298 kg) |
| Certifications | UL Gas-Fired, NSF |
| Standard warranty | 2 years parts & labor (see Lang warranty) |
Need a chrome or grooved plate, clamshell hoods, or a matching stainless stand? Ask our team for pricing and lead times.
Why choose Lang LG?
- 1" plate holds heat better than thinner alternatives for quicker bounce-back.
- Embedded probes outperform bottom-mounted sensors found on many competitive units.
- Backed by Middleby’s nationwide service network and 2-year parts & labor warranty.
Turn your countertop into a high-production, precision cooking station with the Lang LG Series 60" gas griddle — engineered for chefs who demand more.
