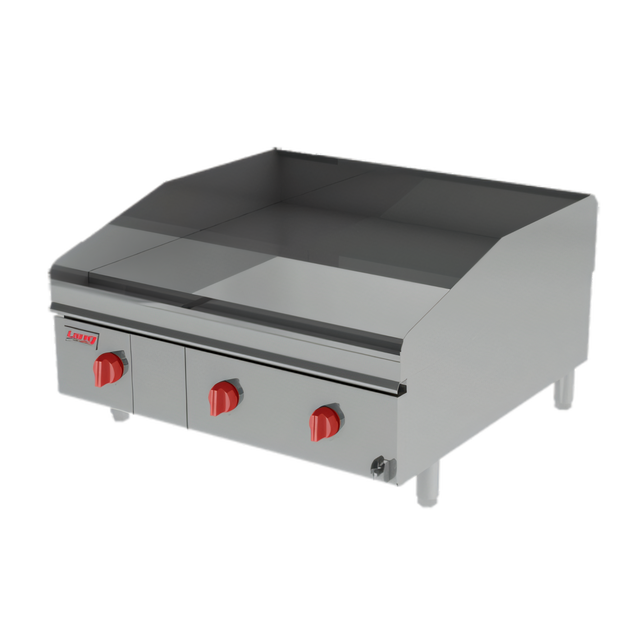

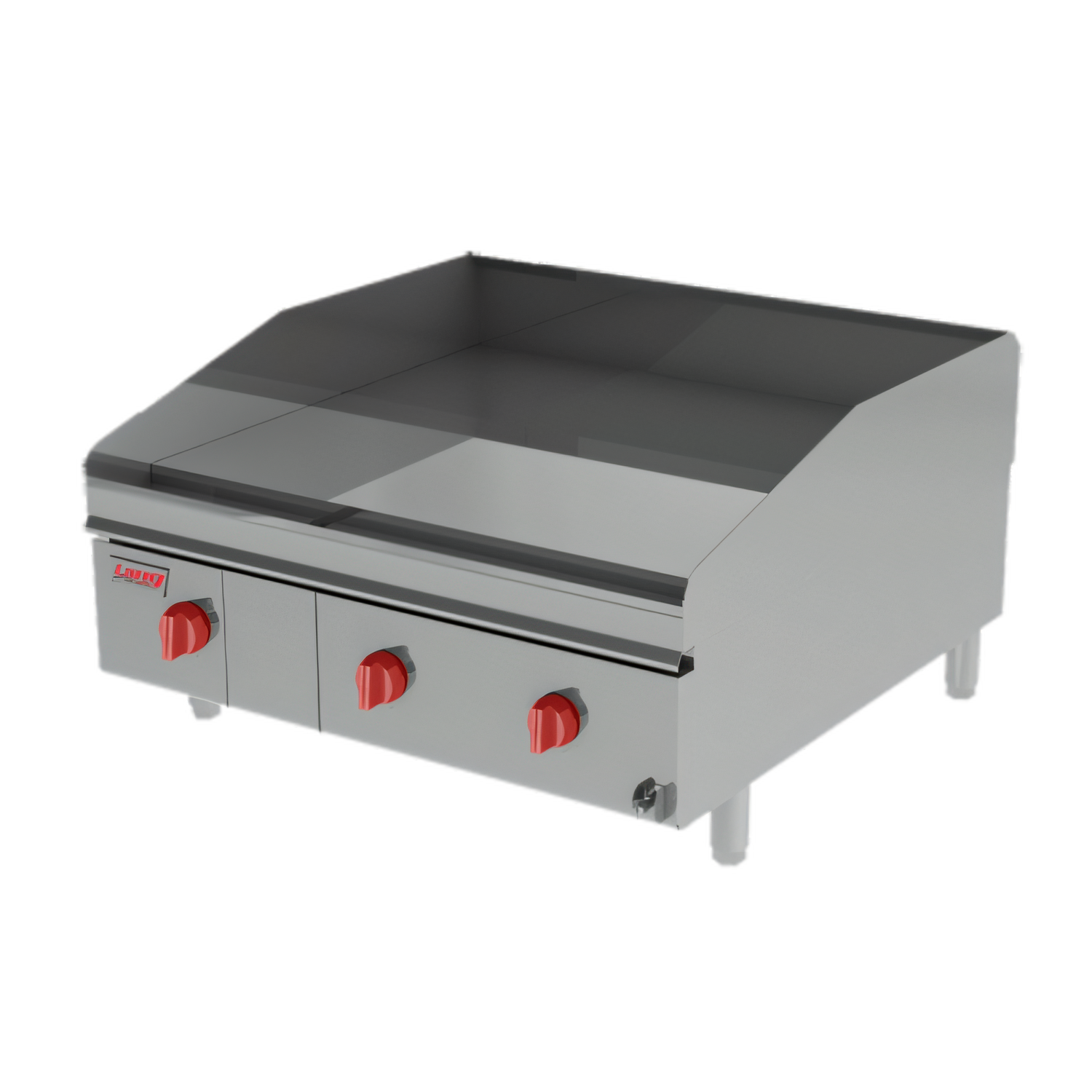

Lang LG Series 48" Gas Countertop Griddle – Extra-Deep 30" Plate
Model: LG Series 48 XDGive your breakfast, burger or all-day menu the firepower it deserves. The Lang Manufacturing LG Series delivers a massive 140,000 BTU of evenly distributed heat across an extra-deep 30-inch plate—perfect for high-volume service where every square inch counts.
Key Features
- 48" W × 30" D cooking surface (1,440 in²) for big-batch output.

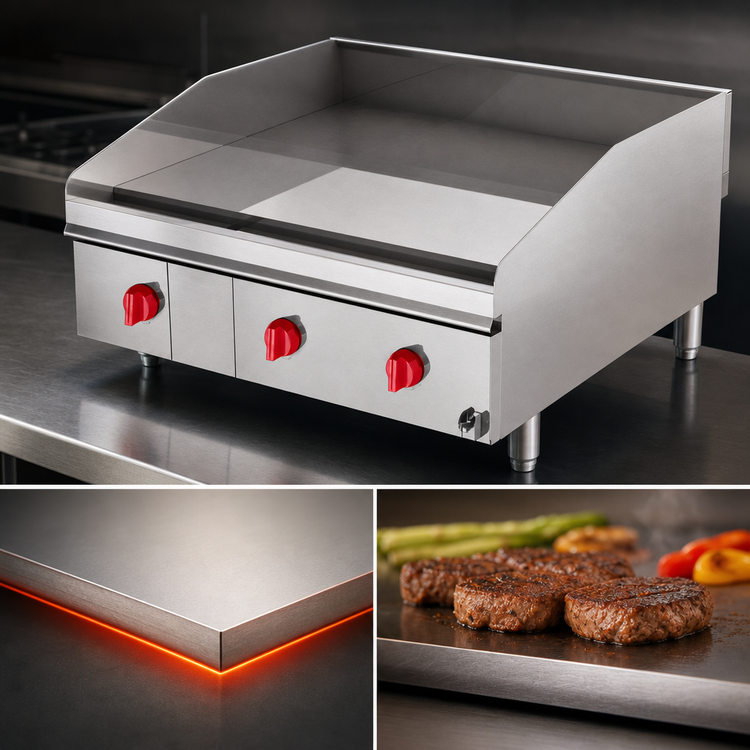

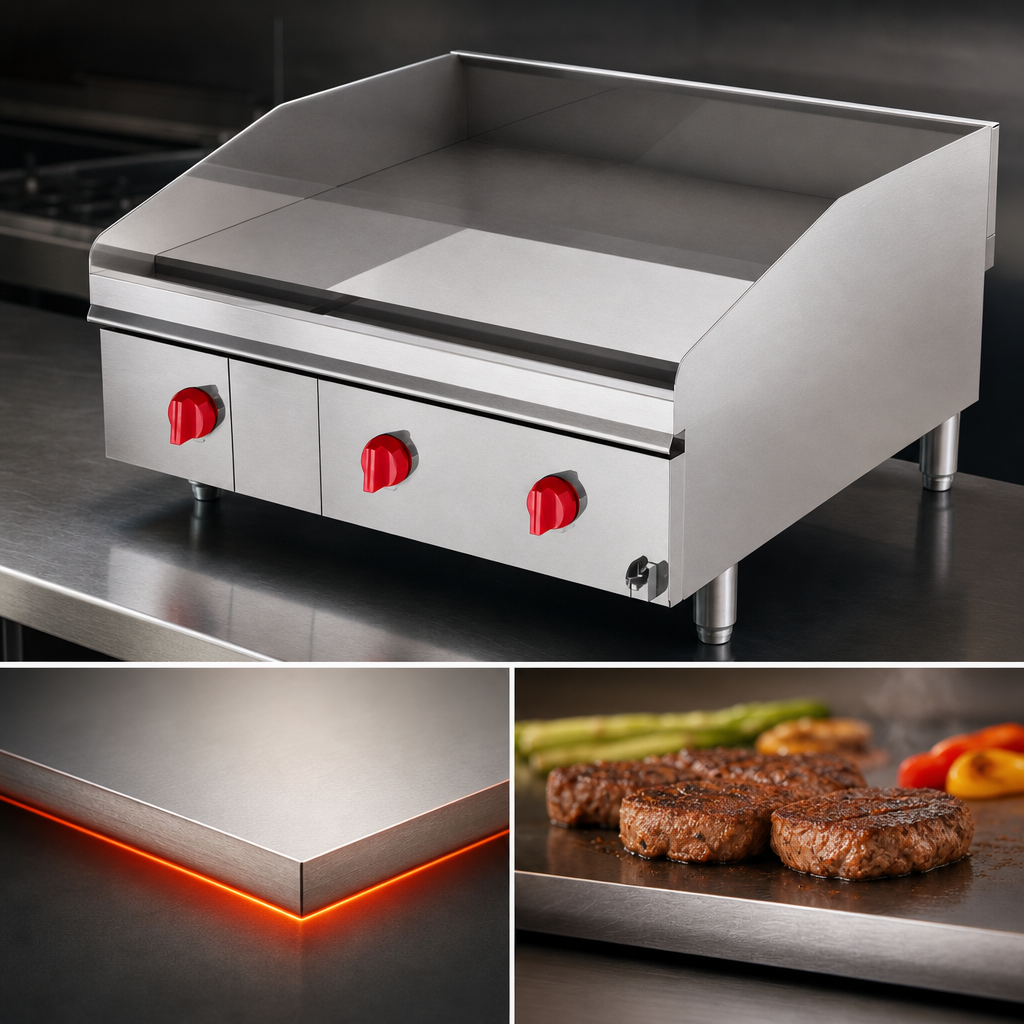

- Full 1" thick precision-machined steel plate—fast recovery, zero hot spots.
- Embedded electric snap-action thermostats (220-550 °F, ±15 °F accuracy).
- Pilot-safety ignition eliminates standing pilots to cut gas costs and enhance safety.
- 5" tapered, wrap-around splash guard contains grease and debris.
- 3 ½" wide front trough channels runoff to an 8 qt stainless drawer—clean-out in seconds.
- Welded steel frame with stainless exterior built for life on a busy line.
- 4" stainless legs with 1 5⁄8" adjustment for rock-solid leveling.
- cETLus & ETL-Sanitation listed for gas and electric safety compliance.
At-a-Glance Specifications
| Cooking surface | 48" W × 30" D (1,440 in²) |
|---|---|
| Plate thickness | 1" smooth steel |
| Heat source | Natural or LP gas, 140,000 BTU/hr |
| Temp. range | 220 °F – 550 °F |
| Thermostat type | Embedded snap-action (4 zones) |
| Grease management | 3 ½" trough & 8 qt drawer |
| Splash protection | 5" wrap-around, tapered |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Gas connection | ¾" NPT (rear) |
| Construction | Welded steel frame, stainless exterior & legs |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor |
Looking for chrome or grooved plates? Lang offers custom options in 12" increments—ask us for details.

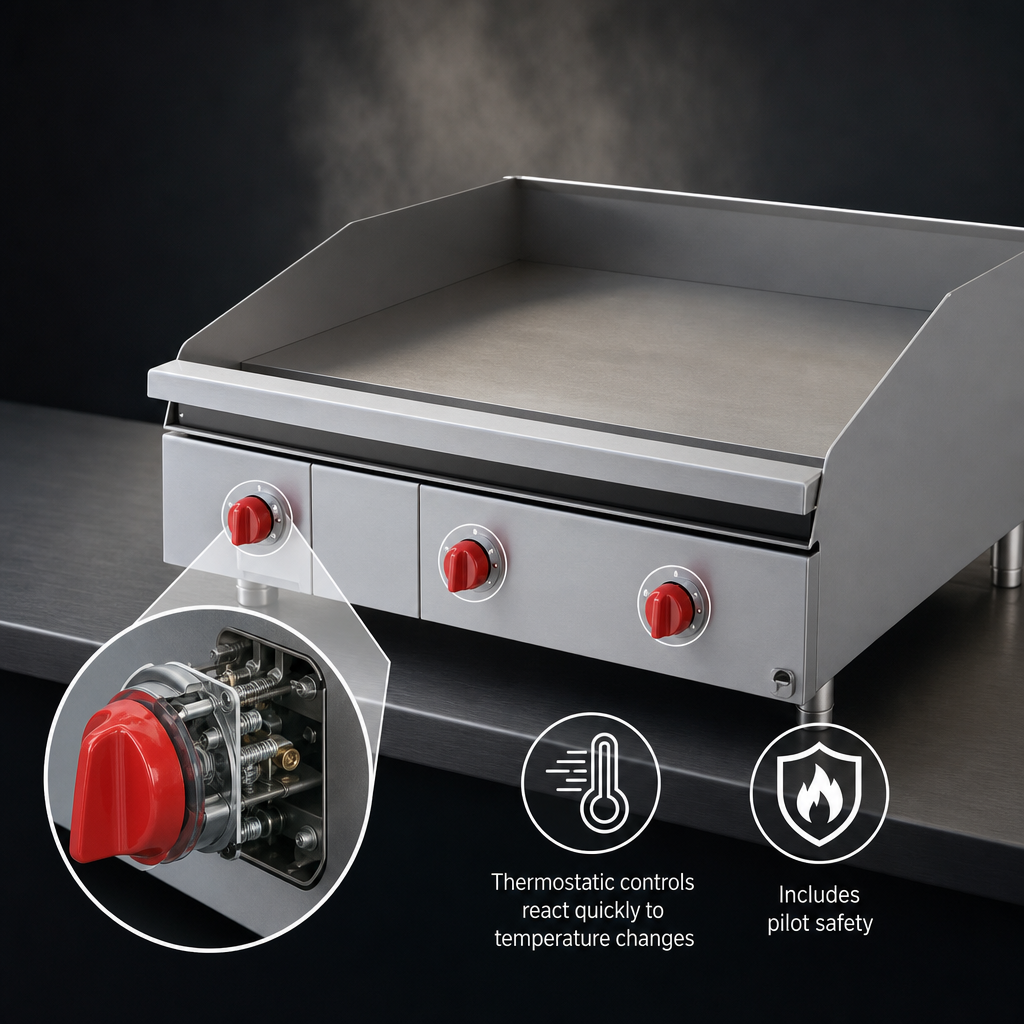

Why Embedded Snap-Action Thermostats?
- Senses heat inside the plate, not below it—faster response to load changes.
- Full-power cycling eliminates temperature overshoot for consistent results.
- No standing pilot flame reduces ambient kitchen heat and utility costs.
Installation Note: Unit must be installed under a commercial ventilation hood and connected by
a qualified professional to both gas and 120 V electrical supplies in accordance with local codes.
Power, precision and durability—upgrade your line with the Lang LG Series today. Need a quote or have questions? Contact our team and keep the sizzle going.
Lang Manufacturing (Middleby)
Lang Manufacturing (Middleby) 248ZTD LG Series Gas Griddles
SKU: 248ZTD
$13,879.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Lang 48" LG Series gas griddle: 1" steel plate, 140k BTU, 220–550°F thermostats, stainless exterior, grease drawer, ETL-Sanitation certified.
Manufacturer
Lang Manufacturing (Middleby)
Brand name
LG Series
Certifications
cETLus, ETL-Sanitation
Height
16.5in
Width
48.0in
Depth
37.25in
Shipping Weight
730.0lbs
Cooking Surface Width (side - side)
43" - 48"
Controls
thermostat / solid state controls
Plate Thickness
1"
Cooking Surface Depth (front - back)
30" - 36"
Exterior Finish
all stainless steel exterior
Griddle Plate Finish
smooth steel
Specifications
LG Series Griddle, gas, countertop, 48" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 220° - 550° F embeded elctric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 140,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation
