Lang Manufacturing (Middleby)

Lang LG Series 48-Inch Countertop Gas Griddle with Chrome Plate and Solid State Controls

SKU: 248ZSDC
$29,113.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

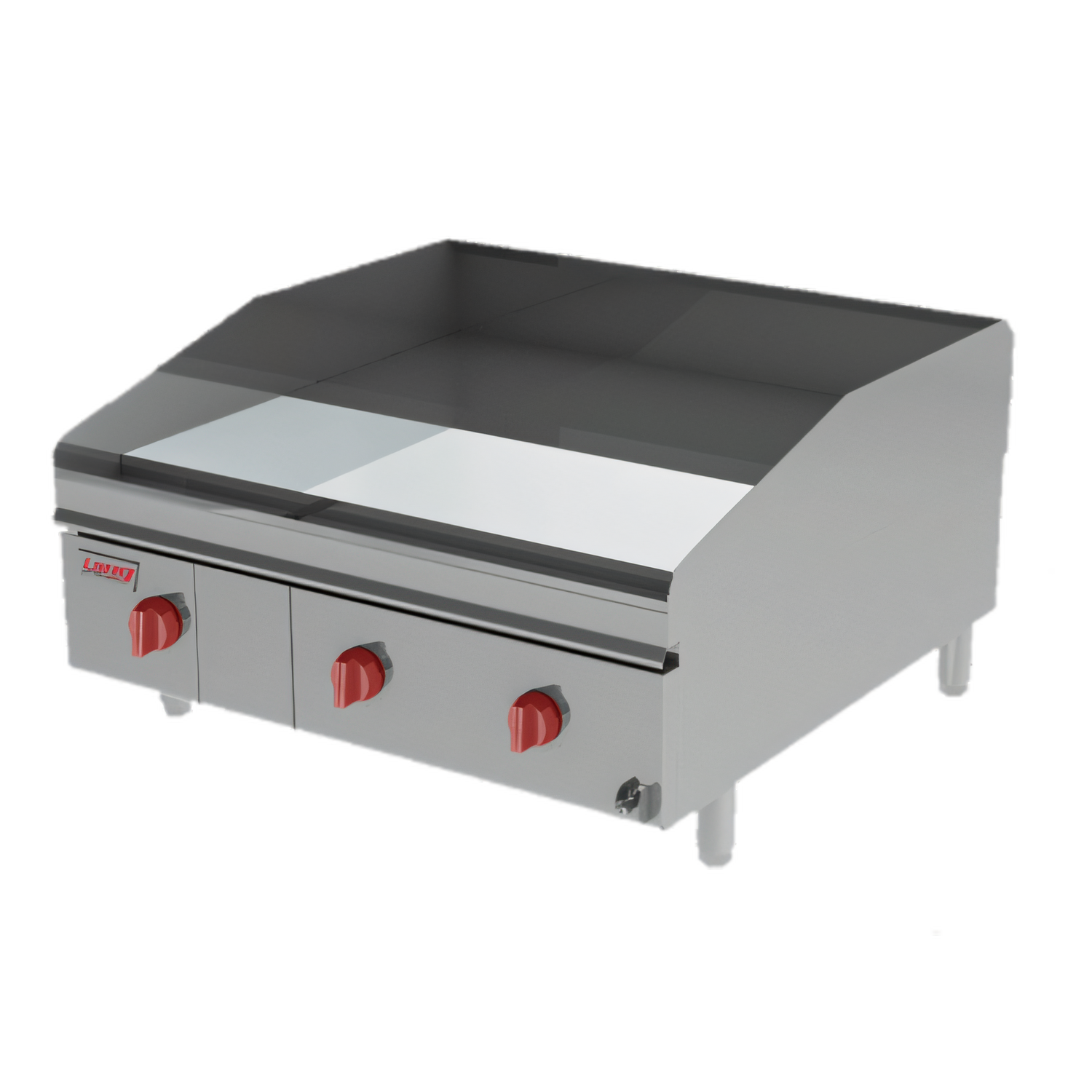

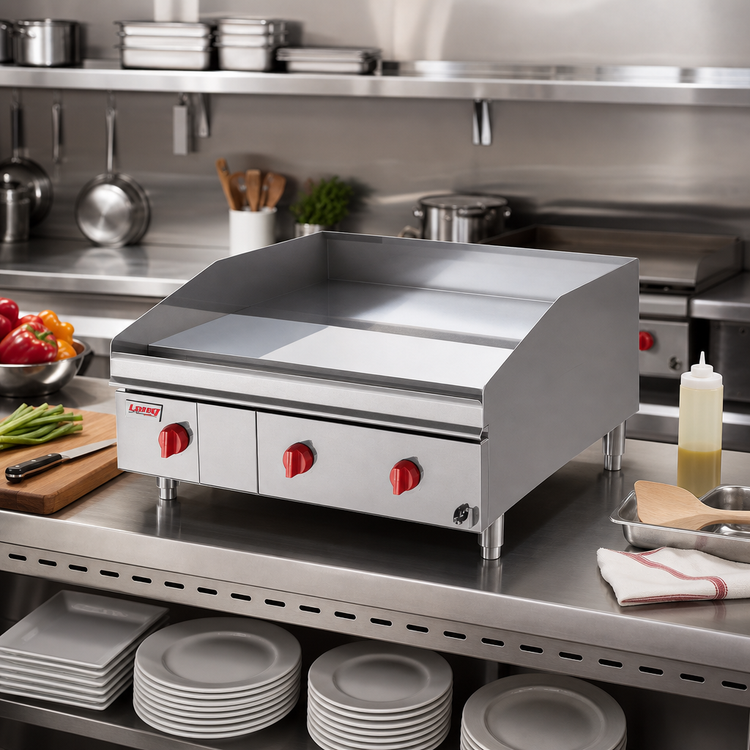

Lang LG Series 48-Inch Countertop Gas Griddle with Chrome Plate and Solid State Controls

Extended Depth, 48 x 30 Cooking Surface, 140,000 BTU, 120V/60Hz, 1-Phase

Built for busy commercial kitchens, this extended-depth gas griddle pairs a 1-inch chrome cooking surface with precise solid-state heat control and easy-clean grease management.

  • 48-inch wide extended-depth countertop gas griddle with a 30-inch-deep cooking surface.
  • 1-inch smooth chrome plate promotes even heat distribution and fast cleanup.
  • Solid-state thermostats provide precise 175°F to 450°F temperature control.
  • 140,000 BTU output supports high-volume breakfast, lunch, and all-day service.
  • Welded steel frame with stainless steel exterior is built for commercial durability.
  • Front grease trough, stainless steel grease drawer, and wrap-around splash guard help simplify cleanup.

Overall Dimensions:

48.0"W x 37.25"D x 16.5"H

Product Weight:

730.0 lb

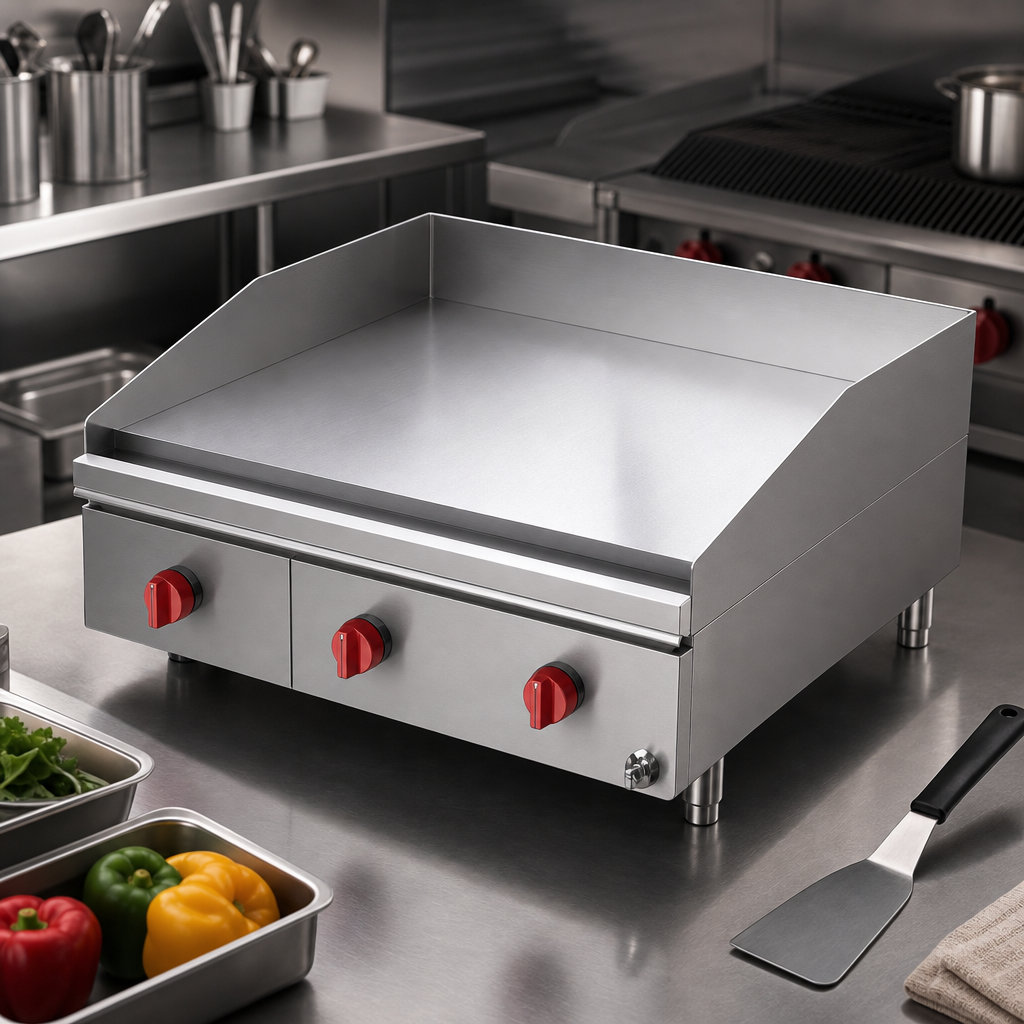

Chrome Griddle Plate

1-inch thick smooth chrome plate helps deliver even heating, durable performance, and easier cleanup.

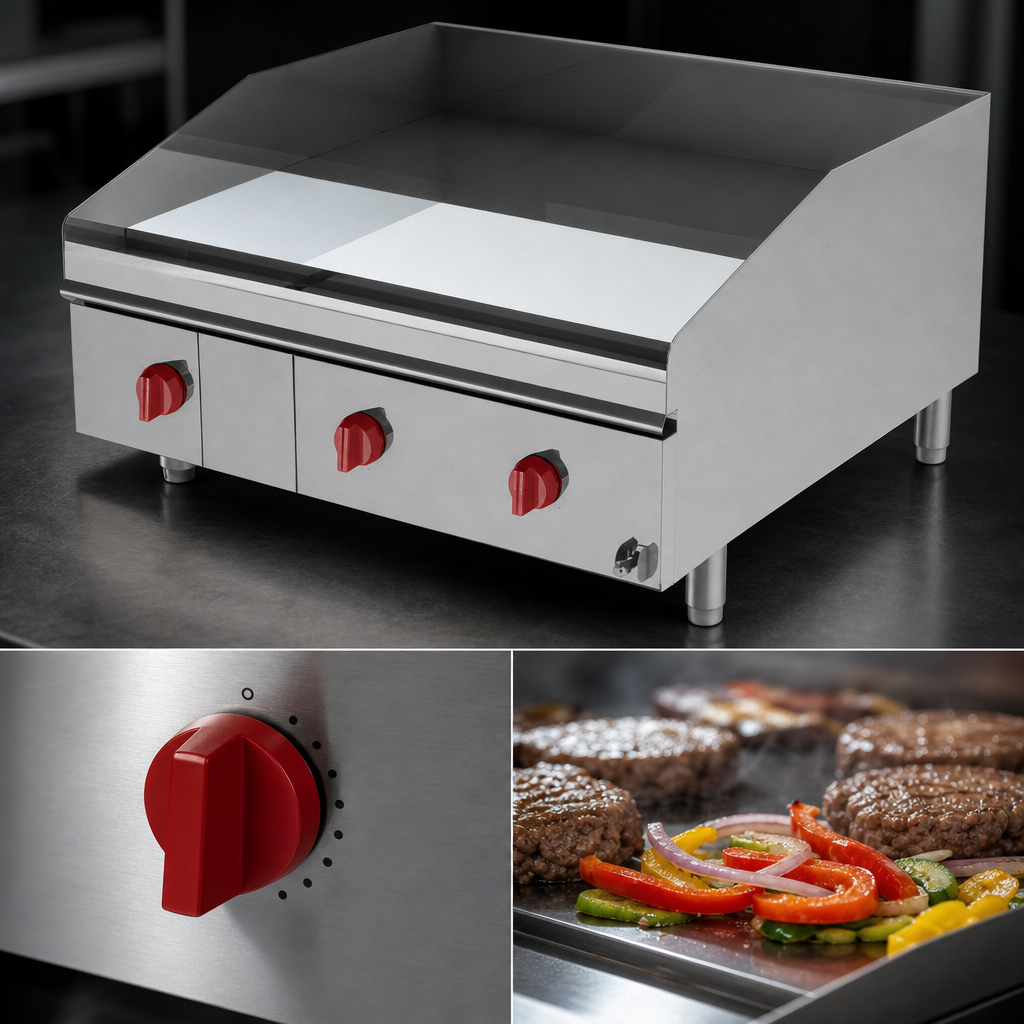

Solid State Thermostats

Thermostatic solid-state controls provide precise temperature management from 175°F to 450°F.

Extended-Depth Cooking Surface

The 48-inch by 30-inch cooking area provides a large production surface for busy line cooking.

Heavy-Duty Construction

Welded steel frame with stainless steel exterior is designed for demanding commercial use.

Grease Management System

A 3-1/2-inch front grease trough and 8-quart stainless steel grease drawer help keep cleanup efficient.

Wrap-Around Splash Guard

The 5-inch tapered splash guard helps contain splatter and keep the cook line cleaner.

Adjustable Stainless Steel Legs

4-inch stainless steel legs with 1-5/8-inch adjustment help level the griddle during installation.

Type Gas Griddle
Style Extended Depth
Installation Type Countertop
Controls Solid State
Temperature Range 175°F to 450°F
Cooking Surface Width 48 Inches
Cooking Surface Depth 30 Inches
Material Stainless Steel
Finish Chrome-Plated
BTU 140,000 BTU/hr
Gas Connection Size 3/4 Inch NPT
Voltage 120 Volts
Amps 2 Amps
Watts 0.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 730 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2 years parts and labor; 5 years on chrome griddle surfaces against peeling.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Buying guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle has a 48-inch wide by 30-inch deep cooking surface with a 1-inch chrome plate.
The solid-state thermostats control cooking from 175°F to 450°F.
It requires a 120V, 60 Hz, 1-phase electrical connection with a NEMA 5-15P plug.
The unit uses a 3/4-inch NPT gas connection and can be specified for natural gas or propane.
It includes a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer.
