Lang Manufacturing (Middleby)

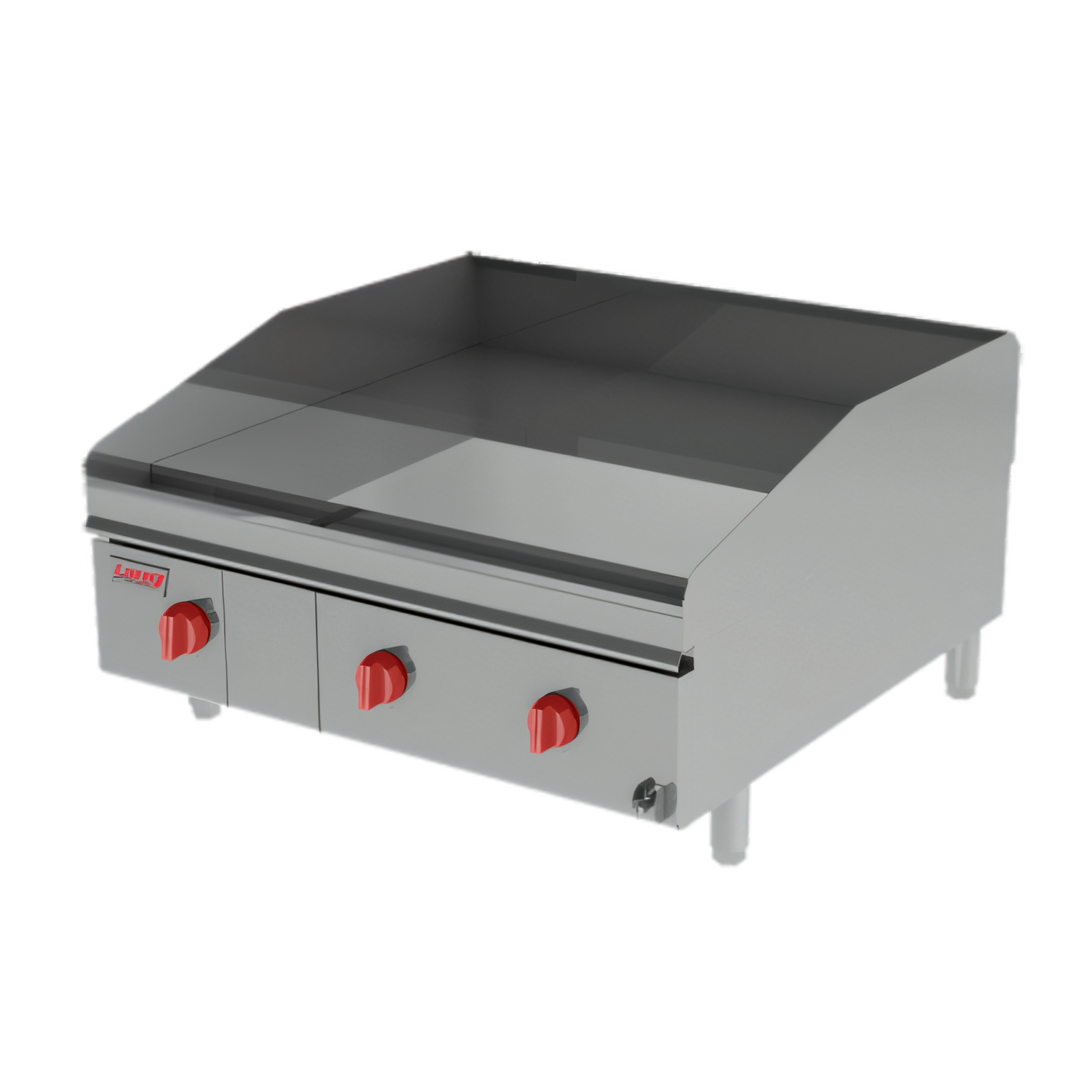

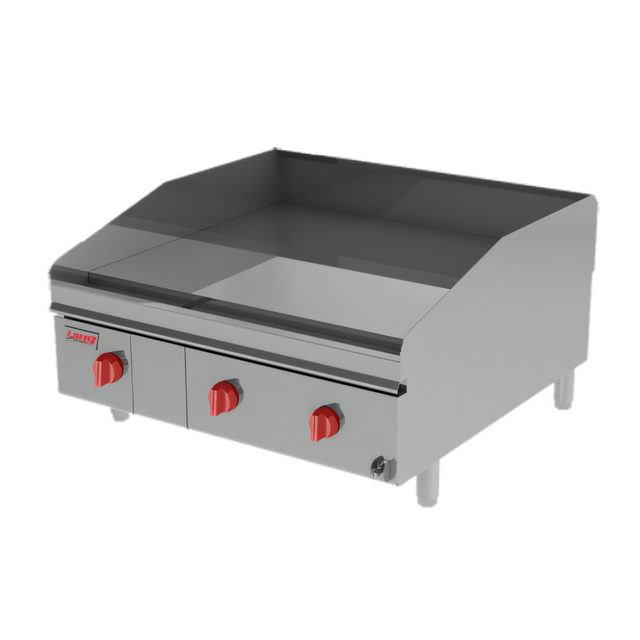

Lang LG Series 48-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Solid State Controls

SKU: 248ZSD
$17,852.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Lang LG Series 48-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Solid State Controls

Extended Depth, 30-Inch Cooking Surface, 140,000 BTU

This heavy-duty 48-inch gas griddle combines a thick smooth steel plate, precise solid-state control, and easy-clean grease management for dependable high-volume cooking.

  • 48-inch wide by 30-inch deep extended-depth cooking surface for high-volume production
  • 1-inch thick smooth steel griddle plate helps retain heat and reduce hot spots
  • Selectronic solid-state thermostats provide a 175°F to 450°F temperature range
  • 140,000 BTU gas burner system supports fast recovery and consistent output
  • Welded steel frame with stainless steel exterior for long-term durability
  • 5-inch tapered wrap-around splash guard, 3-1/2-inch grease trough, and 8-quart grease drawer simplify cleanup

Overall Dimensions:

48.0"W x 37.25"D x 16.5"H

Product Weight:

730.0 lb

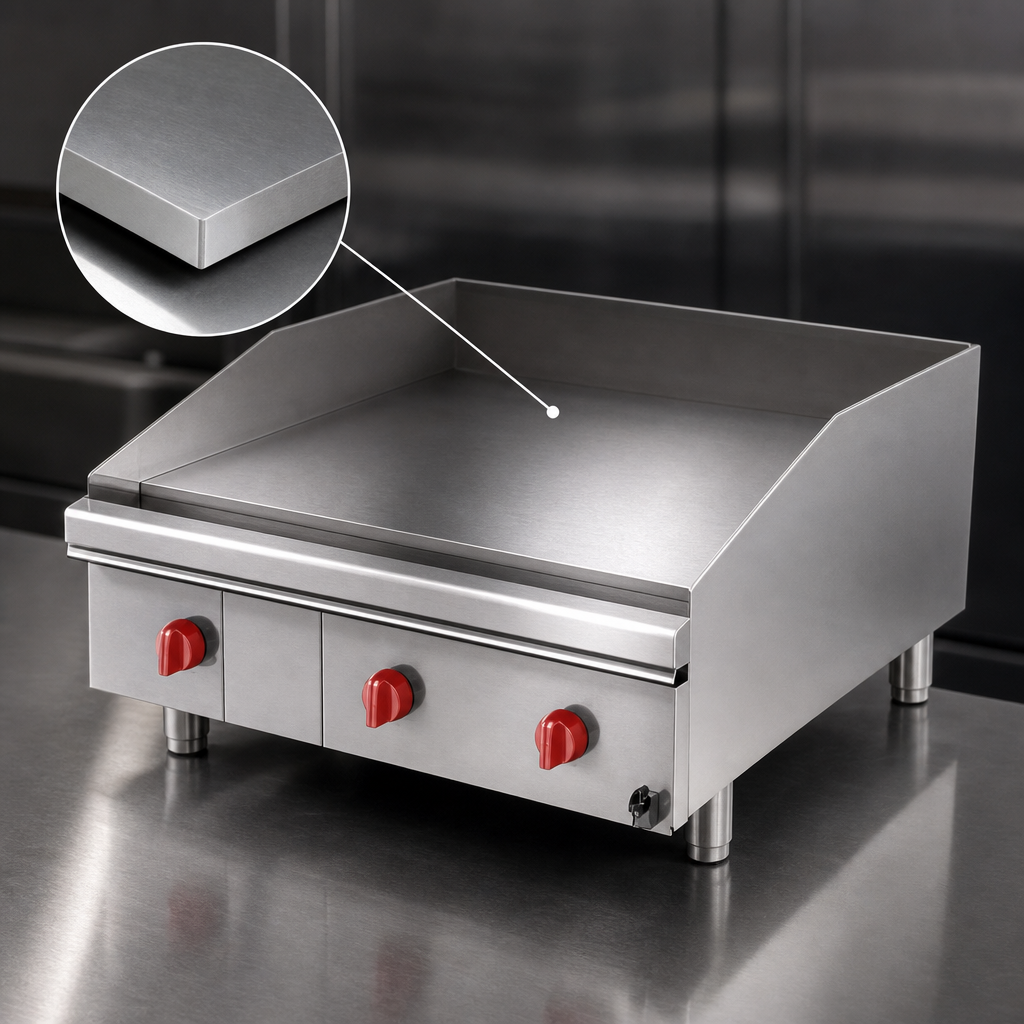

1-Inch Smooth Steel Griddle Plate

Precision-machined polished steel cooking surface improves heat retention and helps reduce hot and cold spots.

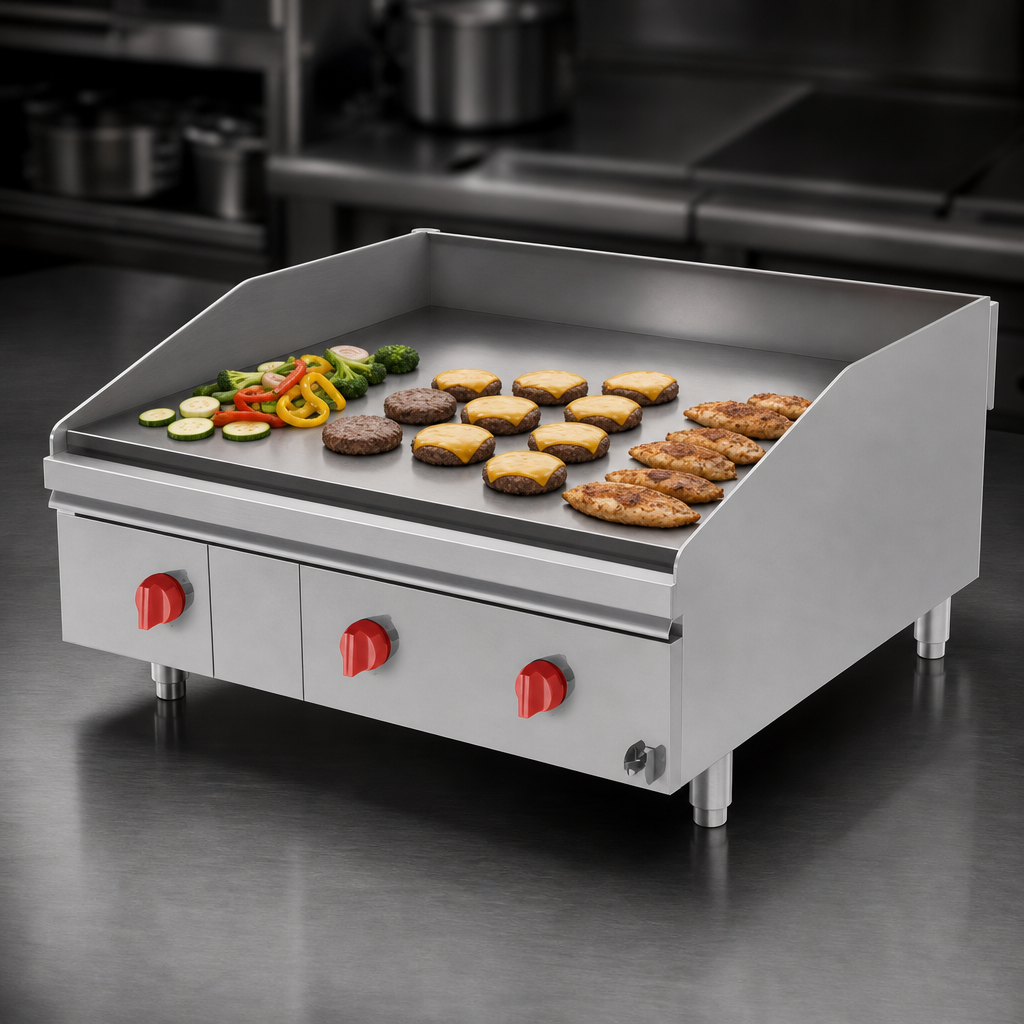

Extended-Depth Cooking Surface

The 48-inch by 30-inch cook surface provides a larger usable cooking area for batch and high-volume prep.

Selectronic Solid State Thermostats

Area-sensitive solid-state controls react quickly to temperature changes and provide a 175°F to 450°F control range.

Direct Spark Electronic Ignition

On-demand ignition lights the burners when needed and eliminates the need for a standing pilot.

Heavy-Duty Stainless Construction

A welded steel frame with stainless steel exterior is built for commercial durability and day-to-day service.

Splash Guard and Grease Management

Includes a 5-inch tapered wrap-around splash guard, 3-1/2-inch front grease trough, and 8-quart stainless steel grease drawer.

Adjustable Stainless Steel Legs

4-inch stainless steel legs with 1-5/8-inch adjustment help level the unit during installation.

Type Griddle
Style Extended Depth
Installation Type Countertop
Material Stainless Steel
Finish Smooth Steel
Cooking Surface Width 48 Inches
Cooking Surface Depth 30 Inches
Plate Thickness 1 Inch
Controls Solid State
Temperature Range 175 Degrees F to 450 Degrees F
BTU 140,000 BTU
Voltage 115 Volts
Watts 500 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Amps 2 Amps
Cord Length 6 Feet
Gas Connection Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 730 lb.

Frequently Asked Questions

It has a 48-inch wide by 30-inch deep extended-depth cooking surface with a 1-inch smooth steel plate.
The Selectronic solid-state thermostats provide a 175°F to 450°F temperature range.
The unit requires a 3/4-inch NPT gas connection and a 115V, 60 Hz, 1-phase electrical connection with a NEMA 5-15P plug.
Grease is managed through a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer.
Yes. The documentation lists optional chrome plate and custom grooving.
The warranty sheet lists 2 years parts and labor for Lang griddles.
