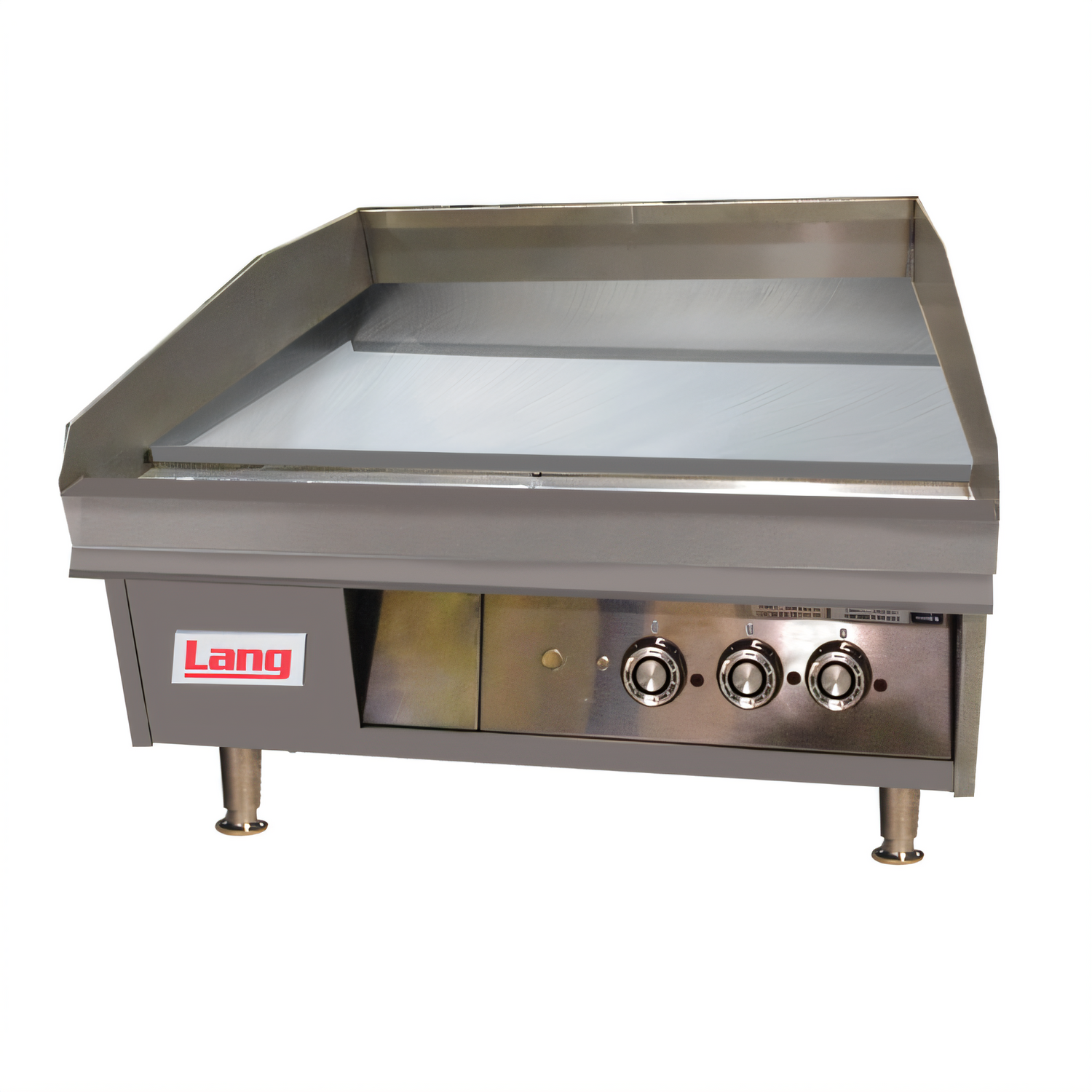

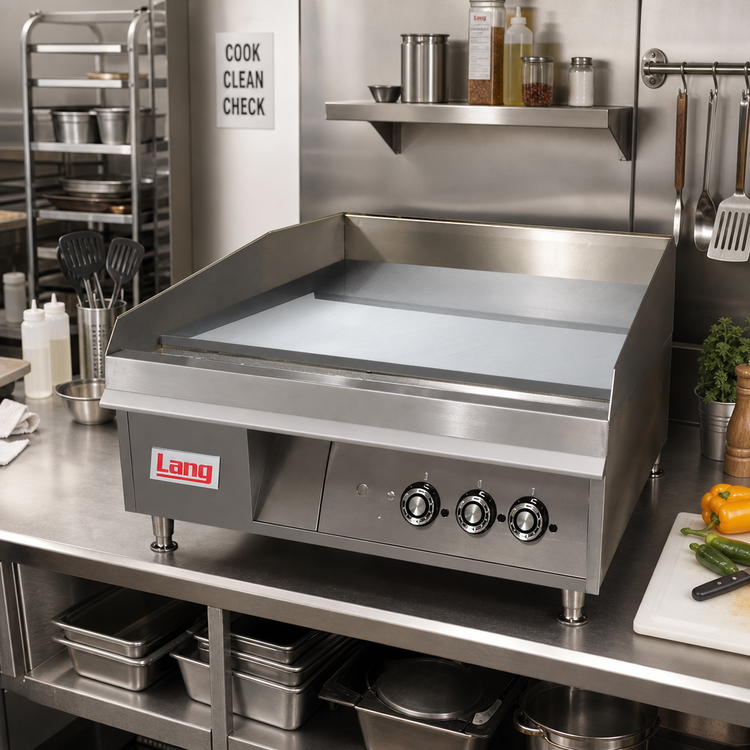

Lang Manufacturing (Middleby) 248TC LG Series Gas Griddles
Description
LG Series 48" Gas Countertop Chrome Griddle
Model 248TC – 48" W x 23" D cooking surfaceBuilt for kitchens that refuse to compromise, Lang’s LG Series delivers lightning-fast recovery, precise temperature control and an easy-to-clean chrome plate—all in a compact, 48-inch footprint. From breakfast rush to late-night grilling, this powerhouse keeps pace with your busiest service.
Why you’ll love it

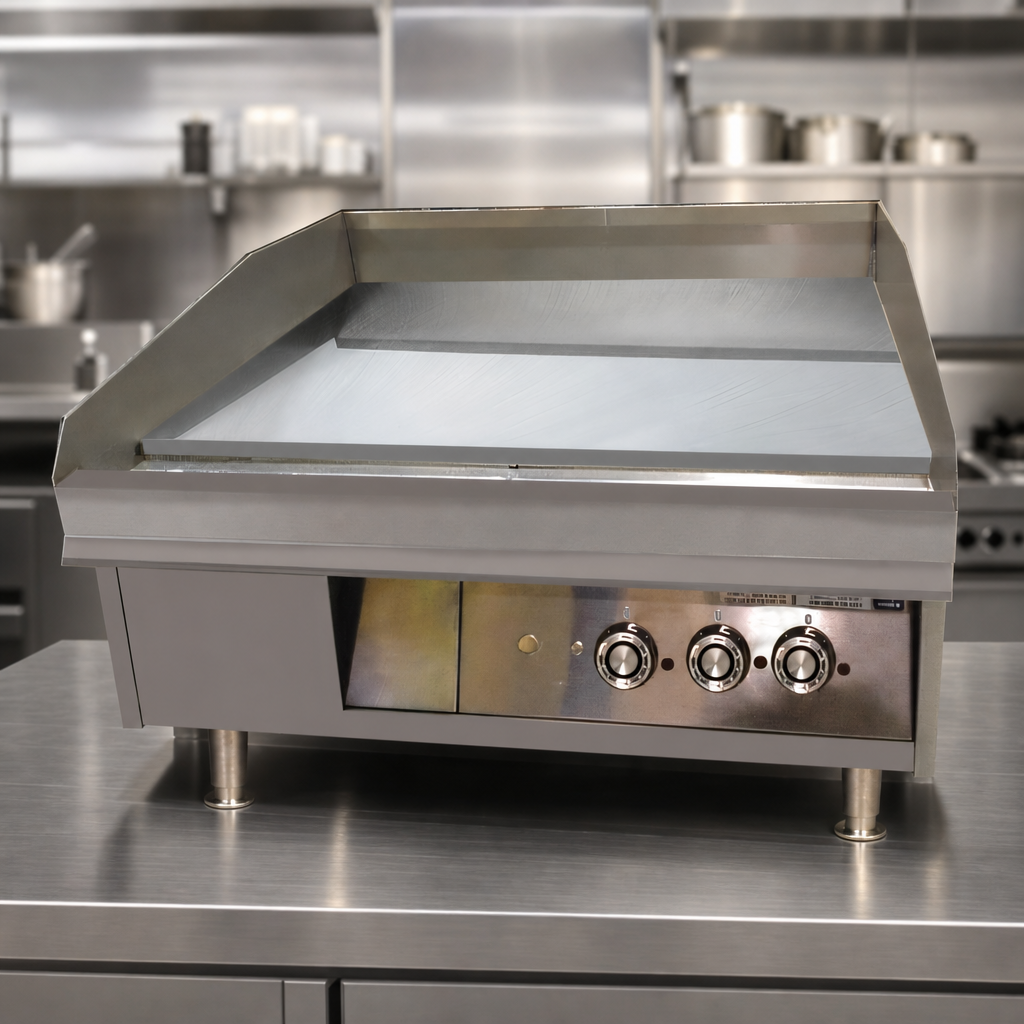

- 1" thick T1 armor-grade chrome plate holds heat and cleans up in seconds—no seasoning required.

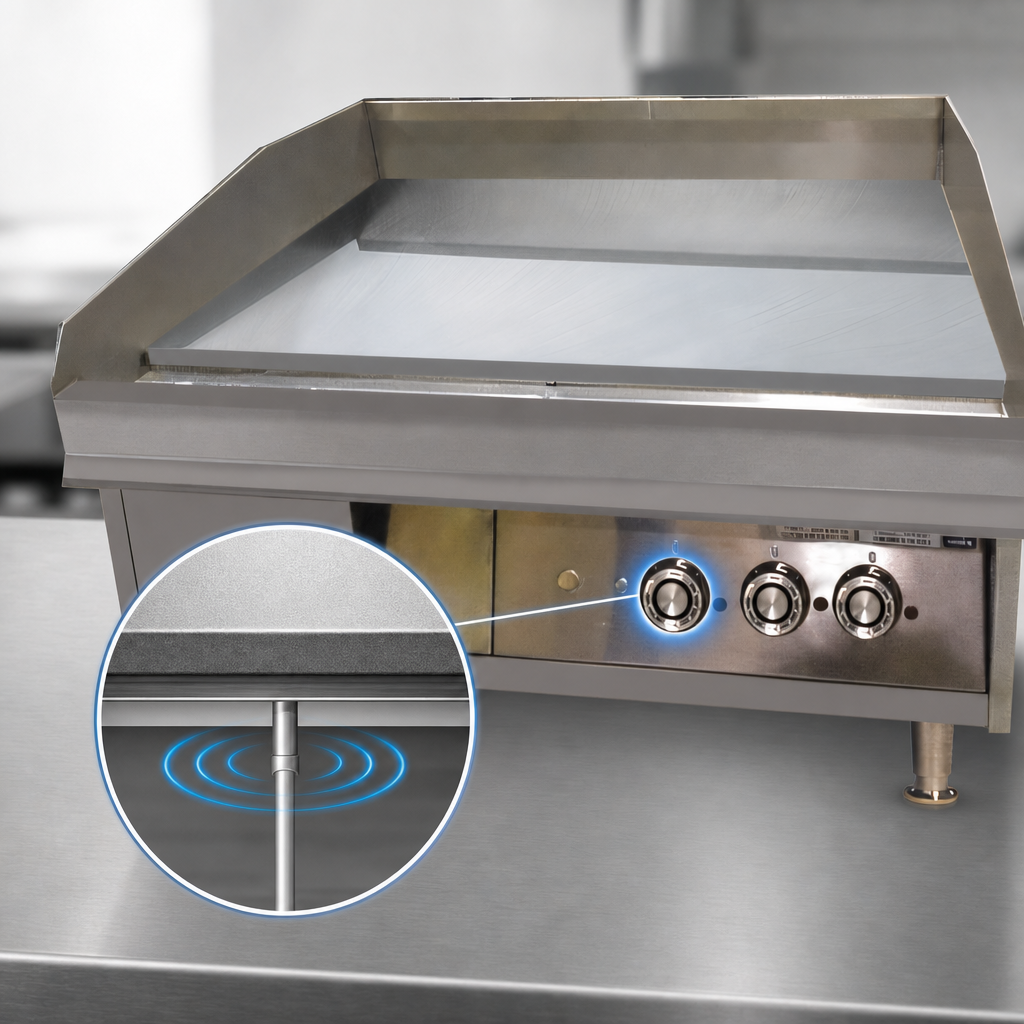

- Embedded electric snap-action thermostats (one per 12") regulate surface temps within ±15 °F.
- Broad 200 – 450 °F range lets you sear burgers, toast buns, fry eggs & more on one surface.
- 108,000 BTU burner system with direct-spark ignition—no standing pilot, safer operation.
- 5" tapered wrap-around splash guard and 3½" front trough keep grease contained.
- Extra-large 8 qt. stainless drawer slides out for fast, mess-free disposal.
- Welded steel frame & full stainless exterior stand up to years of commercial abuse.
- 4" adjustable stainless legs for leveling on any countertop.
- UL & NSF listed for gas-fired foodservice equipment.
Technical specifications
| Cooking surface | 48" W × 23" D (4 independent 12" zones) |
|---|---|
| Plate material | 1" thick chrome-plated steel (5-year anti-peel warranty) |
| Temperature range | 200 °F – 450 °F (93 °C – 232 °C) |
| Controls | Embedded electric snap-action thermostats with pilot safety |
| Heat output | 108,000 BTU/hr (27,000 BTU per 12" section) |
| Gas connection | ¾" NPT (natural or LP) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, 240 W, NEMA 5-15P |
| Overall dimensions | 48.1" W × 31.6" D × 20.2" H |
| Shipping weight | ≈ 520 lb. (236 kg) |
| Certifications | UL Listed, NSF |
| Standard warranty | 2 years parts & labor • 5 years chrome surface (against peeling) |
Factory options (sold separately)
- Solid-state thermostats (±4 °F accuracy)
- Clamshell grill hoods (one per 12")
- Custom grooved plate sections for char-marking
- Stainless stand with legs or locking casters
Installation must conform to local gas & electrical codes. Allow 5" clearance on sides and rear for ventilation and service access.
