Lang Manufacturing (Middleby)

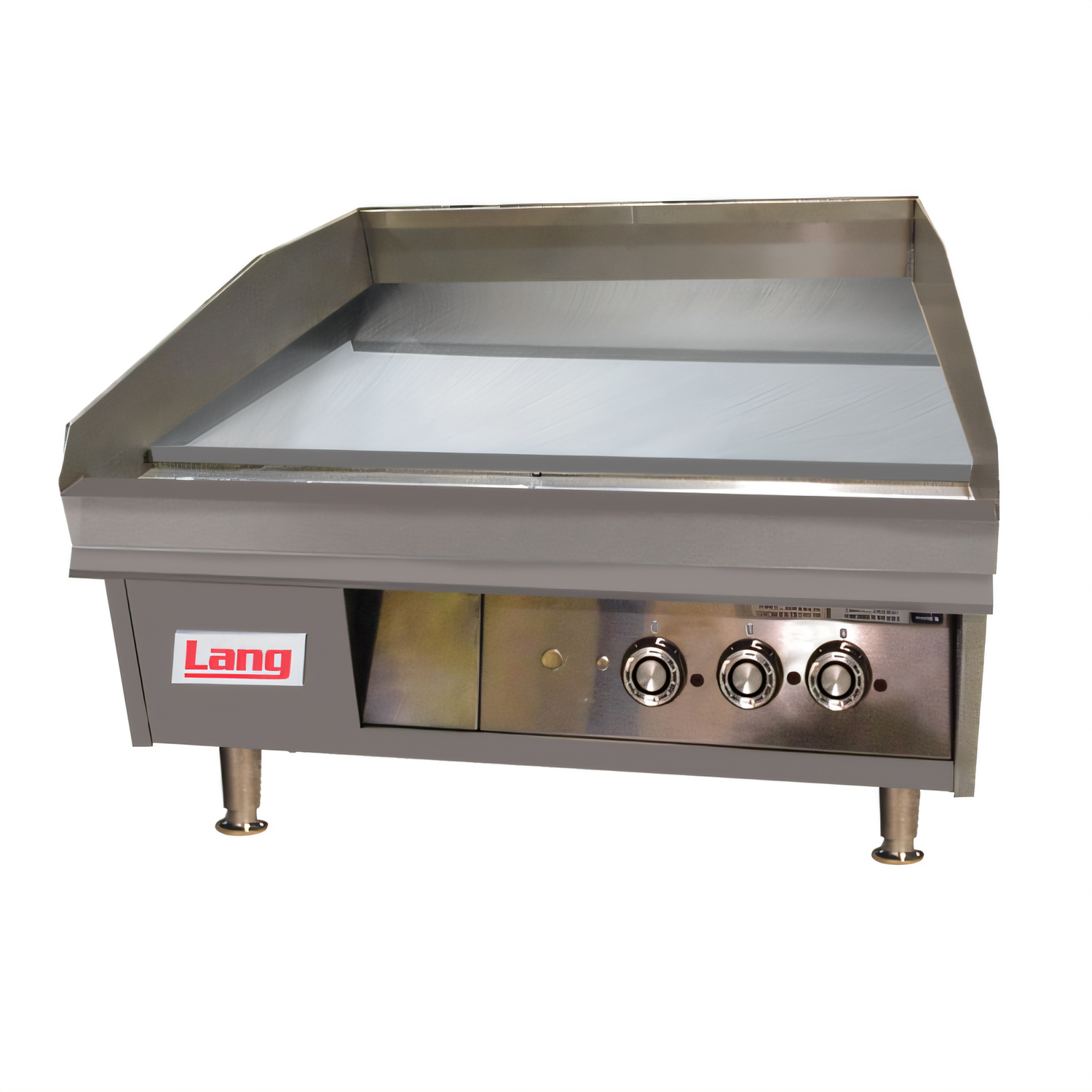

Lang LG Series 48-Inch Countertop Gas Griddle with 23-Inch Deep Cooking Surface and 1-Inch Plate

SKU: 248T
$11,264.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 48-Inch Countertop Gas Griddle with 23-Inch Deep Cooking Surface and 1-Inch Plate

Embedded Electric Snap-Action Thermostats, 108,000 BTU, Stainless Steel Exterior

Built for high-volume cooking, this 48-inch countertop gas griddle pairs a thick steel plate with precise embedded thermostats and excellent grease management for dependable all-day performance.

  • 48" x 23" cooking surface provides ample space for breakfast, lunch, and other high-volume menu items.
  • 1" thick steel griddle plate helps retain heat and improve recovery between orders.
  • Embedded electric snap-action thermostats deliver 200°F to 450°F temperature control with pilot safety.
  • Stainless steel exterior, welded steel frame, and adjustable legs are designed for commercial durability.
  • 5" wrap-around splash guard, front grease trough, and 8 qt. grease drawer help keep the cookline cleaner.
  • 120V connection with NEMA 5-15P plug supports the thermostat and safety system.

Overall Dimensions:

48.0"W x 30.4"D x 16.4"H

Product Weight:

520.0 lb

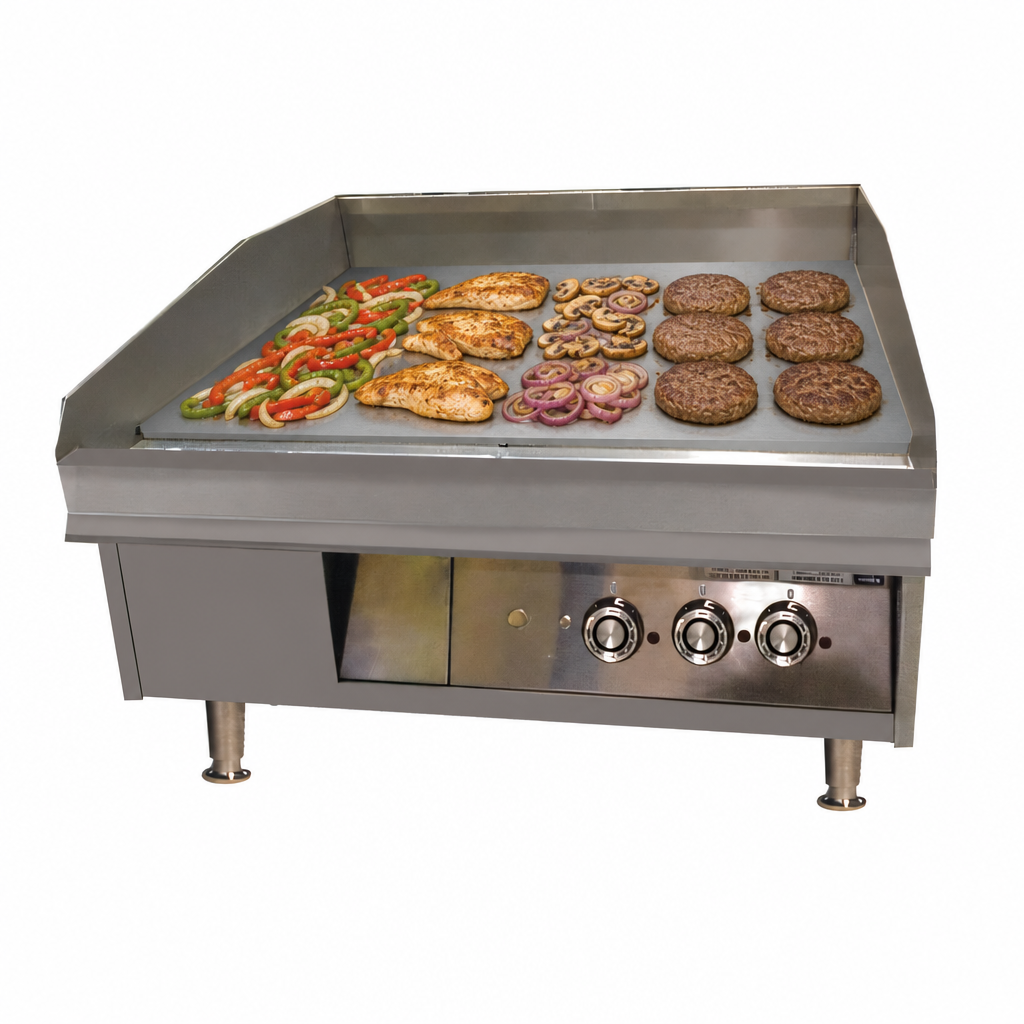

Large Cooking Surface

48" x 23" cooking area gives operators plenty of room for multiple menu items at once.

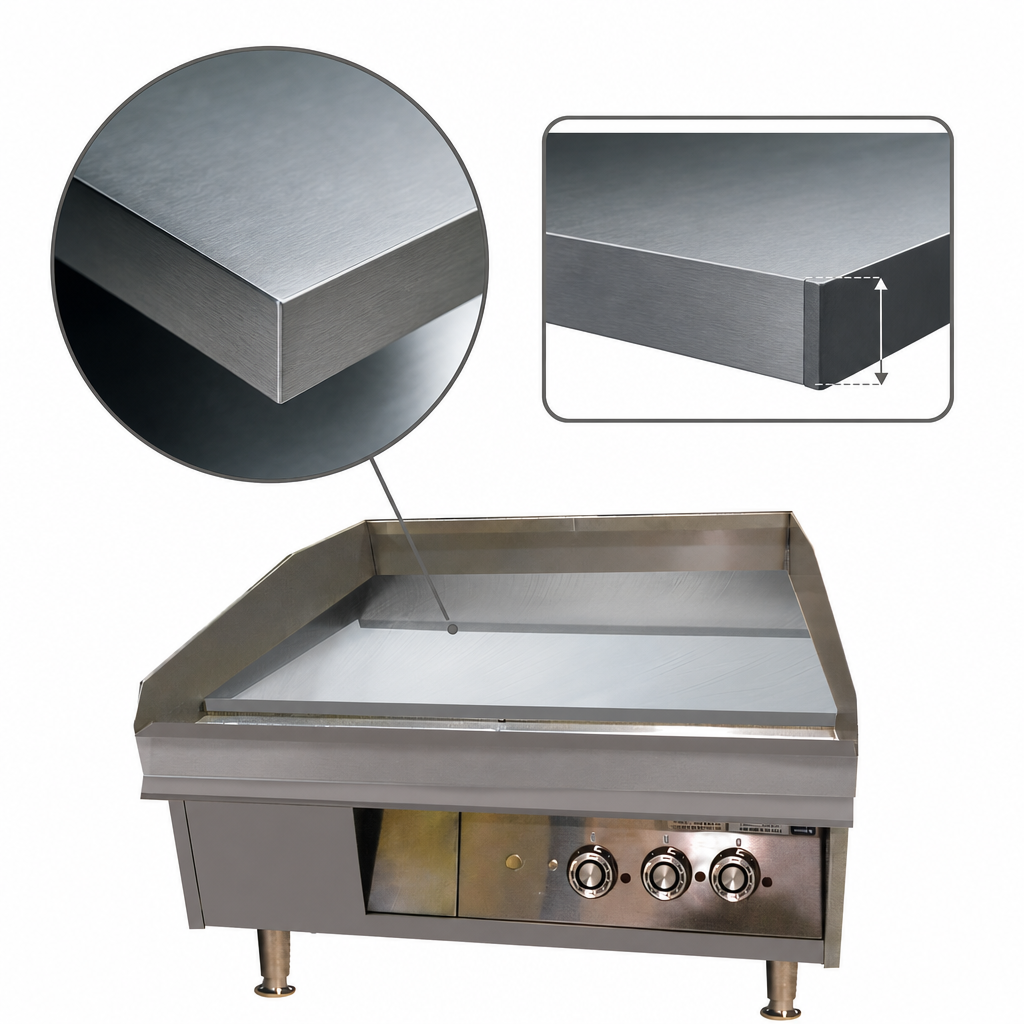

1-Inch Steel Griddle Plate

Thick plate improves heat retention and recovery for more consistent cooking performance.

Embedded Electric Snap-Action Thermostats

Provides 200°F to 450°F surface temperature control with responsive, embedded sensing.

Pilot Safety

Built-in pilot safety enhances operational safety and requires electric power.

Heavy-Duty Construction

Welded steel frame with stainless steel exterior is built for demanding commercial kitchen use.

Grease Control System

Includes a 3-1/2" front grease trough and an 8 qt. stainless steel grease drawer for easier cleanup.

Splash Guard

5" tapered wrap-around splash guard helps contain grease and reduce splatter.

Adjustable Legs

4" adjustable stainless steel legs help with leveling and installation.

Type Griddle
Style Countertop
Installation Type Countertop
Controls Electric Snap-Action Thermostats
Temperature Range 200°F to 450°F
BTU 108,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Steel
Finish Stainless Steel
Cooking Surface Width 48 Inches
Cooking Surface Depth 23 Inches
Plate Thickness 1 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 31 Inches
Shipping Height 17 Inches
Shipping Weight 520 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and labor

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 48 inches wide by 23 inches deep.
The embedded electric snap-action thermostats control the surface from 200°F to 450°F.
It uses a 120V, 60 Hz, single-phase connection with a NEMA 5-15P plug.
It includes a 3-1/2 inch front grease trough and an 8 quart stainless steel grease drawer.
The unit has a welded steel frame, stainless steel exterior, and 4 inch adjustable stainless steel legs.
