Lang Manufacturing (Middleby) 248SC LG Series Gas Griddles
Description
Lang LG Series 48" Countertop Gas Griddle – Chrome Plate
Model 248SC | 4-Zone Solid-State ControlBuilt for kitchens that refuse to compromise, the 48" Lang LG Series delivers lightning-fast recovery, razor-sharp temperature accuracy, and the labor-saving clean-up of a premium chrome plate—all in a compact, countertop footprint.
Why you’ll love it

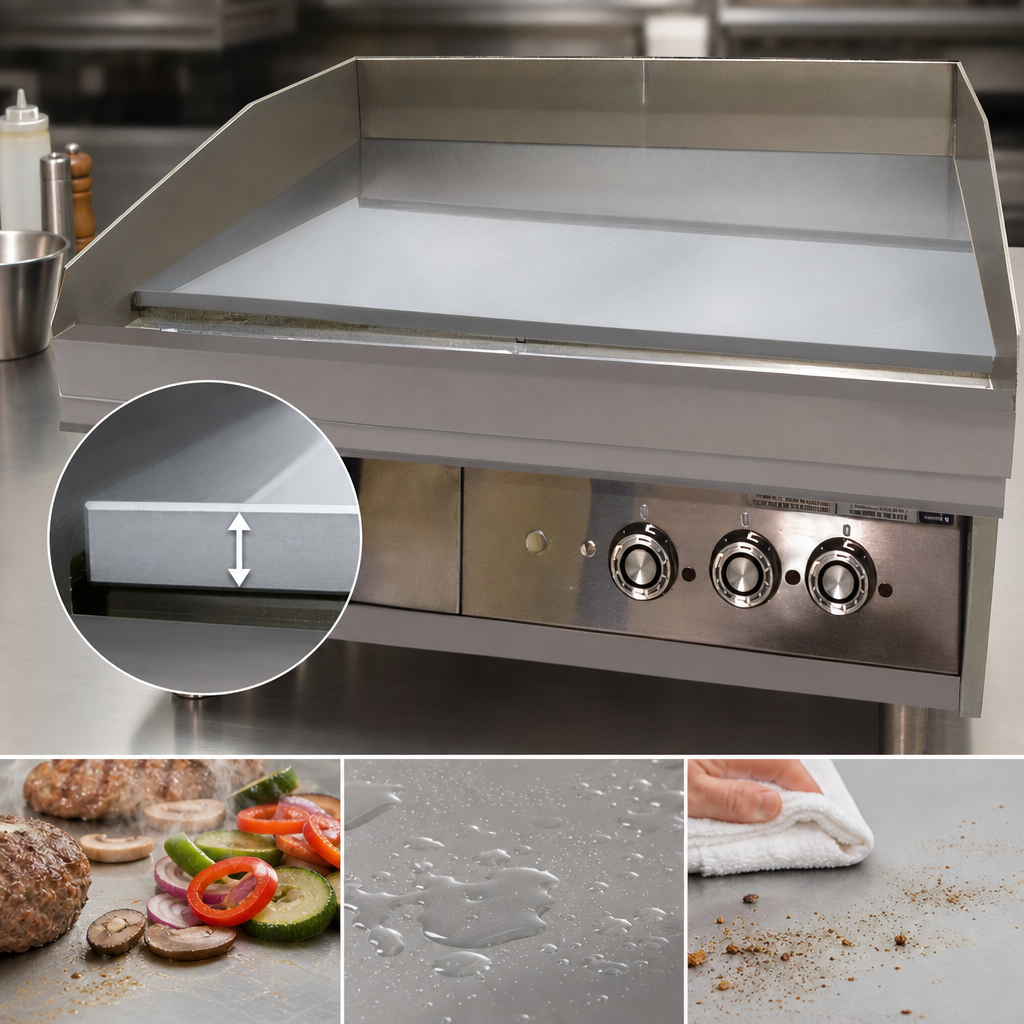

- 1" T1 Armor-grade chrome plate retains heat for unmatched recovery and carries a 5-year no-peel surface warranty.

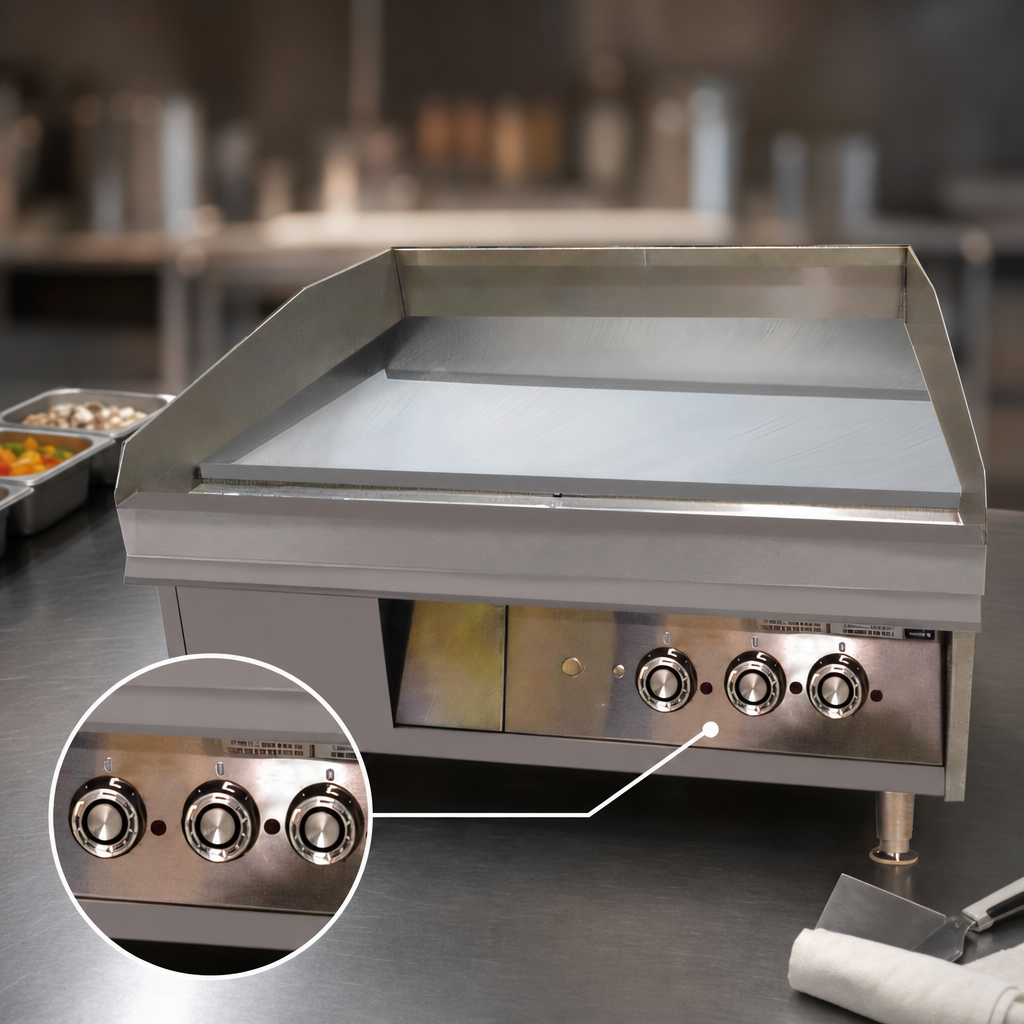

- Solid-state thermostats with embedded sensors hold set temps to ±4°F from 175–450°F for consistent results shift after shift.
- Four independent 12" zones (27,000 BTU each) let you cook delicate crêpes next to sizzling burgers without flavor transfer.
- Direct-spark ignition & pilot safety eliminate wasted gas and add a layer of operator protection.
- 5" wrap-around splash guard, 3½" front trough, and 8 qt. stainless drawer streamline daily cleanup.
- Heavy-duty welded steel frame with stainless exterior & 4" adjustable legs stands up to the toughest commercial environments.
- Plug-and-play: 3⁄4" NPT gas inlet plus factory-wired NEMA 5-15P (120 V, 2 A) cord.
- Certified UL Gas-Fired & NSF for peace of mind and code compliance.
Technical specifications
| Cooking surface | 48" W × 23" D (1,219 × 584 mm) |
|---|---|
| Plate material / thickness | Chrome-plated T1 steel, 1" (25 mm) |
| Heat zones | 4 independent, 12" each |
| Temperature range | 175°F – 450°F (79°C – 232°C) |
| Thermostat type | Solid-state, ±4°F surface accuracy |
| Total BTU input | 108,000 BTU/hr |
| Overall dimensions | 48.1" W × 31.6" D × 20.2" H (1,222 × 803 × 513 mm) |
| Grease capacity | 8 qt. (7.6 L) stainless drawer |
| Gas connection | 3⁄4" NPT, natural or LP |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2 years parts & labor; 5 years against chrome peeling |
| Approx. ship weight | 520 lb. (236 kg) |
The chrome advantage
- No seasoning required – start cooking immediately.
- Mirror finish wipes clean in seconds, slashing downtime.
- Runs cooler, reducing HVAC load and operator fatigue.
- Practically eliminates flavor carry-over from one menu item to the next.
Warranty coverage is provided by Lang Manufacturing and begins on the date of installation. Chrome surface warranted 5 years against peeling. See owner’s manual for full details.
