Lang Manufacturing (Middleby) 236ZTDC LG Series Gas Griddles
Description

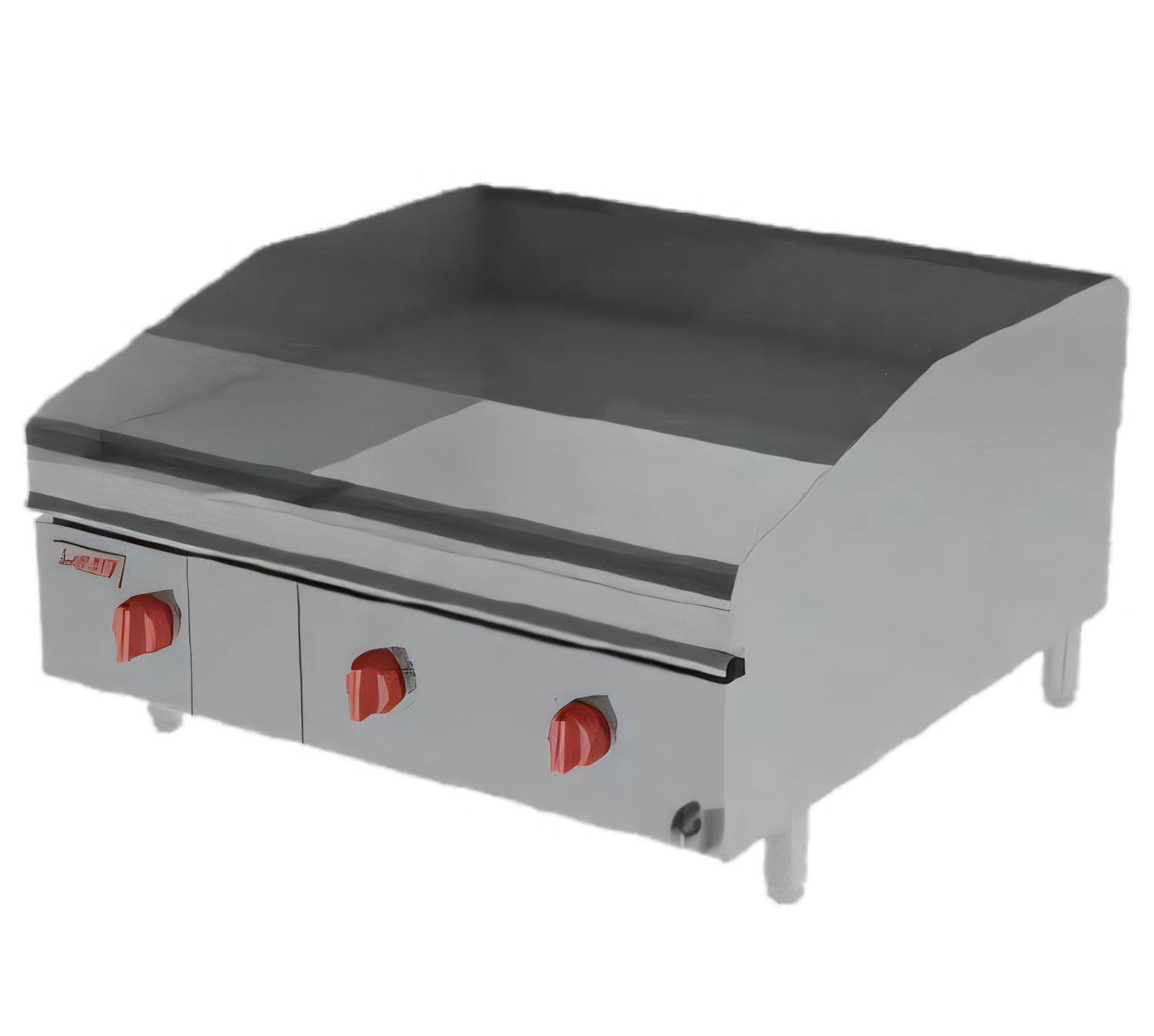

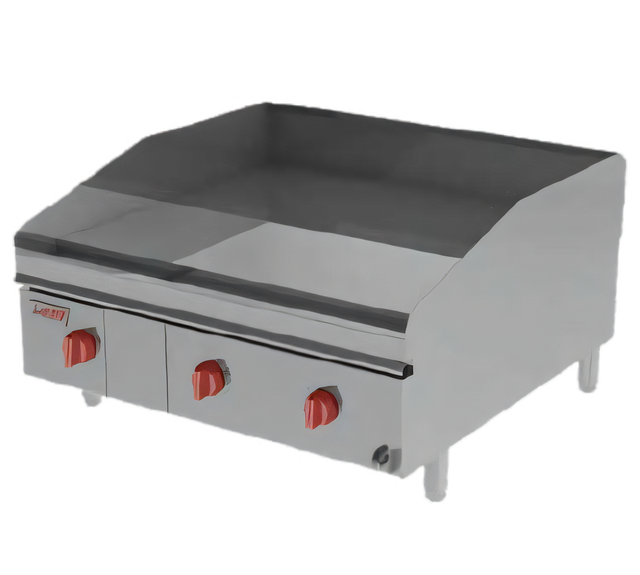

Lang LG Series 36" Gas Countertop Chrome Griddle
1" Chrome Plate • 30" Extra-Deep Surface • 105,000 BTUBuilt for high-volume kitchens that refuse to compromise on precision or presentation, the Lang LG Series 36" chrome griddle delivers rapid recovery, even temperatures and effortless clean-up in a compact countertop footprint.
Why It Stands Out

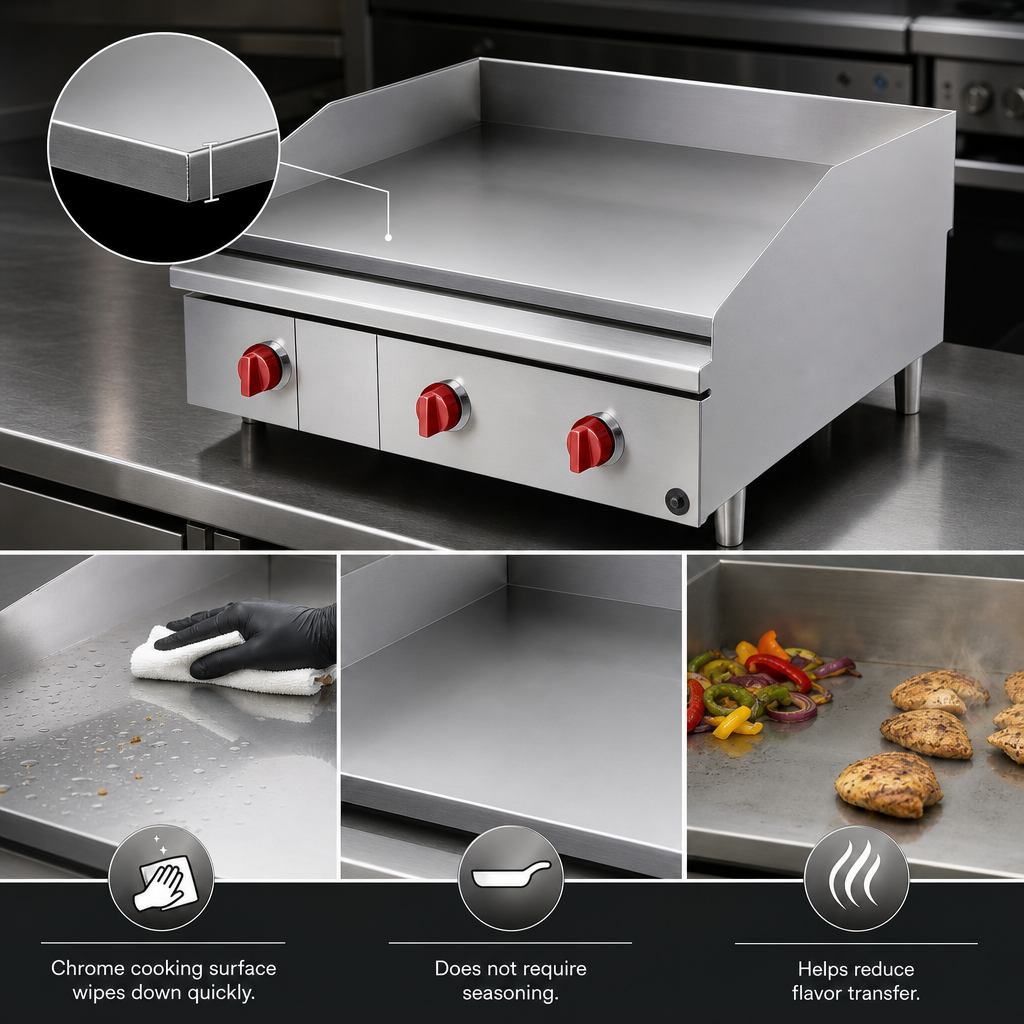

- Armor-Grade 1" Chrome Plate retains heat for faster recovery and is backed by a 5-year no-peel warranty.
- Extra-Deep 30" Cooking Surface provides 1,080 in² of production space—25 % more than standard 24"-deep plates.

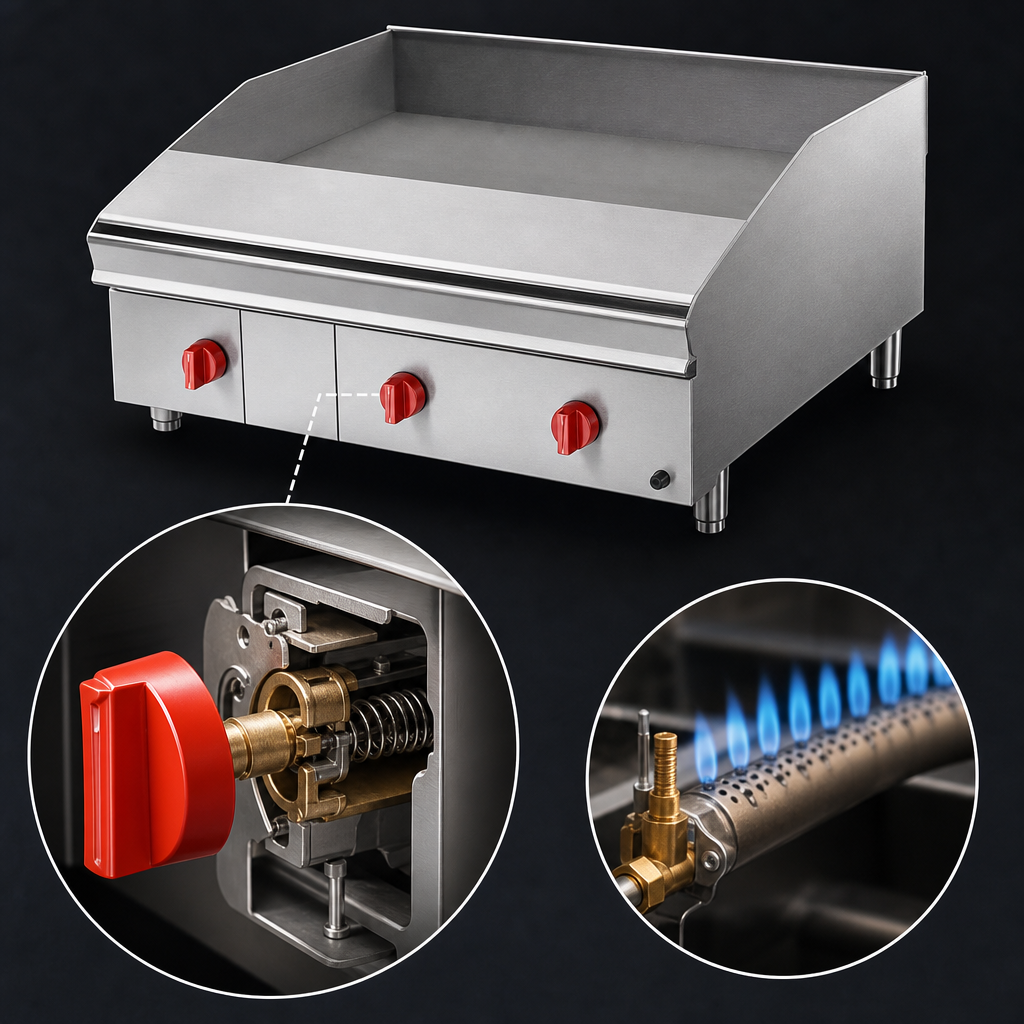

- Embedded Electric Snap-Action Thermostats (every 12") react quickly for a ±15 °F surface accuracy across 220-550 °F.
- Pilot-Safety Direct Spark Ignition lights burners on demand, eliminating a standing pilot and lowering idle costs.
- High BTU Performance—three aluminized burners deliver a total of 105,000 BTU (≈27,000 BTU/ft).
- Operator-Focused Clean-Up: 5" wrap-around splash, 3.5" front trough and 8 qt seamless stainless drawer.
- Built to Last: fully welded steel frame, stainless exterior, and 4" adjustable legs for leveling on any counter.
Technical Specifications
| Model | LG Series – 36" |
|---|---|
| Cooking surface | 36" W × 30" D (1,080 in²) chrome-plated T1 steel, 1" thick |
| Plate finish | 2 mil Hexavalent chrome, mirror polished (no seasoning required) |
| Temperature range | 220 °F – 550 °F |
| Controls | Embedded electric snap-action thermostats, independent every 12" |
| Gas input | 105,000 BTU/hr, 3/4" NPT rear connection |
| Electrical | 120 V / 60 Hz / 1-ph, 0.5 kW, 2 A, NEMA 5-15P |
| Grease management | 3.5" wide trough, 8 qt removable stainless drawer |
| Splash guard | 5" tapered, wrap-around welded stainless |
| Overall dimensions | 36" W × 37.25" D × 18.5" H (with 4" legs) |
| Weight | Approx. 530 lb (shipping 565 lb) |
| Certifications | cETLus, ETL Sanitation |
The Chrome Advantage
- Virtually eliminates flavor transfer between menu items.
- Reduces ambient kitchen heat for a cooler work environment.
- No seasoning needed—the mirror finish releases food effortlessly.
- Wipes clean fast, keeping service moving.
Warranty & Support
• 2 year parts & labor on the complete unit
• 5 year warranty against peeling on chrome cooking surface
Service is handled by Lang-authorized agencies across North America.
