Lang Manufacturing (Middleby)

Lang LG Series 36-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Electric Snap-Action Thermostats

SKU: 236ZTD
$11,523.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 36-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Electric Snap-Action Thermostats

36" W x 30" D Cooking Surface, Stainless Steel Exterior, 105,000 BTU

Built for high-volume service, this LG Series gas griddle combines a thick smooth steel plate, responsive thermostatic control, and durable stainless steel construction.

  • 36" x 30" cooking surface provides ample room for breakfast, lunch, and all-day production.
  • 1" smooth steel griddle plate helps retain heat and recover quickly between orders.
  • Embedded electric snap-action thermostats deliver precise 220°F to 550°F temperature control.
  • Welded steel frame with stainless steel exterior is built for demanding commercial kitchens.
  • 5" wrap-around splash guard, front grease trough, and 8 qt. grease drawer help keep cleanup manageable.
  • 120V power connection with NEMA 5-15P plug supports the thermostat and pilot safety system.

Overall Dimensions:

36.0"W x 37.25"D x 16.5"H

Product Weight:

565.0 lb

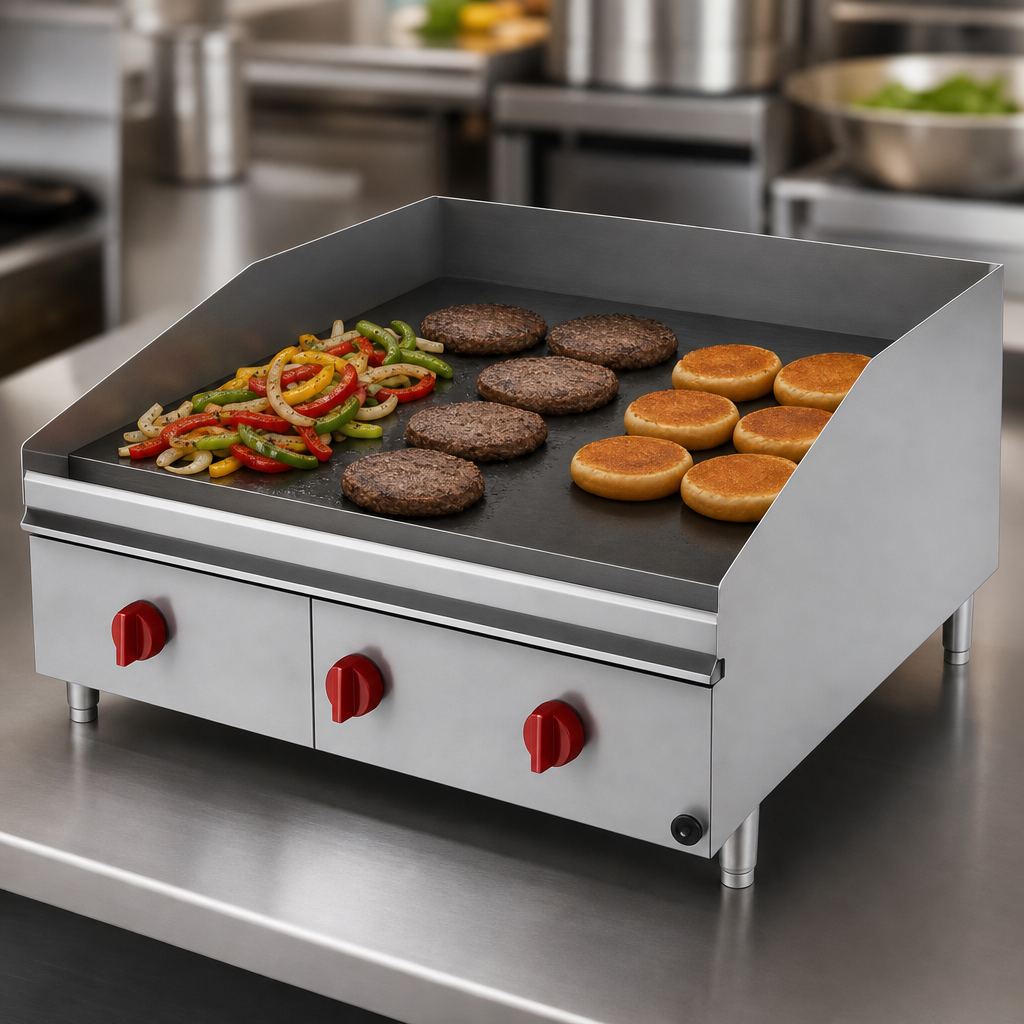

Large Countertop Cooking Surface

36" W x 30" D surface supports high-volume griddling in a compact countertop footprint.

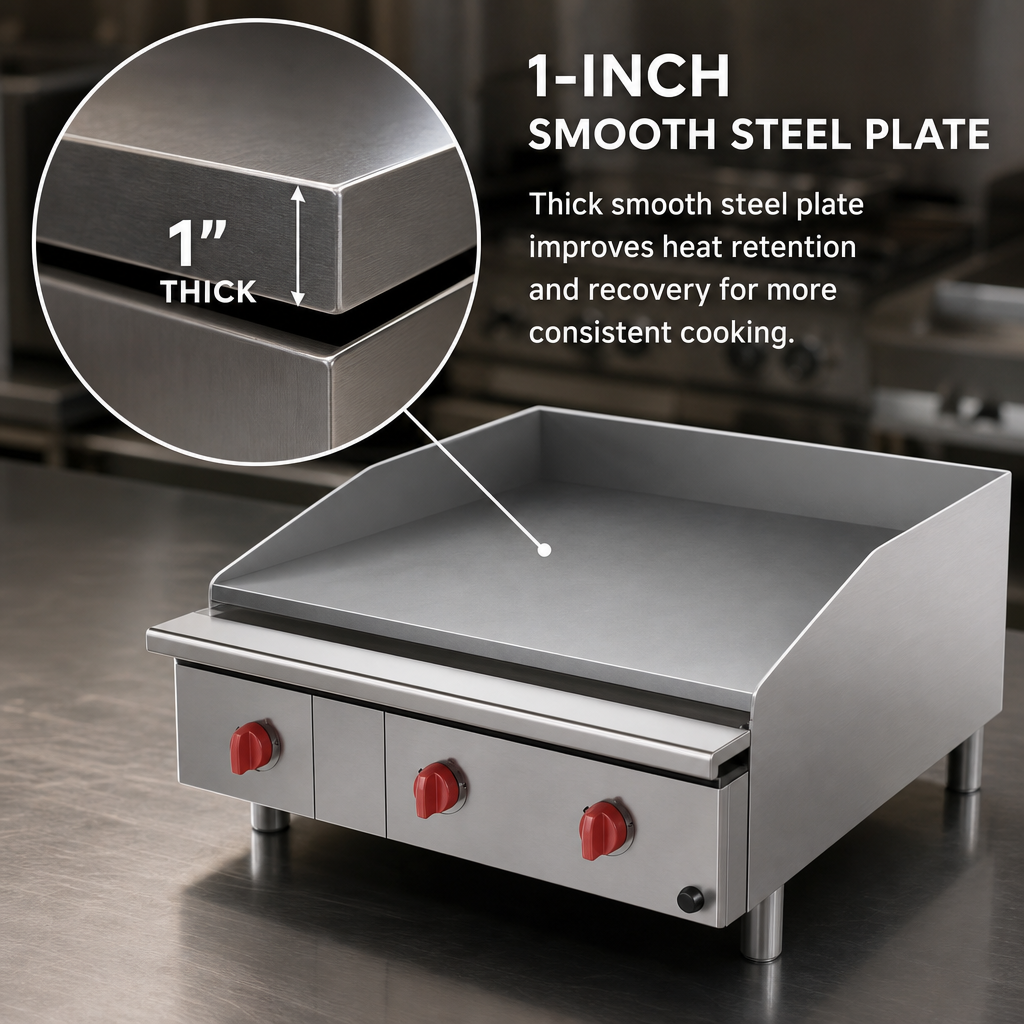

1-Inch Smooth Steel Plate

Thick smooth steel plate improves heat retention and recovery for more consistent cooking.

Embedded Electric Snap-Action Thermostats

Responsive thermostatic control helps maintain cooking temperatures from 220°F to 550°F.

Pilot Safety

Pilot safety system requires electric power and supports safer operation.

Welded Steel Frame with Stainless Steel Exterior

Heavy-duty construction is designed for long-term commercial durability and easier exterior cleaning.

Wrap-Around Splash Guard

5-inch tapered splash guard helps contain splatter and grease during busy service.

Front Grease Trough and Drawer

3-1/2-inch front grease trough channels drippings into an 8 qt. stainless steel grease drawer.

Adjustable Stainless Steel Legs

4-inch stainless steel legs include 1-5/8-inch adjustment for leveling.

High-Output Gas Performance

105,000 BTU output delivers strong heat for fast recovery and demanding production.

120V Power Connection

Uses 120V/60/1-ph power with a NEMA 5-15P plug for the electric control and safety components.

Type Gas Griddle
Style Smooth
Installation Type Countertop
Material Steel
Finish Stainless Steel Exterior
Controls Electric Snap-Action
Temperature Range 220°F to 550°F
Plate Thickness 1 Inch
Cooking Surface Width 36 Inches
Cooking Surface Depth 30 Inches
BTU 105,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 565 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2 years parts and labor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Buying guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a gas griddle, and it also requires 120V power for the embedded electric snap-action thermostats and pilot safety system.
The cooking surface measures 36 inches wide by 30 inches deep.
The thermostatic control range is 220°F to 550°F.
Grease is collected through a 3-1/2-inch front trough and an 8-quart stainless steel grease drawer.
It uses a NEMA 5-15P plug.
Lang griddles are covered for 2 years of parts and 2 years of labor under the limited equipment warranty.
