Lang Manufacturing (Middleby) 236ZSD LG Series Gas Griddles
Description

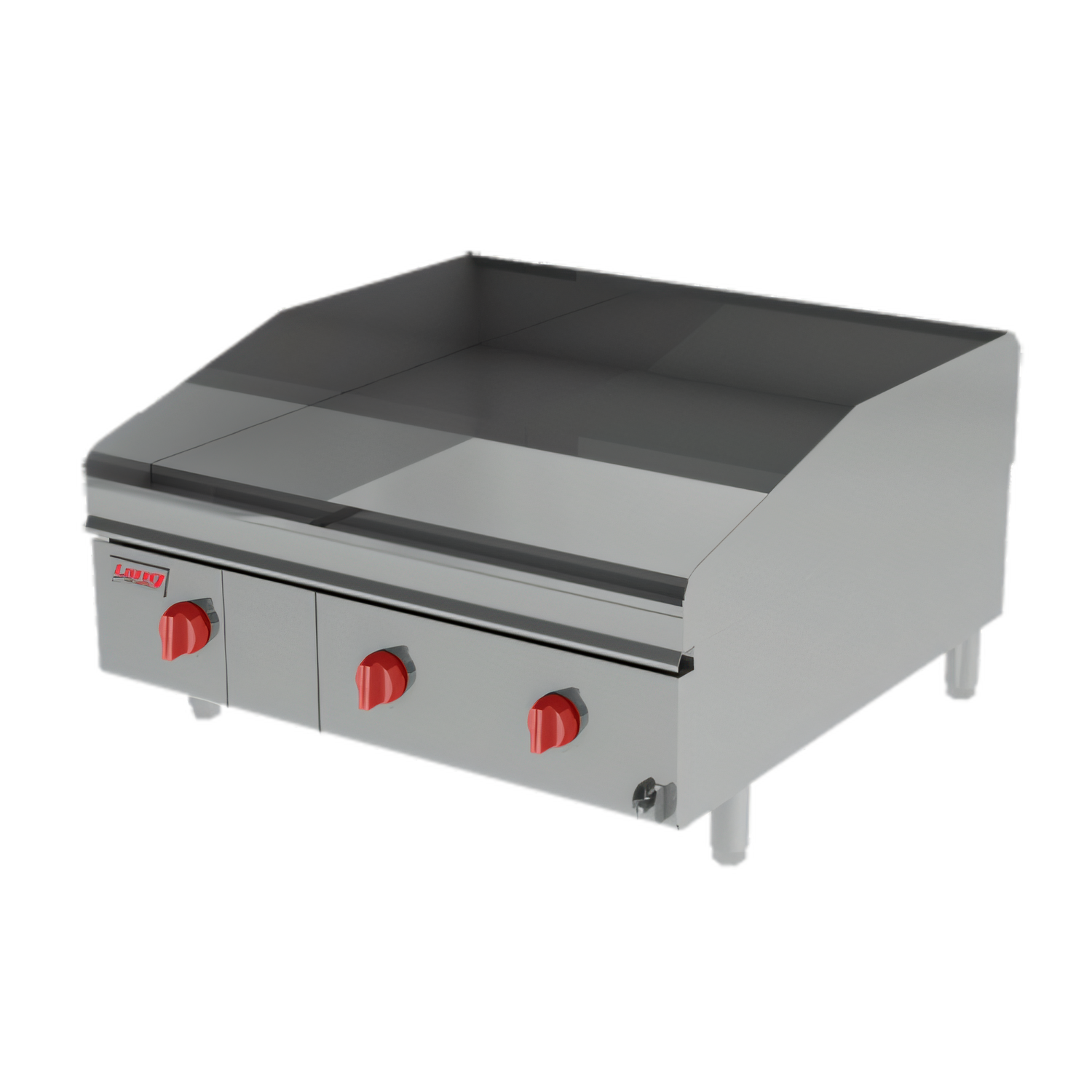

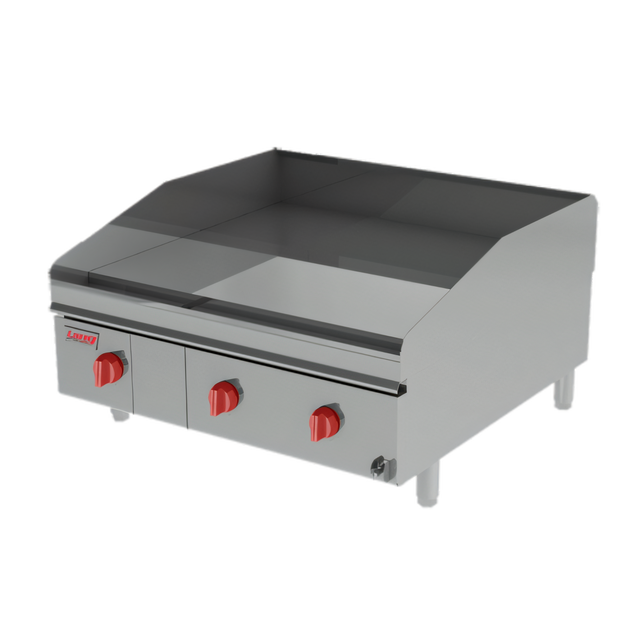

Lang LG Series 36" Extra-Deep Countertop Gas Griddle
Model 236ZSD • 1" Steel Plate • 105,000 BTUBuilt for non-stop breakfast bars, high-volume diners and hotel kitchens, Lang’s LG Series 36" griddle couples a massive 30" deep cooking surface with precise solid-state controls that respond within ±4 °F. Three independent 12" zones let you flip pancakes on one side while searing fajitas on the other—without flavor transfer or hot spots.
Why you’ll love it
- True 30" extra-deep plate – 20 % more usable space than standard 24" models.

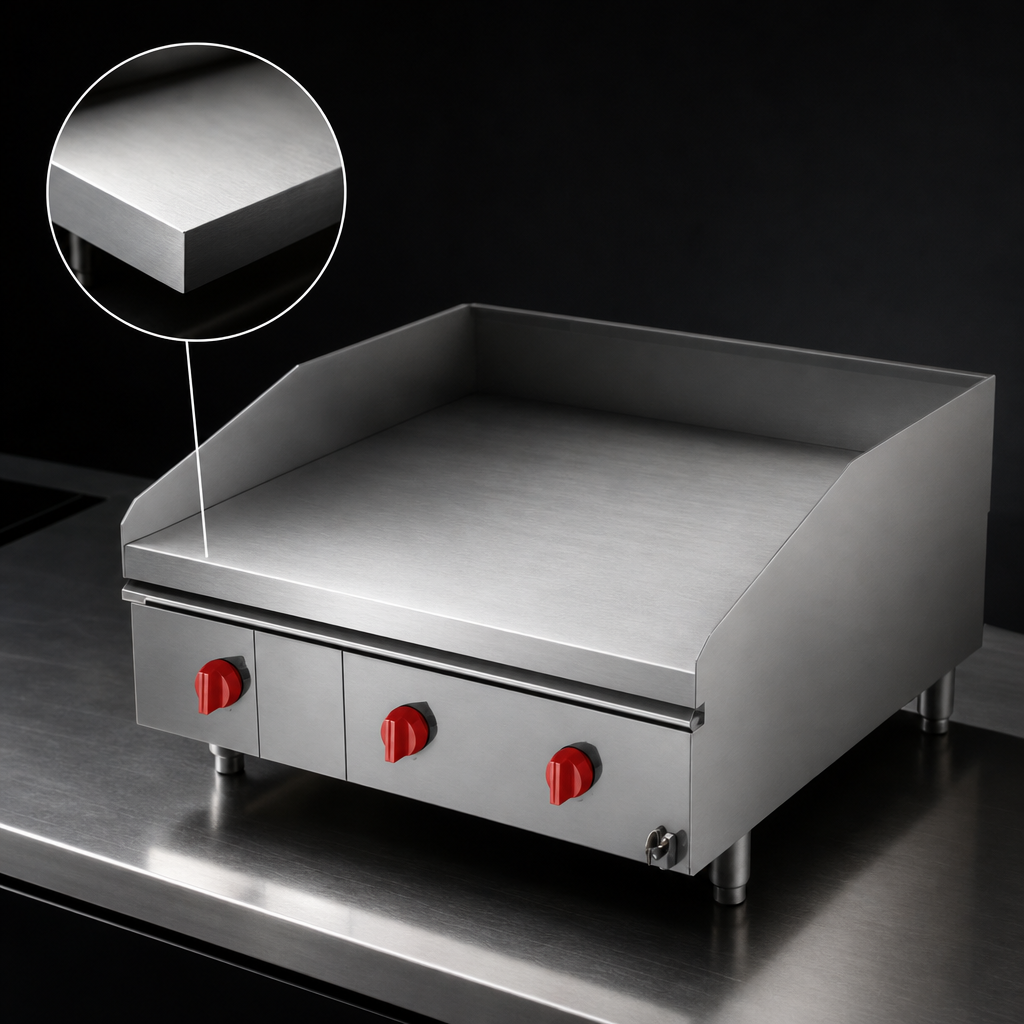

- 1" thick, precision-machined steel retains heat for lightning-fast recovery during peak periods.

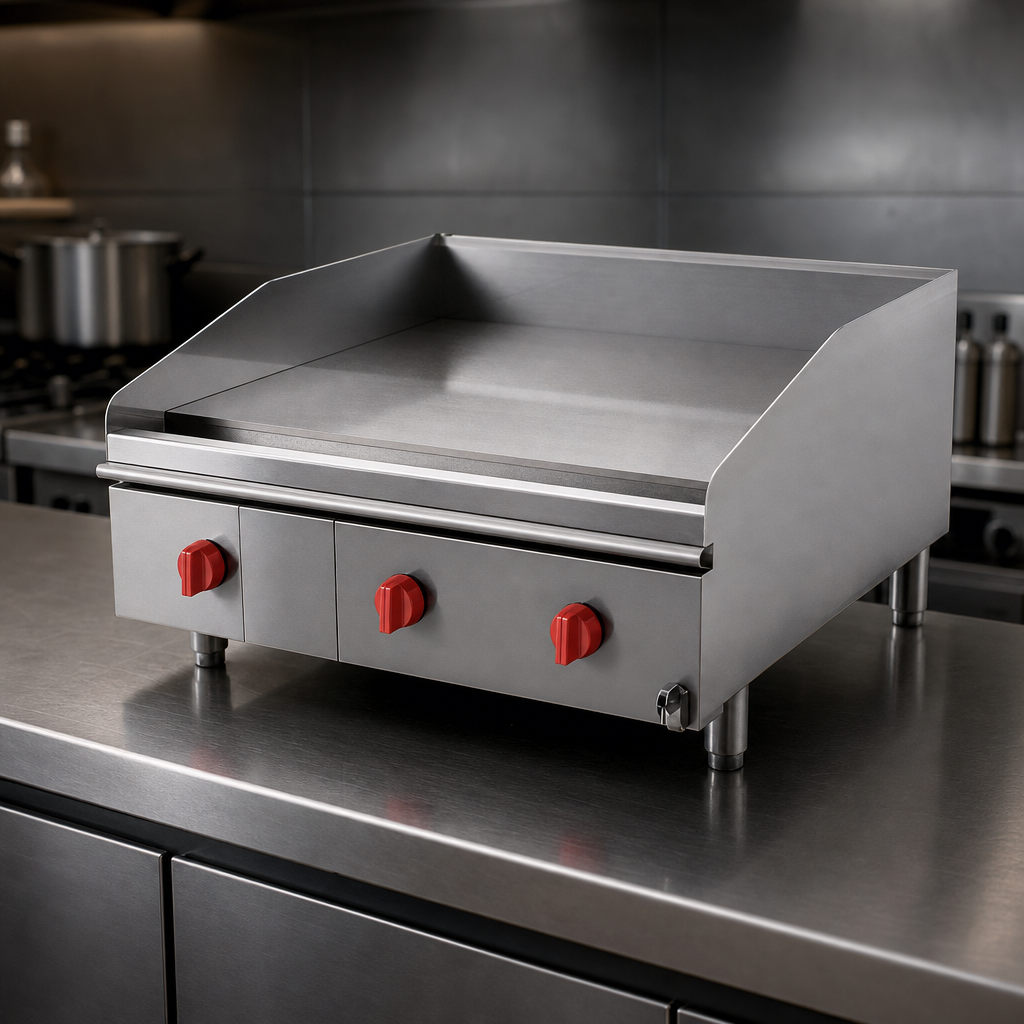

- Solid-state RTD thermostats (175-450 °F) with direct-spark pilot safety eliminate temperature swings and standing pilots.
- 3-zone versatility – each 12" section locks its own temperature for simultaneous menu items.
- Seamless grease management – 3½" front trough feeds an 8 qt. stainless drawer for all-day production.
- Kitchen-tough build – fully welded frame, double-wall stainless sides and 5" wrap-around splash guard.
- Ships with 4" adjustable stainless legs for easy leveling on any counter.
- cETLus & ETL-Sanitation listed and ready for jurisdictions across North America.
At-a-Glance Specs
| Cooking surface | 36" W × 30" D (1,080 sq in) |
|---|---|
| Plate material / thickness | Polished T1 steel, 1" thick |
| Heat zones / controls | 3 zones | solid-state thermostats 175-450 °F (±4 °F) |
| Total input | 105,000 BTU/hr (natural or LP) |
| Ignition / pilot safety | Electronic direct-spark with flame safety |
| Gas connection | ¾" NPT, rear |
| Electrical | 120 V, 60 Hz, 1-ph, 2 A | NEMA 5-15P cord & plug factory-installed |
| Overall dimensions* | 36.0" W × 37.25" D × 16.5" H (add 4" for legs) |
| Shipping weight | ≈ 565 lb (256 kg) |
| Certifications | cETLus • ETL-Sanitation |
| Standard warranty | 3-year parts & labor |
*Depth includes front trough; height measured without legs.
Built for the long haul
- Heavy 5" tapered rear & side splash guards contain splatter.
- 3½" × 1" grease trough machined into the plate for effortless scrape-through.
- 8 qt. stainless grease drawer slides on welded guides—no tipped pans.
- Aluminized burners spaced every 12" distribute heat evenly across the plate.
- Double-wall chassis keeps exterior surfaces cooler and reduces required clearances (4" sides/back).
