Lang Manufacturing (Middleby) 236TC LG Series Gas Griddles
$15,822.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Lang Manufacturing (Middleby) 236TC LG Series Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) 236TC LG Series Gas Griddles
$15,822.00
Unit price
/
Unavailable
Description

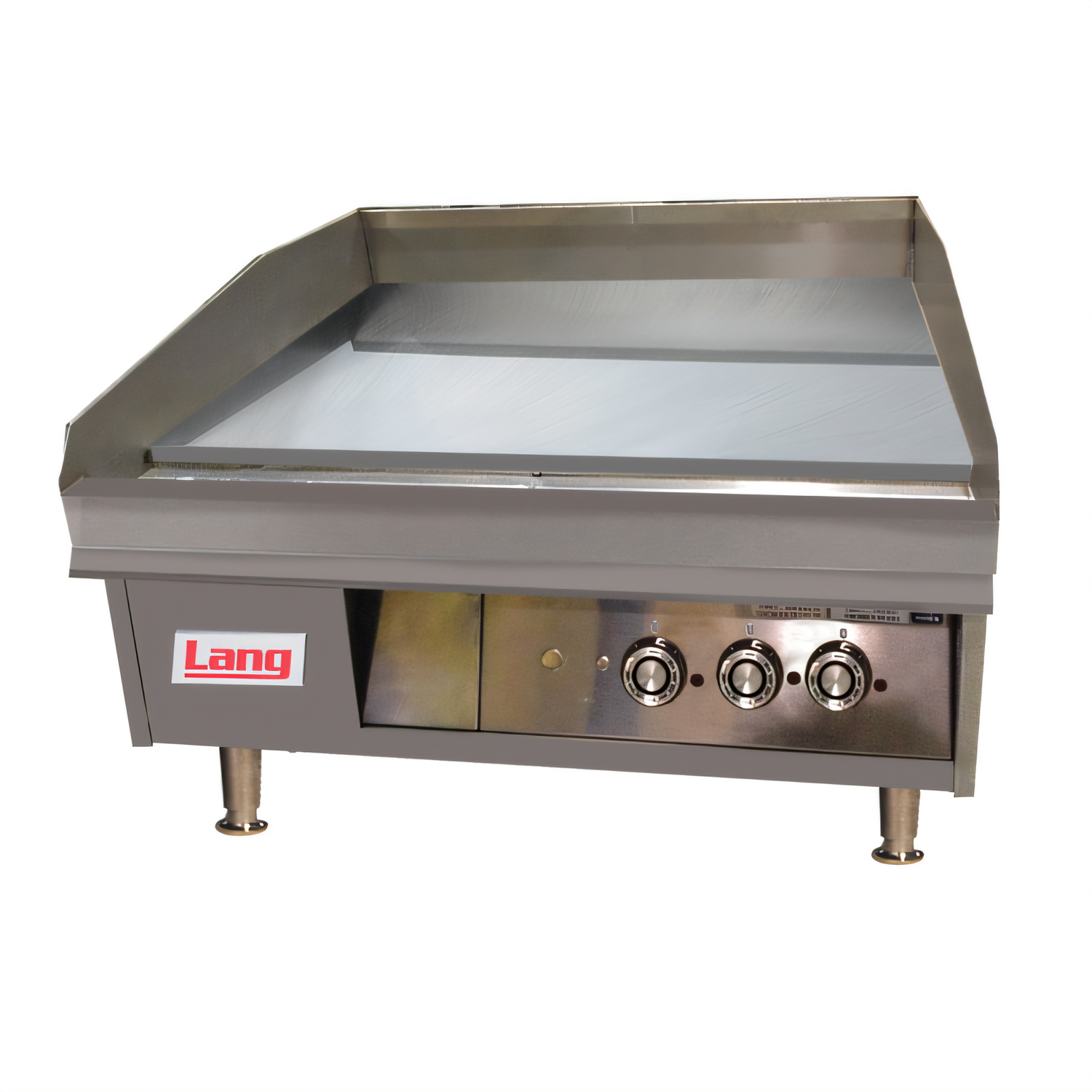

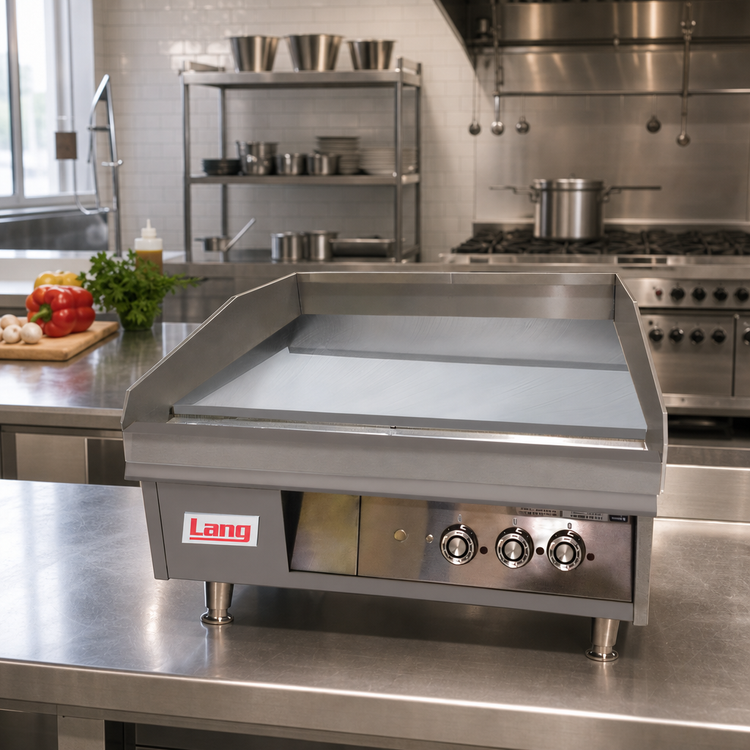

Lang LG Series 36" Gas Countertop Griddle – Chrome Plate
Model 236TC | 81,000 BTU | 3-Zone Accu-Temp™ ControlBuilt for demanding kitchens that refuse to compromise on speed or consistency, the Lang LG Series 36" chrome griddle delivers instant recovery, even heat, and effortless cleanup in a compact countertop footprint.
Why You’ll Love It

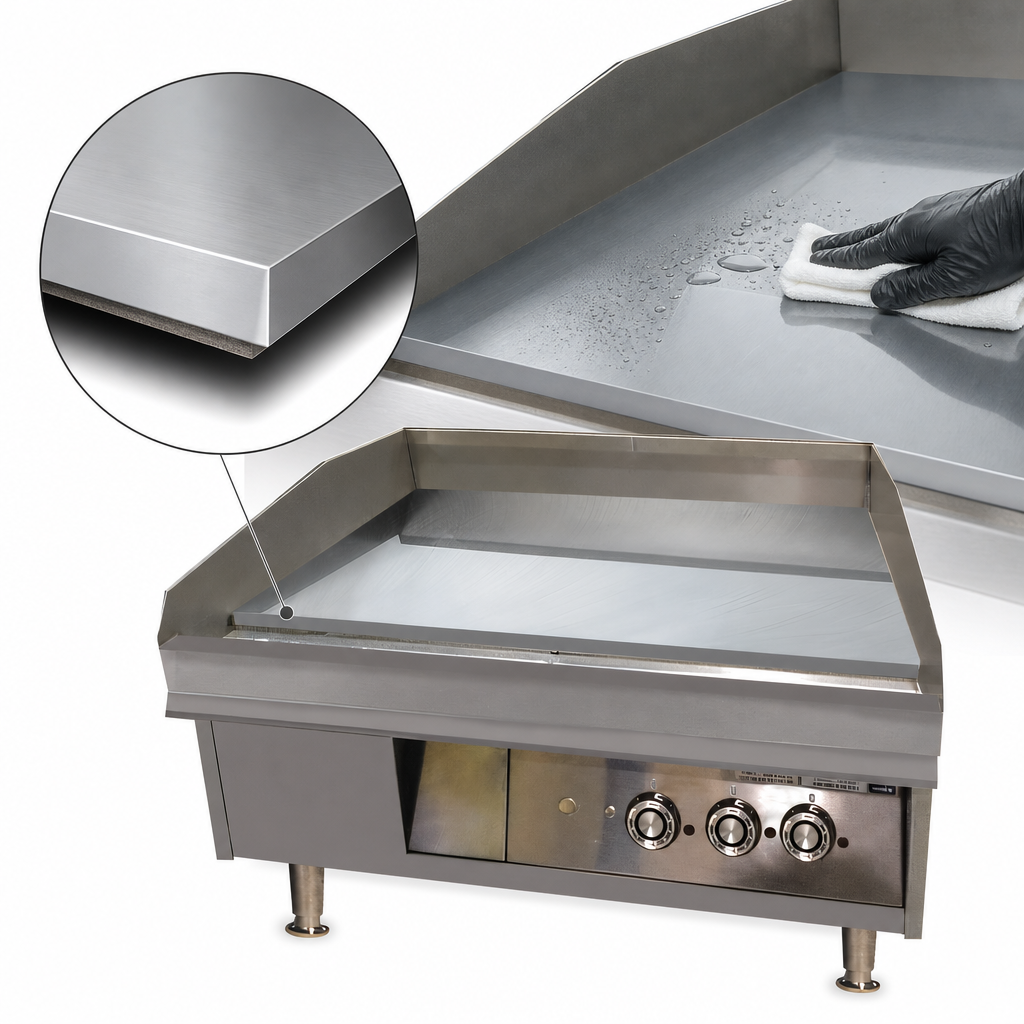

- 1" thick, T1 armor-grade steel plate with a 2 mil hexavalent chrome surface for superior heat retention, easy release, and 5-year no-peel warranty.
- Three independent 27,000 BTU burners (one every 12") for a total of 81,000 BTU.

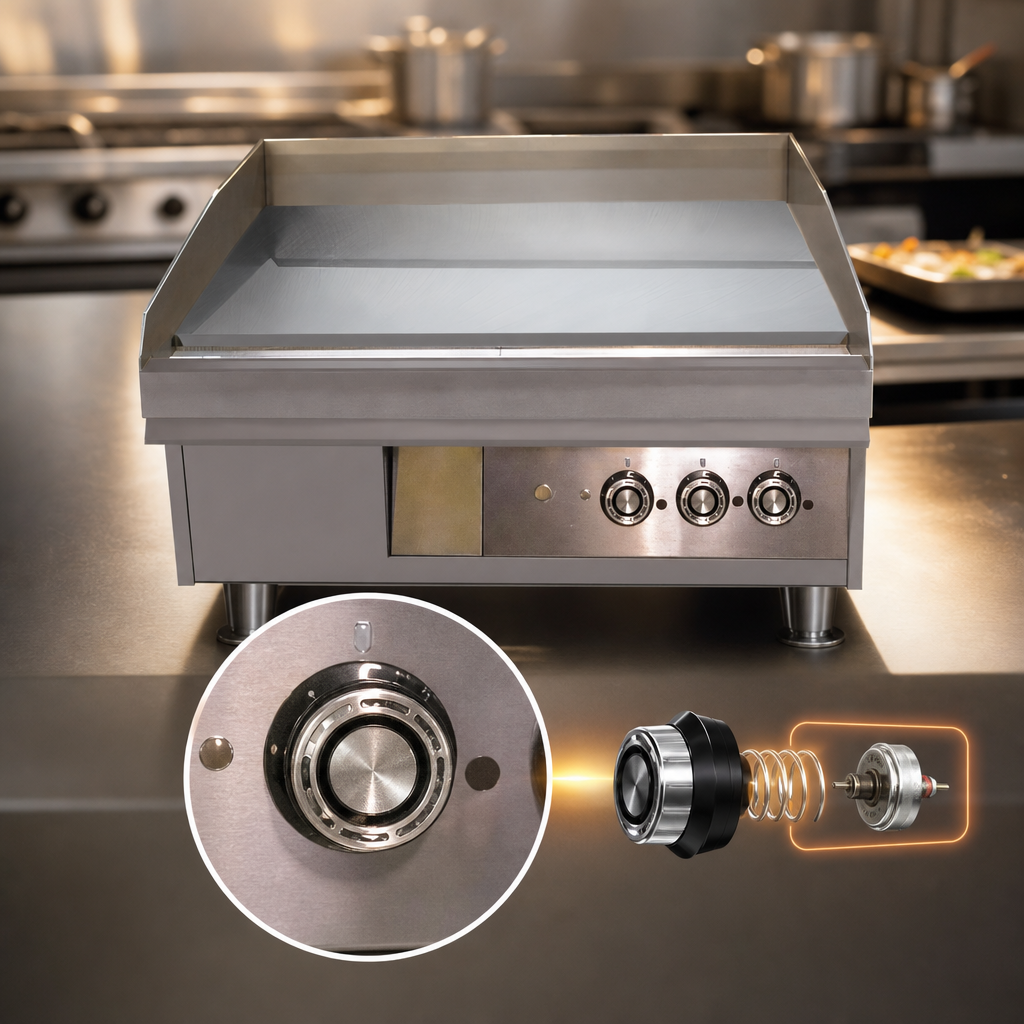

- Embedded electric snap-action thermostats (200 – 450 °F) react in milliseconds for ±15 °F surface accuracy.
- Direct-spark pilot safety; no standing pilot reduces gas use and kitchen heat.
- Welded steel chassis with a full stainless exterior—built for years of daily abuse.
- 5" tapered, wrap-around splash guard keeps grease where it belongs.
- 3.5" wide front trough and an 8 qt. stainless grease drawer for all-day production.
- 4" adjustable stainless legs simplify leveling on any countertop.
- Certified UL Gas-Fired & NSF; proudly Made in the USA.
Precision Performance
- Internal sensors are mounted just 3/16" below the surface, delivering lightning-fast recovery when cold food hits the plate.
- The full-chrome mirror finish flashes off moisture for perfect sears while reducing kitchen radiated heat by up to 30 %.
- Independent zones let you breakfast, lunch, and dinner on the same deck—simultaneously.
Technical Specifications
| Cook Surface | 36" W × 23" D (828 in²) |
|---|---|
| Plate Material | 1" chrome-plated steel (T1 armor-grade) |
| Heating Zones | 3 independent, 12" wide sections |
| Temperature Range | 200 °F – 450 °F (snap-action embedded probes) |
| Total Input | 81,000 BTU/hr (natural or LP) – 3/4" NPT inlet |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, 240 W, NEMA 5-15P (pre-wired) |
| Overall Dimensions | 20.2" H × 36.1" W × 31.6" D |
| Shipping Weight | Approx. 409 lb (186 kg) |
| Certifications | UL Gas-Fired, NSF-Listed |
| Warranty | 2 years parts & labor / 5 years chrome surface |
What’s Included
- Lang LG Series 36" chrome gas griddle
- Factory-installed 4" stainless steel legs
- NEMA 5-15P power cord
- Owner’s & installation manual
Installation Note:
Provide at least 5" clearance at the back and sides for proper ventilation and service access.
Professional installation is recommended.
Need an easier way to own it? Ask about Middleby Equipment Financing for fast approvals and low monthly payments.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Brand_name
LG Series
Certifications
cULus, UL EPH
Height
16.4in
Width
36.0in
Depth
30.4in
Shipping Weight
420.0lbs
Cooking Surface Depth (front - back)
20" - 23"
Controls
thermostat / solid state controls
Cooking Surface Width (side - side)
31" - 36"
Griddle Plate Finish
chrome plated
Exterior Finish
all stainless steel exterior
Plate Thickness
1"
Specifications
LG Series Griddle, countertop, gas, 36"W x 23"D cooking surface, 1" thick chrome griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
