Lang Manufacturing (Middleby)

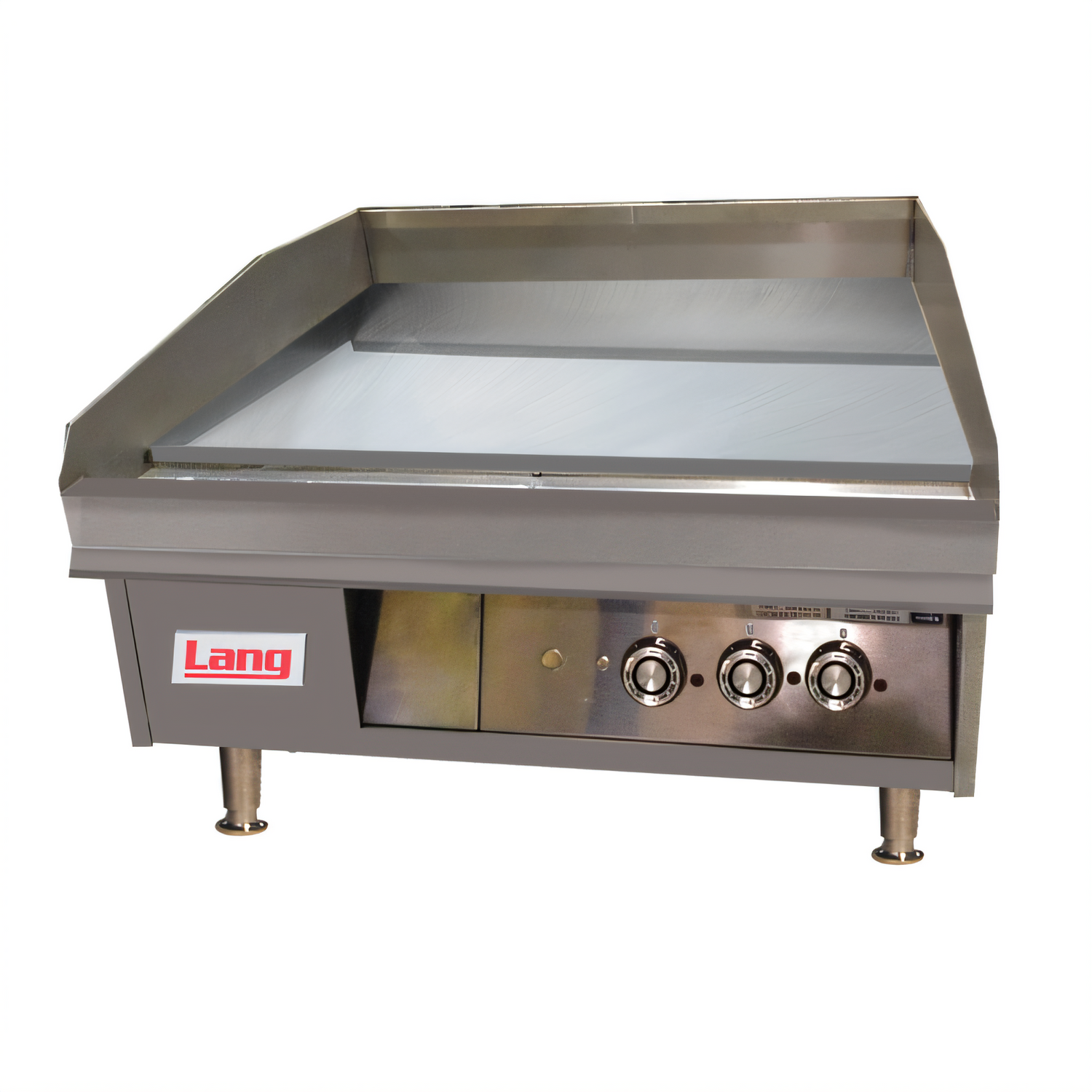

Lang LG Series 36-Inch Countertop Gas Griddle with 1-Inch Smooth Steel Plate

SKU: 236T
$9,320.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 36-Inch Countertop Gas Griddle with 1-Inch Smooth Steel Plate

36" x 23" Cooking Surface, 81,000 BTU, 120V, NEMA 5-15P

A durable countertop gas griddle with a 1-inch smooth steel plate, responsive thermostats, and easy-clean grease handling.

  • 36" x 23" cooking surface offers a generous work area in a countertop footprint.
  • 1-inch thick smooth steel plate helps retain heat and recover quickly.
  • Embedded electric snap-action thermostats provide 200°F to 450°F temperature control.
  • 81,000 BTU output supports high-volume cooking performance.
  • Stainless steel exterior and welded steel frame are built for daily commercial use.
  • 5-inch splash guard, front grease trough, and stainless grease drawer help contain mess and simplify cleanup.

Overall Dimensions:

36.0"W x 30.4"D x 16.4"H

Product Weight:

420.0 lb

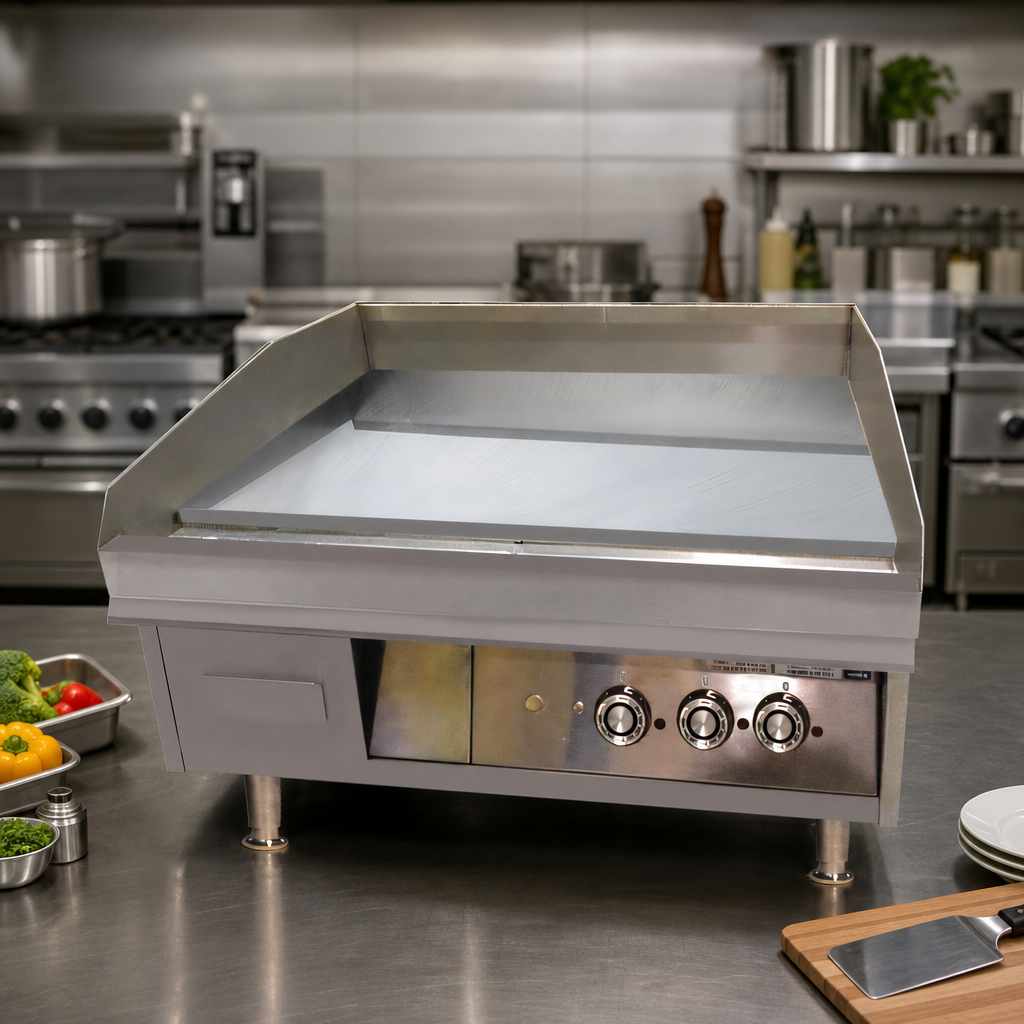

Countertop Gas Griddle

Countertop design with a 36-inch wide by 23-inch deep cooking surface for versatile prep and service.

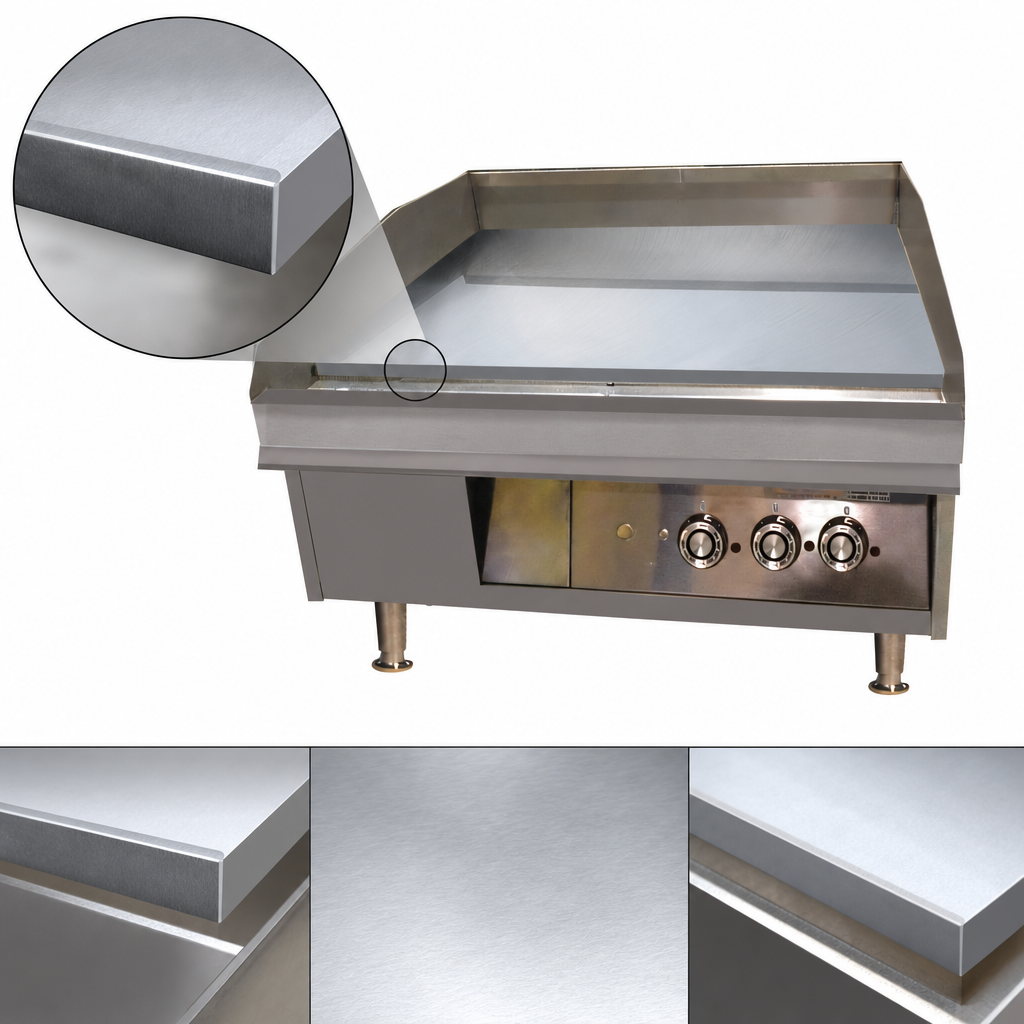

1-Inch Smooth Steel Plate

Thick steel griddle plate improves heat retention and helps maintain consistent cooking performance.

Embedded Electric Snap-Action Thermostats

Thermostats are adjustable from 200°F to 450°F and include pilot safety for responsive heat control.

High-Output Gas Performance

81,000 BTU of cooking power supports demanding breakfast, lunch, and all-day service.

Heavy-Duty Steel Construction

Welded steel frame with stainless steel exterior is designed for durability and a clean professional appearance.

Grease Management System

Includes a 5-inch tapered wrap-around splash guard, 3-1/2-inch front grease trough, and 8-quart stainless steel grease drawer.

Adjustable Stainless Steel Legs

4-inch adjustable stainless steel legs help level and stabilize the unit on the work surface.

Standard Electrical Connection

120V/60 Hz single-phase power with a NEMA 5-15P plug supports the thermostat and pilot safety system.

Type Griddle
Style Countertop
Installation Type Countertop
Cooking Surface Width 36 Inches
Cooking Surface Depth 23 Inches
Plate Thickness 1 Inch
Controls Embedded Electric Snap-Action Thermostats
Temperature Range 200°F to 450°F
BTU 81,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Steel
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 17 Inches
Shipping Weight 420 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and 2 years labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 36 inches wide by 23 inches deep.
The embedded electric snap-action thermostats are adjustable from 200°F to 450°F.
It uses 120V/60 Hz single-phase power and includes a NEMA 5-15P plug.
Pilot safety uses electric power to ignite the burner as heat is called for, eliminating the need for a standing pilot.
The unit includes a 5-inch tapered wrap-around splash guard, a 3-1/2-inch front grease trough, and an 8-quart stainless steel grease drawer.
Lang griddles are covered for 2 years on parts and 2 years on labor under the limited equipment warranty.
