Lang Manufacturing (Middleby)  |  LG Series  |  SKU: 236SC

Lang Manufacturing (Middleby) 236SC LG Series Gas Griddles

$19,015.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Buying guide Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

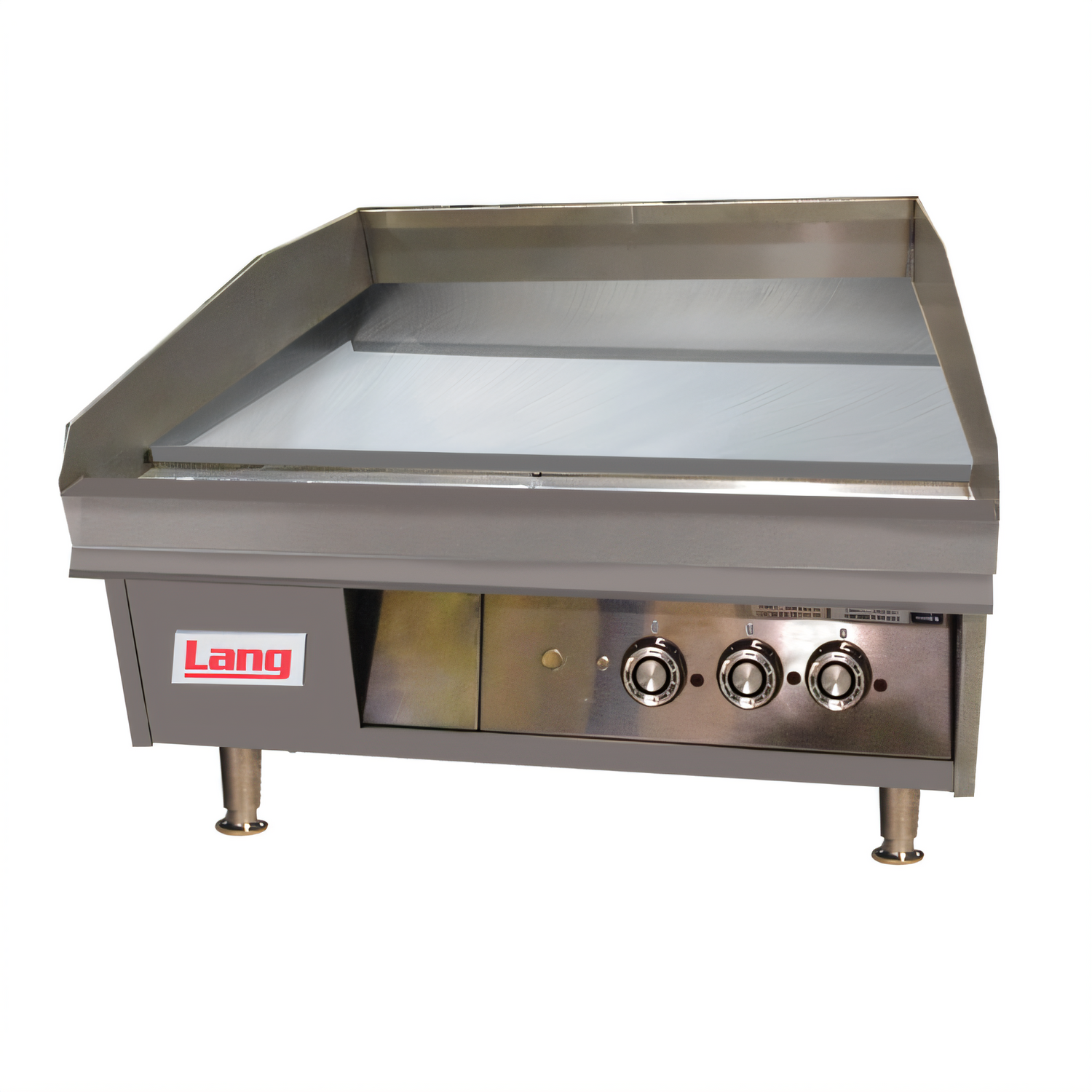

Lang LG Series 36″ Gas Countertop Griddle

Model 236SC | Chrome Plate • Solid-State Controls

Harness 81,000 BTU of responsive heat across a full 36-inch chrome plate that never needs seasoning. Engineered for accuracy, speed and easy cleanup, the Lang LG Series makes high-volume griddling simple on any countertop.

Chef-Focused Advantages

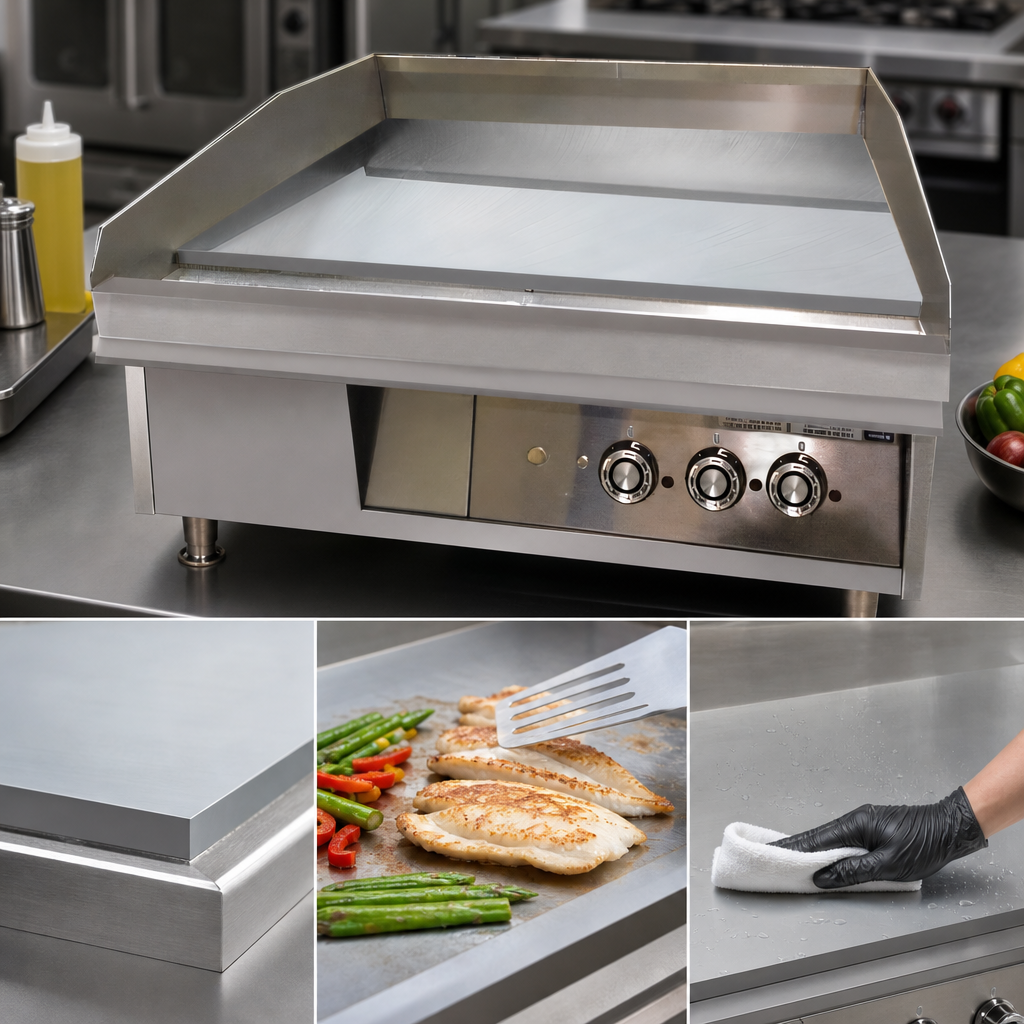

  • 1″ thick, T1 armor-grade steel plate with 2 mil hexavalent chrome—5-year no-peel warranty.
  • Embedded sensors just 3⁄16″ below the surface for instant response and fast recovery.
  • Three independent 27,000 BTU burners (81,000 BTU total) create up to three precise heat zones.

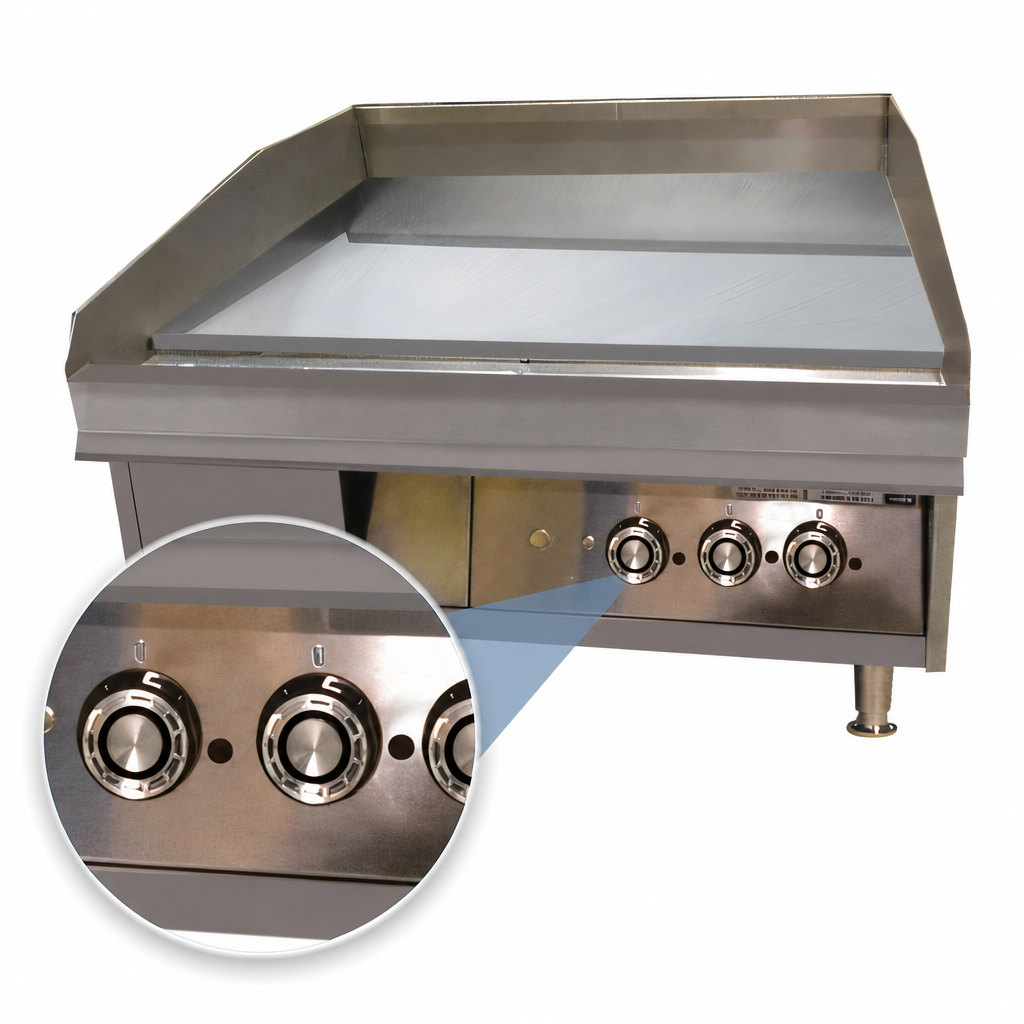

  • Selectronic™ solid-state thermostats hold set point to ±4 °F from 175 °F – 450 °F.
  • Direct-spark ignition with pilot safety—no standing pilot, lower energy use.
  • 5″ tapered wrap-around splash guard plus 3½″ × 1″ front trough channel grease into an 8 qt stainless drawer.
  • Welded steel frame, stainless exterior and 4″ adjustable legs built for relentless kitchen duty.
  • Chrome surface reduces kitchen heat, minimizes flavor transfer and wipes clean fast.
  • UL Gas-Fired and NSF listed; made in the USA.

Key Specifications

Cooking surface 36″ W × 23″ D
Plate material 1″ thick chrome-plated steel
Temperature range 175 °F – 450 °F (solid-state)
Heat output 81,000 BTU/hr (3 × 27,000 BTU)
Controls 3 independent solid-state thermostats
Electrical 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P
Gas connection 3⁄4″ NPT (natural gas or LP)
Overall dimensions 36.1″ W × 31.6″ D × 20.2″ H
Installed weight 335 lb (409 lb ship)
Grease drawer 8 qt stainless steel, front-mounted
Certifications UL, NSF

Optional accessories: clamshell hood (one per 12″ section), custom grooved plate, or stainless stand with legs or casters.

Warranty

  • 2-year parts & labor on the entire griddle
  • 5-year warranty against chrome surface peeling
Installation note: Unit requires both a 3⁄4″ gas hookup and a 120 V electrical connection for electronic ignition. Maintain 5″ clearance at back and sides for proper ventilation.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cULus, UL EPH

Height

16.4in

Width

24.0in

Depth

30.4in

Shipping Weight

280.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Exterior Finish

all stainless steel exterior

Cooking Surface Width (side - side)

31" - 36"

Controls

thermostat / solid state controls

Griddle Plate Finish

chrome plated

Plate Thickness

1"

Specifications

LG Series Griddle, countertop, gas, 36"W x 23"D cooking surface, 1" thick chrome-plated griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
