Lang Manufacturing (Middleby) 236S LG Series Gas Griddles
Description

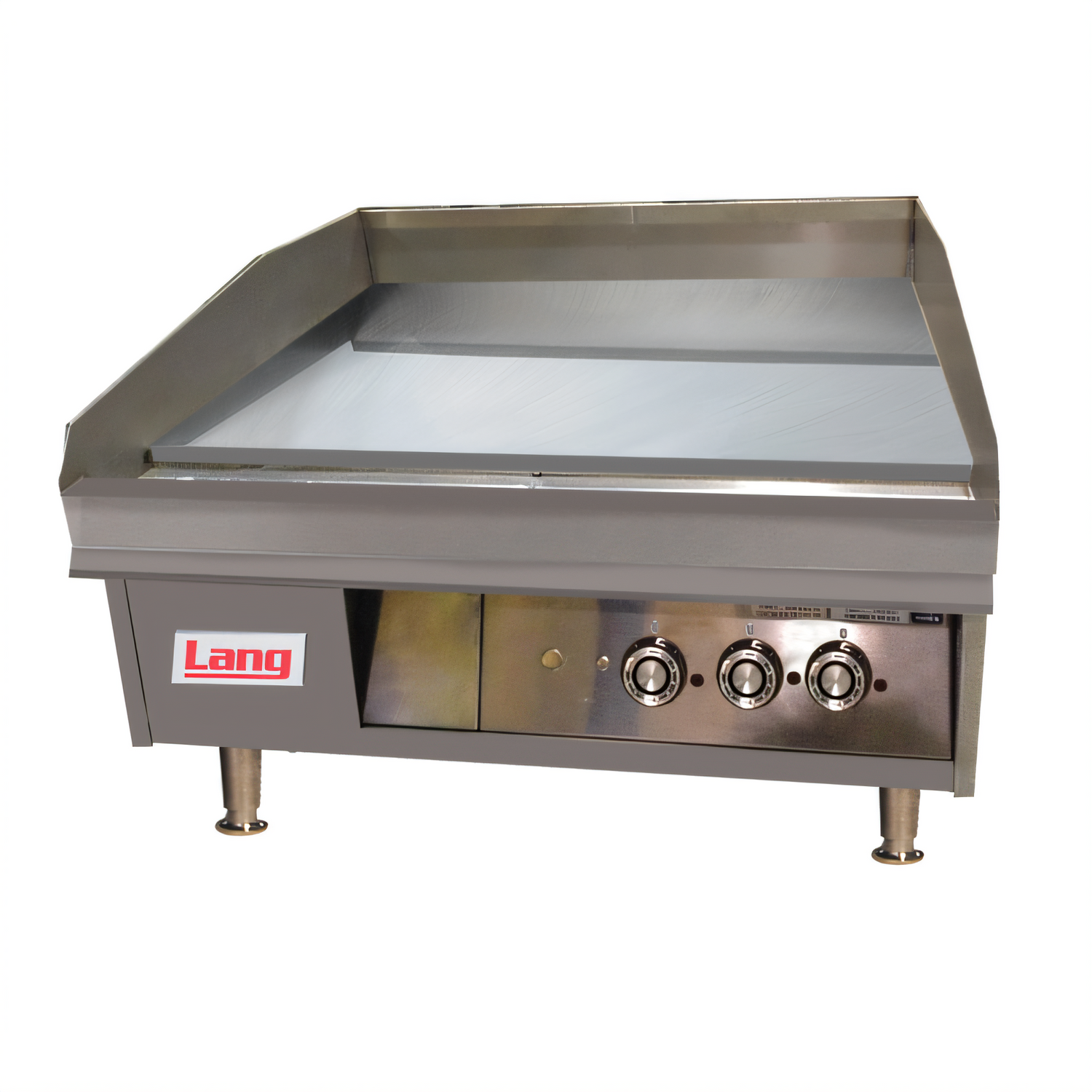

Lang LG Series 36" Gas Countertop Griddle
81,000 BTU • Solid-State Thermostats • Model LG-36Give your line a serious production boost without sacrificing precision. The Lang LG Series 36" gas griddle combines a full 5.75 ft² of cooking area with embedded-sensor, solid-state controls that hold every zone within ±4 °F of set temperature—so breakfast rushes, burger flights and late-night melts all finish fast and perfectly cooked.
Chef-Focused Advantages

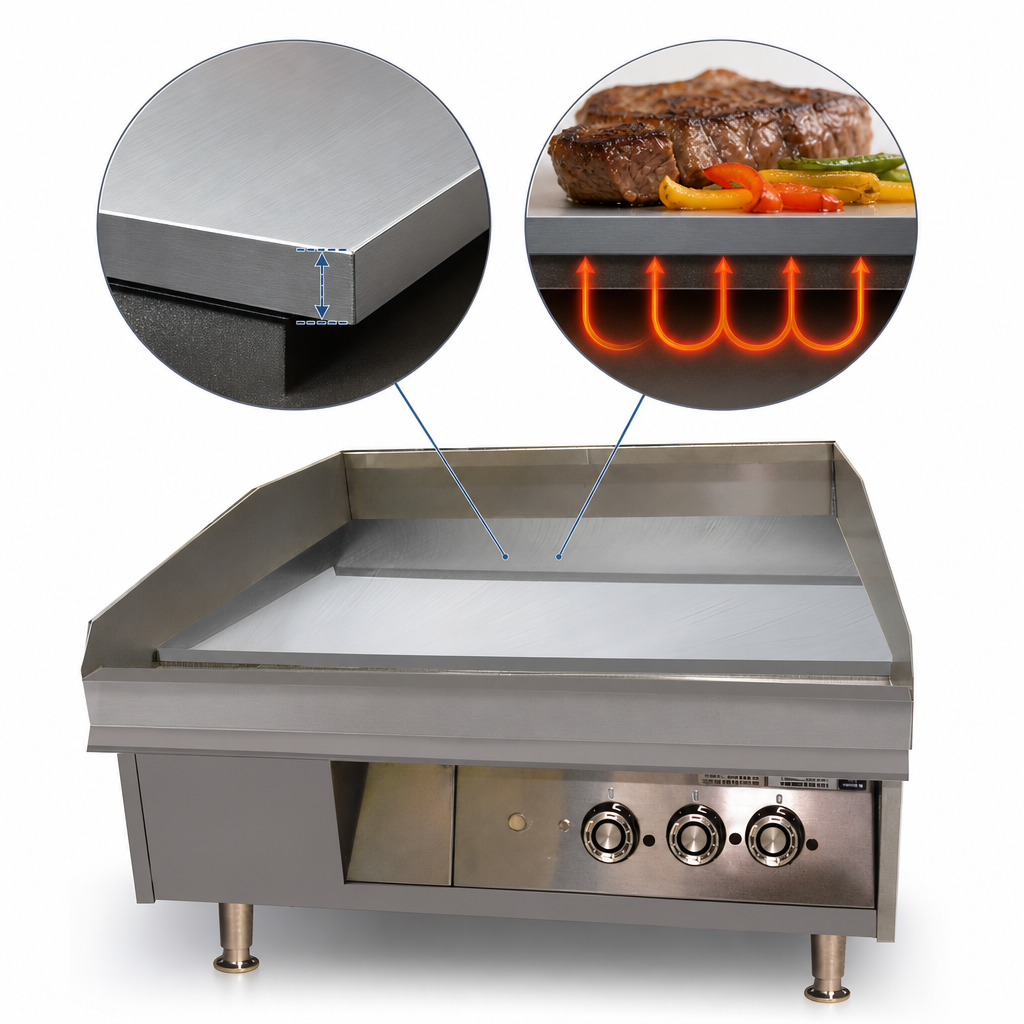

- 1" thick polished steel plate retains heat for lightning-fast recovery.

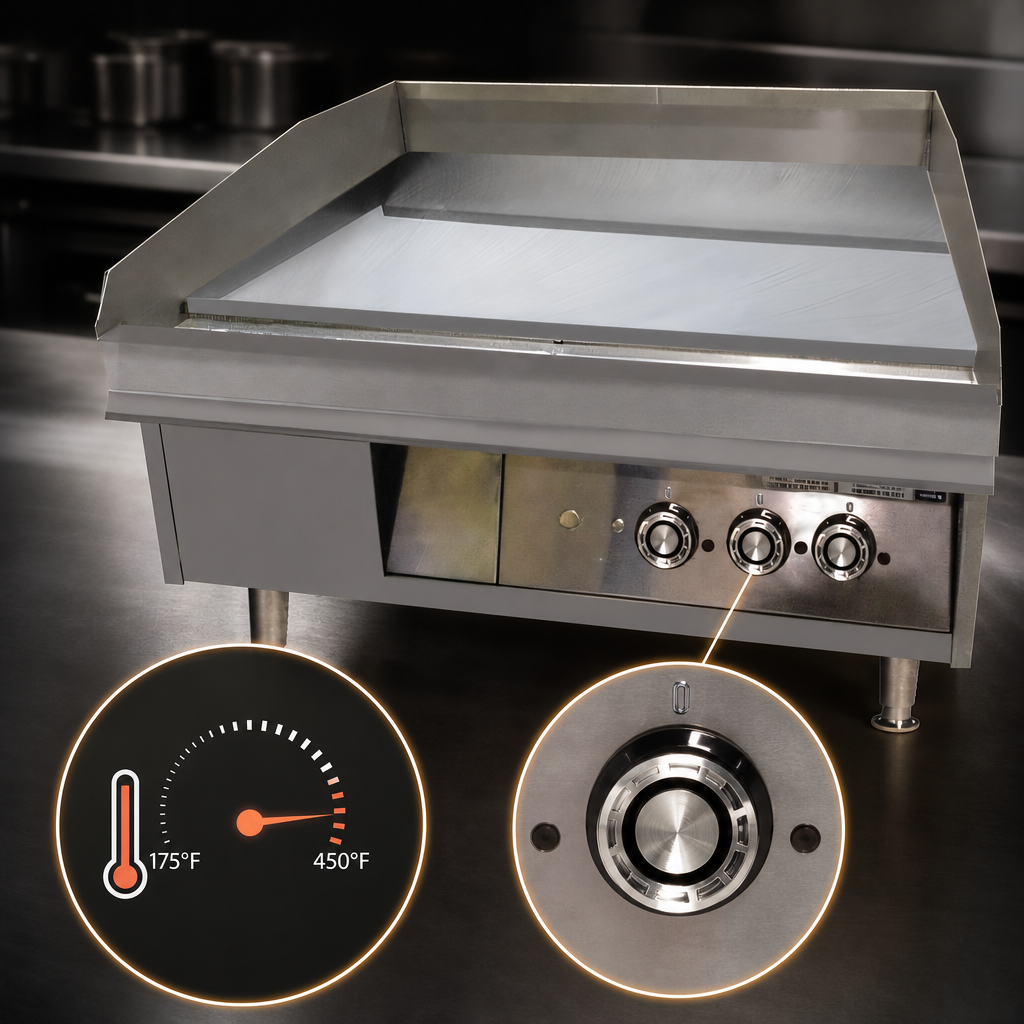

- Three independent solid-state thermostats (one per 12" zone) deliver a precise 175 – 450 °F range.
- Embedded thermocouples just 3/16" below the surface respond instantly to load changes.
- 81,000 BTU total output (27,000 BTU per zone) powers through peak periods.
- 5" tapered, wrap-around splash guard keeps walls and counters spotless.
- 3 ½" front grease trough funnels runoff into an 8 qt. stainless drawer for quick clean-up.
- Rugged welded-steel chassis with stainless exterior—built & assembled in the USA.
- 4" adjustable stainless steel legs level the unit on any work surface.
- Electronic spark ignition with pilot safety—no standing pilots, lower energy use.
- UL & NSF listed; plugs into a standard 120 V NEMA 5-15R outlet.
Technical Specifications
| Cooking surface | 36" W × 23" D (914 mm × 584 mm) |
|---|---|
| Heat output | 81,000 BTU/hr (27,000 BTU per 12" section) |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| Plate thickness | 1" (25 mm) polished steel |
| Controls | Solid-state thermostats, ±4 °F accuracy |
| Ignition | Electronic spark with pilot safety |
| Grease management | 3 ½" trough & 8 qt. stainless drawer |
| Overall dimensions | 36.1" W × 31.6" D × 20.2" H (with legs) |
| Gas connection | ¾" NPT (rear) |
| Electrical | 120 V / 60 Hz / 1-ph • 2 A • NEMA 5-15P cord & plug |
| Shipping weight | 409 lb. (186 kg) |
Need a chrome or grooved plate? Factory options are available—ask your product consultant for details.
Solid-State Control = Consistent Results
- Embedded sensors cycle burners more frequently for steadier temperatures.
- No hot spots: foods cook evenly from corner to corner.
- Faster rebound after heavy loads keeps ticket times short.
Peace-of-Mind Warranty
Lang backs the LG Series with a 2-year parts & labor warranty (5 years against peeling on optional chrome plates).
