Lang Manufacturing (Middleby) 224ZTD LG Series Gas Griddles
Description

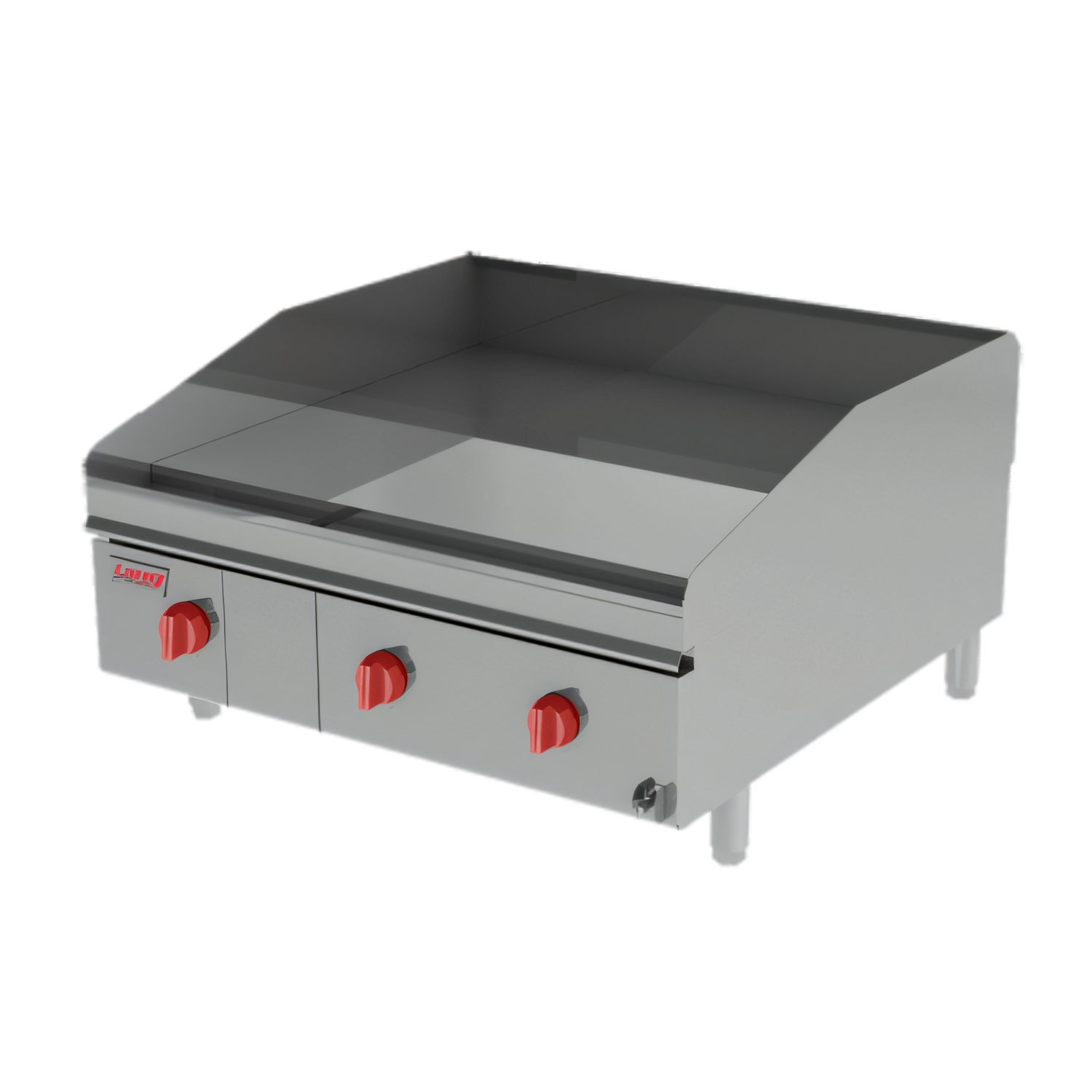

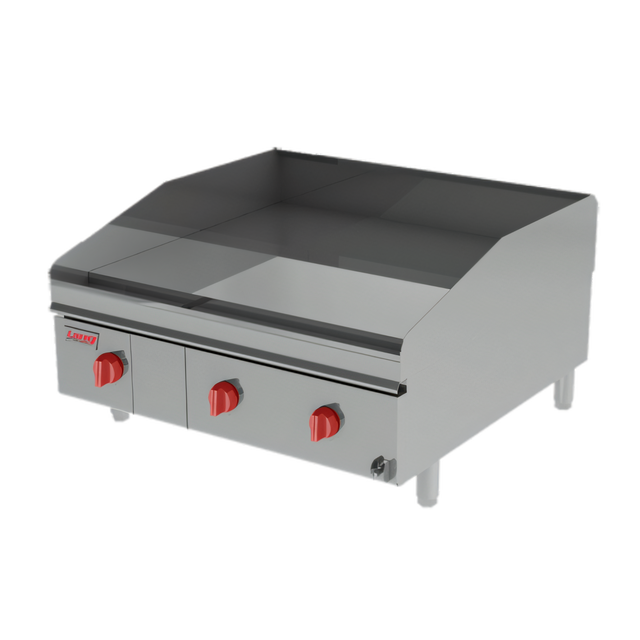

Lang LG Series 24" x 30" Gas Countertop Griddle
Model LG Series 24 – 70,000 BTU • Embedded Snap-Action ControlsBuilt for the rush and engineered to last, the Lang LG Series delivers extra-deep capacity, rapid heat recovery, and rock-solid temperature accuracy in a compact, chef-friendly footprint.
Why You’ll Love It
- 30" extra-deep plate (720 in²) gives you 35 % more cooking area than standard 24" griddles.

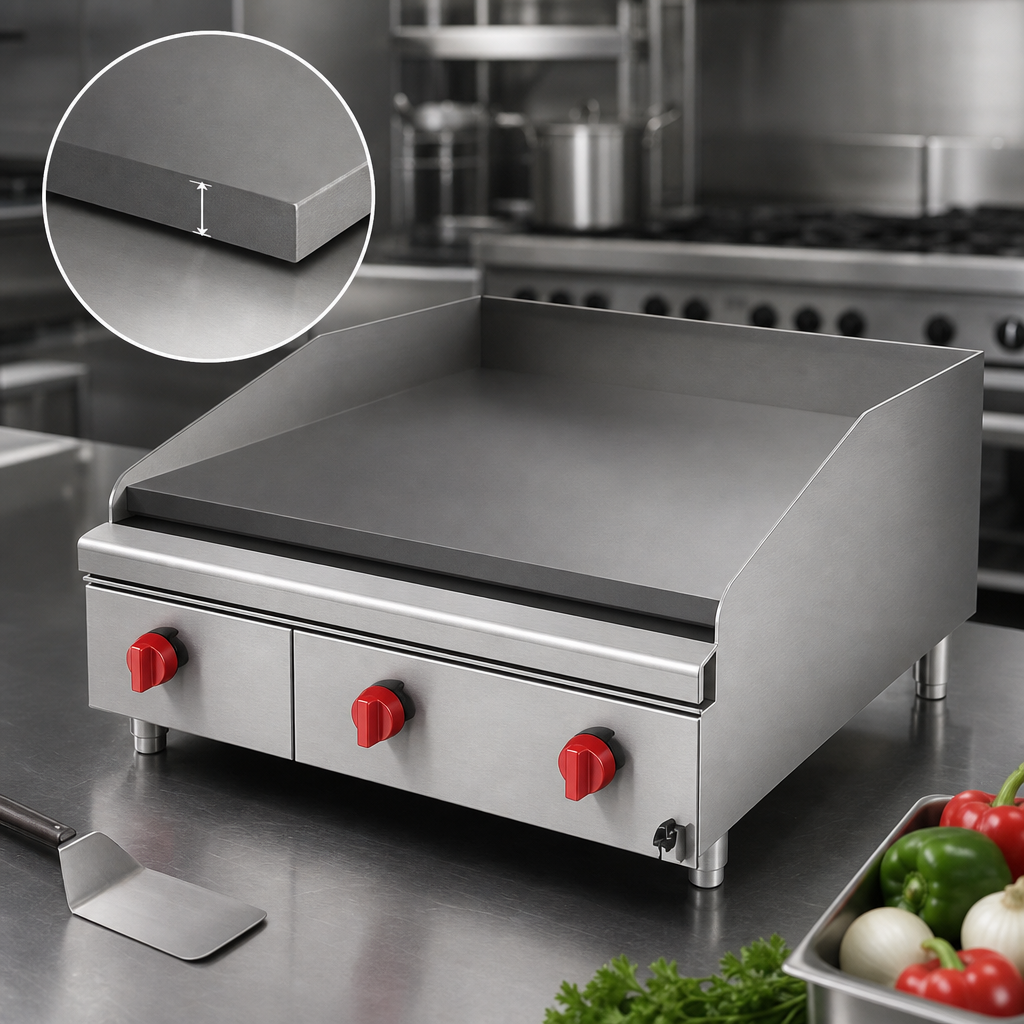

- 1" thick precision-machined steel plate retains heat for consistent sears and faster bounce-back.

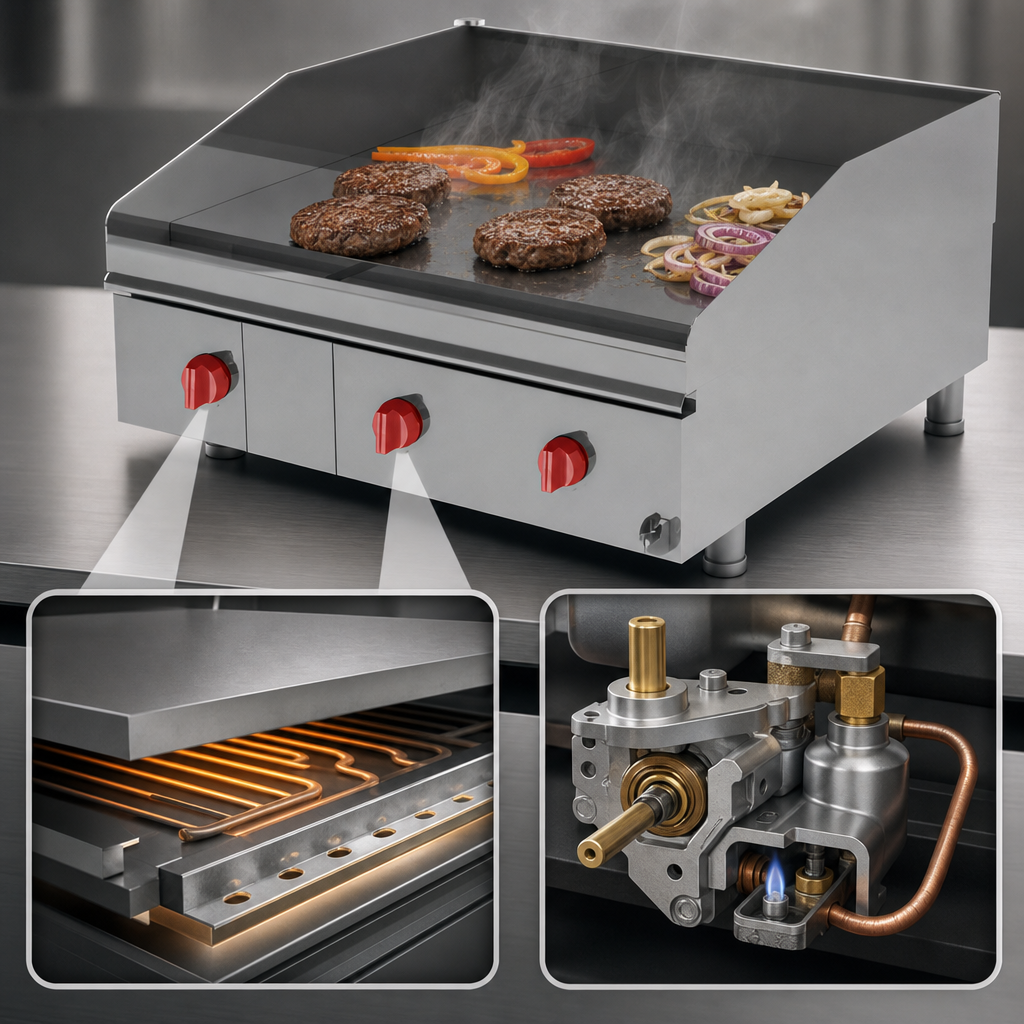

- Two embedded electric snap-action thermostats (one per 12") hold ±15 °F from 220 – 550 °F.
- High-efficiency aluminized burner system with direct-spark pilot safety—no standing pilot wasting gas.
- 5" tapered wrap-around splash guard protects adjacent stations and walls.
- 3½" wide, full-front grease trough feeds an 8 qt. stainless drawer for quick clean-outs.
- Welded steel sub-frame with all-stainless front, sides & splash for unmatched durability.
- 4" stainless legs with 1-5/8" adjustment level easily under any hood.
- Ships with 120 V cord & NEMA 5-15P plug—just connect ¾" gas and cook.
- cETLus & ETL-Sanitation listed for safety and hygiene compliance.
Performance You Can Taste
From delicate crêpes to high-volume smash burgers, the LG Series’ fully embedded probes sense surface changes instantly, cycling burners on and off for even browning and shorter ticket times—exactly what you need during peak service.
Technical Specifications
| Cooking width | 24" / 610 mm |
|---|---|
| Cooking depth | 30" / 762 mm |
| Plate thickness | 1" smooth steel (chrome upgrade available) |
| Heat input | 70,000 BTU/hr |
| Control type | Embedded electric snap-action, ±15 °F |
| Temp range | 220 – 550 °F (104 – 288 °C) |
| Independent zones | 2 (one every 12") |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Grease management | 3½" trough & 8 qt. drawer |
| Splash guard | 5" wrap-around, welded stainless |
| Overall size (WxDxH) | 24" x 34-1/8" x 16-1/2"* (*incl. splash & legs) |
| Net weight | ≈ 400 lb / 181 kg |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 3-year parts & labor (5-year chrome peel, if equipped) |
Popular Options & Accessories
- Mirror-finish chrome plate (5-year surface warranty)
- Custom grooving in 12" increments for char-marked presentation
- Stainless tubular-leg stand (casters or adjustable feet)
- Clamshell two-sided cooking hood
