Lang Manufacturing (Middleby) 224ZSD LG Series Gas Griddles
Description
Lang LG Series 24" Gas Countertop Griddle
30" extra-deep plate • Solid-state precision • 70,000 BTUBuilt for demanding breakfast, lunch, and all-day menus, the Lang LG Series delivers the power of a full-size range in a compact 24" footprint. A massive 1" steel plate, solid-state thermostats, and an 8 qt. grease management system keep your line moving while maintaining the legendary consistency Lang operators expect.
Why You’ll Love It

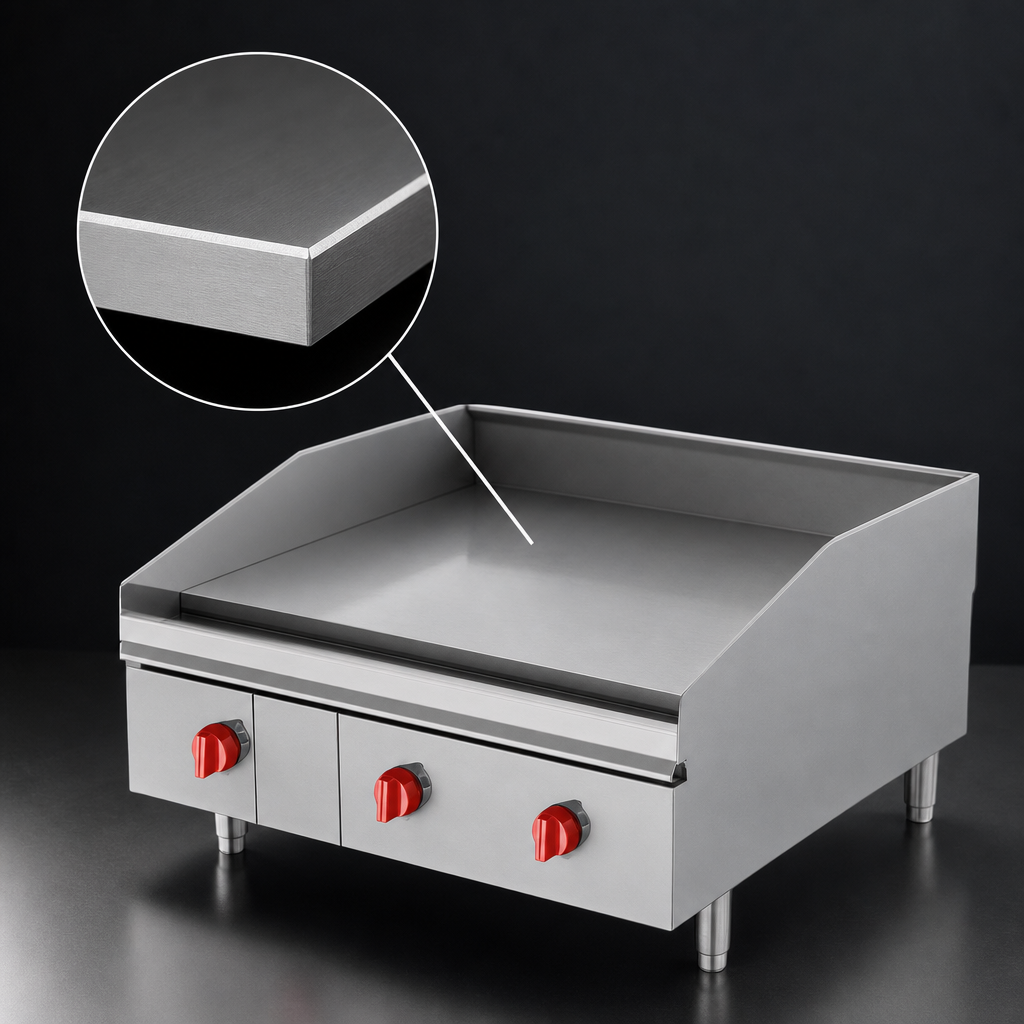

- 1" thick precision-machined smooth steel plate – excellent heat retention & fast recovery.

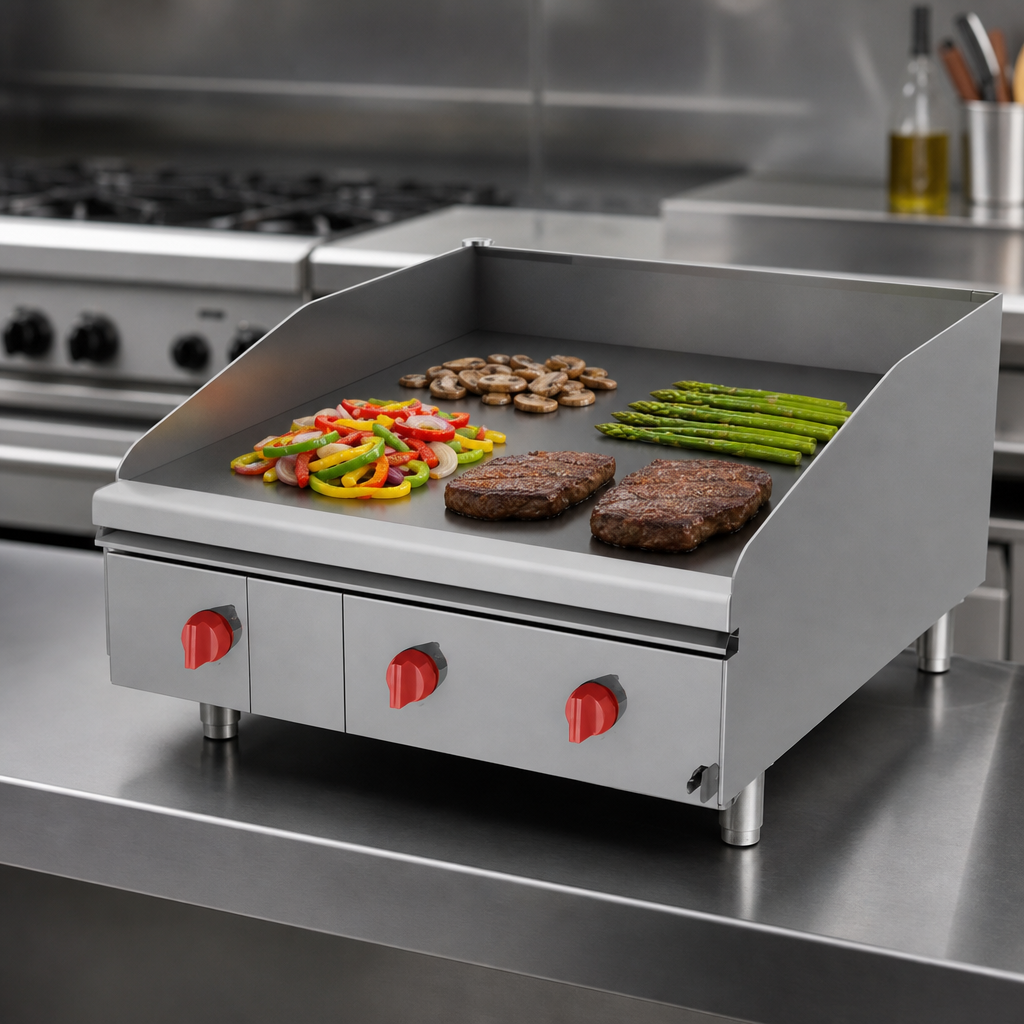

- Extra-deep 30" cooking surface provides 20 % more usable space than standard 24"-deep tops.
- Solid-state thermostats control each 12" zone from 175 – 450 °F with ±4 °F accuracy.
- Integrated pilot-safety system for worry-free ignition and automatic shut-off.
- 5" tapered, wrap-around splash guard contains grease and food debris.
- 3 ½" wide front trough plus a removable 8 qt. stainless grease drawer for quick clean-outs.
- Welded steel frame & stainless steel exterior stand up to the toughest kitchens.
- (4) 4" stainless legs with 1 5⁄8" adjustment for easy leveling on uneven counters.
- Field convertible natural gas / LP, factory-installed NEMA 5-15P cord and plug.
- Certified cETLus & ETL-Sanitation for use in the U.S. & Canada.
Technical Specifications
| Model | LG Series 24 |
|---|---|
| Cooking surface | 24" W × 30" D (4.8 ft²) |
| Plate material / thickness | Polished steel, 1" (25 mm) |
| Heat input | 70,000 BTU/hr |
| Control type & range | Solid-state thermostat, 175 – 450 °F |
| Electrical | 120 V, 60 Hz, 1-ph, 2 A, NEMA 5-15P |
| Gas connection | ¾" NPT (rear) |
| Grease drawer capacity | 8 qt. (7.6 L) stainless steel |
| Overall dimensions (H × W × D) | 17"* × 24" × 31" (including splash) |
| Net weight | Approx. 400 lb / 181 kg |
| Certifications | cETLus, ETL-Sanitation |
*Height does not include the 4" adjustable legs.
Peace-of-Mind Warranty
Your new Lang LG Series griddle is backed by a 3-year parts & labor warranty and supported by Lang’s nationwide network of factory-authorized service agencies.
