Lang Manufacturing (Middleby)  |  LG Series  |  SKU: 224TC

Lang Manufacturing (Middleby) 224TC LG Series Gas Griddles

$12,116.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Buying guide Installation & operation Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

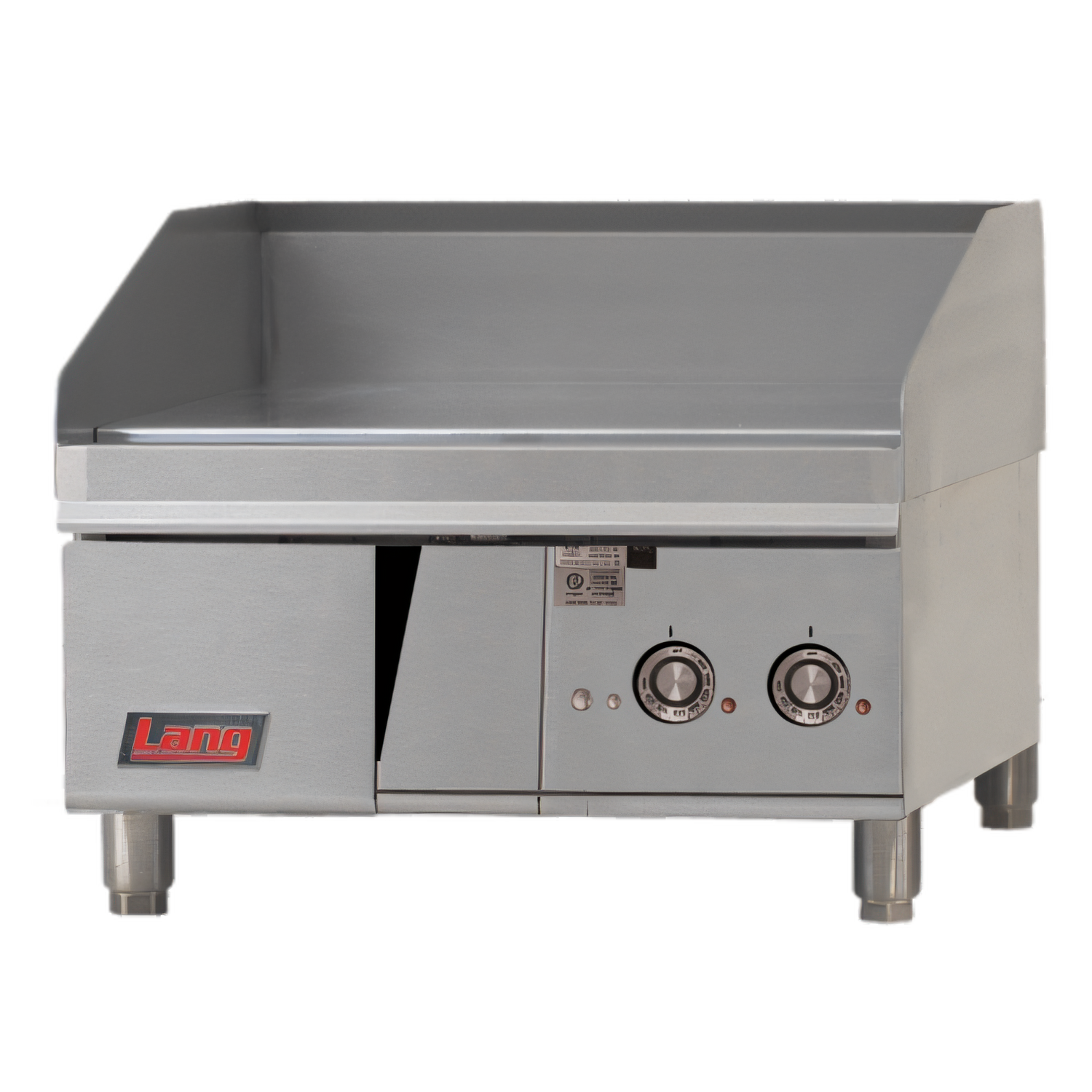

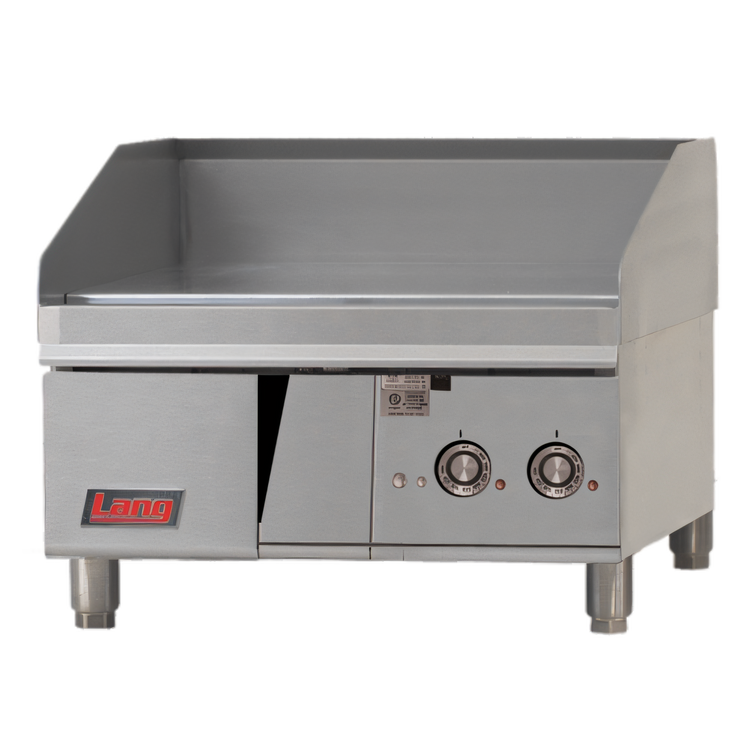

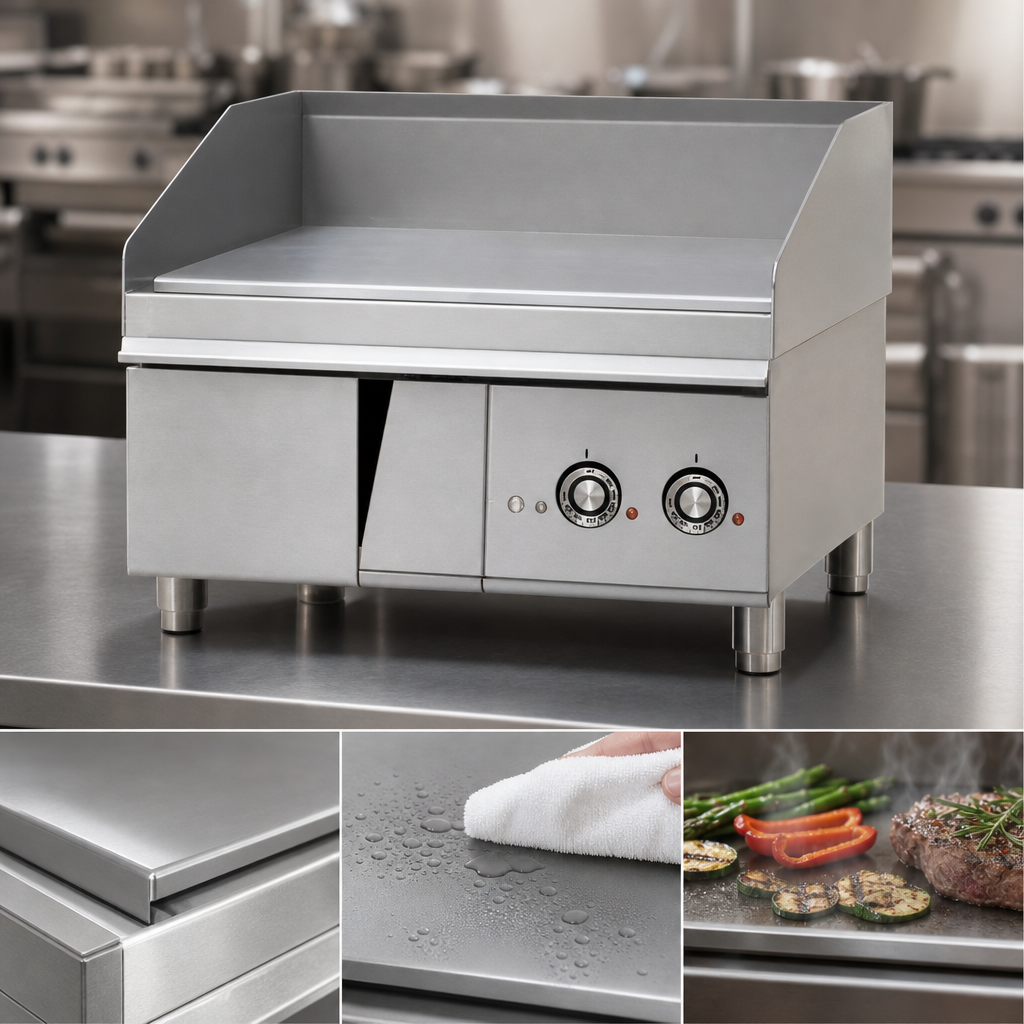

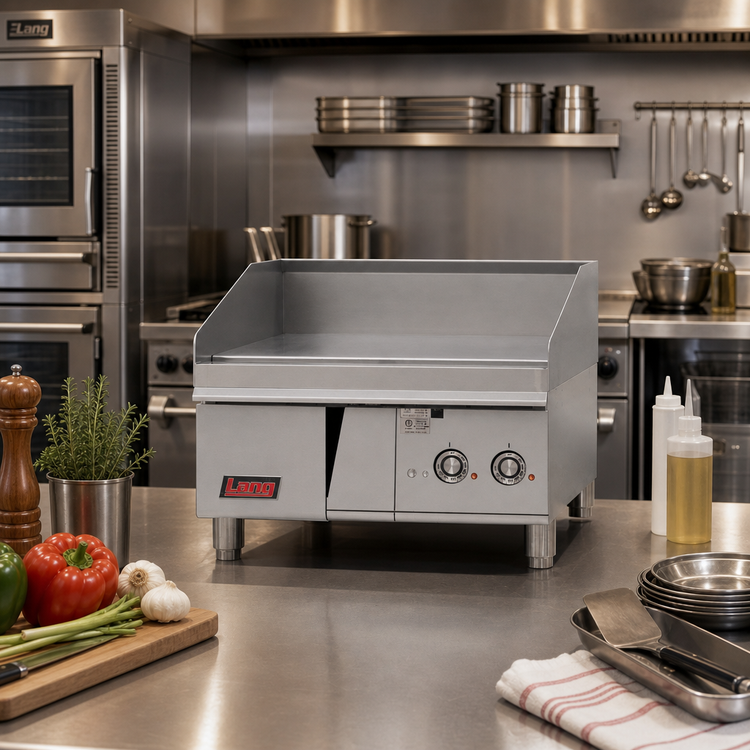

Lang LG Series 24" Gas Countertop Griddle – Chrome Plate

Model 224TC • 54,000 BTU

Built for the busiest kitchens, the Lang LG Series 24" chrome-plated griddle delivers precision cooking, lightning-fast recovery and legendary Lang durability in a compact countertop footprint.

Why You’ll Love It

  • 1" T1 armor-grade chrome plate – heats evenly, wipes clean, never needs seasoning and carries a 5-year surface warranty.
  • Embedded electric snap-action thermostats hold set temps within ±15 °F and react instantly to load changes.
  • Wide 24" × 23" cooking zone sized perfectly for breakfast, lunch & dinner menus without sacrificing counter space.
  • Direct-spark ignition with pilot safety eliminates standing pilots, saving energy and boosting safety.
  • Easy clean-up thanks to the 5" wrap-around splash guard, 3.5" grease trough and 8 qt stainless drawer.
  • Built to last with a welded steel frame, full stainless exterior and 4" adjustable stainless legs.
  • Independently certified UL Gas-Fired & NSF listed for confident code-compliant installation.

Specifications at a Glance

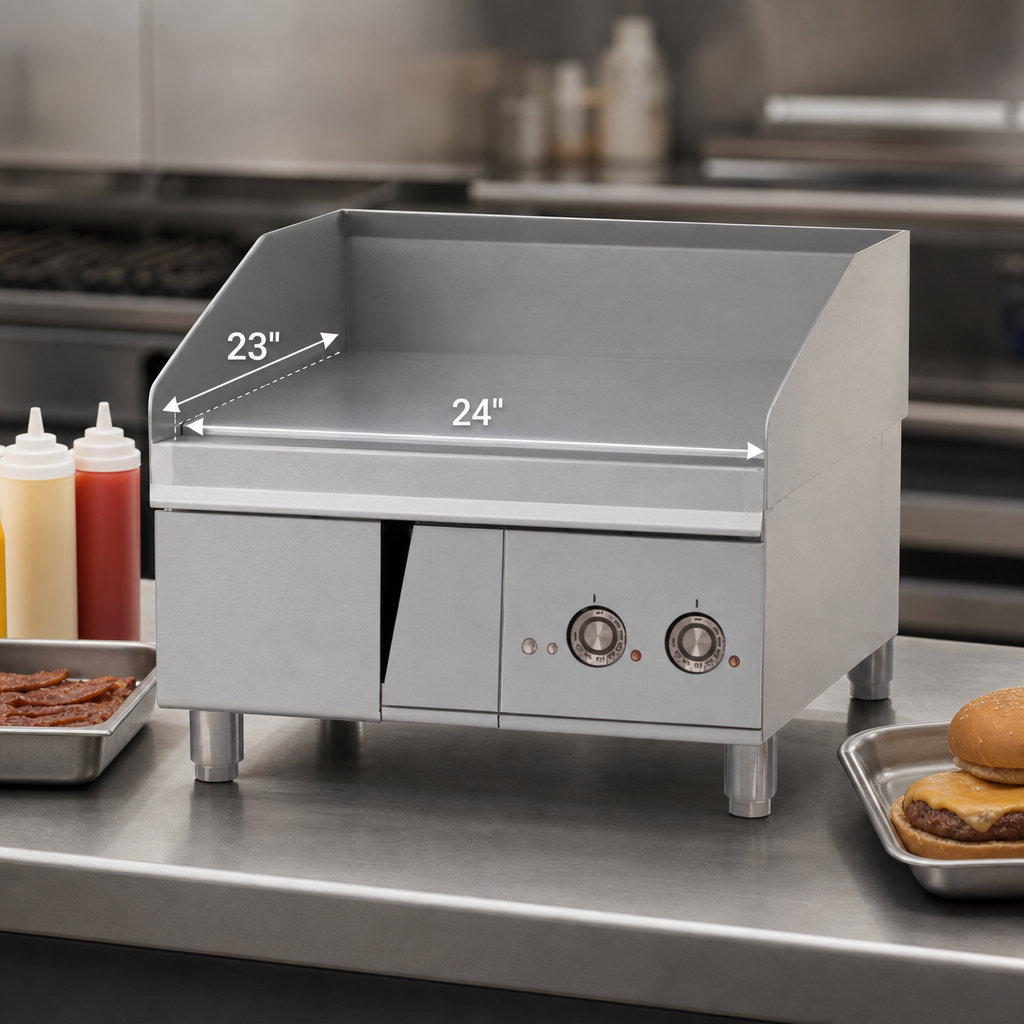

Cooking surface 24" W × 23" D (1 sq ft per 12" section)
Overall dimensions 24.1" W × 31.6" D × 20.2" H
Plate material 1" thick chrome-plated T1 steel
Thermostat range 200 °F – 450 °F (93 °C – 232 °C)
Heat input 54,000 BTU (27,000 BTU per 12")
Gas connection 3⁄4" NPT male (natural or LP)
Electrical 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P
Grease management 3.5" trough, 8 qt stainless drawer
Splash guard 5" tapered, wrap-around (rear & sides)
Net weight 236 lb (107 kg)

Rock-Solid Warranty

  • 2-year parts & labor on entire griddle
  • 5-year warranty against chrome plate peeling

Service performed by Lang-authorized technicians nationwide.

Installation Reminder: Allow 5" clearance at back & sides for ventilation. Connect to a dedicated 120 V receptacle and 3⁄4" gas line per local code.

Elevate your short-order performance with the Lang LG Series— engineered for chefs who refuse to compromise on speed, consistency and plate appeal.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cULus, UL EPH

Height

16.4in

Width

24.0in

Depth

30.4in

Shipping Weight

280.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Controls

thermostat / solid state controls

Cooking Surface Width (side - side)

19" - 24"

Griddle Plate Finish

chrome plated

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

LG Series Griddle, countertop, gas, 24"W x 23"D cooking surface, 1" thick chrome griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 54,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
