Lang Manufacturing (Middleby) 224T LG Series Gas Griddles
Description

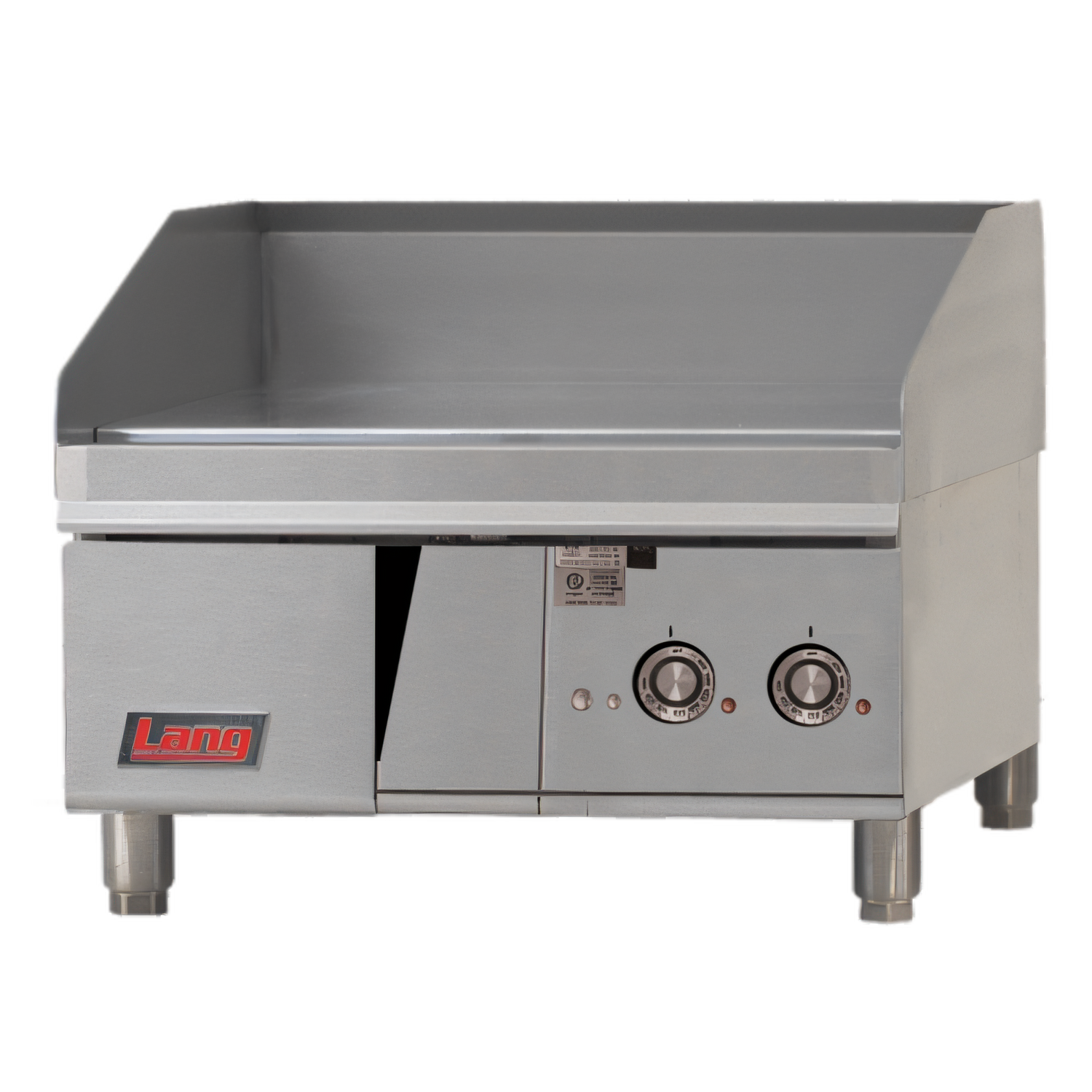

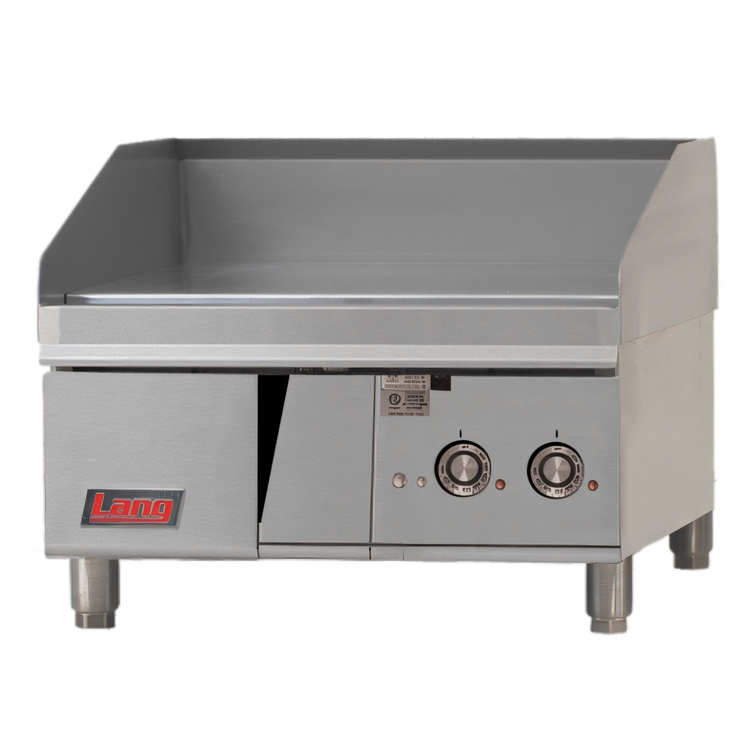

LG Series 24" Gas Countertop Griddle
Lang Manufacturing – Model 224TBuilt for serious breakfast, lunch, and all-day production, the Lang LG Series 24" gas griddle delivers true heavy-duty performance in a compact footprint. A full 1" thick polished-steel plate and responsive embedded thermostats team up to recover heat fast, so every burger, pancake, or steak hits the table cooked to perfection.
Why you’ll love it

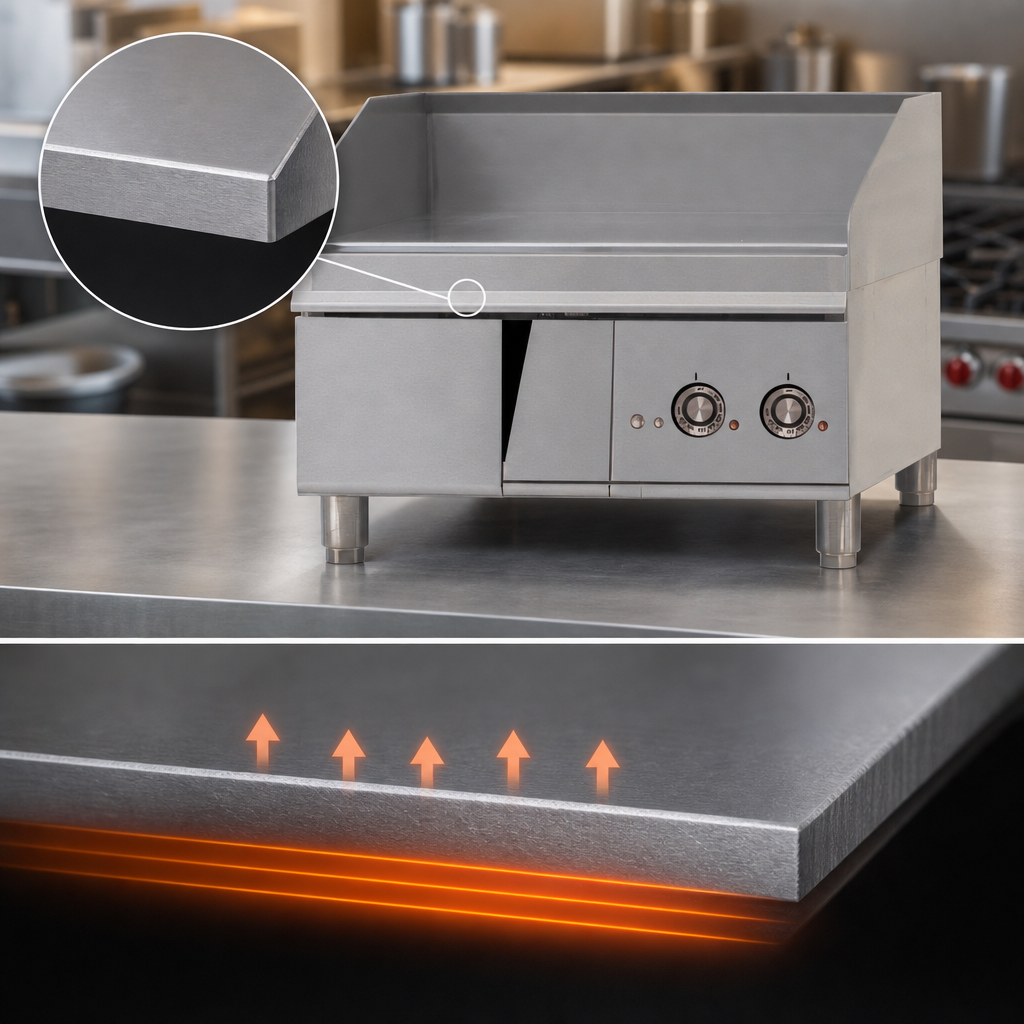

- 1" (25 mm) thick steel plate with sensors 3/16" below the surface for instant response & rapid recovery.
- Two independent 27,000 BTU burners (54,000 BTU total) let you zone-cook multiple menu items at once.

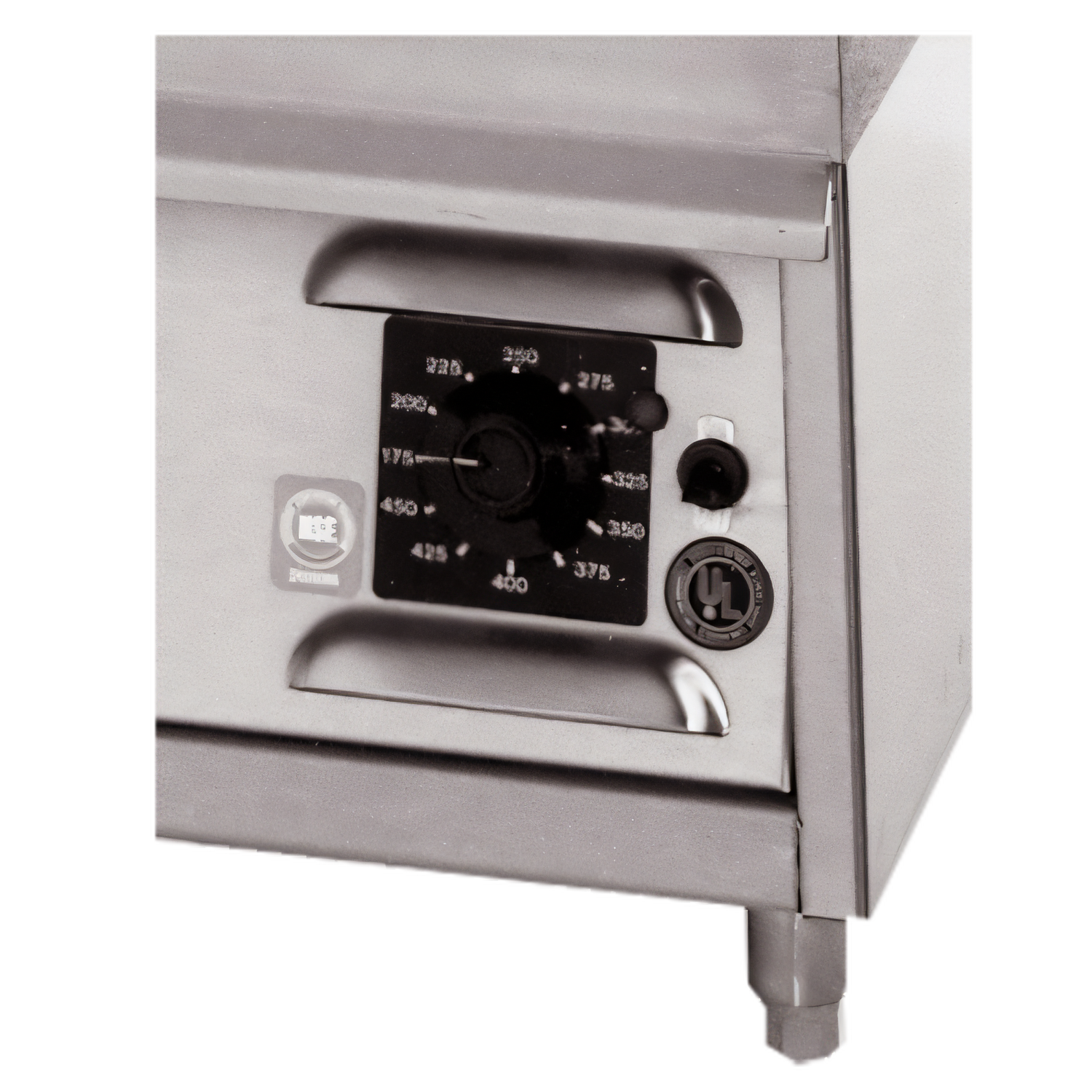

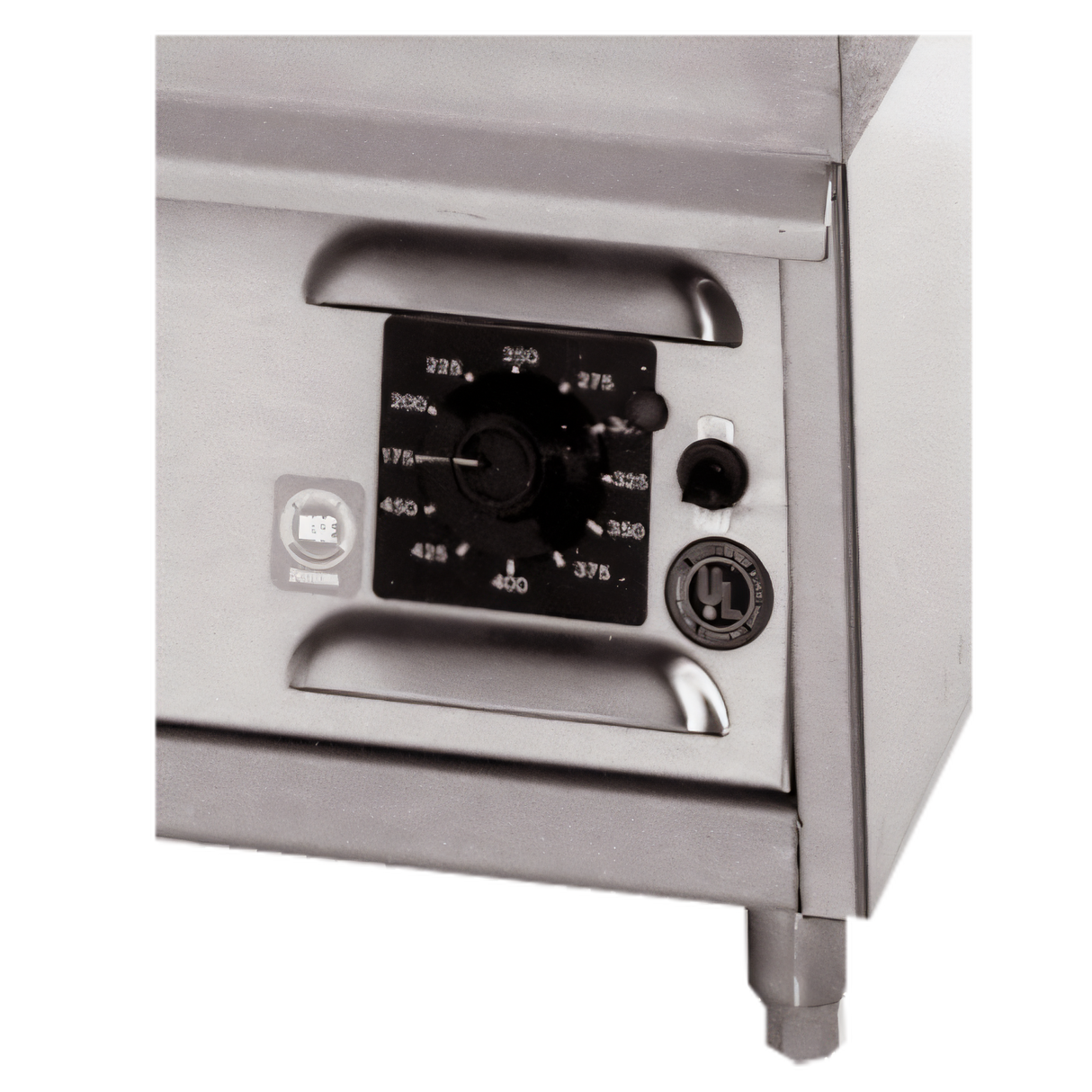

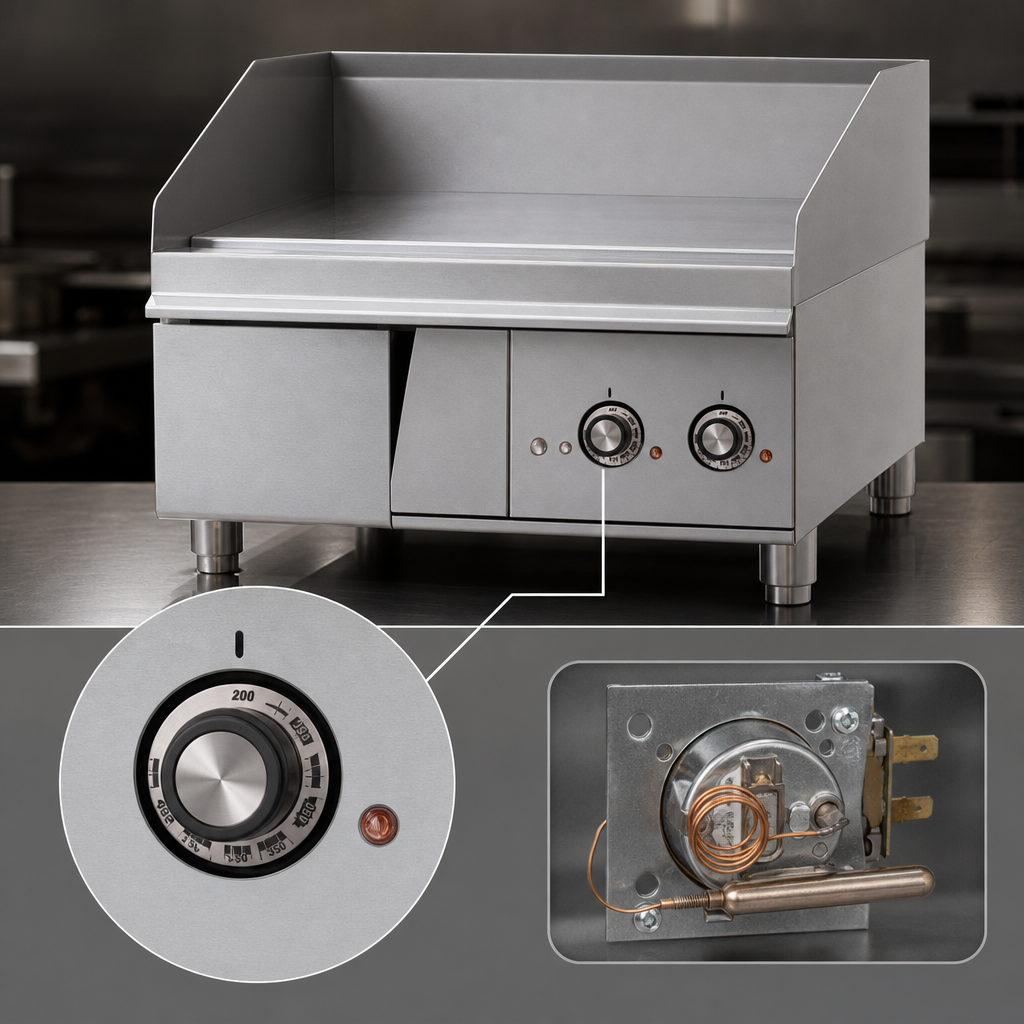

- Embedded electric snap-action thermostats hold 200 – 450 °F within ±15 °F.
- 5" tapered, wrap-around splash guard contains splatter on three sides.
- 3 ½" wide front trough & 8 qt. stainless grease drawer for fast, easy cleanup.
- Welded steel frame with stainless exterior stands up to the harshest kitchens.
- 4" adjustable stainless legs make leveling on any countertop a breeze.
- Electronic ignition with pilot safety; no standing pilot keeps energy costs down.
- UL & NSF listed; made in the USA and backed by a 2-year parts & labor warranty.
Technical specifications
| Cooking surface | 24" W × 23" D (610 × 584 mm) |
|---|---|
| Plate thickness / material | 1" polished steel |
| Heat zones | 2 (12" each) |
| Temperature range | 200 – 450 °F (93 – 232 °C) |
| Controls | Embedded electric snap-action thermostats with pilot safety |
| Total input | 54,000 BTU/hr (Natural or LP gas) |
| Gas connection | ¾" NPT (rear) |
| Electrical | 120 V / 60 Hz / 1-ph / 2 A, NEMA 5-15P |
| Overall dimensions | 24.1" W × 31.6" D × 20.2" H (612 × 803 × 513 mm) |
| Grease drawer capacity | 8 qt. stainless steel |
| Splash guard height | 5" (127 mm) wrap-around |
| Adjustable legs | 4" (102 mm) stainless, +1" adjustment |
| Ship / installed weight | Approx. 300 lb / 236 lb (136 kg / 107 kg) |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2 years parts & labor |
Utility connections are located at the rear. Allow 5" clearance at back & sides. Refer to the owner’s manual for complete installation instructions.
