Lang Manufacturing (Middleby) 224S LG Series Gas Griddles
Description

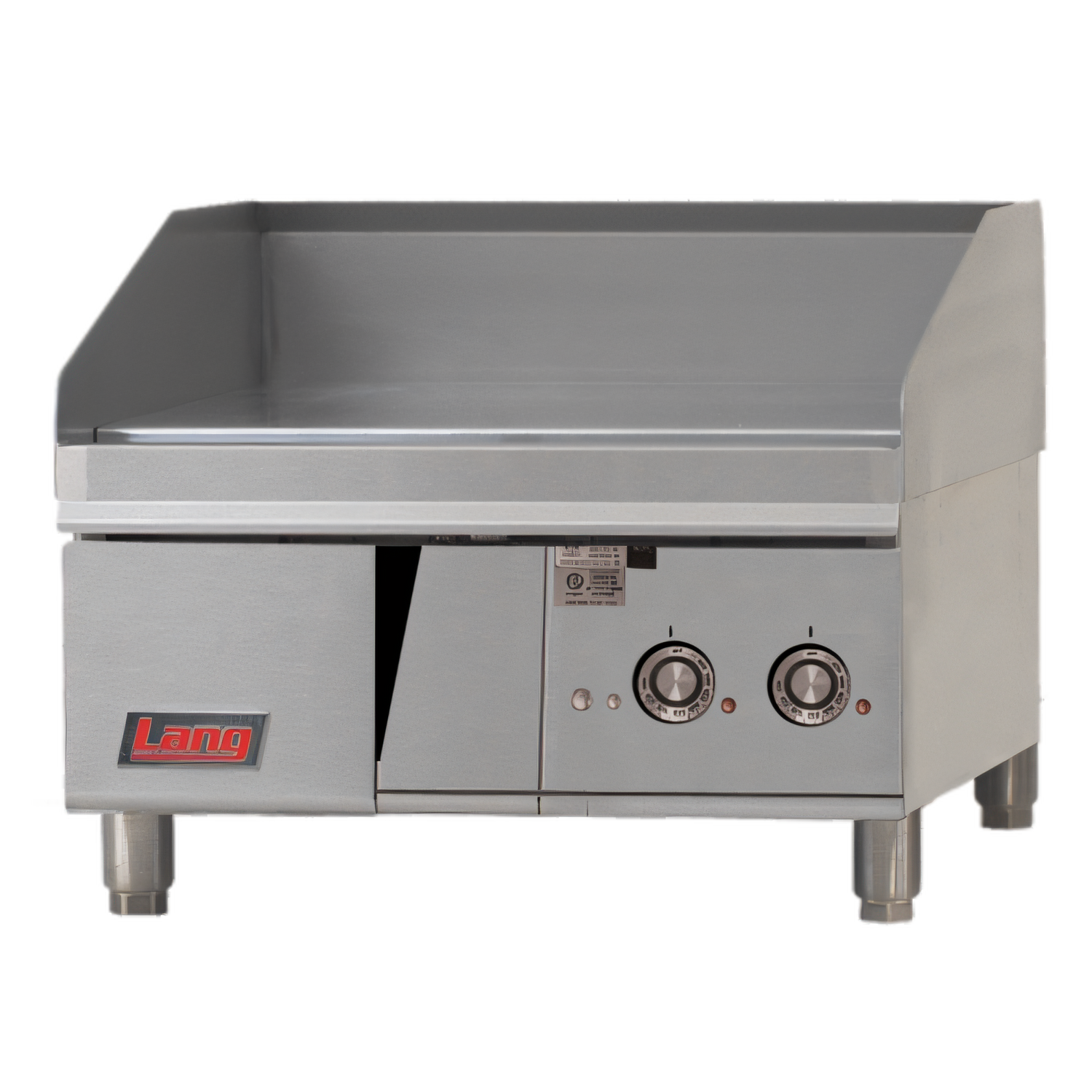

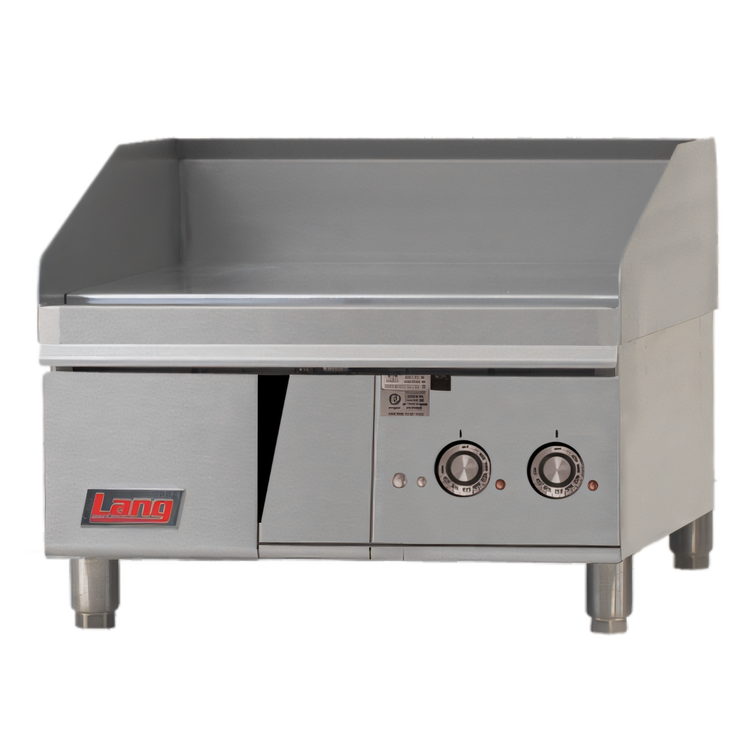

Lang LG Series 24" Gas Countertop Griddle – Solid-State Control
Model 224S | 1" Steel Plate | 54,000 BTUEngineered for serious production in a compact footprint, the Lang LG Series 24" gas griddle delivers lightning-fast recovery, even heat and rock-solid reliability shift after shift. Two independently controlled 12" zones let you sear burgers on one side while finishing delicate items on the other—without flavor carry-over.
Key Performance Advantages

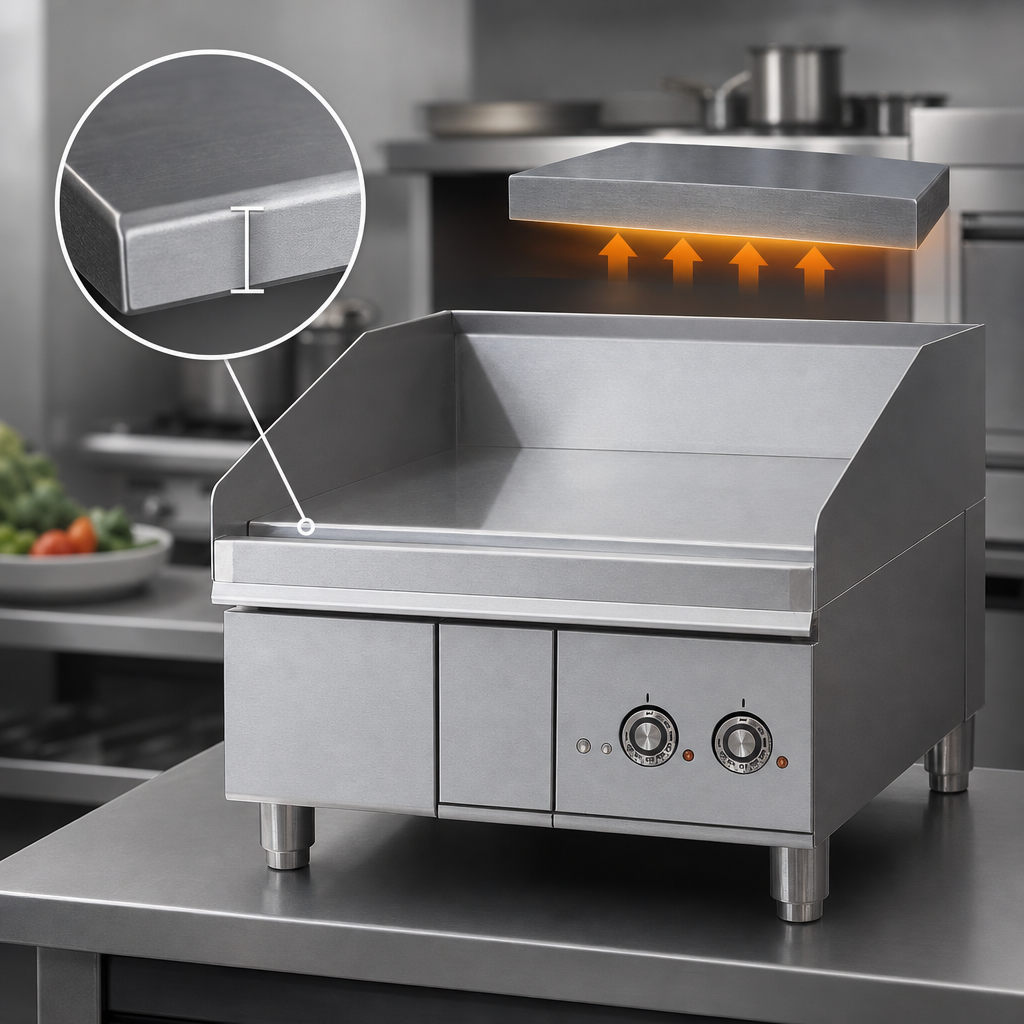

- 1" (25 mm) polished steel plate with embedded sensors just 3/16" below the surface for instant response.

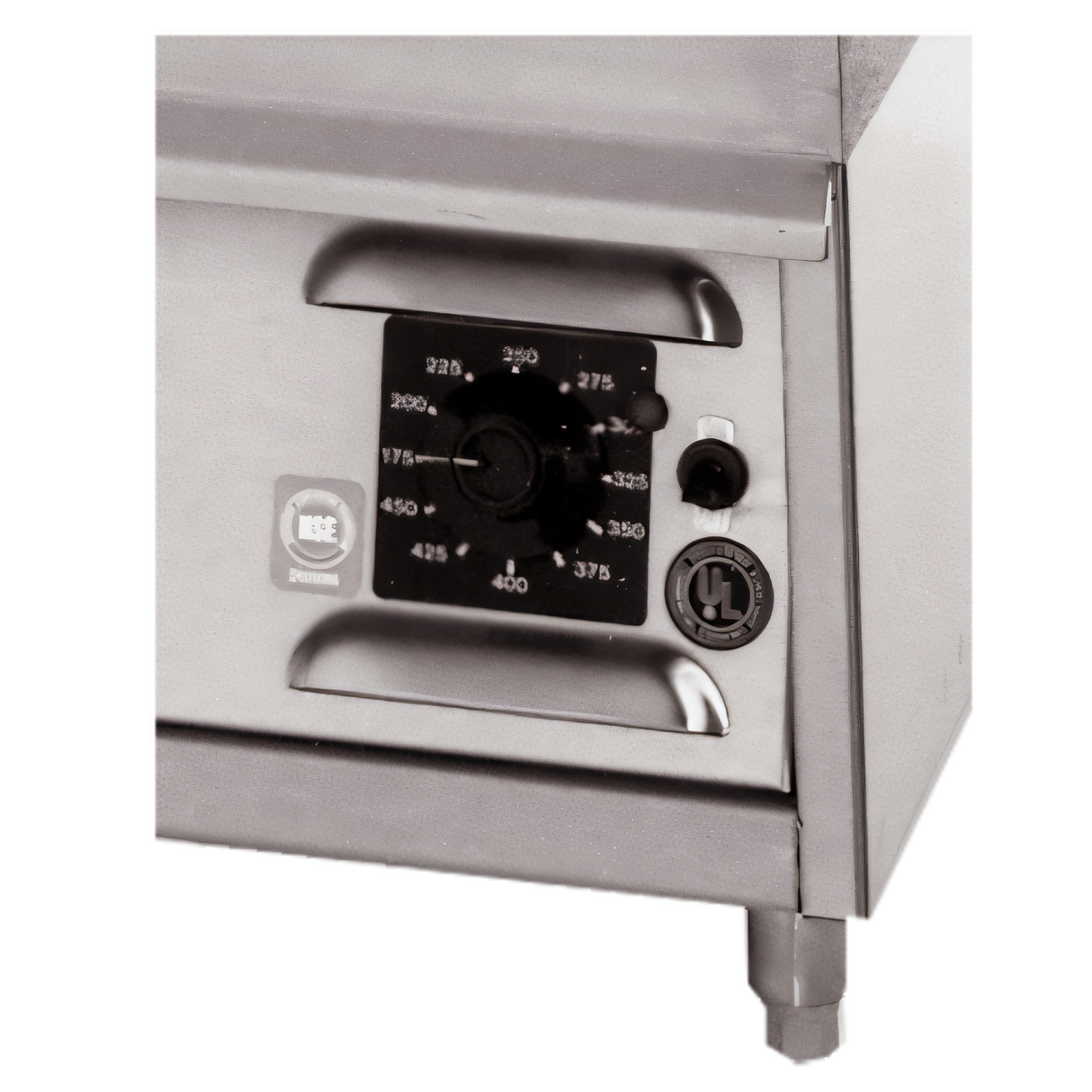

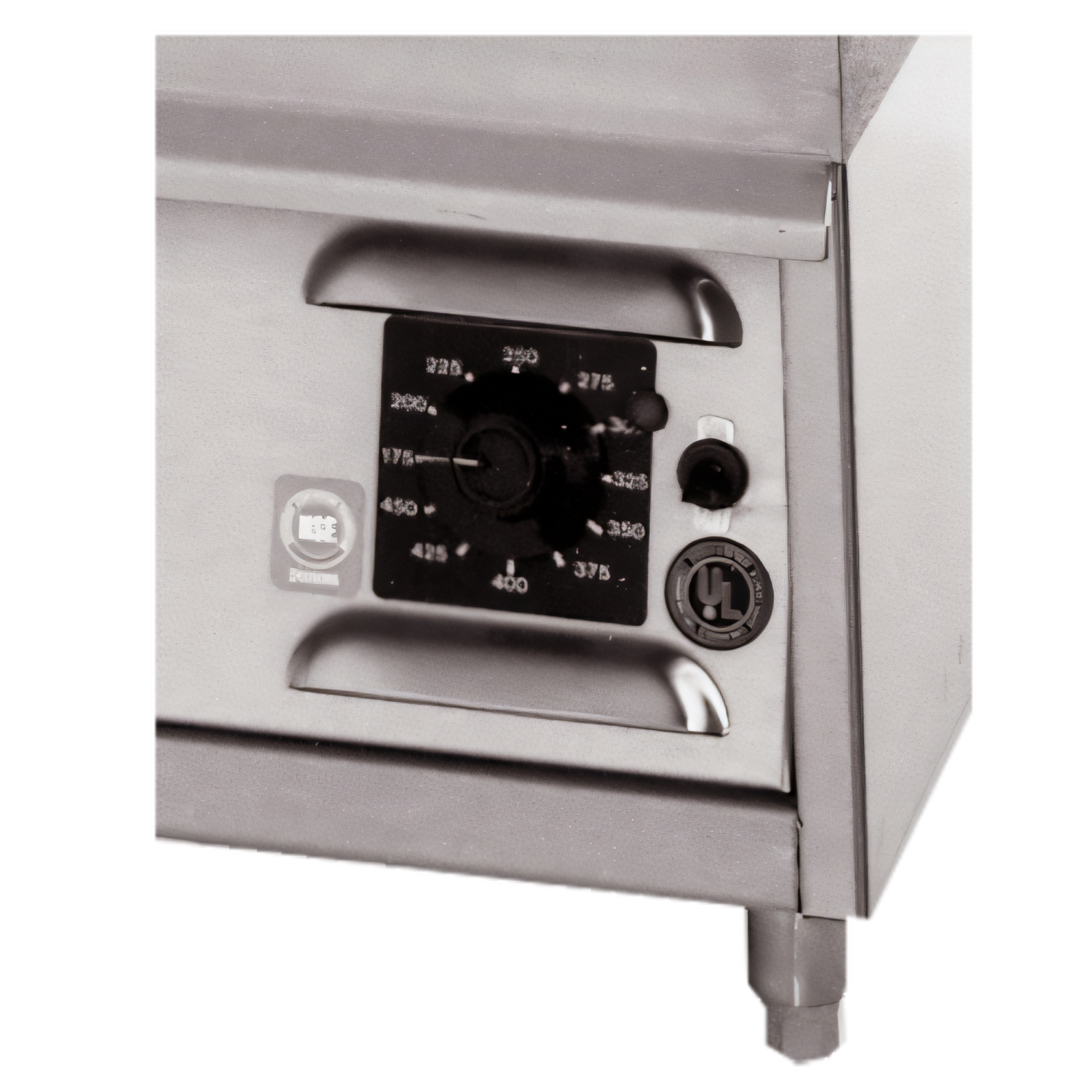

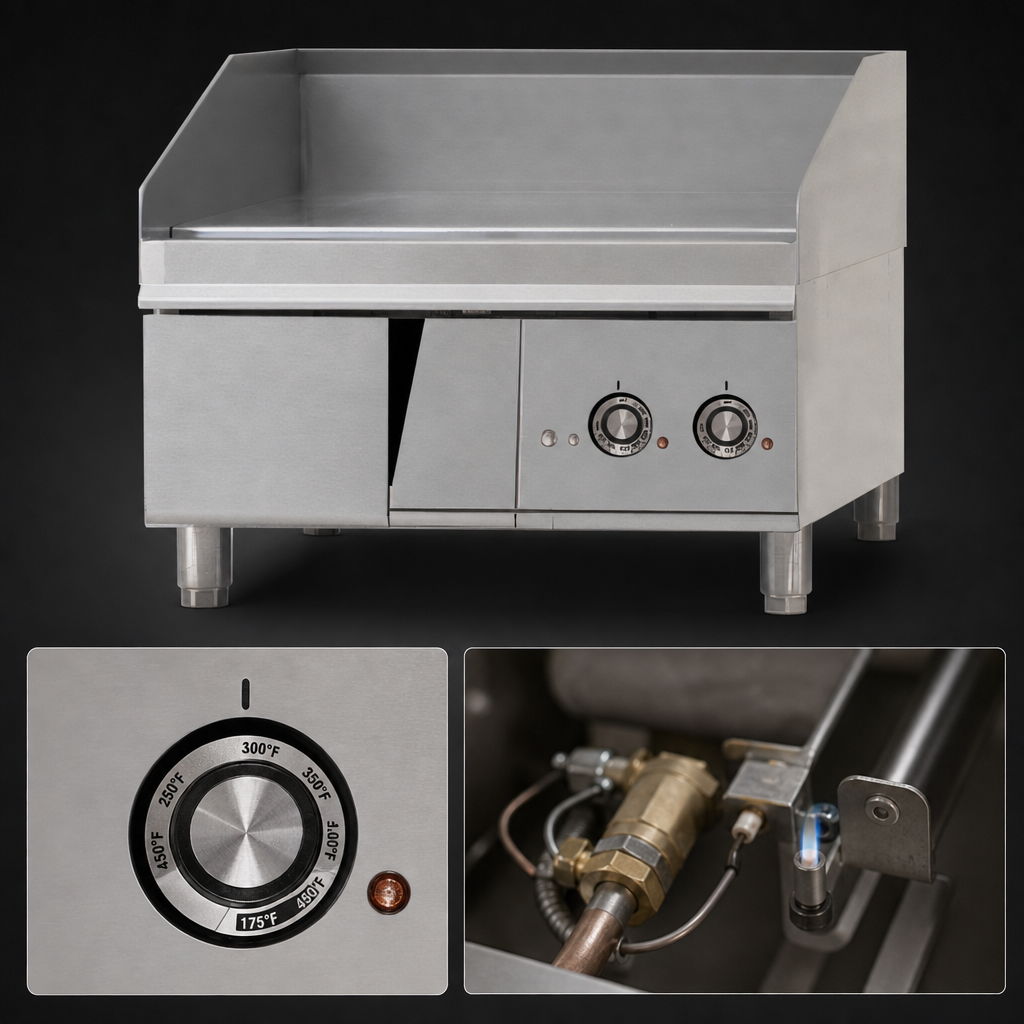

- Solid-state thermostats maintain ±4 °F accuracy from 175 °F to 450 °F (79 °C – 232 °C).
- Two 27,000 BTU burners (54,000 BTU total) fire each 12" zone independently.
- Direct-spark ignition with pilot safety—no standing pilot means lower gas consumption and enhanced safety.
- 23" deep cooking surface provides extra capacity without enlarging your cook line.
Durability & Cleanability
- Welded steel chassis with all-stainless exterior handles daily abuse and wipes down fast.
- 5" tapered wrap-around splash guard contains grease splatter.
- 3-1/2" wide front grease trough funnels waste into an 8 qt. stainless drawer for quick dump-and-go cleanup.
- 4" adjustable stainless legs make leveling simple on any counter or equipment stand.
Specifications
| Cooking surface | 24" W × 23" D (610 mm × 584 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Heat zones | 2 independent zones (12" each) |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| Total input | 54,000 BTU/hr |
| Gas connection | 3/4" NPT (natural gas or LP, specify when ordering) |
| Electrical | 120 V / 60 Hz / 1-ph • 2 A • NEMA 5-15P plug included |
| Overall dimensions | 24.1" W × 31.6" D × 20.2" H (612 mm × 803 mm × 513 mm) |
| Shipping weight | Approx. 300 lb (136 kg) |
| Certifications | UL Gas-Fired • NSF Listed |
Included & Optional
- Included: Solid-state controls, grease drawer, adjustable legs, splash guard.
- Optional: Chrome or grooved plate, clamshell hoods, equipment stand.
Warranty
Lang backs every LG Series griddle with a 2-year parts & labor warranty when installed and operated according to the owner’s manual.
