Lang Manufacturing (Middleby) 172TM Lang® Marine Electric Griddles
Description

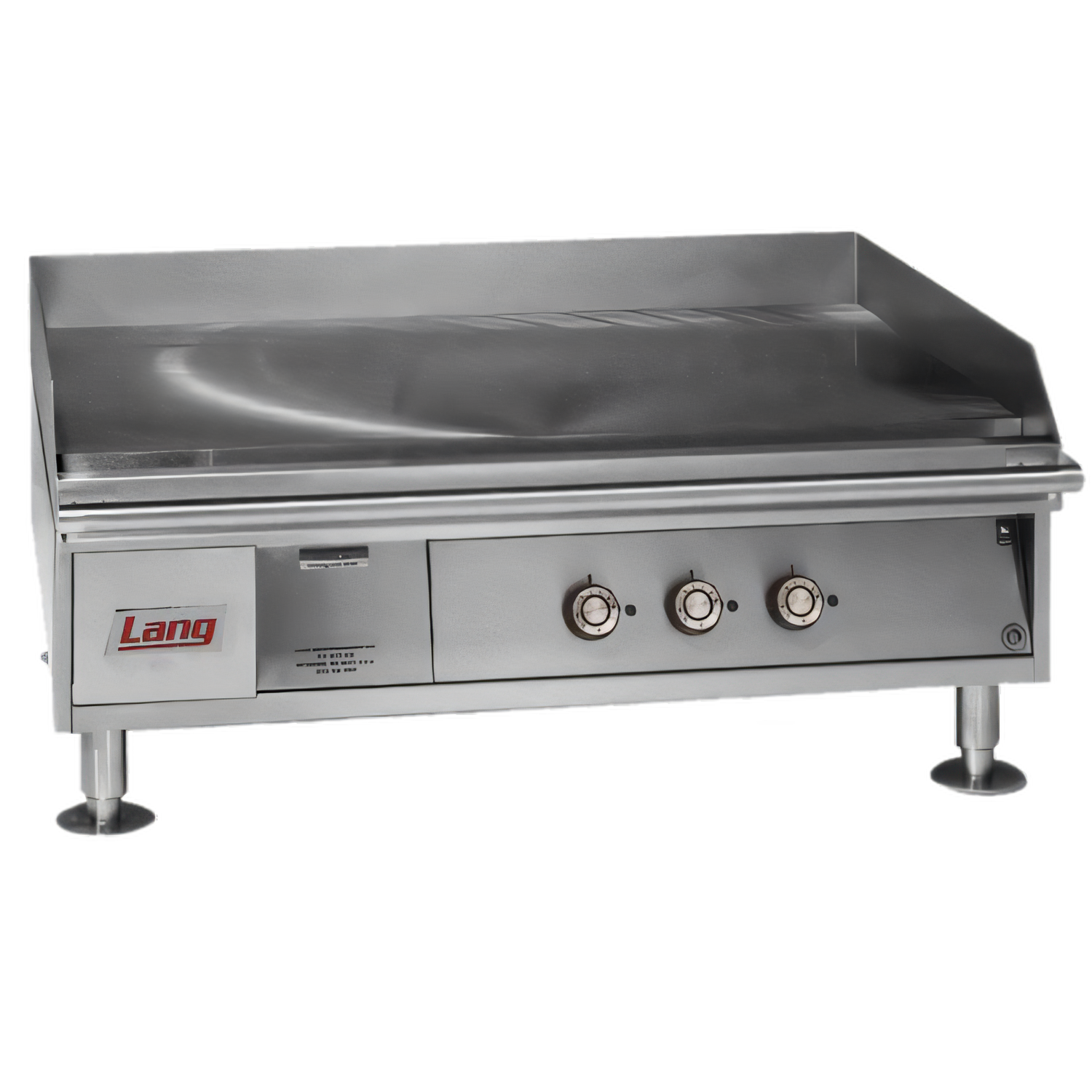

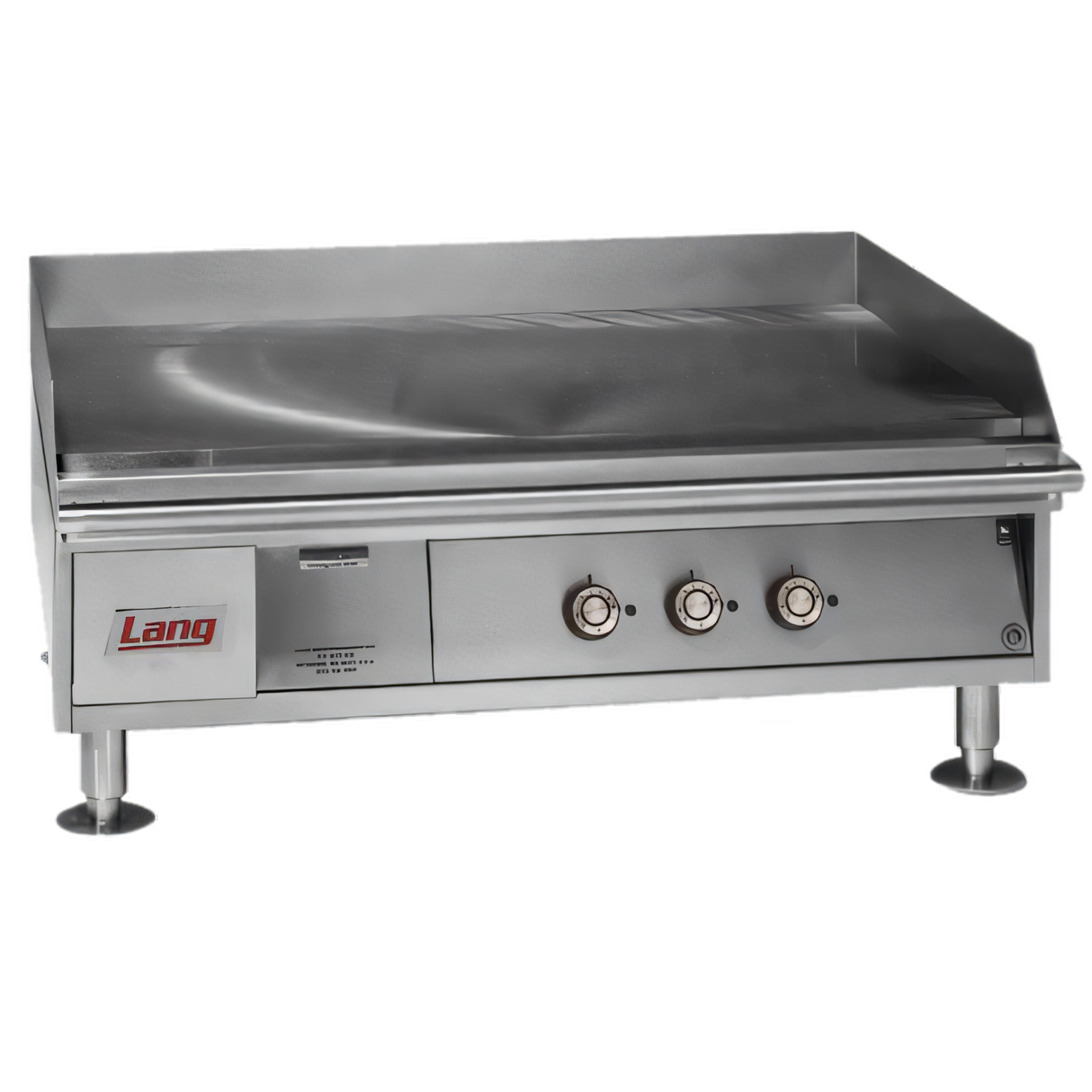

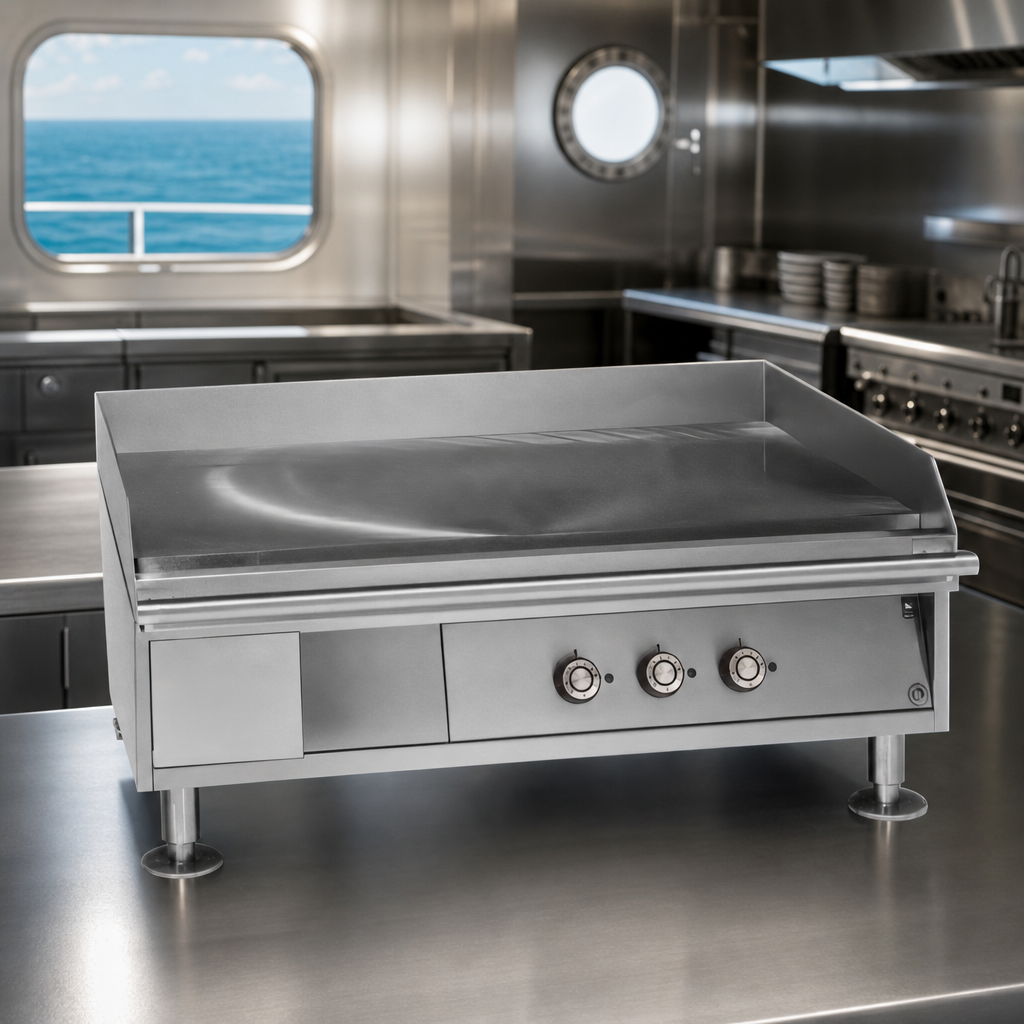

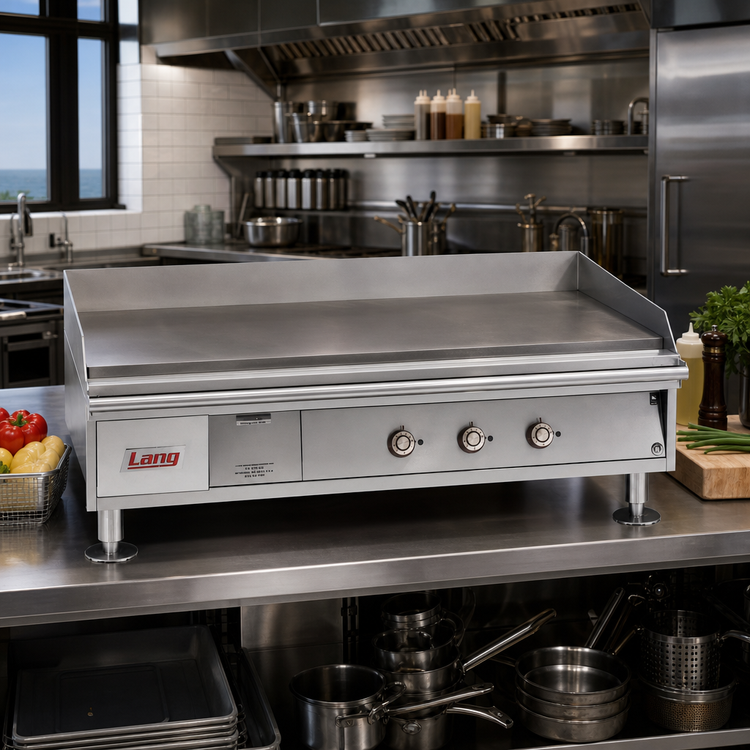

Lang® Marine 72" Heavy-Duty Electric Countertop Griddle
Model 172TM | 36 kW total output | ETL Marine & NSF CertifiedEngineered for demanding galleys and high-volume shore kitchens, the Lang Marine 172TM delivers uniform heat, fast recovery and unmatched durability inside a fully-marine-rated package that bolts down tight and stays on temp—no matter how rough the seas (or rush) gets.
Built for Heavy Seas & Heavy Service
- Massive 72" W × 23" D cooking surface—over 16 sq ft of usable plate
- 1" (25 mm) thick precision-machined, polished steel plate for even heat retention & lightning-fast recovery
- Six independent 12" zones, each with a 6 kW Incoloy sheathed element (36 kW total)
- Snap-action thermostats in every zone maintain set temps from 200 °F to 550 °F (93 °C – 288 °C) within seconds
- 5" high, tapered wrap-around splash guard contains splatter on pitching decks
- 8 qt. front-mounted grease drawer with locking tab plus full-width grab bar for safe, easy service
- All-304 stainless steel exterior & welded steel frame—corrosion-resistant and USCG compliant
- Flanged 4" bolt-down legs keep the unit secured to countertops or equipment bases
- Fully enclosed control compartment protects wiring from wash-down and salt air
- Made in the USA and backed by Lang’s 2-year parts & labor warranty
Technical Specifications
| Cooking surface (W × D) | 72" × 23" (1,829 mm × 584 mm) |
|---|---|
| Overall dimensions (W × D × H) | 72" × 30.2" × 19.0" (1,829 mm × 767 mm × 483 mm) |
| Plate thickness | 1" (25 mm) polished steel |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Heating zones / elements | 6 zones • 6 kW each • 36 kW total |
| Electrical |
208 V or 240 V, 3-phase (field-convertible to 1-phase) 440 V or 480 V, 3-phase (export) Two electrical connections required on 72" models |
| Maximum current draw | Up to 86 A per connection at 208 V, 3-phase |
| Grease drawer capacity | 8 quarts (7.6 L) |
| Shipping / installed weight | 800 lb / 750 lb (364 kg / 341 kg) |
| Clearances (min.) | Sides: 2" • Back: 2" |
| Certifications | ETL Marine (USCG 46 CFR compliant) • NSF • Made in USA |
Warranty & Support
Lang Marine products include a 2-year parts & labor warranty, serviced by a nationwide network of factory-authorized technicians.
