Lang Manufacturing (Middleby) 172S LG Series Electric Griddles
Description

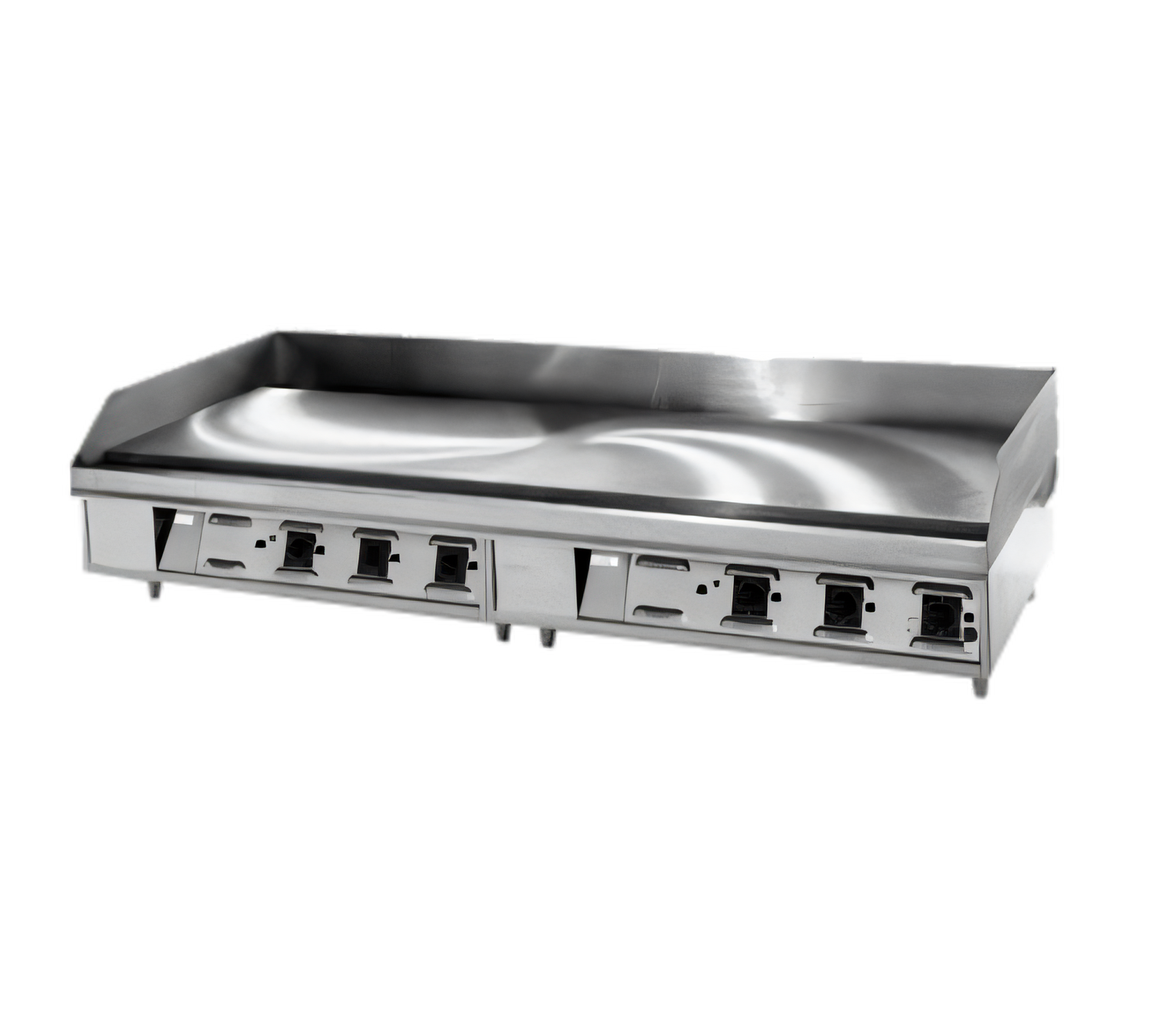

Lang LG Series 72" Electric Countertop Griddle
6-Zone • Selectronic™ Solid-State Controls • 36 kW Total OutputBuilt for high-volume kitchens that refuse to compromise on precision, the Lang LG Series 72" electric griddle delivers a full 6 feet of evenly heated cooking space, lightning-fast recovery and rock-solid temperature accuracy within ±4 °F. From breakfast rush to late-night sizzle, this USA-made workhorse keeps pace all day long.
Key Features
- Extra-large 72" W × 23" D cooking surface—perfect for simultaneous multi-menu production

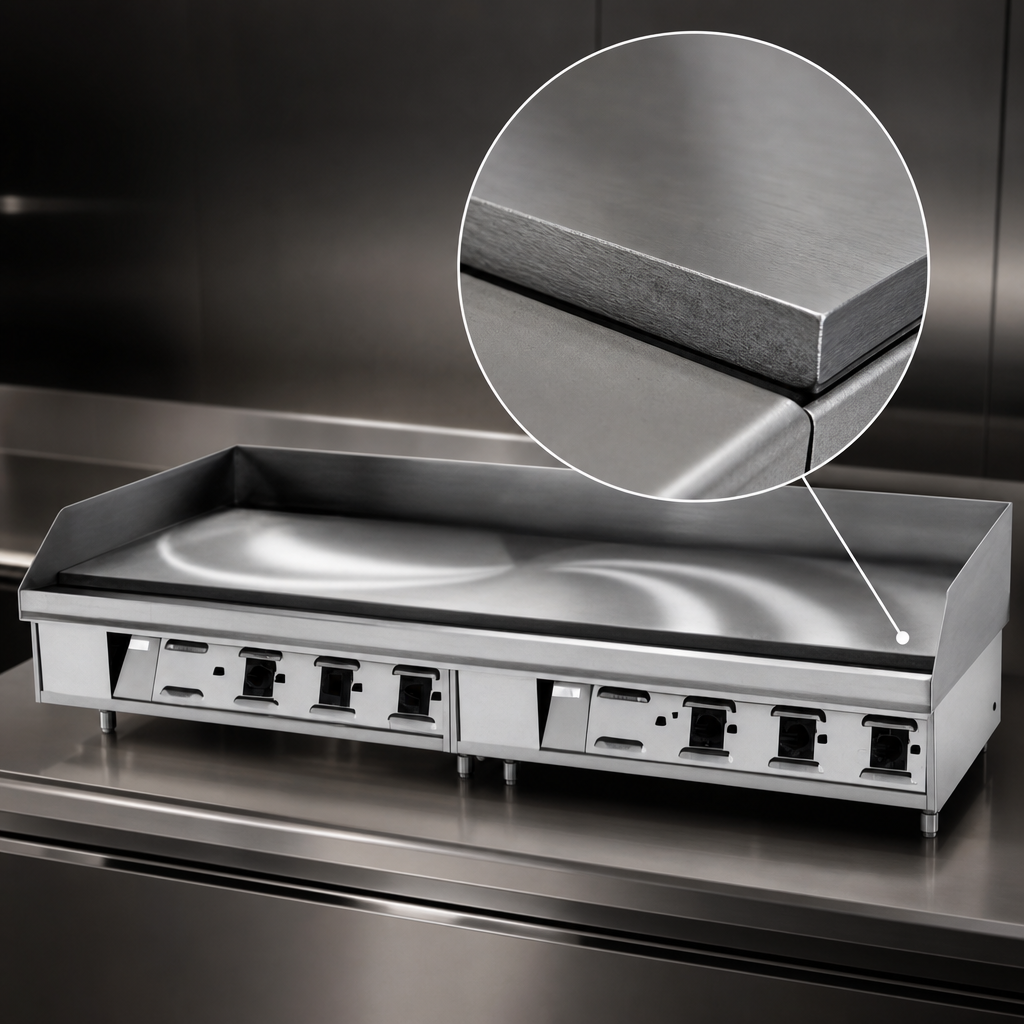

- 1" thick highly polished steel plate retains heat for faster recovery and exceptional sear
- Selectronic™ solid-state thermostat on every 12" zone (6 total) reacts to 1 °F changes
- Usable temperature range 175–450 °F (79–232 °C) for delicate to high-heat applications
- 6 kW heating power per zone—36 kW total (two 18 kW electrical connections)
- 5.5" welded side & rear splash guards contain splatter and simplify clean-up
- 3.5" × 1" front grease trough channels runoff into an easy-to-empty drawer
- Corrosion-resistant stainless-steel exterior with 4" adjustable stainless legs
- Simple hard-wire installation; field-convertible to 208 V/1- or 3-phase, 240 V/1- or 3-phase, or 480 V/3-phase
- NSF listed & proudly made in the USA
At-a-Glance Specifications
| Model | LG Series 172S (72") |
|---|---|
| Cooking Surface (W × D) | 72" × 23" (1829 mm × 584 mm) |
| Overall Dimensions (W × D × H) | 72" × 28.5" × 18.8" (1829 mm × 724 mm × 478 mm) |
| Plate Thickness / Material | 1" highly polished steel |
| Heating Zones | 6 independent zones (12" each) |
| Temperature Range | 175 – 450 °F (79 – 232 °C) |
| Total Power | 36 kW (two 18 kW connections) |
| Electrical | 208 V / 240 V / 480 V; 1- or 3-phase, field-convertible |
| Shipping / Installed Weight | 787 lb / 642 lb (357 kg / 291 kg) |
| Certifications | NSF |
| Warranty | 2-Year parts & labor (see details below) |
Why Choose Selectronic™ Controls?
- Embedded thermocouples monitor actual surface temperature, not just air temp
- Maintains set point within ±4 °F—ideal for proteins, pancakes and delicate items alike
- Independent zone control lets you create multiple temperature “lanes” on one plate
Included with Your Griddle
- Factory-installed 4" stainless steel legs
- Grease drawer & trough scraper
- Owner’s manual & installation guide
Warranty: Lang Manufacturing backs this unit with a 2-year parts & labor warranty.
Chrome-plated models carry an additional 5-year surface warranty (not applicable to this polished-steel model).
Installation clearance: Allow 2" (51 mm) at rear and sides for ventilation and service access.
