Description

Lang LG Series 60" Electric Chrome Griddle – Extra-Deep 30" Plate

Model LG-160C | Countertop | Solid State Controls

Built for relentless commercial duty, the Lang LG Series 60" electric griddle delivers precision temperature control, industry-leading chrome plate durability, and a spacious 30" cooking depth that keeps even the busiest breakfast, lunch or all-day menus moving.

Why You’ll Love It

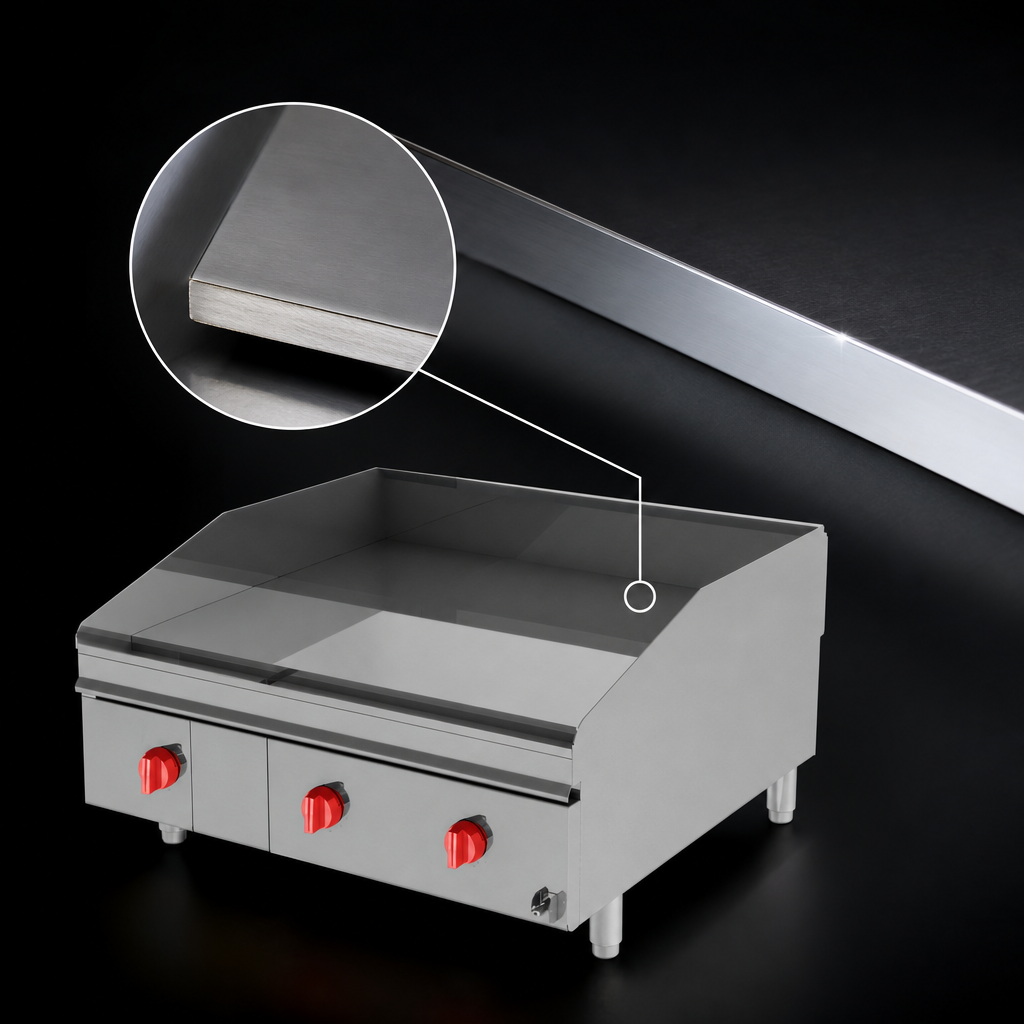

  • 1" thick, T1 armor-grade steel plate finished with a 2 mil hexavalent chrome coating for exceptional release, easier cleanup, and 5-year chrome surface warranty.
  • Extra-deep 30" cooking surface offers 25% more production space than standard 24" models.

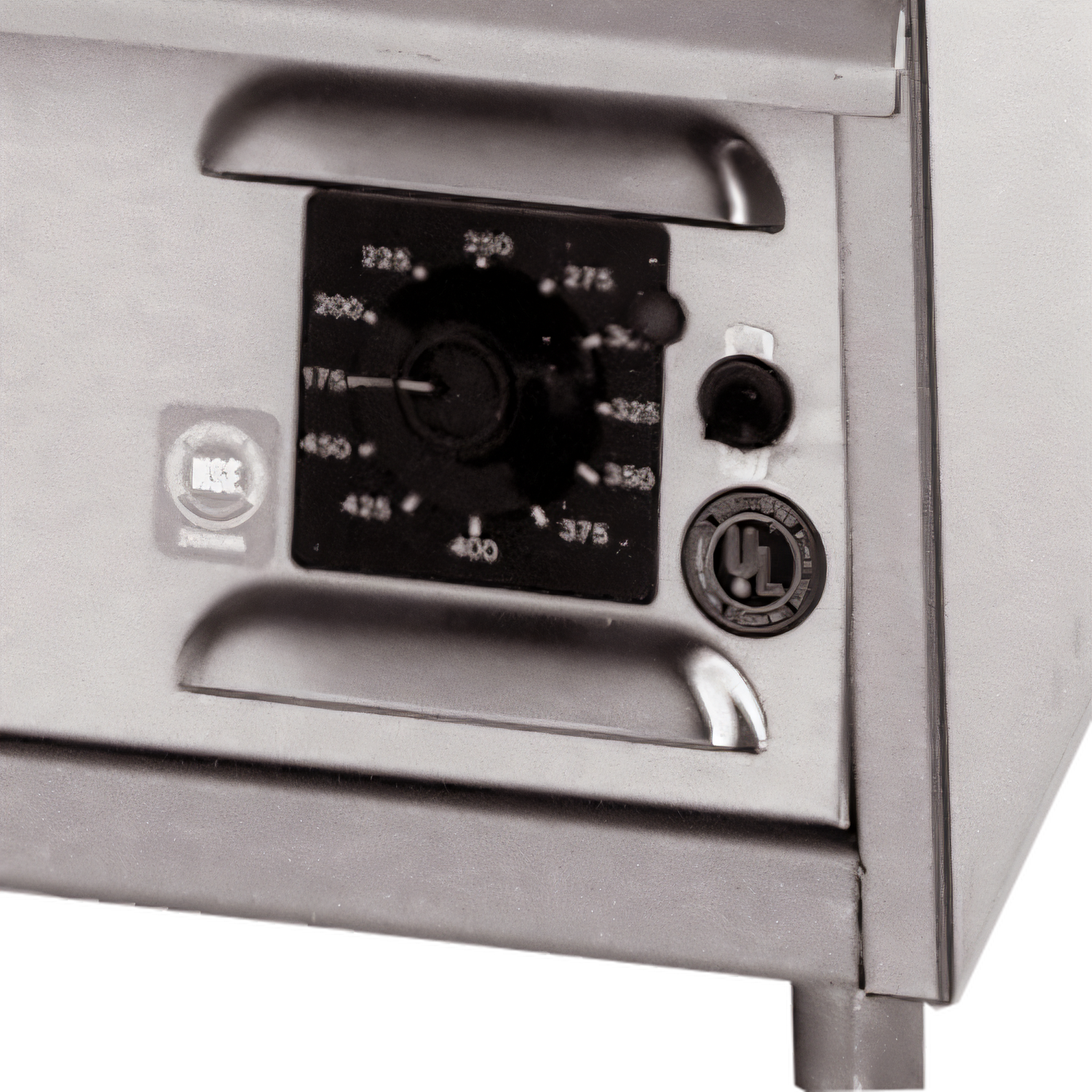

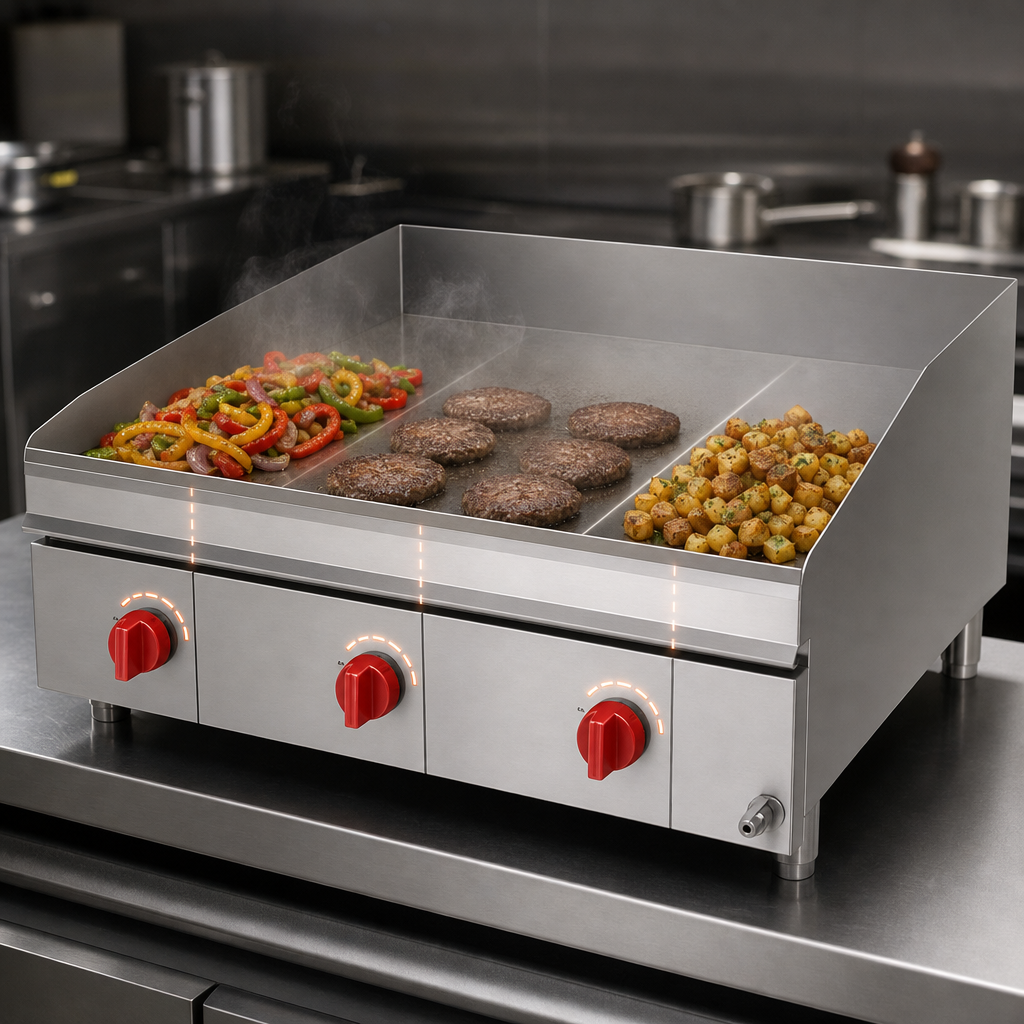

  • True solid-state thermostats (175 – 450 °F) with embedded RTD sensors maintain surface temperatures within ±4 °F—perfect for consistent sears and faster recovery.
  • Five 6000 W incoloy-sheathed elements (one every 12") are pressure-clamped to the plate bottom for even, edge-to-edge heat.
  • 5" high, tapered wrap-around splash guard plus extra-wide 8 qt grease drawer keep kitchens cleaner and safer.
  • Welded steel frame with full stainless exterior survives the toughest line environments and wipes down fast.
  • 4" stainless legs with 1-5/8" adjustment simplify leveling on uneven counters.
  • cETLus & ETL-Sanitation listed—built to pass inspections with ease.
  • Backed by Lang’s 3-year parts & labor warranty for the entire griddle.

Technical Specs

Cooking Surface (W × D) 60" × 30" (1524 mm × 762 mm)
Plate Thickness / Finish 1" thick steel, 2 mil chrome
Temperature Range 175 °F – 450 °F (79 °C – 232 °C)
Controls Solid-state thermostat, independent every 12"
Heating Elements (5) × 6 kW Incoloy sheathed (30 kW total)
Electrical 208 V/240 V, 3-phase (two field-wired connections required)
Overall Dimensions (H × W × D) 16.6" × 60" × 35.25" (height without legs)
Grease Drawer Capacity 8 quarts (7.6 L)
Certifications cETLus, ETL-Sanitation
Net / Shipping Weight 700 lb / 760 lb (318 / 345 kg)
Factory Warranty 3 yr parts & labor • 5 yr chrome surface

Chrome Plate Advantage

  • No seasoning required—start cooking right out of the box.
  • Up to 30 % lower radiant heat keeps the cookline cooler.
  • Virtually eliminates flavor transfer between menu items.
  • Wipes clean fast, slashing end-of-shift labor time.
Peace of Mind: Lang backs every LG Series griddle with a 3-year parts & labor warranty and a 5-year guarantee against chrome peeling. Ask us about flexible Middleby equipment financing to get cooking now and pay over time.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cETLus, ETL-Sanitation

Height

16.57in

Width

60.0in

Depth

35.25in

Shipping Weight

760.0lbs

Control Type

thermostatic

Exterior Finish

all stainless steel exterior

Cooking Surface Width (side - side)

49" - 60"

Cooking Surface Depth (front - back)

24" - 30"

Griddle Plate Finish

chrome plated

Specifications

LG Heavy Duty Griddle, electric, countertop, 60" W x 30" D cooking surface, 1" thick chrome griddle plate, 175°-450° F solid state thermostat, 6000W elements every 12", welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 8qt grease drawer, 4" stainless steel legs with 1-5/8" adjustment, cETLus, ETL-Sanitation
