Lang Manufacturing (Middleby) 160TM Lang® Marine Electric Griddles
Description

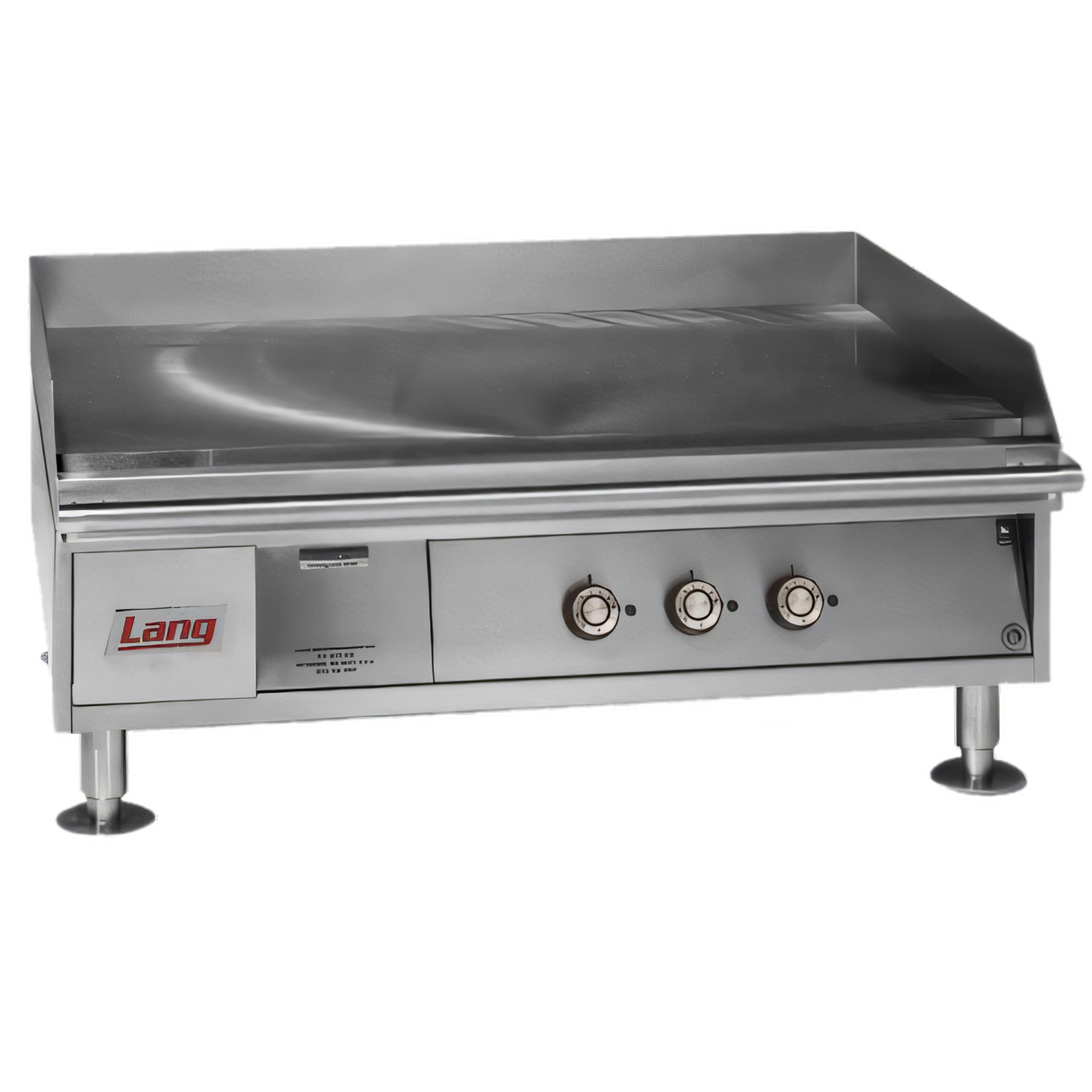

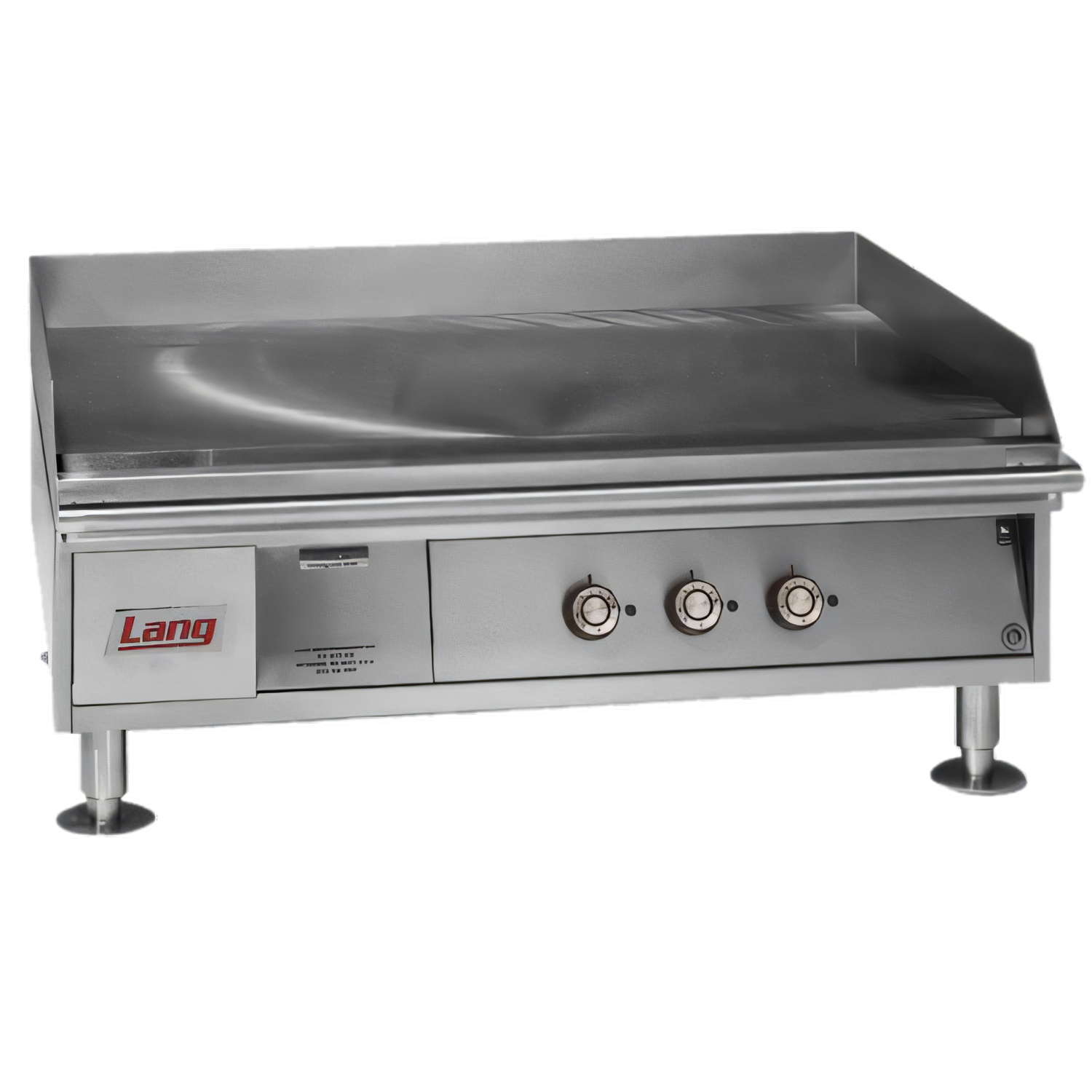

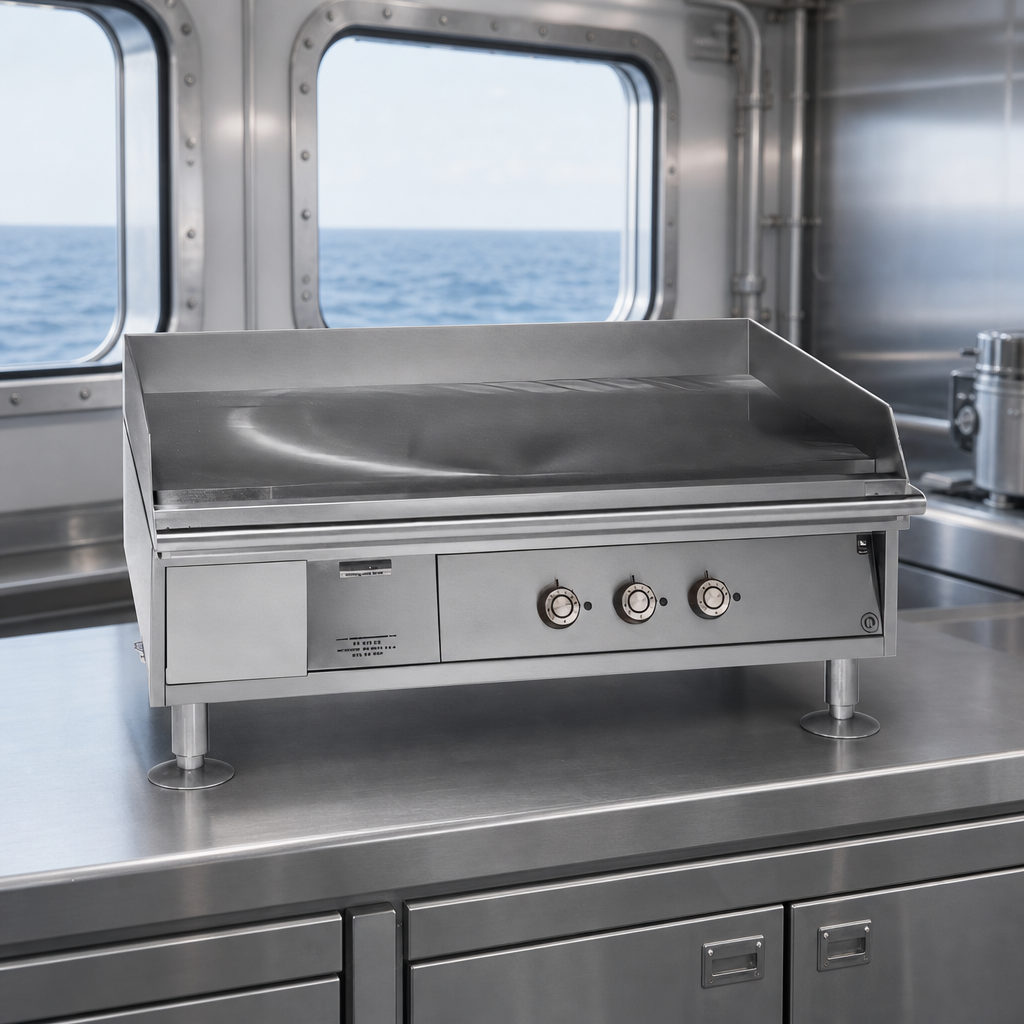

Lang® Marine Heavy Duty Electric Griddle – 60″ Countertop
Model 160TM | 30 kW total output | Made in the USABuilt for the punishing demands of shipboard galleys and offshore kitchens, the Lang® Marine 60″ countertop griddle delivers unwavering performance in rough seas or calm waters. Five independent 12″ cooking zones give you precise control from 200 – 550 °F, while a 1″ thick polished steel plate locks in heat for fast recovery and even browning shift after shift.
Key Features

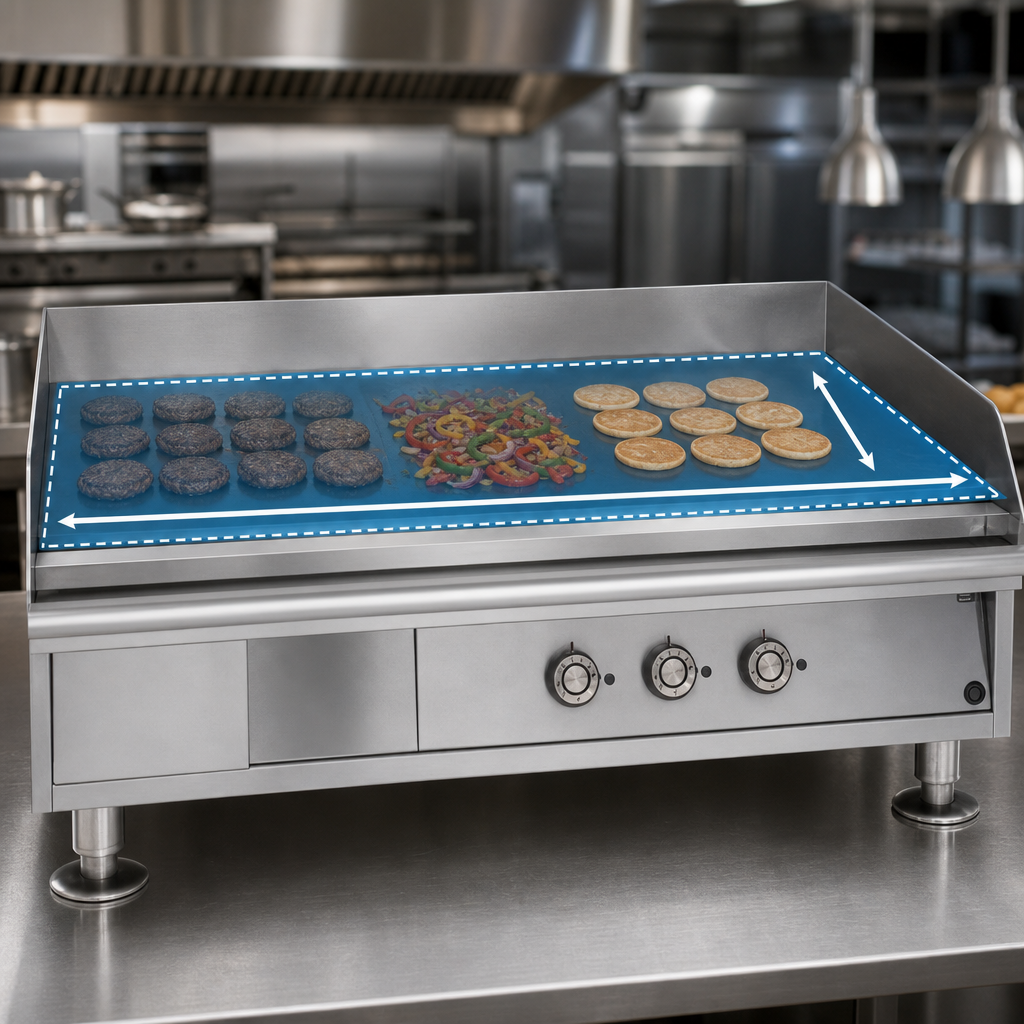

- 60″ W × 23″ D (1 524 × 584 mm) cooking surface – perfect for high-volume galley service
- 1″ (25 mm) thick precision-machined, polished griddle plate for exceptional heat retention
- Five 6 kW Incoloy-sheathed elements (one every 12″) – a total of 30 kW of searing power
- ACCU-TEMP snap-action thermostats, individually controlling each 12″ section from 200 °F to 550 °F (93 °C – 288 °C)
- 5″ (127 mm) tapered wrap-around splash guard keeps grease and splatter off surrounding equipment
- 8 qt. front-mounted grease drawer with locking tab plus full-width grab bar for safe, fast cleaning
- Welded steel frame with rugged 304 stainless-steel exterior stands up to corrosion in marine environments
- Flanged 4″ (102 mm) bolt-down legs secure the unit to the counter—no sliding in heavy seas
Designed for Life at Sea
- ETL Marine listed and compliant with USCG 46 CFR 110-113 installation regulations for vessels > 65′
- Fully enclosed control compartment protects wiring from salt mist and spray
- Field-convertible 208 V 3-phase to 240 V 1- or 3-phase, or 440/480 V 3-phase to match ship power
- Two electrical connections provide balanced loading and simplified wiring on 60″ & 72″ models
Specifications
| Model | 160TM (Marine Series) |
|---|---|
| Cooking surface | 60″ W × 23″ D (1 524 × 584 mm) |
| Overall dimensions | 60″ W × 30.2″ D × 19″ H (1 524 × 767 × 483 mm) |
| Plate thickness | 1″ (25 mm) polished steel |
| Heat zones | 5 (one every 12″) – 6 kW each |
| Total power | 30 kW |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Electrical | 208/240 V or 440/480 V, 50/60 Hz, 3-phase (field-convertible to 240 V 1-phase) |
| Shipping weight | 665 lb (302 kg) |
| Installed weight | 615 lb (280 kg) |
| Certifications | ETL Marine, NSF |
Minimum clearances: 2″ (51 mm) on sides and back. Use stranded copper wiring only.
Peace of Mind Included
- NSF & ETL Marine certified for safety and sanitation
- Built to MIL-G-2857 standards for U.S. Naval shipboard equipment
- 2-year parts & labor warranty on the complete unit
- 5-year warranty against peeling on the griddle plate surface
