Lang Manufacturing (Middleby) 160TC LG Series Electric Griddles
Description
Lang LG Series 60" Heavy-Duty Electric Chrome Griddle
Model 160TC | Countertop | 30 kW | Snap-Action ControlsBuilt for high-volume kitchens that refuse to compromise on consistency, the LG Series 60" electric griddle delivers a massive 60 × 23-inch chrome cooking surface, five independent heat zones and lightning-fast recovery. From breakfast rush to late-night burgers, nothing keeps up like a Lang.
Key advantages

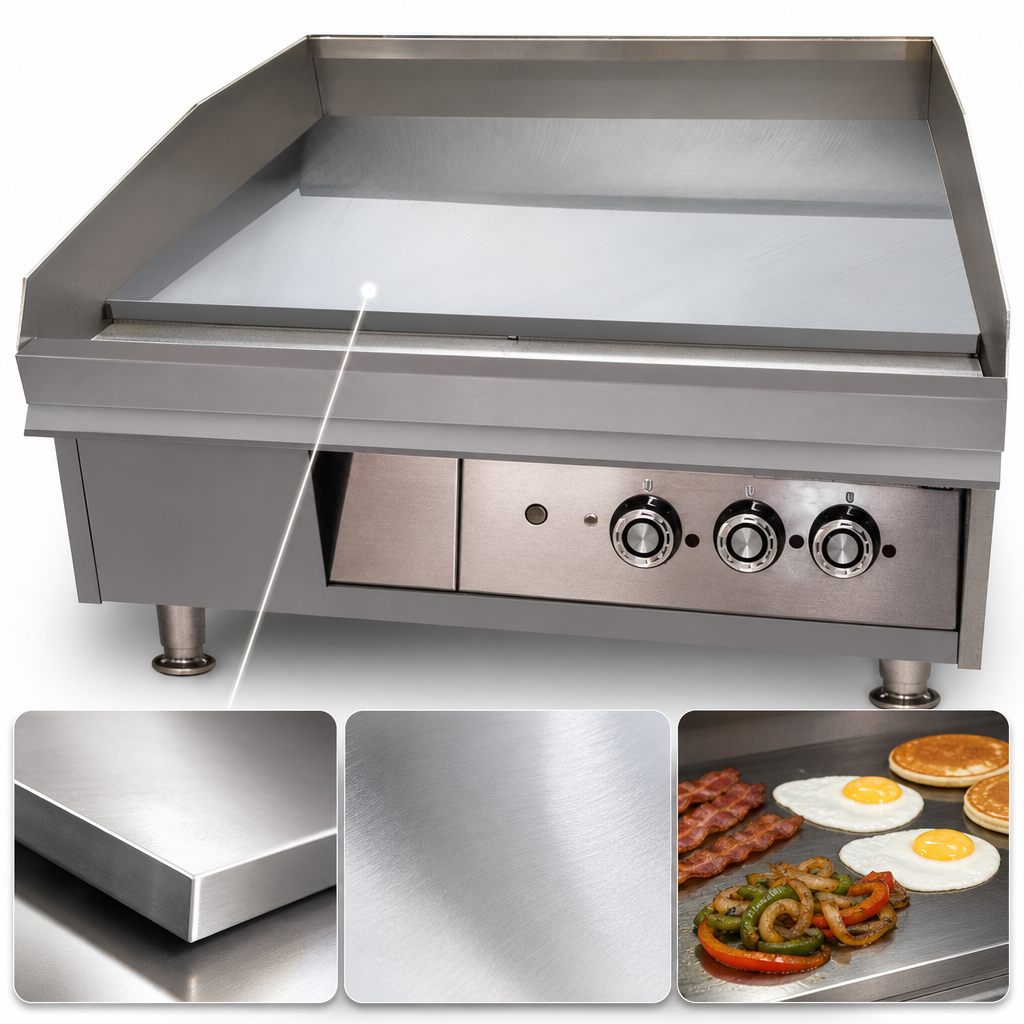

- 1" thick, mirror-polished chrome plate retains heat, wipes clean in seconds and carries a 5-year no-peel surface warranty.
- Accu-Temp™ snap-action thermostats (200 – 550 °F) with incoloy elements react instantly for ±15 °F surface accuracy.
- Five independent 6 kW zones—cook delicate eggs next to a screaming-hot sear without flavor transfer.
- Extra-deep 23" plate and 5" wrap-around splash guard maximize usable work area while keeping the line clean.
- Front-mounted 8 qt. grease drawer slides out for safe, fast disposal.
- Rugged welded steel frame, full stainless exterior and 4" adjustable legs stand up to everyday abuse.
- NSF listed, USA-built and backed by a 2-year parts & labor warranty.
Smart power management
The 60" LG ships as a dual-feed unit—an 18 kW right-side connection and a 12 kW left-side connection—for a combined 30 kW. Units are factory-wired for 208 V/3-phase but can be field-converted to 208 V 1-ph, 240 V 1-/3-ph or 480 V 3-ph to match your building service.
Technical specifications
| Cooking surface | 60" W × 23" D (1,520 × 584 mm) |
|---|---|
| Overall dimensions | 60" W × 28.5" D × 18.8" H |
| Plate material | 1" T1 armor-grade steel, 2 mil hexavalent chrome |
| Heat zones | 5 (12" each) – 6 kW per zone |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Total power | 30 kW — 18 kW + 12 kW feeds |
| Electrical | 208/240 V, 1- or 3-phase; 480 V 3-phase optional (hard-wire) |
| Grease capacity | 8 qt. removable drawer |
| Splash guard | 5" tapered, rear & sides |
| Shipping / installed weight | 656 lb / 556 lb (298 / 252 kg) |
| Certifications | NSF, ETL Sanitation & Safety |
| Country of origin | Made in USA |
What’s included & warranties
- 4" stainless steel legs with 1-5⁄8" adjustment range
- Two (2) year parts & labor warranty
- Five (5) year chrome surface warranty against peeling
