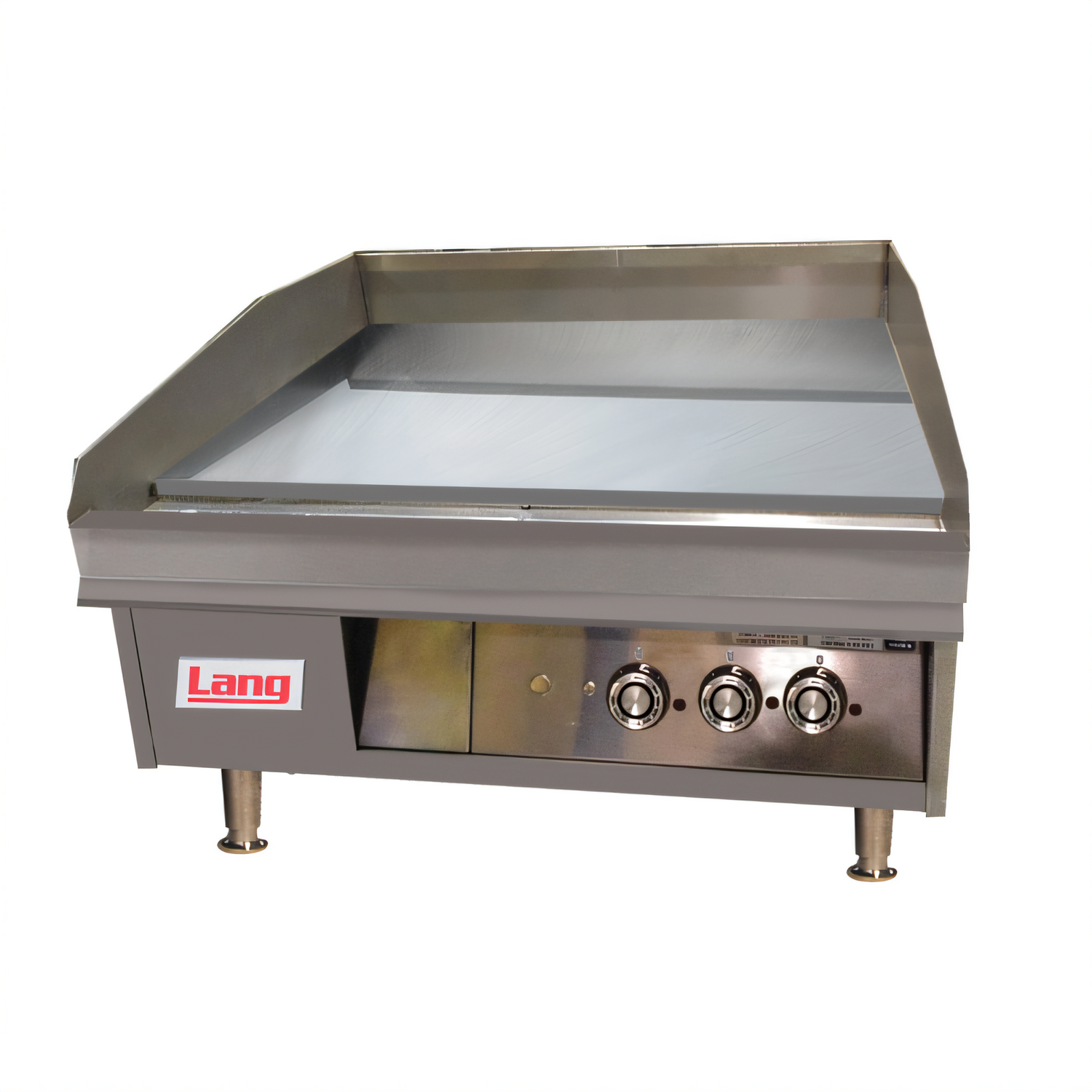

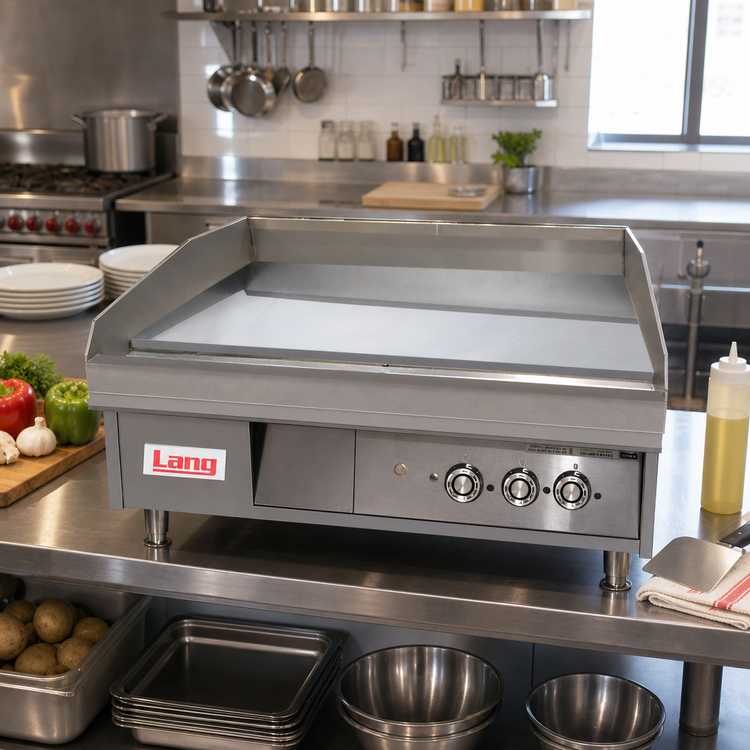

LG Series 60" Heavy-Duty Electric Griddle
Polished 1" Steel Plate • Snap-Action Thermostats • CountertopTackle peak-hour rushes with the power and precision of Lang Manufacturing’s LG Series 60" electric griddle. Engineered for relentless commercial duty, this U.S.-built workhorse drives 30 kW of even heat across a full five-foot cooking surface—keeping pancakes flipping, burgers sizzling and orders moving all day long.
Key performance advantages

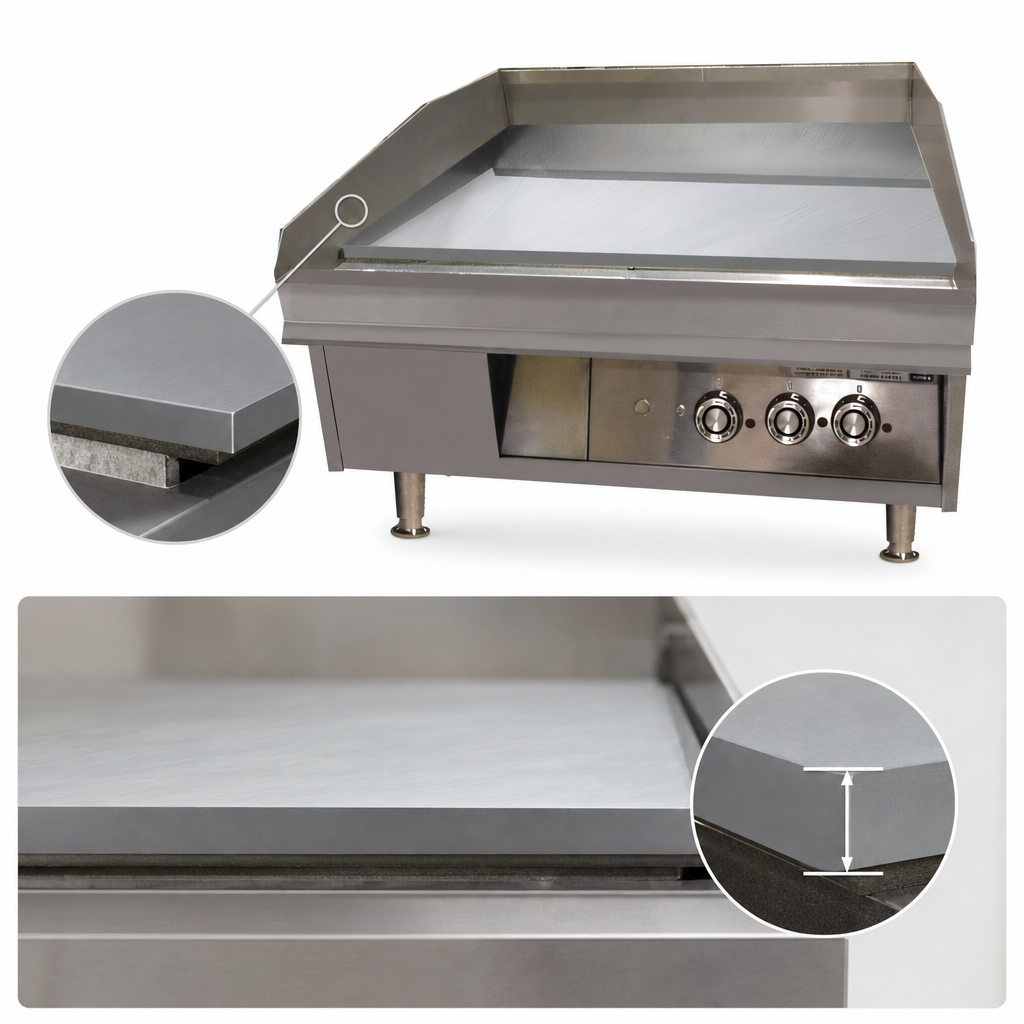

- 1" (25 mm) thick polished steel plate stores massive heat for lightning-fast recovery and uniform browning.

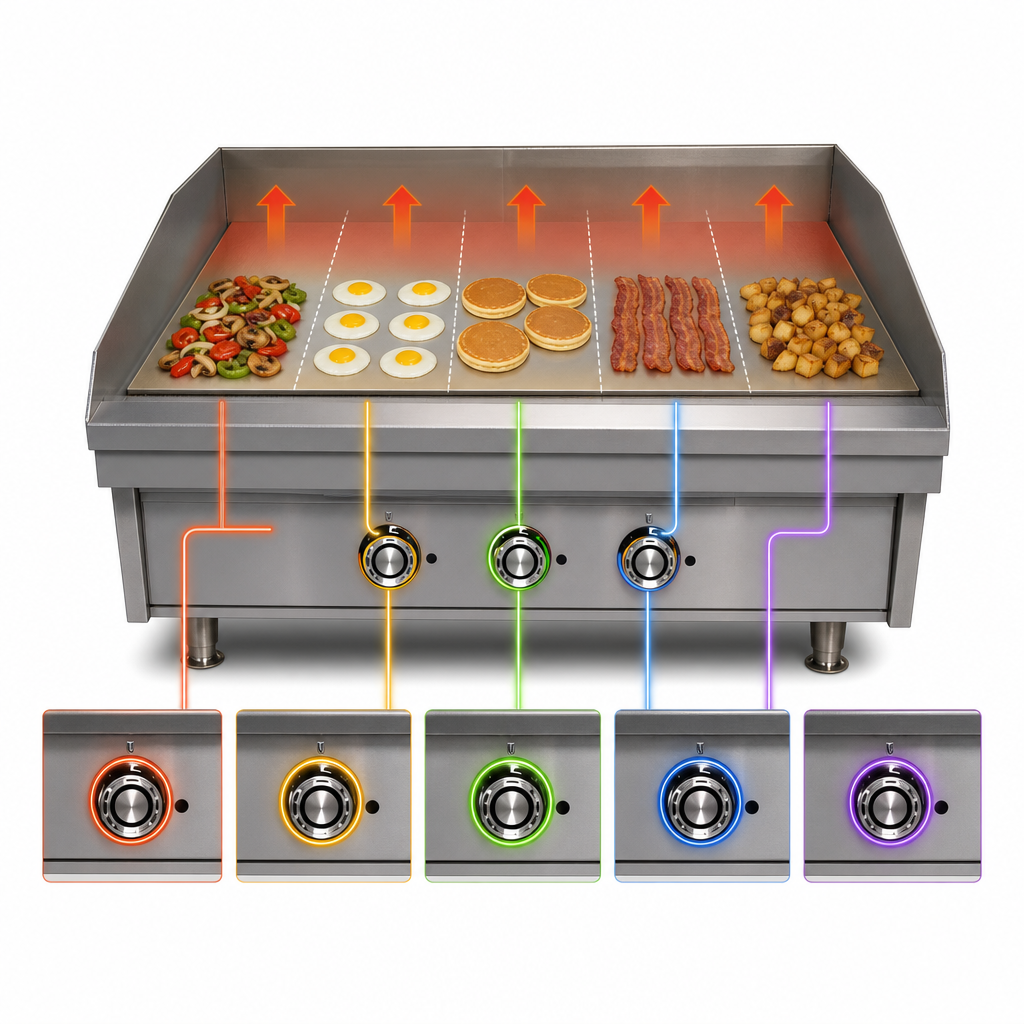

- Five independent 6 kW incoloy-sheathed elements (one every 12") deliver a total of 30 kW.
- Accu-Temp™ snap-action thermostats provide 200–550 °F (93–288 °C) control with ±15 °F accuracy.
- Welded steel frame and stainless exterior withstand years of heavy commercial use.
- 5" tapered wrap-around splash guard plus extra-wide 1" × 3.5" grease trough keep the line clean.
- Large 8 qt front grease drawer removes in seconds for fast dump-and-wipe cleanup.
- 4" stainless legs with 1-5/8" adjustment make leveling quick on any prep table.
- Field-convertible 208/240 V, 1- or 3-phase; ships for two hard-wire feeds (18 kW & 12 kW) to balance load.
- NSF listed and proudly made in Smithville, Tennessee, USA.
At-a-glance specifications
| Cooking surface | 60" W × 23" D (1524 × 584 mm) |
|---|---|
| Plate material / thickness | Polished steel, 1" (25 mm) |
| Heat zones | 5 (one every 12") |
| Temperature range | 200–550 °F (93–288 °C) |
| Total input | 30 kW (5 × 6 kW) |
| Electrical | (1) 18 kW & (1) 12 kW hard-wire; 208/240 V, 1- or 3-phase convertible |
| Splash guard height | 5" (127 mm) wrap-around |
| Grease drawer capacity | 8 qt (7.6 L) |
| Overall dimensions | 60" W × 28.5" D × 18.8" H (1524 × 724 × 478 mm) |
| Shipping weight | Approx. 656 lb (298 kg) |
| Certifications | NSF |
| Origin | Made in USA |
Ideal for
- High-volume breakfast programs
- 24/7 diners & truck stops
- Hospital, university & corporate foodservice
- Banquet and catering batch-cooking
Electrical note: This 60" model requires two dedicated electrical connections. Consult a licensed electrician and follow local codes during installation.
Covered by Lang’s 2-year parts & labor warranty on griddles. Flexible equipment financing is available—ask your representative for details.
Lang Manufacturing (Middleby)
Lang Manufacturing (Middleby) 160T LG Series Electric Griddles
SKU: 160T
$15,363.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Lang 160T LG electric griddle: heavy-duty 60" countertop griddle, 1" steel plate, 200–550°F, welded stainless exterior, powerful 30kW, NSF, Made in USA.
Manufacturer
Lang Manufacturing (Middleby)
Brand name
LG Series
Certifications
NSF, Made in USA
Height
15.0in
Width
60.0in
Depth
28.2in
Shipping Weight
665.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Depth (front - back)
17" - 23"
Griddle Plate Finish
smooth steel
Cooking Surface Width (side - side)
49" - 60"
Control Type
thermostatic
Specifications
LG Heavy Duty Griddle, electric, countertop, 60" W x 23" D cooking surface, 1" thick polished steel griddle plate, 200°-550° F snap-action thermostat and 6000W elements every 12", welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 8qt grease drawer, 4" stainless steel legs with 1-5/8" adjustment, (1) 18.0 kW & (1) 12.0kW, NSF, Made in USA
