Lang Manufacturing (Middleby) 160SC LG Series Electric Griddles
Description
Lang LG Series 60" Electric Countertop Chrome Griddle
Selectronic™ solid-state controls • Model 160SC • 30 kWPush more plates out of the pass with Lang’s flagship countertop griddle. The LG Series couples a mirror-finish 1" chrome plate with ultra-accurate Selectronic™ controls, giving you steak-house sears, pancake-perfect browning, and everything in-between on a single 60" surface.
Key Features & Benefits
- Massive 60" × 23" plate (9.6 ft²) handles breakfast rushes and banquet prep with ease.

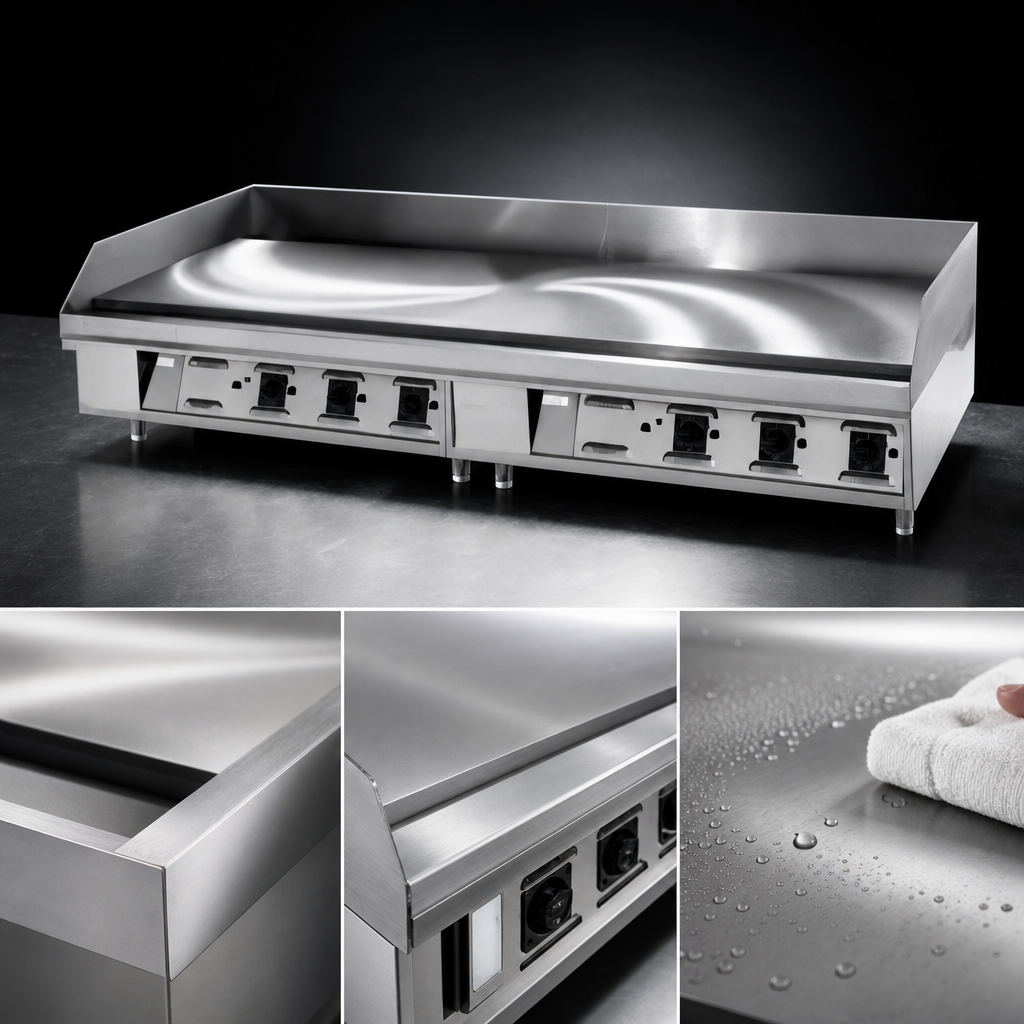

- 1" thick T1 armor-grade steel coated in 2 mil chrome— cleans in seconds, reduces kitchen heat, and never needs seasoning (5-year chrome surface warranty).
- Five independent 12" heat zones, each driven by a 6 kW incoloy element.
- Selectronic™ solid-state thermostats react to 1 °F surface changes; set point range 175–450 °F with ±4 °F accuracy.
- 5.5" rear/side splashes plus a 3.5" × 1" full-width trough funnel grease straight to the drawer.
- All-stainless cabinet, front-mounted controls, and 4" adjustable legs for a rock-solid, sanitary workstation.
- NSF listed & Made in the USA; backed by Lang’s 2-year parts & labor warranty.
Spec Sheet
| Cooking surface (W × D) | 60" × 23" (1524 × 584 mm) |
|---|---|
| Plate thickness / finish | 1" chrome-plated steel |
| Heat zones | 5 (one per 12" section) |
| Controls | Selectronic™ solid-state; individual dial per zone |
| Temperature range | 175 – 450 °F (79 – 232 °C) |
| Total power | 30 kW — 1 × 18 kW & 1 × 12 kW circuits |
| Electrical | 208 V/3-ph factory-wired; field-convertible to 208/1-ph, 240 V/1- or 3-ph, 480 V/3-ph Two hard-wired connections required |
| Overall dimensions | 60" W × 28.5" D × 18.8" H (1524 × 724 × 478 mm) |
| Shipping weight | 656 lb (298 kg) |
| Clearances | 2" (51 mm) rear & sides |
| Certifications | NSF, ETL Sanitation, ETL US/C |
| Warranty | 2 years parts & labor; 5 years against chrome peeling |
| Country of origin | USA |
Optional Upgrades
- Contact or radiant clamshell hoods (one per 12" section)
- Custom grooved plate – 12" or 24" from either side for char marks
- Stainless equipment stand with legs or heavy-duty casters
Professional installation required. Consult a licensed electrician to verify circuit capacity and connection requirements.
