Lang Manufacturing (Middleby) 160S LG Series Electric Griddles
Description

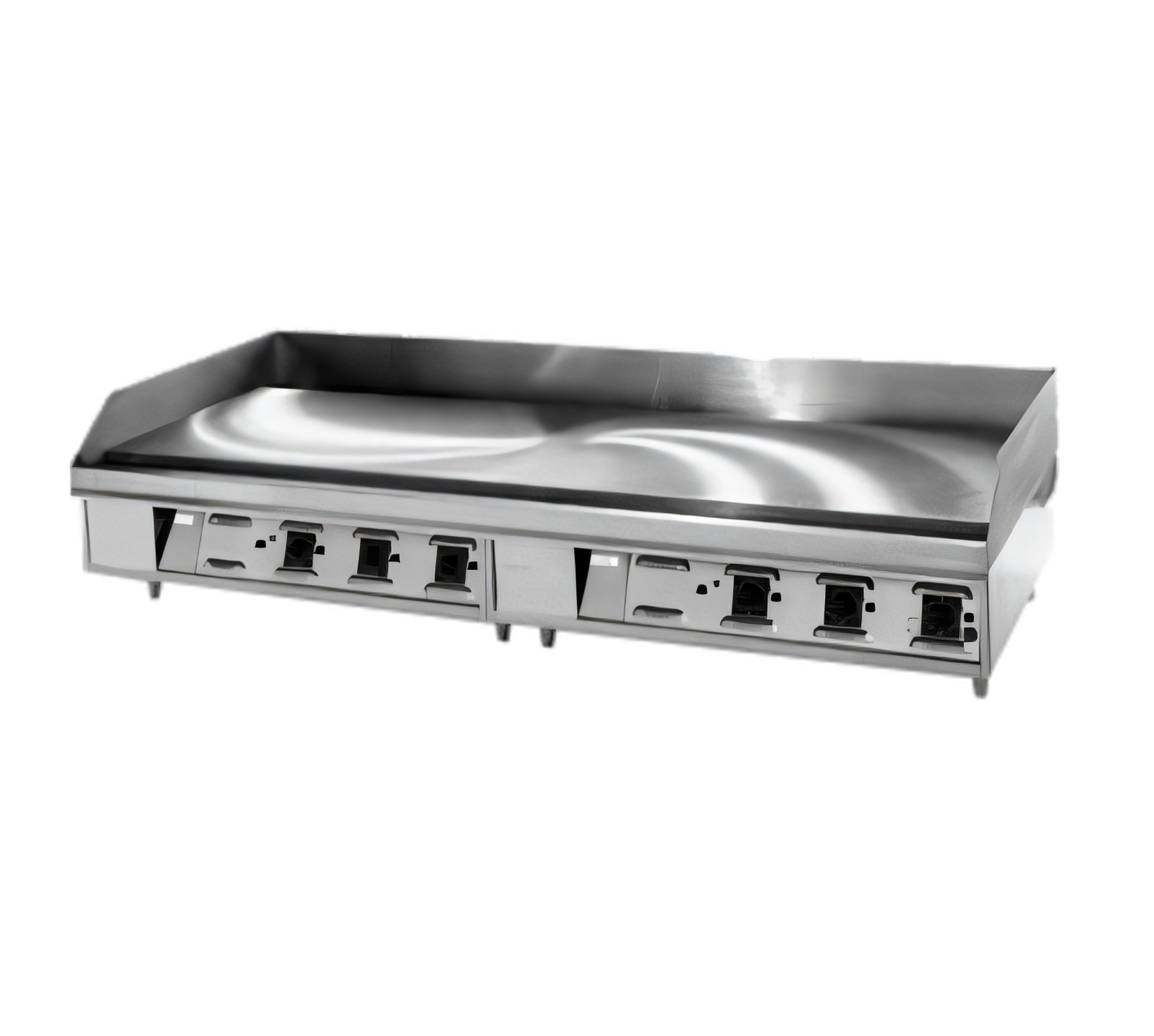

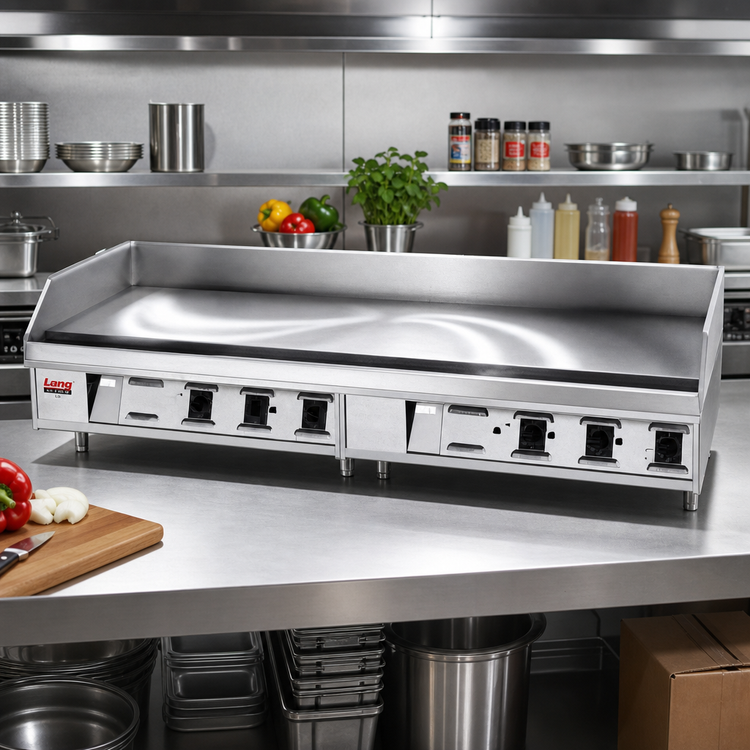

Lang LG Series 60" Electric Countertop Griddle
Model 160S • Selectronic™ Solid-State ControlsCrush the rush with 10 ft² of precision-heated plate. The LG Series 60" griddle couples Lang’s legendary 1" steel cooking surface with rapid-response Selectronic™ controls to give chefs the consistent sear, recovery and zone flexibility modern menus demand.
Key advantages
- Spacious 60" W × 23" D plate – perfect for simultaneous breakfast, lunch & dinner production

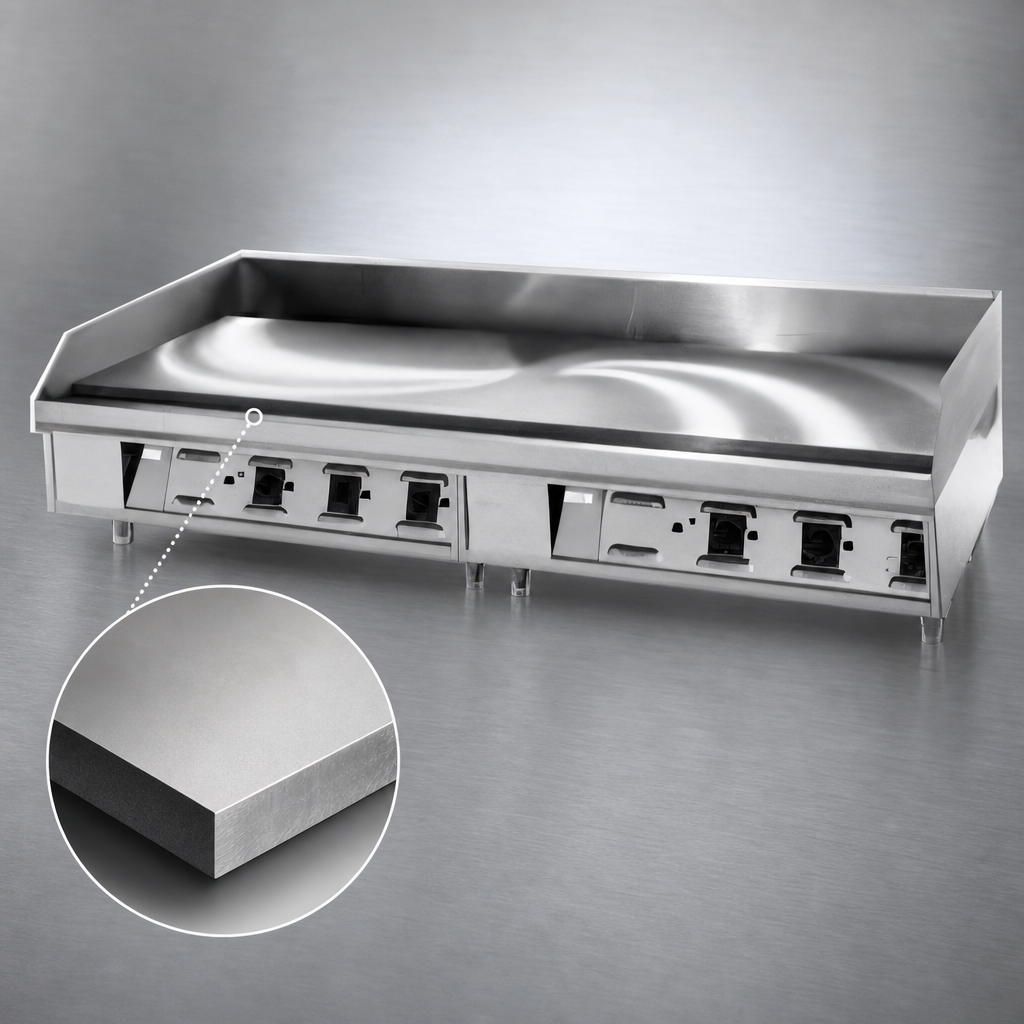

- Full 1" thick polished steel plate for even heat & blister-fast recovery

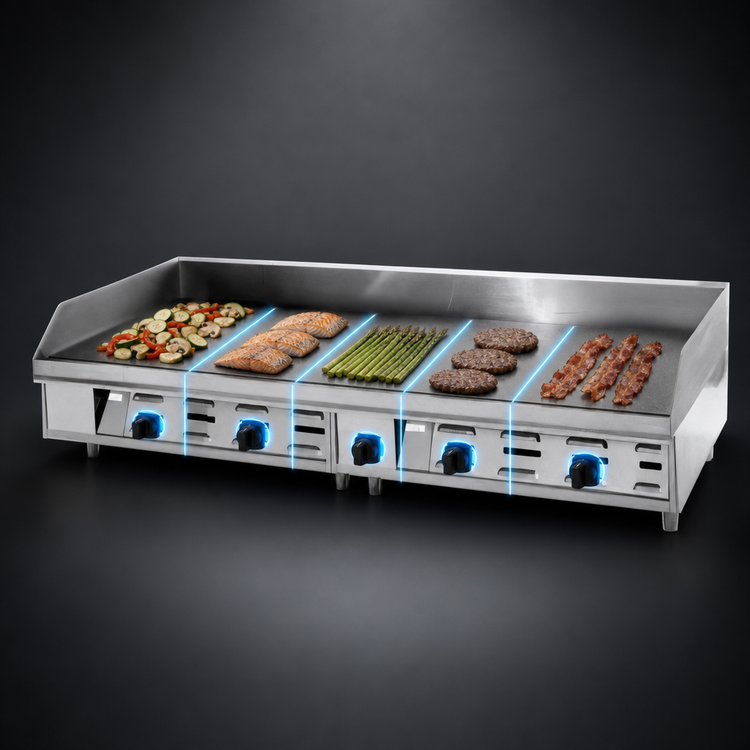

- Five independent 12" cooking zones with solid-state controls that react to ±1 °F surface changes
- 175–450 °F working range keeps delicate crêpes or a hard sear totally under control
- 30 kW total output (one 18 kW + one 12 kW connection) delivers instant reserve power
- 5.5" welded side & rear splash plus 3.5" × 1" grease trough for simple, sanitary cleanup
- All-stainless exterior and 4" adjustable legs stand up to the toughest cooklines
- NSF listed and proudly made in the USA

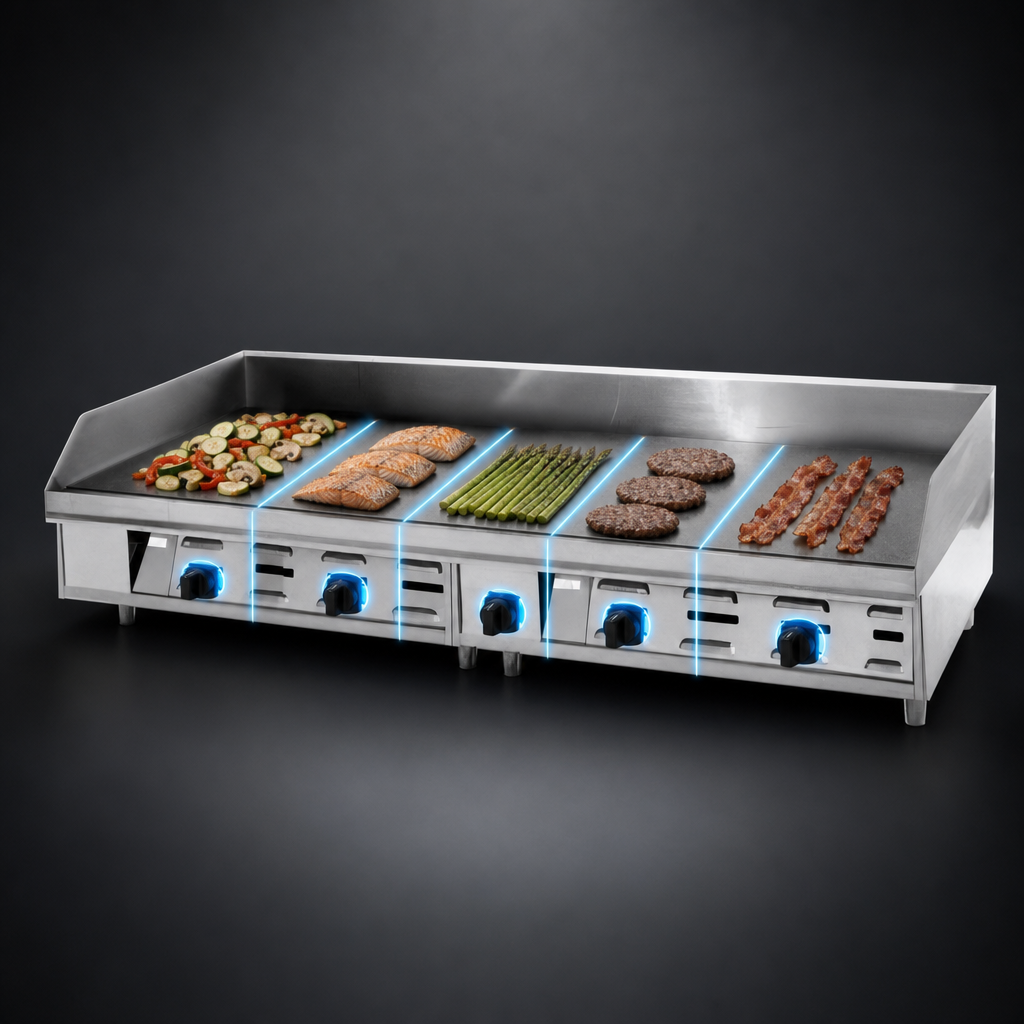

Precision zone control
Each 12" section is governed by an embedded thermocouple and solid-state circuit that cycles heat more frequently than snap-action thermostats, holding surface temps to within ±4 °F of set point. Grill chicken at 400 °F on one side while holding tortillas at 225 °F on the other—no flavor transfer, no hot spots.
Specifications
| Cooking surface | 60" W × 23" D (1524 × 584 mm) |
|---|---|
| Plate material / thickness | Polished steel, 1" (25 mm) |
| Controls | Selectronic™ solid-state, one per 12" section |
| Temperature range | 175–450 °F (79–232 °C) |
| Total power | 30 kW – (1) 18 kW + (1) 12 kW |
| Electrical | 208 V/3-ph factory wired; field convertible to 208 V 1-ph, 240 V 1-/3-ph or 480 V 3-ph* |
| Connections required | Two hard-wire inlets |
| Exterior | Stainless steel cabinet, 5.5" splash, full-width grease trough |
| Legs | 4" stainless, adjustable |
| Agency approvals | NSF |
| Warranty | 2-year parts & labor |
| Origin | Made in the USA |
Popular accessories (sold separately)
- Stainless equipment stand with shelf or locking casters
- Contact or radiant clamshell hoods (up to one per 12" zone)
- Custom grooved plate sections for char-mark presentation
*Specify required voltage when ordering. Field conversions should be performed by a licensed technician.
