Lang Manufacturing (Middleby) 148ZTD LG Series Electric Griddles
Lang Manufacturing (Middleby) 148ZTD LG Series Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

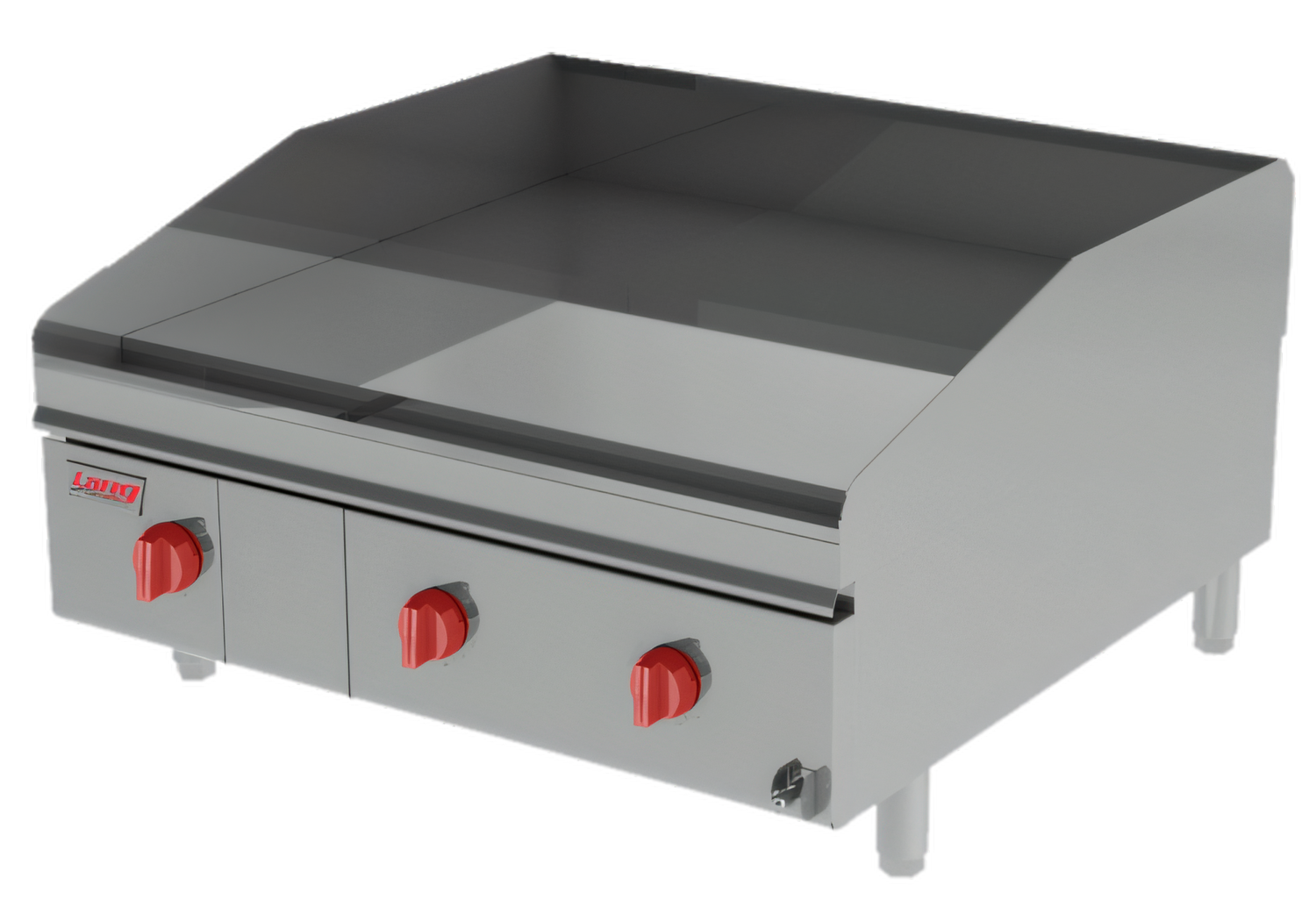

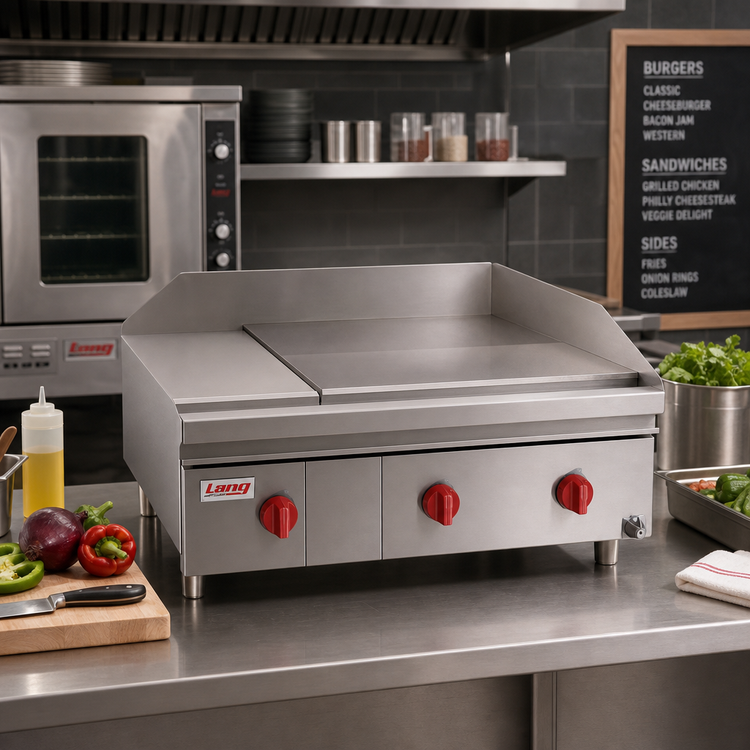

Lang LG-Series Heavy-Duty Electric Griddle – 48" x 30"
4 independent Accu-Temp™ cooking zones | Countertop, extra-deep plateGive your line cooks the rock-solid performance Lang is famous for. The LG-Series 48" electric griddle combines a full 1-inch thick polished steel plate with four snap-action thermostats to deliver fast recovery, even heat, and effortless zone control in the busiest kitchens.
Why You’ll Love It

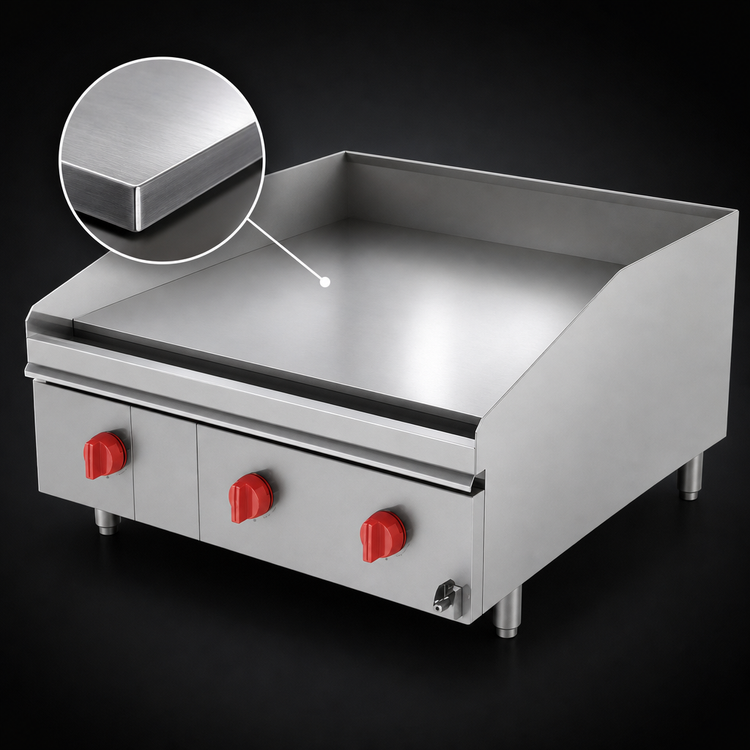

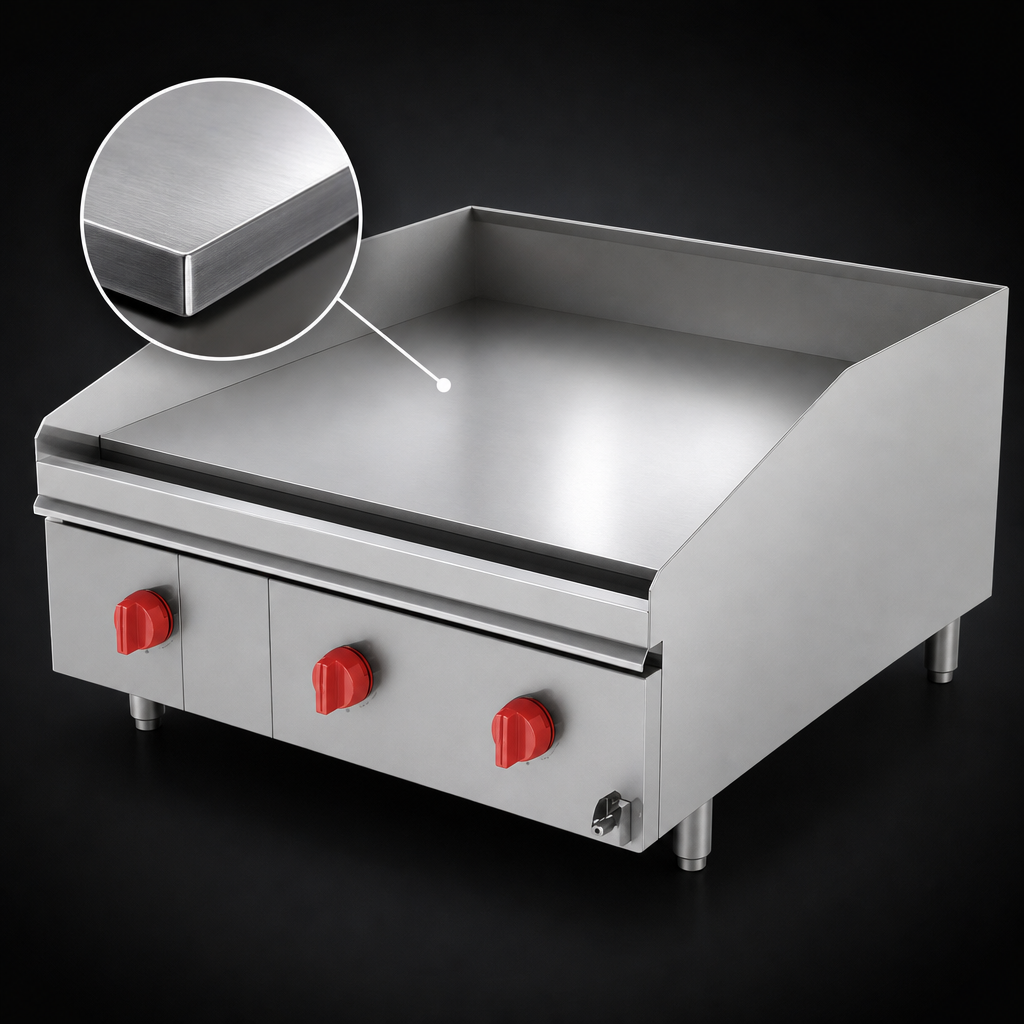

- 1" thick precision-machined steel plate retains heat for lightning-fast recovery.
- Extra-deep 30" cook surface—≈25 % more grilling real estate than standard 24" plates.

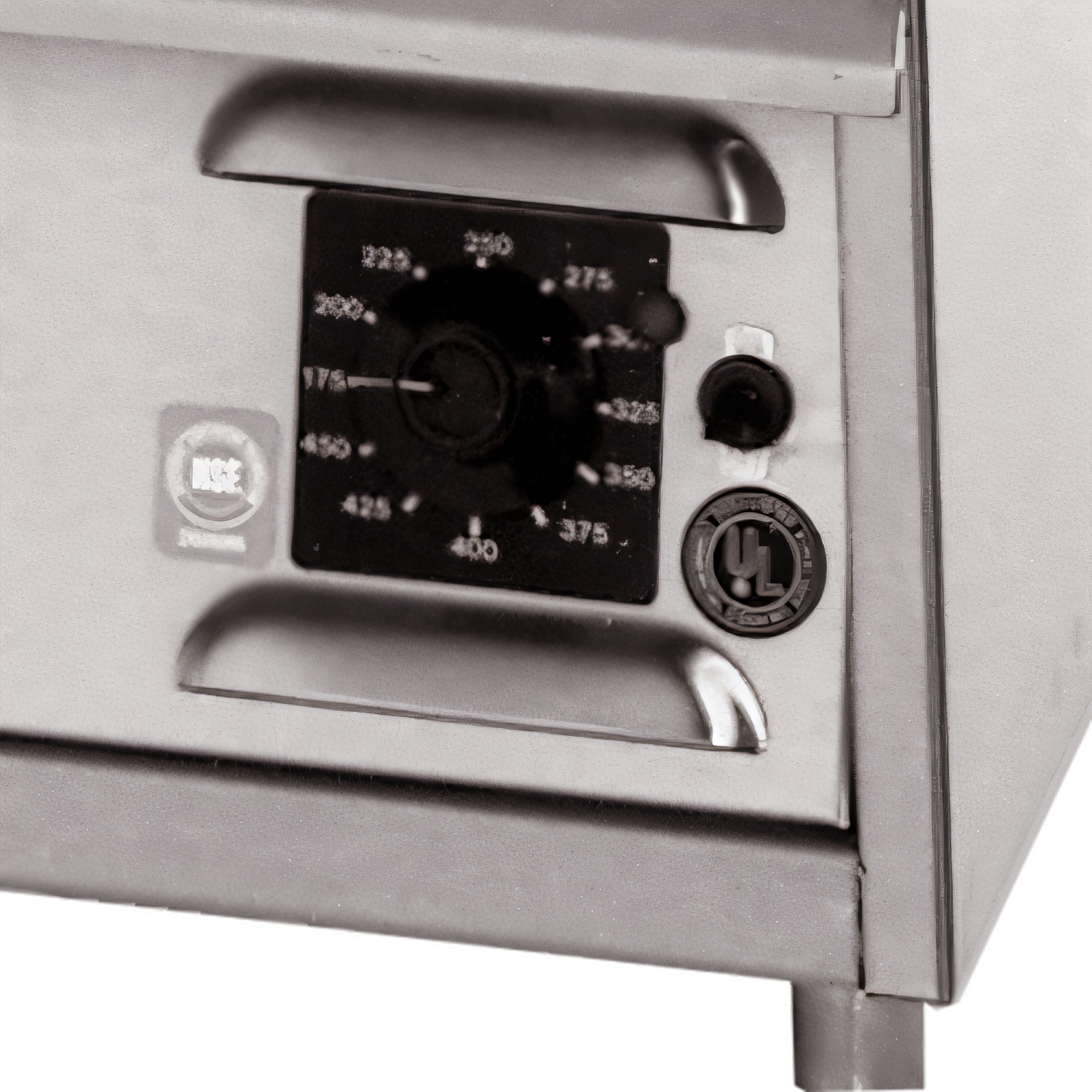

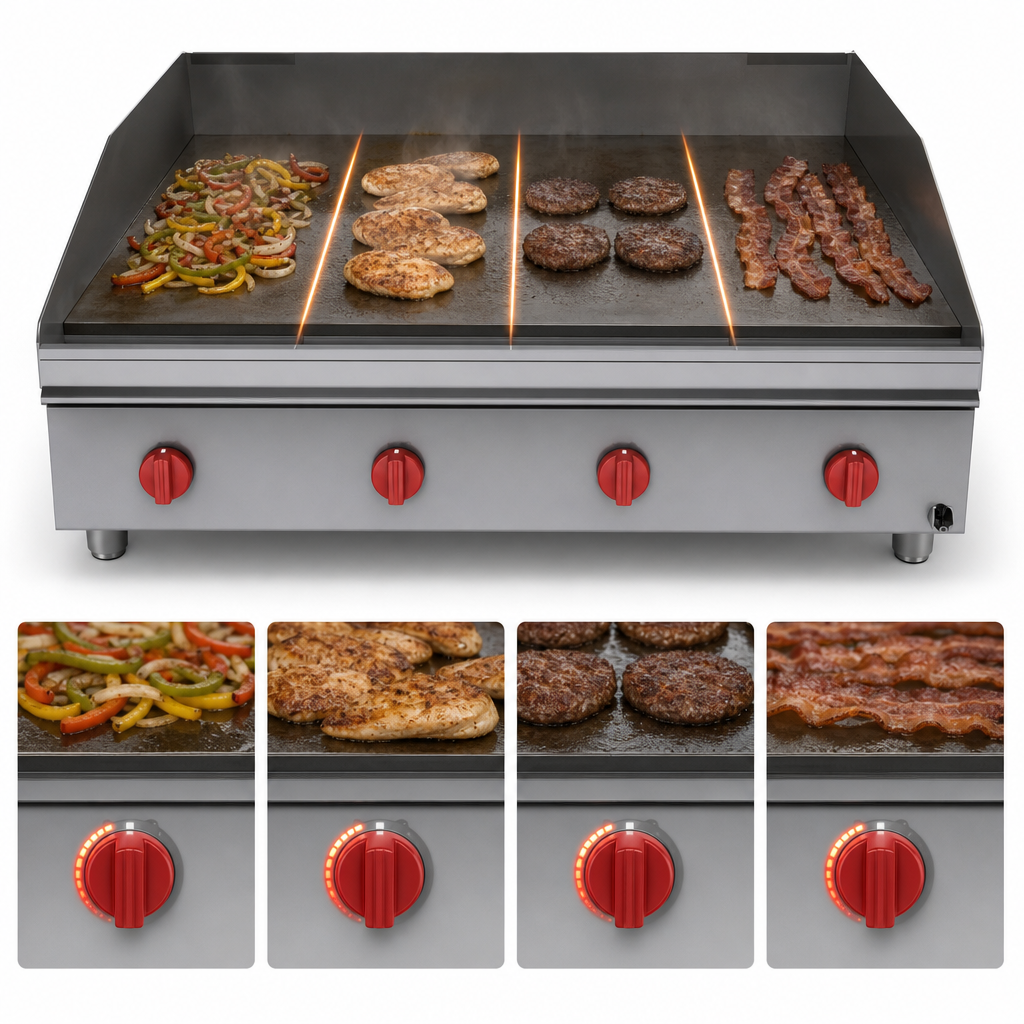

- Four Accu-Temp™ snap-action thermostats (one every 12") let you sear, hold and finish at different temps simultaneously.
- Embedded probes maintain surface temperature within ±15 °F of set point (150-450 °F range).
- Pressure-clamped Incoloy heating elements deliver a hefty 6 kW per foot (≈24 kW total) of even heat.
- All-stainless exterior with 5½" high rear & side splashes and a 3½" wide trough for quick, tidy clean-up.
- 8-quart, fully enclosed grease drawer removes in seconds—no mess, no spills.
- 4" adjustable stainless steel legs for easy leveling on any counter.
- ETL & ETL-Sanitation listed to help you breeze through inspections.
Factory Options (Sold Separately)
- Mirror-finish chrome plate – virtually eliminates seasoning, reduces kitchen heat load, and carries a 5-yr surface warranty.
- Custom grooved plate sections for char-mark presentation (priced per 12").
- S/S stand with casters for mobile floor installation.
At-a-Glance Specs
| Model | LG-Series 48 (148) |
|---|---|
| Cooking Surface (W × D) | 48" × 30" (1219 mm × 762 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Heat Zones | 4, individually controlled (12" each) |
| Thermostat Type | Accu-Temp™ electric snap-action, embedded |
| Temperature Range | 150 °F – 450 °F (65 °C – 232 °C) ±15 °F |
| Electrical | 24 kW; 208 V or 240 V, 3 Ph (field convertible to 1 Ph) |
| Overall Dimensions (H × W × D) | 16.6" × 48" × 35.3" (height without 4" legs) |
| Ship Weight | ≈620 lb (281 kg) |
| Certifications | ETL, ETL-Sanitation |
| Standard Warranty | 3 years parts & labor on griddle 5 years against chrome peeling (if chrome option selected) |
Warranty service must be performed by a Lang-authorized agency within 50 mi / 80 km. See full terms at langworld.com.
