Lang Manufacturing (Middleby)

Lang LG Series 48-Inch Electric Countertop Extended-Depth Griddle with 1-Inch Chrome Plate and Solid State Controls

SKU: 148ZSDC
$29,362.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Electric Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

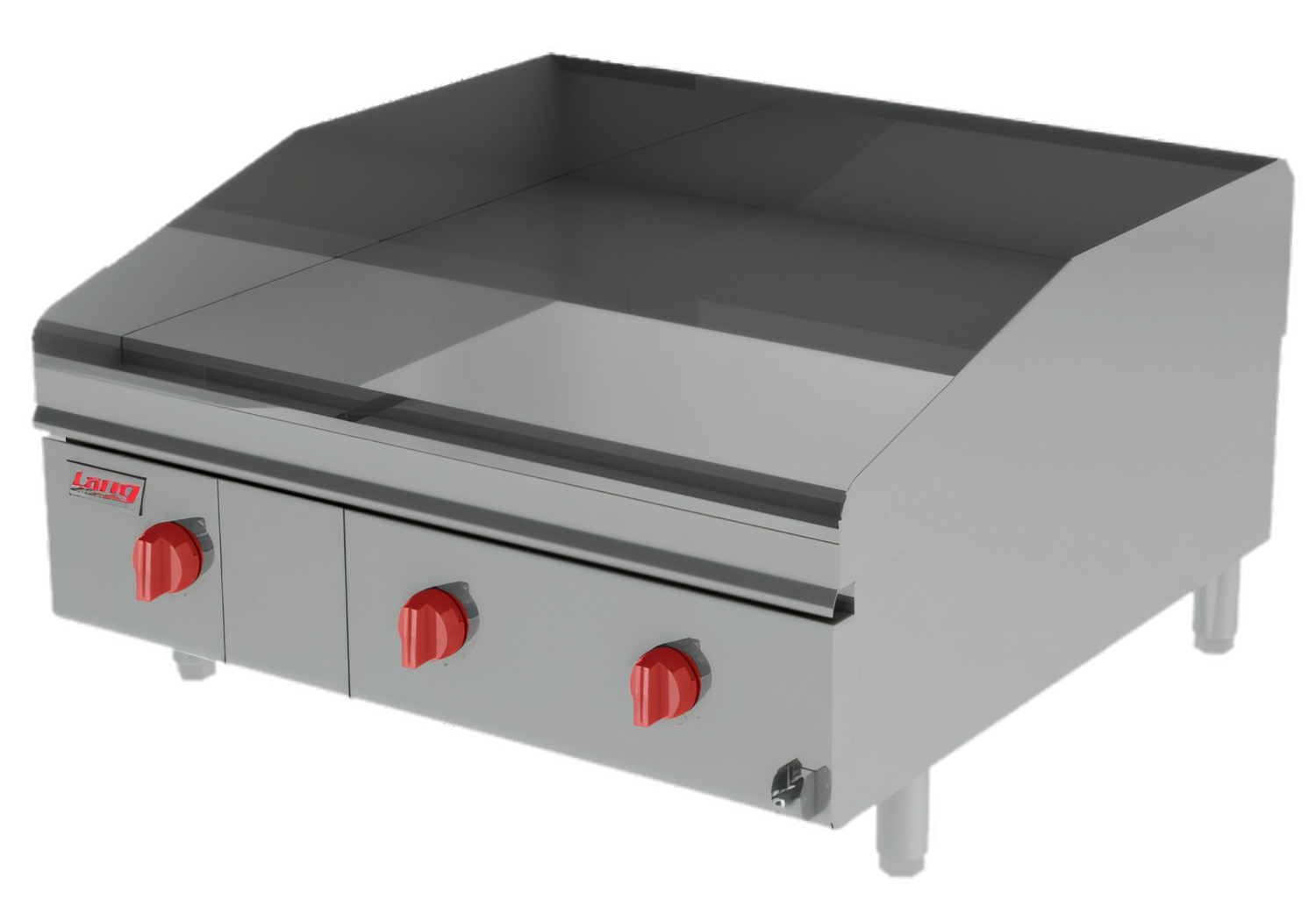

Lang LG Series 48-Inch Electric Countertop Extended-Depth Griddle with 1-Inch Chrome Plate and Solid State Controls

48" x 30" Cooking Surface, 208V/3-Phase, Field Convertible to 240V or 1-Phase

Built for high-volume griddle service, this chrome-top unit combines precise solid-state heat control, durable stainless steel construction, and quick cleanup.

  • 48" x 30" extended-depth cooking surface supports large-volume production.
  • 1" chrome-plated griddle plate helps retain heat and simplify cleanup.
  • Solid-state thermostat controls offer independent temperature management every 12".
  • 24 kW output and 6,000W elements every 12" promote even heating and recovery.
  • Stainless steel exterior, splash guard, and 8-quart grease drawer make daily maintenance easier.
  • 208V, 3-phase connection is field convertible to 240V or 1-phase for installation flexibility.

Overall Dimensions:

48.0"W x 35.25"D x 16.57"H

Product Weight:

620.0 lb

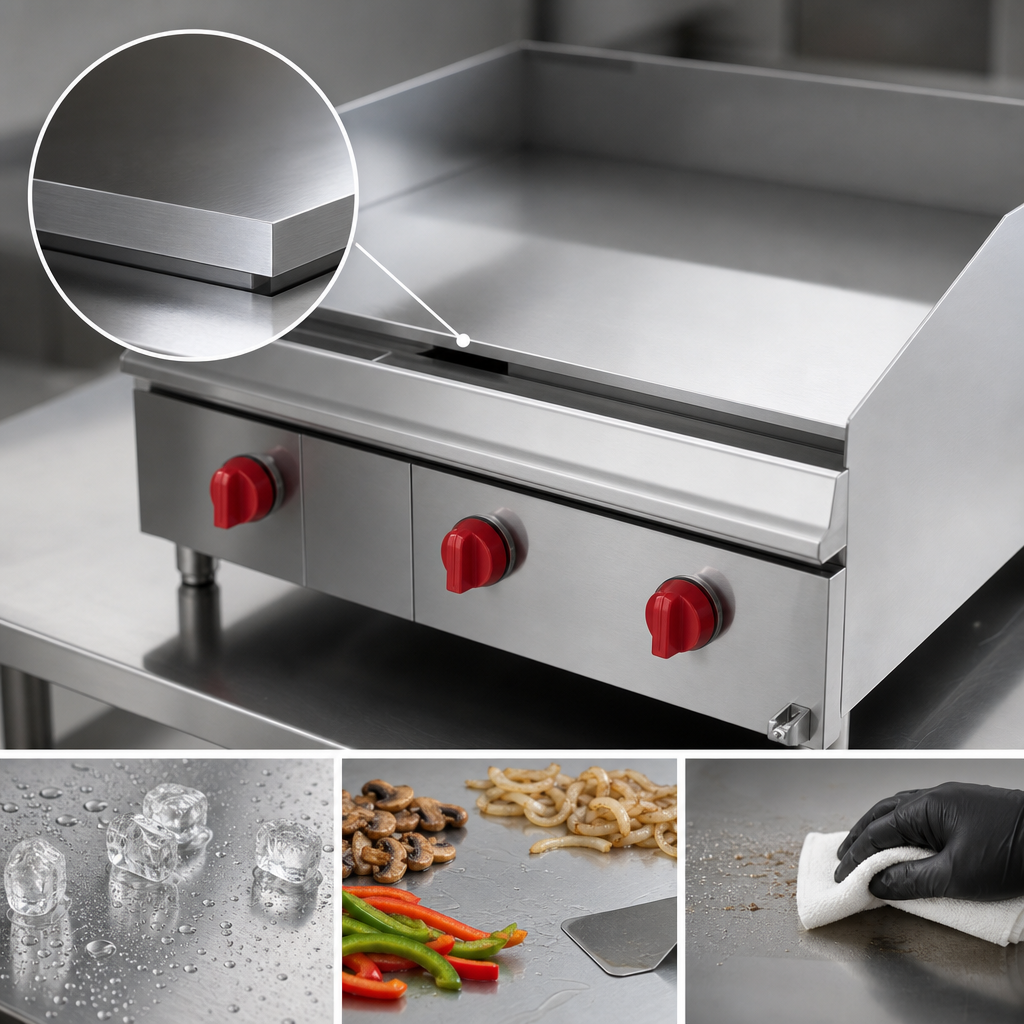

1-Inch Chrome Griddle Plate

1-inch chrome-plated steel surface helps hold heat, reduce flavor transfer, and clean faster.

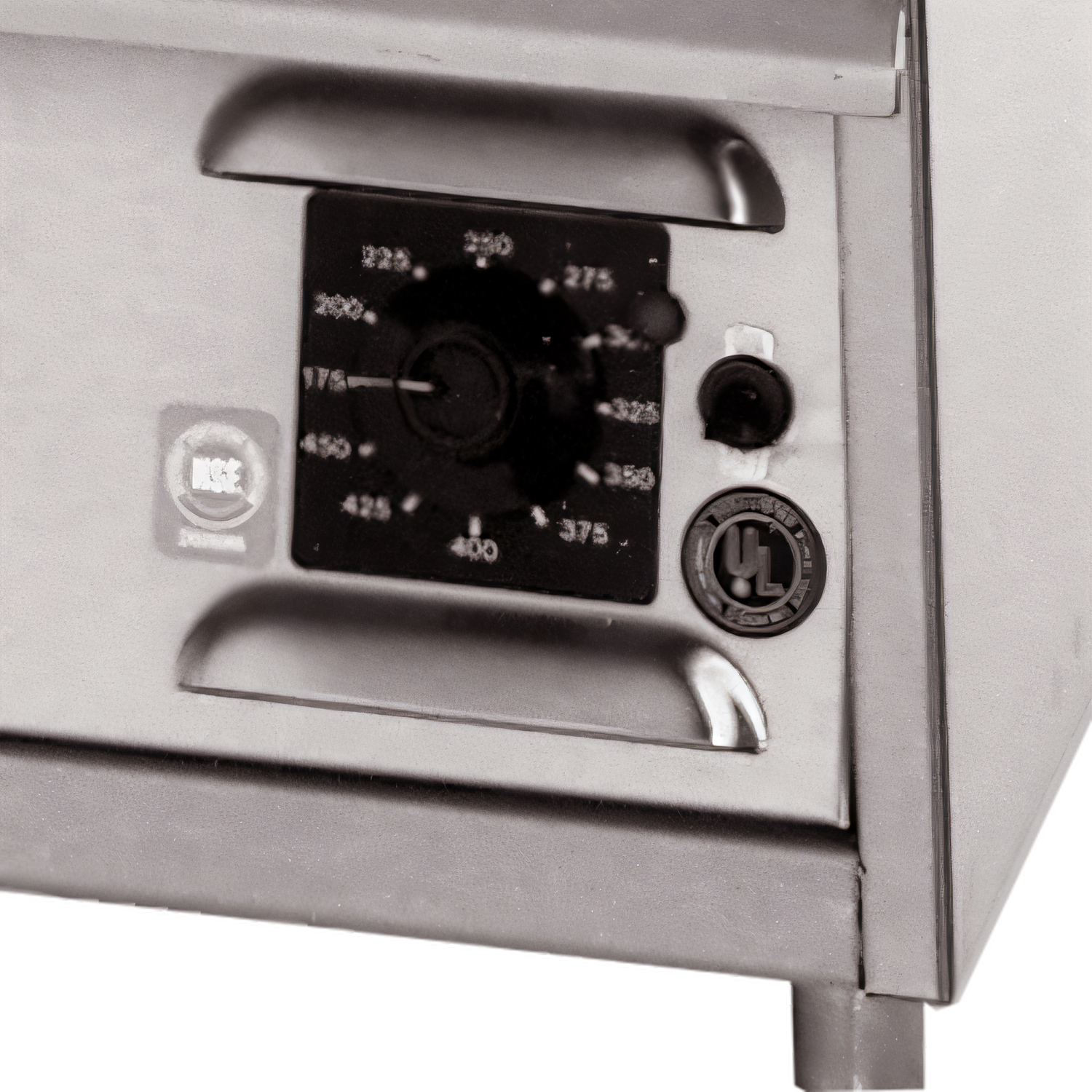

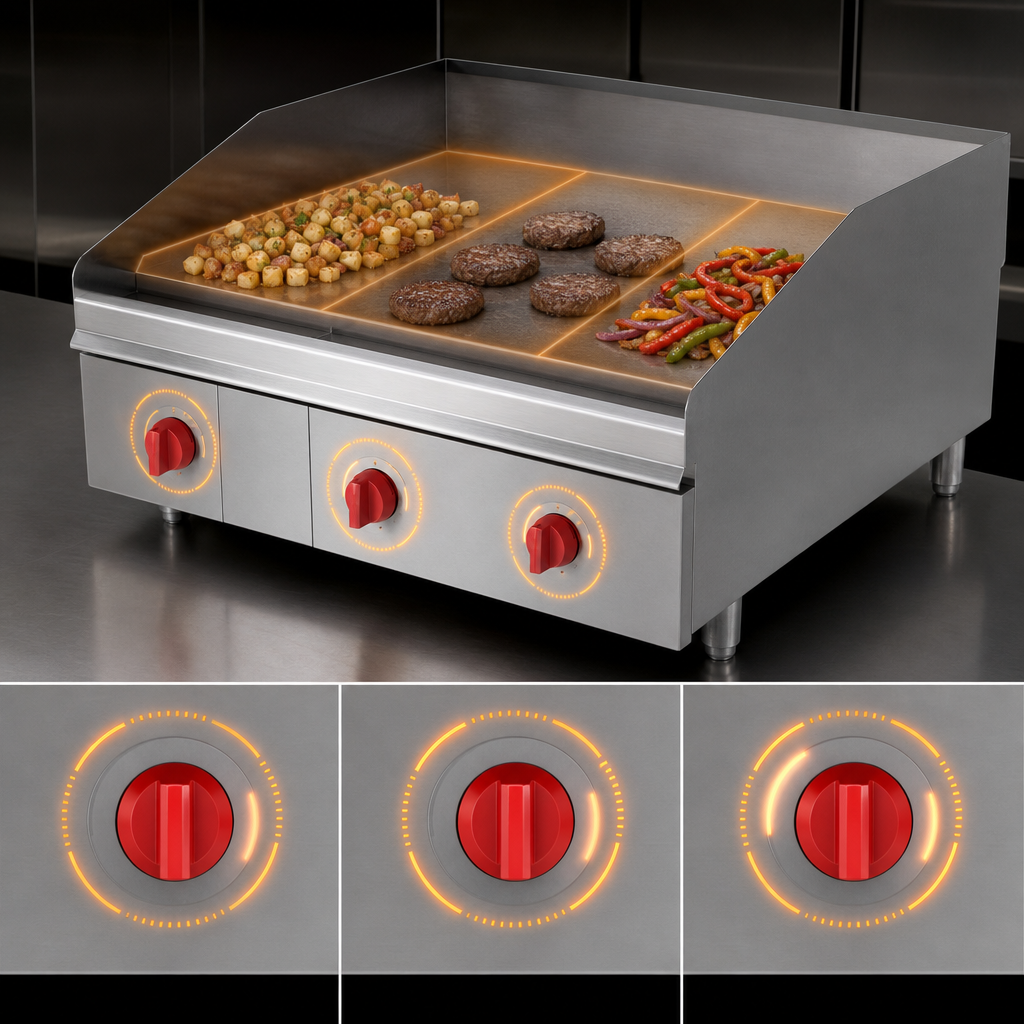

Independent Solid-State Controls

Temperature control every 12 inches with a 175°F to 450°F range for precise zone cooking.

48" x 30" Extended-Depth Surface

Large cooktop offers plenty of room for breakfast, lunch, and all-day service.

6,000W Heating Elements

High-output elements every 12 inches help deliver even heat distribution and fast recovery.

Stainless Steel Cabinet Construction

Welded steel frame with stainless steel exterior adds durability in busy kitchens.

Grease and Splash Management

5-inch tapered wrap-around splash guard and 8-quart grease drawer support cleaner operation.

Adjustable Legs

4-inch stainless steel legs with 1-5/8-inch adjustment help level the unit on the counter.

Recessed Control Panel

Helps protect the controls from splashes and accidental bumps.

Type Griddle
Style Extended Depth
Installation Type Countertop
Controls Solid State
Temperature Range 175°F to 450°F
Cooking Surface Width 48 Inches
Cooking Surface Depth 30 Inches
Voltage 208 Volts
Phase 3-Phase
Watts 24 kW
Material Stainless Steel
Finish Chrome Plated
Shipping Width 48 Inches
Shipping Depth 36 Inches
Shipping Height 17 Inches
Shipping Weight 620 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor; 5-year chrome surface warranty.

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 48 inches wide by 30 inches deep.
The solid-state controls provide a temperature range of 175°F to 450°F.
It ships for 208V, 3-phase service and can be field converted to 240V or 1-phase.
Yes. It includes a 1-inch thick chrome griddle plate.
It includes an 8-quart grease drawer to help simplify cleanup.
Yes. The unit includes 4-inch stainless steel legs with 1-5/8-inch adjustment.
