Lang Manufacturing (Middleby) 148TM Lang® Marine Electric Griddles
$12,077.00
Unit price
/
Unavailable
Description

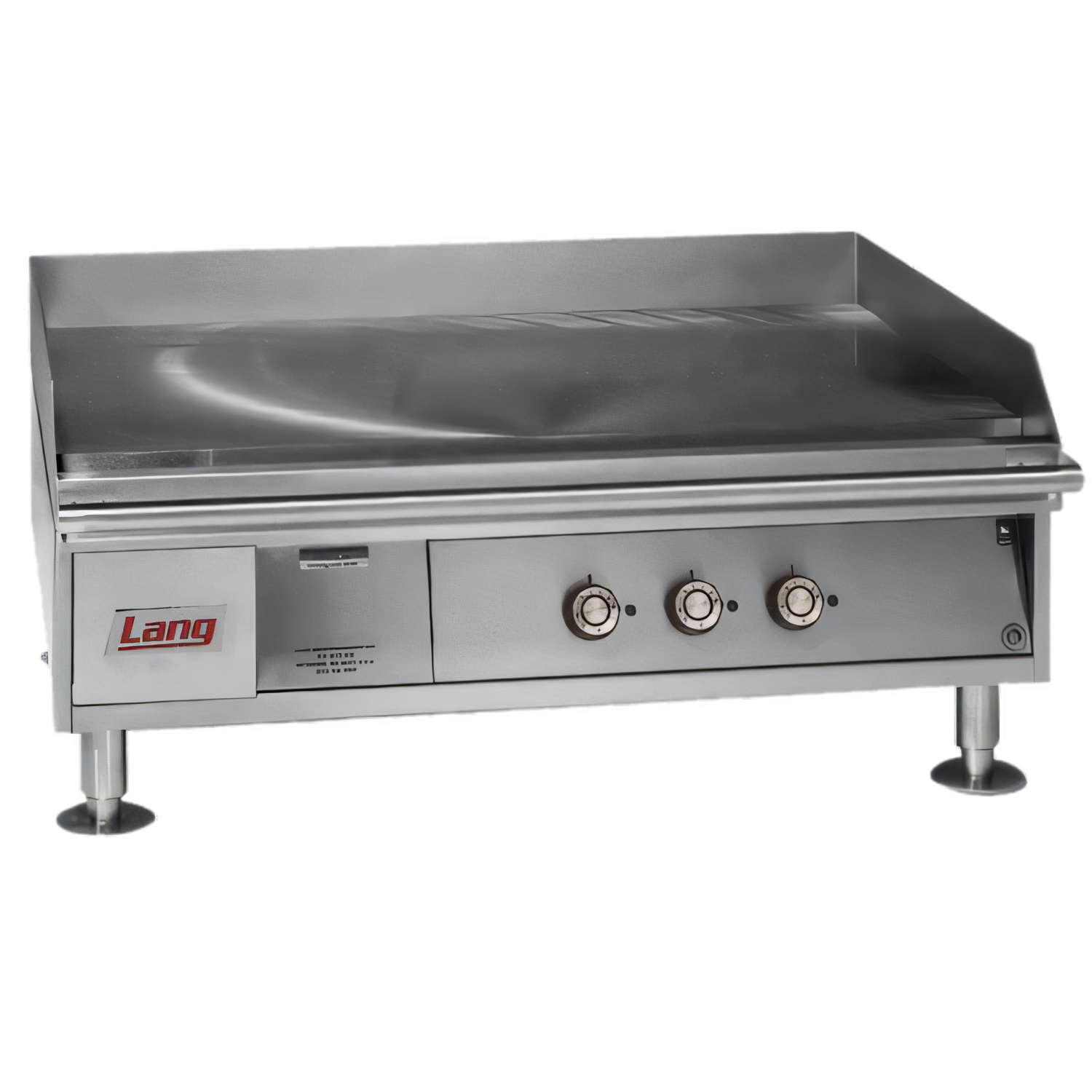

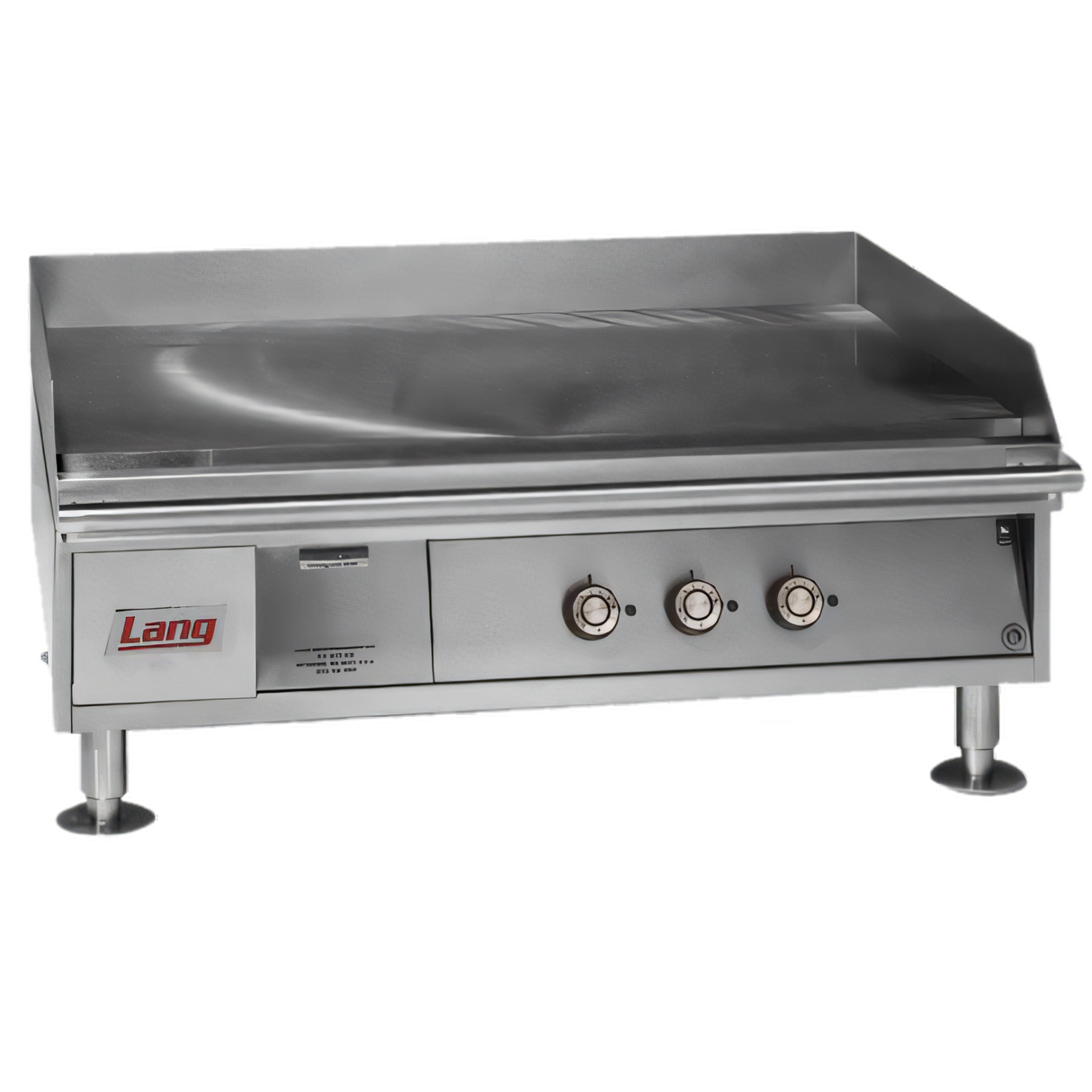

Lang® Marine 48" Heavy-Duty Electric Counter Griddle
Model 148TM – Built for life at sea, ready for life-long serviceKeep crews well-fed and service running on schedule with the Lang Marine 48-inch electric griddle. Purpose-engineered for shipboard galleys, it blends rock-solid marine construction with the responsive, zone-controlled heat professional cooks demand.
Key performance features

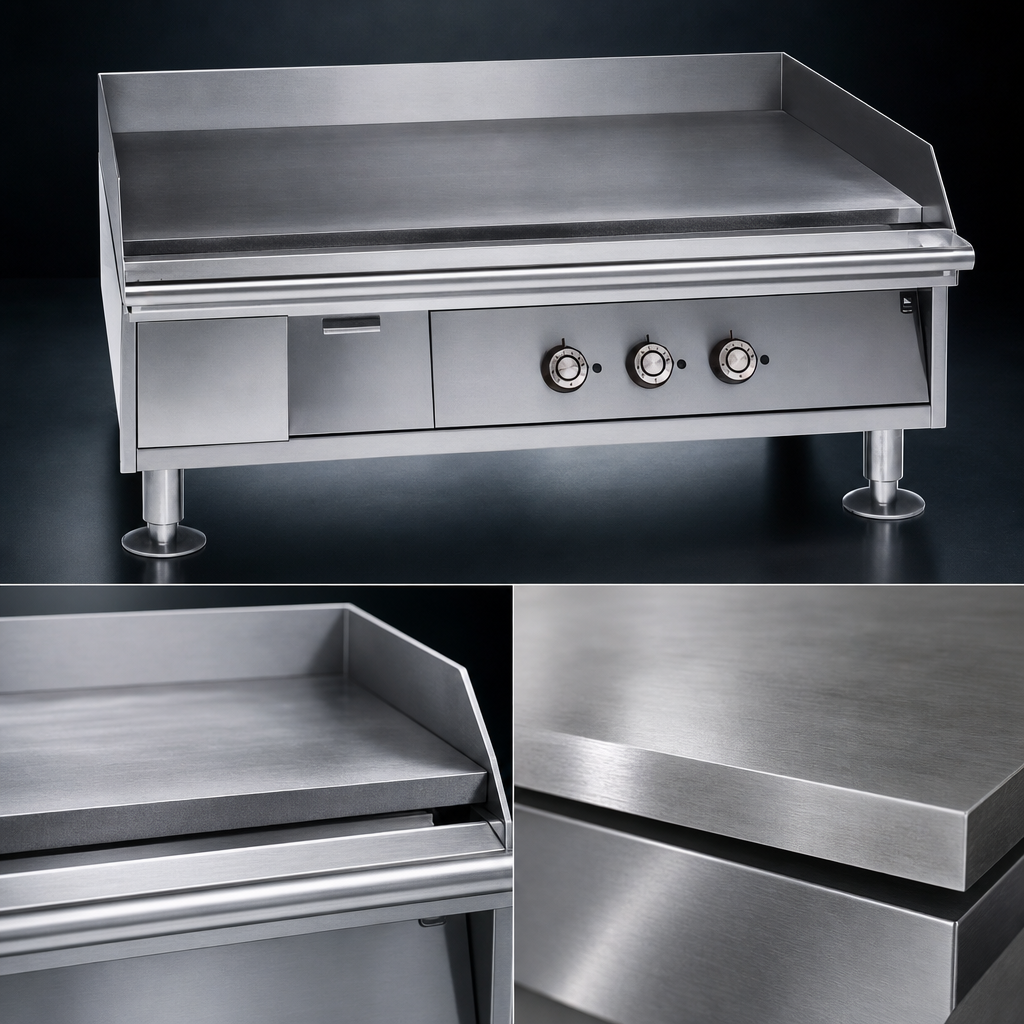

- 1" (25 mm) precision-machined & polished steel plate for exceptional heat retention and easy release.
- Four independent 6 kW Incoloy elements (24 kW total) – one every 12" – deliver even, edge-to-edge heat.
- Accu-Temp snap-action thermostats (1 per 12") accurately hold 200 °F–550 °F (93 °C–288 °C).
- 5" tapered wrap-around splash guard plus 3.5" wide, 8 qt grease drawer with locking tab for mess-free operation in rough seas.
- Full-width front grab bar protects controls and offers a sturdy handhold on rolling decks.
- All-304 stainless exterior over a welded steel frame; fully enclosed control compartment resists salt spray.
- Flanged 4" bolt-down legs meet USCG requirements for vessels 65 ft+.
- ETL Marine & NSF certified, proudly made in the USA.
Technical specifications

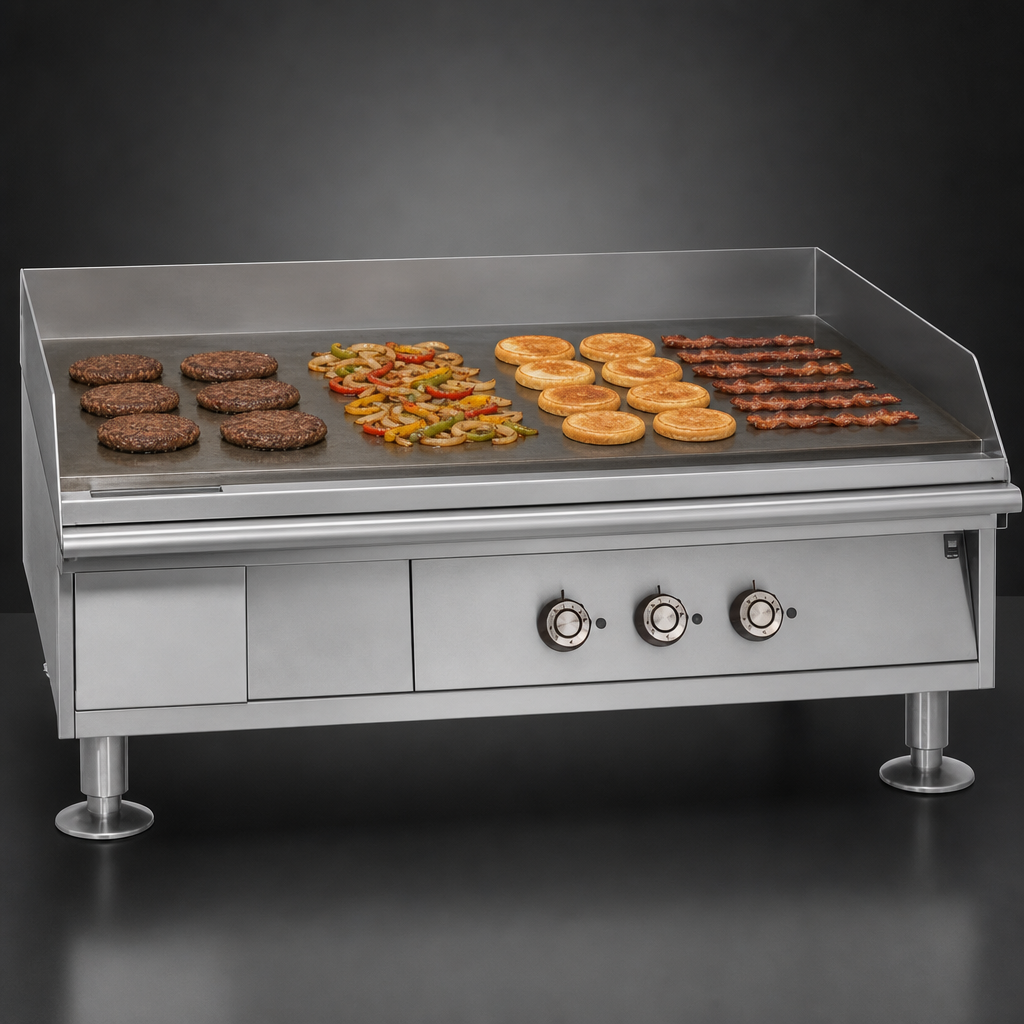

| Cooking surface | 48" W × 23" D (1,219 mm × 584 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Temperature range | 200 °F – 550 °F | 93 °C – 288 °C |
| Heating elements | 4 × 6 kW (24 kW total) Incoloy sheathed |
| Voltage options | 208 V / 240 V / 440 V / 480 V, 3-phase (48" models are field-convertible to 1-phase) |
| Amperage (208 V, 3-ph) | ≈ 67 A |
| Overall dimensions | 48" W × 30.2" D × 19" H |
| Shipping / installed weight | 525 lb / 475 lb (239 kg / 216 kg) |
| Grease drawer capacity | 8 qt (7.6 L) |
| Certifications | ETL Marine, NSF |
| Warranty | 2-year parts & labor (Lang Marine) |
| Country of origin | Made in the USA |
Perfect for
- Naval, Coast Guard & commercial ships
- Offshore platforms & research vessels
- Cruise, ferry & island resort kitchens requiring bolt-down equipment
Options & accessories
- Custom grooved griddle plate (specify in 12" increments)
- MIL-Spec adder package (complies with MIL-G-2857)
Also available in 24", 36", 60" and 72" widths – contact us for details.
Installation reminder: Unit must be hard-wired by a qualified marine electrician using stranded copper conductors and securely bolted to a non-combustible surface. Maintain minimum 2" clearance at sides and rear.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Brand_name
Lang® Marine
Certifications
NSF, ETL, Made in USA
Height
15.0in
Width
48.0in
Depth
28.2in
Shipping Weight
520.0lbs
Cooking Surface Width (side - side)
37" - 48"
Control Type
thermostatic
Exterior Finish
all stainless steel exterior
Cooking Surface Depth (front - back)
17" - 23"
Griddle Plate Finish
smooth steel
Specifications
Lang® Marine Heavy Duty Griddle, electric, countertop, 48" W x 23" D cooking surface, 1" thick polished griddle plate, 200°-550°F snap-action thermostat and 6000W elements every 12", 5" tapered wrap-around splash guard, 8 qt. grease drawer, full width grab bar, locking tab for grease door, welded steel frame with stainless steel exterior, flanged 4" bolt-down legs, ETL Marine, NSF, Made in USA
