Lang Manufacturing (Middleby) 148TDIG Lang® Marine Electric Griddles
Description

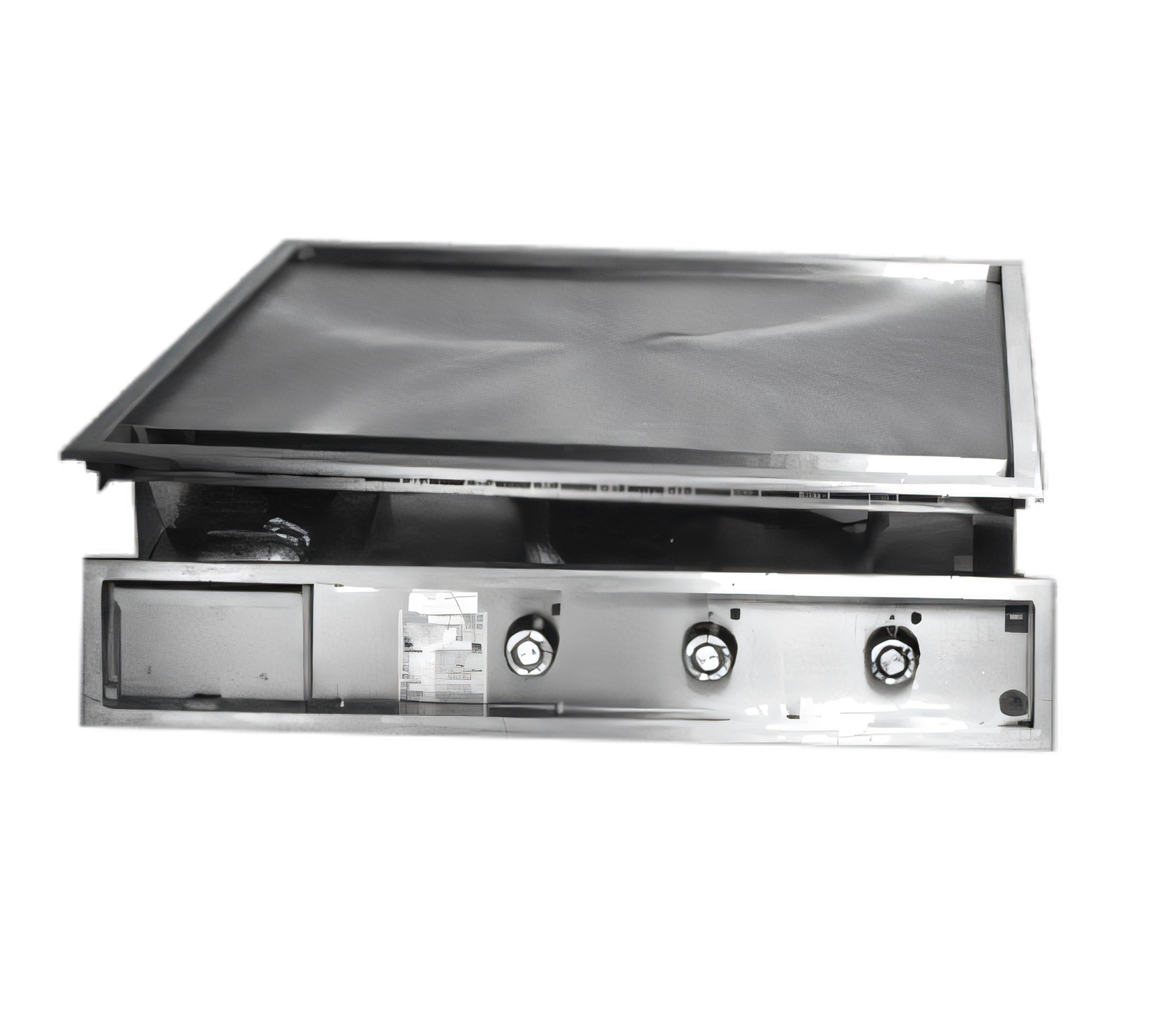

Lang® Marine 48" Electric Drop-In Griddle – Model 148TDIG
Heavy-duty, ship-ready performance for galleys and commercial kitchensBuilt to Mil-W-G2857 Type III standards, the Lang® Marine 48" drop-in griddle delivers rugged dependability at sea while providing the precise, even heat chefs demand. A 1" polished steel plate, four independent Accu-Temp thermostats, and a secure marine-latch grease system make it the go-to solution for high-volume, high-motion cooking environments.
Key advantages
- 1" (25 mm) highly polished steel cooking surface seasons quickly and retains heat.
- Four 12" zones with snap-action thermostatic controls (175 °F – 450 °F) for true left-to-right versatility.
- 6 kW Incoloy sheathed element per zone – a powerful 24 kW total output.
- Full-perimeter stainless mounting flange for a flush, watertight installation.
- 3-1/2" wide x 1" deep welded grease trough funnels into an 8 qt drawer secured with a marine latch.
- Recessed, fully enclosed control module protects knobs from accidental impact.
- All-stainless exterior engineered for harsh marine environments.
- Certified Marine-cUL & NSF for shipboard and shore-side compliance.
At-a-glance specifications
| Model | 148TDIG (Drop-In) |
|---|---|
| Cooking surface | 48" W × 24" D (1 219 × 610 mm) |
| Plate thickness | 1" (25 mm) polished steel |
| Heat zones | 4 (12" each) with independent Accu-Temp thermostats |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| Total power | 24 kW (6 kW per zone) |
| Electrical | 208, 240, 440 or 480 V, 3-phase connection |
| Overall dimensions | 48.8" W × 29.8" D × 6.1" H (1 240 × 756 × 156 mm) |
| Controls cut-out | 47.0" W (1 194 mm) |
| Installed weight | ≈ 400 lb (181 kg) |
| Grease drawer capacity | 8 qt |
| Certifications | NSF, Marine-cUL |
| Country of origin | Made in the USA |
Also available in 36" and 72" widths. Contact us for details.
Warranty
Lang backs every Marine series griddle with a 2-year parts & labor warranty, giving you confidence that your investment is protected from day one.
