Lang Manufacturing (Middleby) 148TDI Electric Griddles
Description
Lang 148TDI Accu-Temp™ Drop-In Electric Griddle – 48”
1" precision steel plate • 4 independent zones • 24 kWTurn high-volume breakfast, lunch and dinner orders with bakery-level accuracy. The Lang 148TDI marries a true 1” thick polished steel plate with Accu-Temp™ solid-state controls that lock surface temperatures within ±2 °F across four independent 12" zones. Drop it into your cookline and enjoy the production capacity of a full-size griddle—plus the seamless look and easy clean-up only a built-in solution can provide.
Key Advantages
- 1" (25 mm) highly polished steel plate minimizes hot & cold spots and delivers lightning-fast recovery.
- Accu-Temp™ solid-state controls every 12" hold set temps within ±2 °F from 175-450 °F.
- Four incoloy-sheathed elements pressure-clamped to the plate for even heat distribution and long element life.
- 8 qt. recessed grease trough with removable, fully enclosed sleeve keeps work surfaces clean and cool.

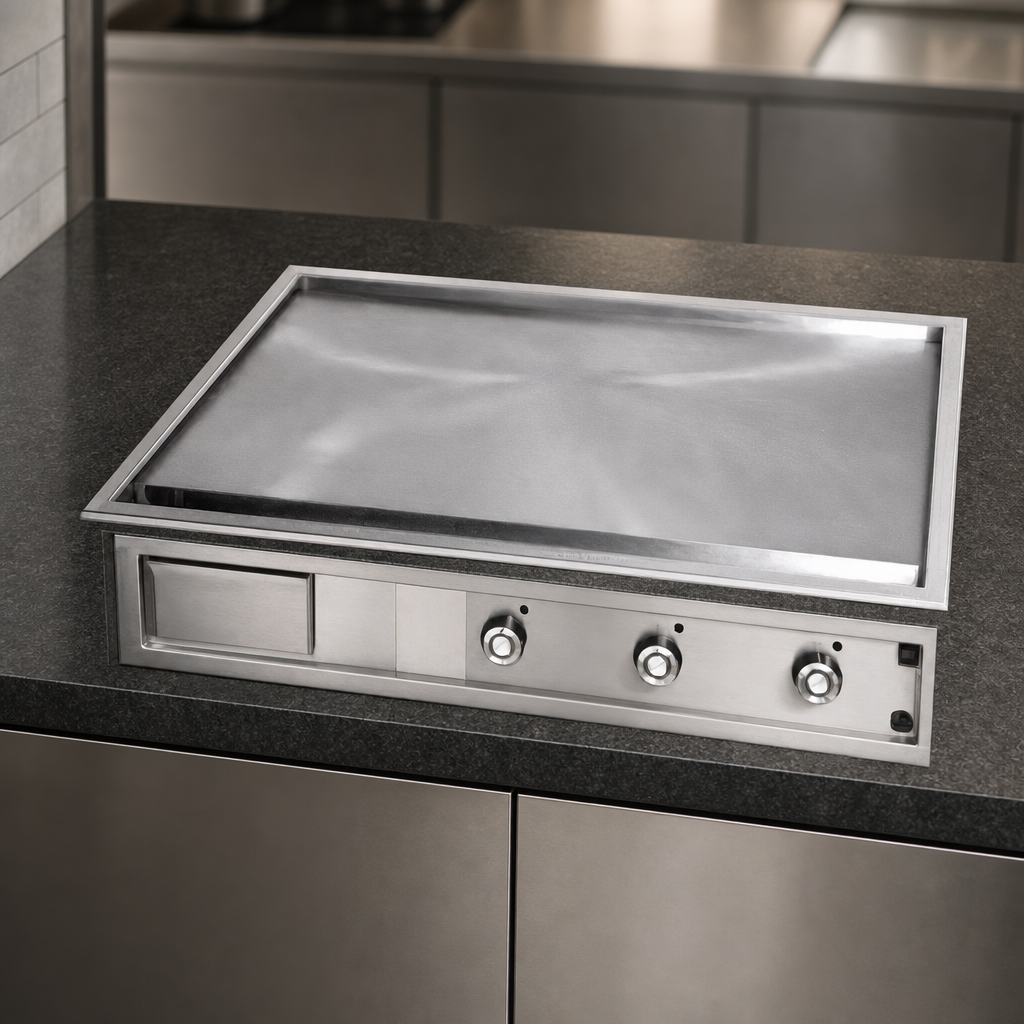

- Continuous stainless-steel mounting flange allows a flush, sanitary installation in counters or custom work centers.
- Recessed, insulated control module shields electronics from heat, splashes and impact.
- cETLus & NSF certified—built to meet today’s toughest electrical and sanitation codes.
Perfect For
- Diners, cafés and all-day breakfast programs
- Hotels, resorts and institutional kitchens with high meal counts
- C-stores, concessions and food trucks needing a low-profile, high-capacity solution
- Marine and remote sites where durability and energy efficiency are critical
Technical Specifications
| Model | 148TDI (Drop-In) |
|---|---|
| Cooking Surface | 48" W × 28.2" D (≈1,354 in² usable) |
| Plate Material / Thickness | 1" precision-machined, highly polished steel |
| Temperature Range / Accuracy | 175 - 450 °F • ±2 °F (solid-state) |
| Heating Zones | 4 independent zones • 6 kW per zone |
| Total Power | 24 kW |
| Electrical | 208/240/480 V, 50/60 Hz • 3-phase standard, field-convertible to 1-phase (208/240 V) |
| Grease Management | 8 qt drawer with fully enclosed, removable sleeve |
| Installed Weight | Approximately 368 lb (167 kg) |
| Certifications | cETLus, NSF |
| Warranty | 2-year parts & labor (factory authorized service) |
Installation Notes
- Rough-in opening (griddle module): 48.8" W × 26.8" D × 6.5" H
- Separate control module opening: 37.3" W × 6.5" H
- Requires installation in an approved cabinet or fabricated work center under a suitable vent hood.
- Maintain 2" side and rear clearances. Hard-wire connection by a qualified electrician is mandatory.
