Lang Manufacturing (Middleby) 148TC LG Series Electric Griddles
Description
Lang LG Series 48" Electric Countertop Griddle
Model 148TC | Chrome Plate | 24 kWEngineered for relentless commercial duty, the LG Series delivers the fire-power of a range in a countertop footprint. Four independent 6 kW zones, a mirror-finish chrome plate and snap-action Accu-Temp™ controls give you the speed, precision and durability you need to keep tickets moving—breakfast, lunch and dinner.
Why it outperforms ordinary griddles

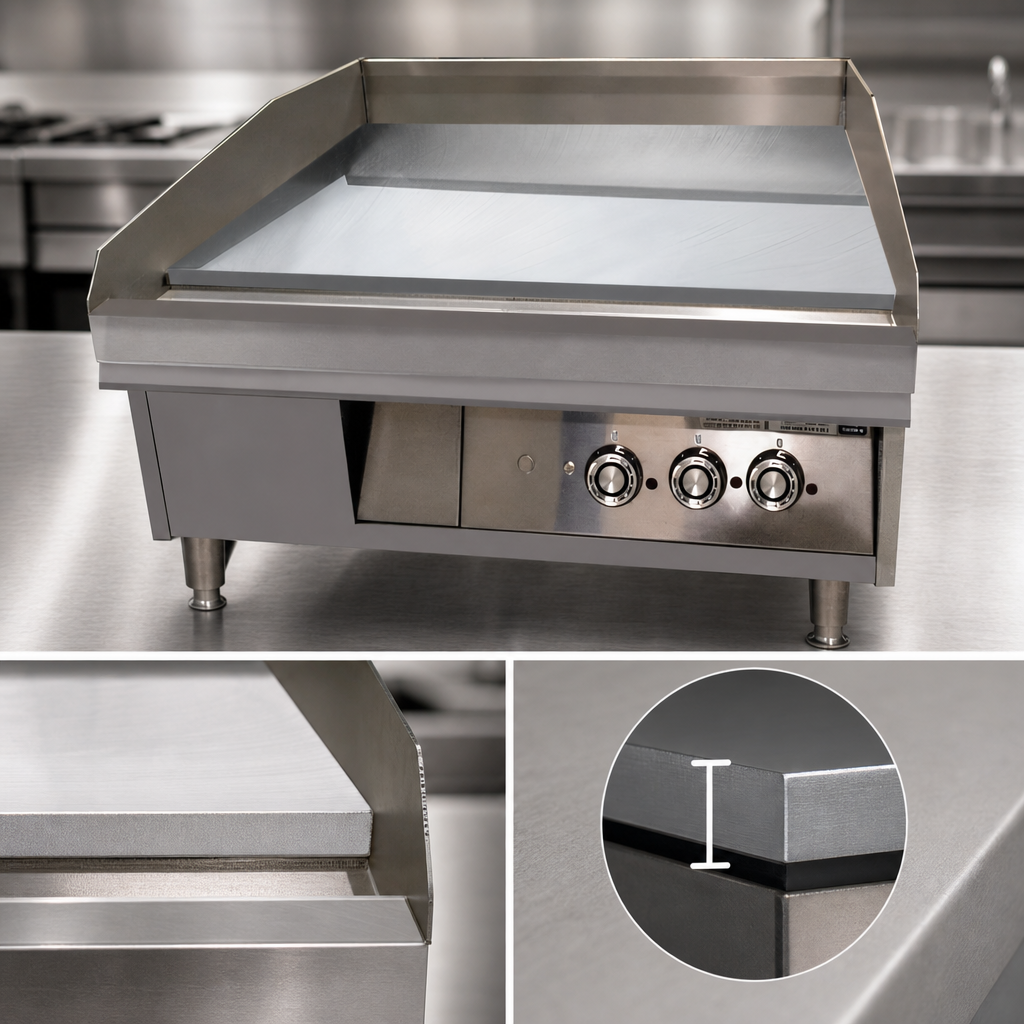

- 1" thick T1 armor-grade steel plate with a 2 mil hexavalent chrome finish—heats fast, wipes clean, no seasoning required.
- 6 kW incoloy element every 12" (24 kW total) for instant recovery and true zone cooking.
- Accu-Temp™ snap-action thermostats hold 200-550 °F with ±15 °F accuracy.

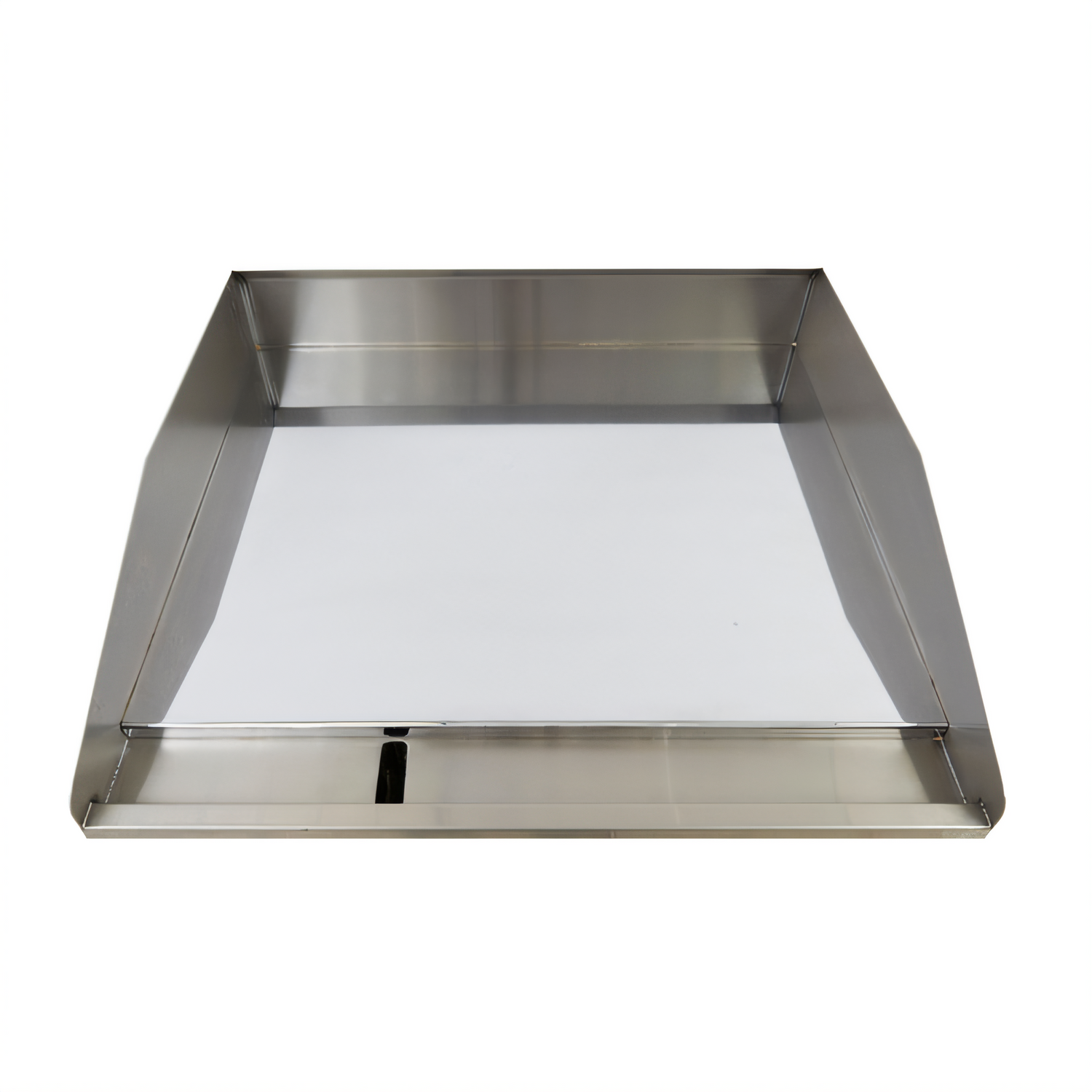

- 5" tapered, wrap-around splash guard contains grease and protects staff.
- 8 qt front grease drawer removes in seconds for safer, faster clean-up.
- All-stainless welded chassis on 4" adjustable legs—built to take a beating and keep its shine.
- NSF & cETLus listed and proudly Made in the USA.
At-a-glance specs
| Cooking surface | 48" W × 23" D (0.76 m²) |
|---|---|
| Plate material | 1" chrome over T1 steel |
| Heat zones | 4 (individually controlled) |
| Temperature range | 200 – 550 °F (93 – 288 °C) |
| Heating elements | 6 kW each zone | 24 kW total |
| Power options | 208 V or 240 V, 1Ø/3Ø (field convertible); 480 V 3Ø on request |
| Dimensions (H×W×D) | 18.8" × 48" × 28.5" |
| Shipping / installed weight | 520 lb / 428 lb |
| Grease drawer capacity | 8 qt |
| Certifications | NSF, cETLus |
| Origin | Smithville, Tennessee USA |
Operational savings
- Chrome plate radiates up to 30 % less heat for a cooler kitchen and lower HVAC costs.
- Zero seasoning and faster cleanup reduce labor & oil use.
- Rapid recovery slashes cook times, boosting throughput and profitability.
Warranty
2 years parts & labor on the entire griddle
5 year warranty against chrome surface peeling
Ask about Middleby Equipment Financing for quick approvals and low monthly payments.
