Description

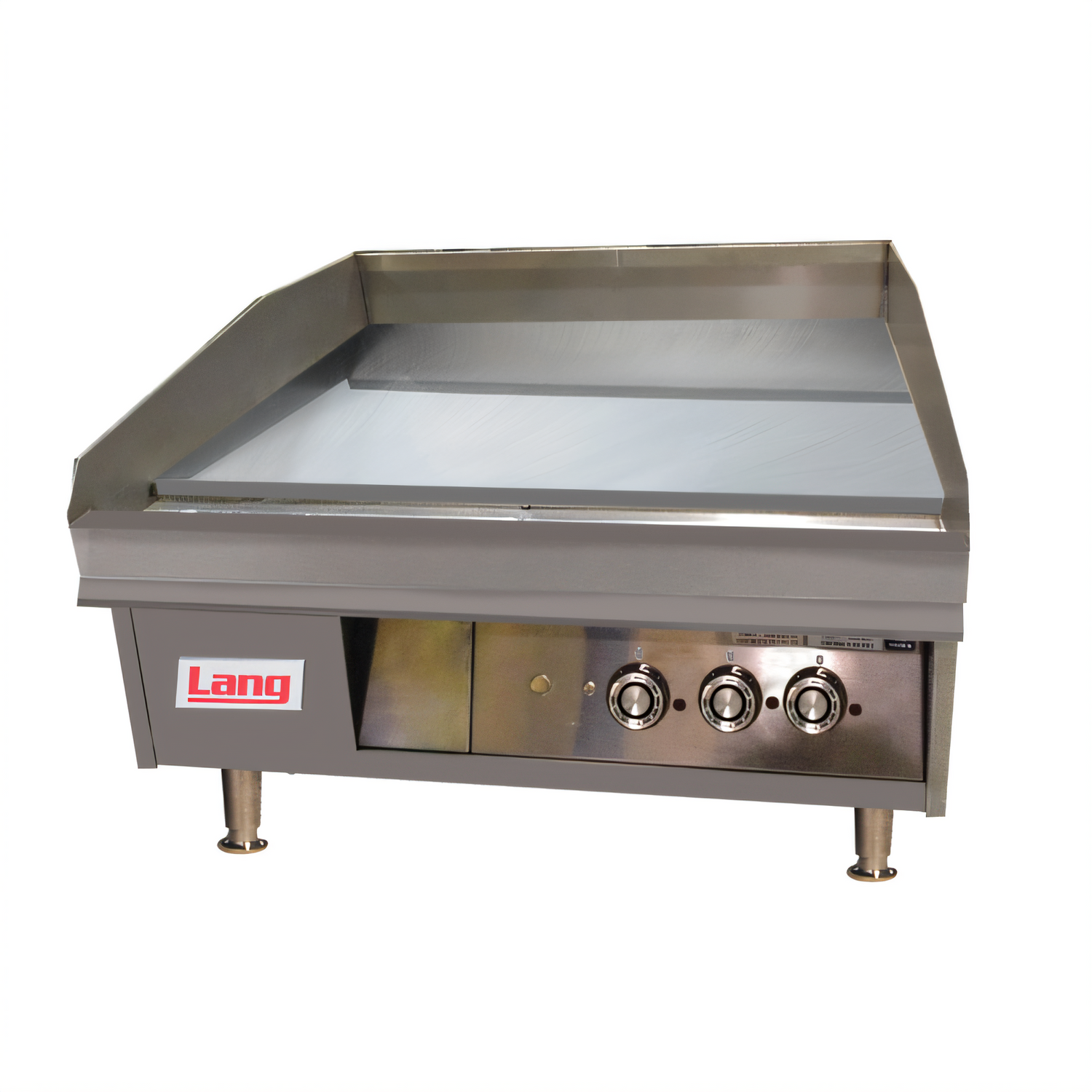

Lang LG Series 48" Electric Heavy-Duty Countertop Griddle
Model 148T – Polished Steel Plate, Snap-Action Controls, Made in USAEngineered for relentless peak-hour performance, the Lang LG Series 48" countertop griddle delivers the speed, consistency and durability demanded by high-volume kitchens. Four powerful 6 kW heating zones respond instantly through independent snap-action thermostats, while the full 1" thick plate maintains rock-solid surface temperatures for perfect caramelization, searing and browning from edge to edge.
Built for Serious Production
- 48" W × 23" D cooking surface gives you 7.7 sq ft of usable area without sacrificing counter depth.

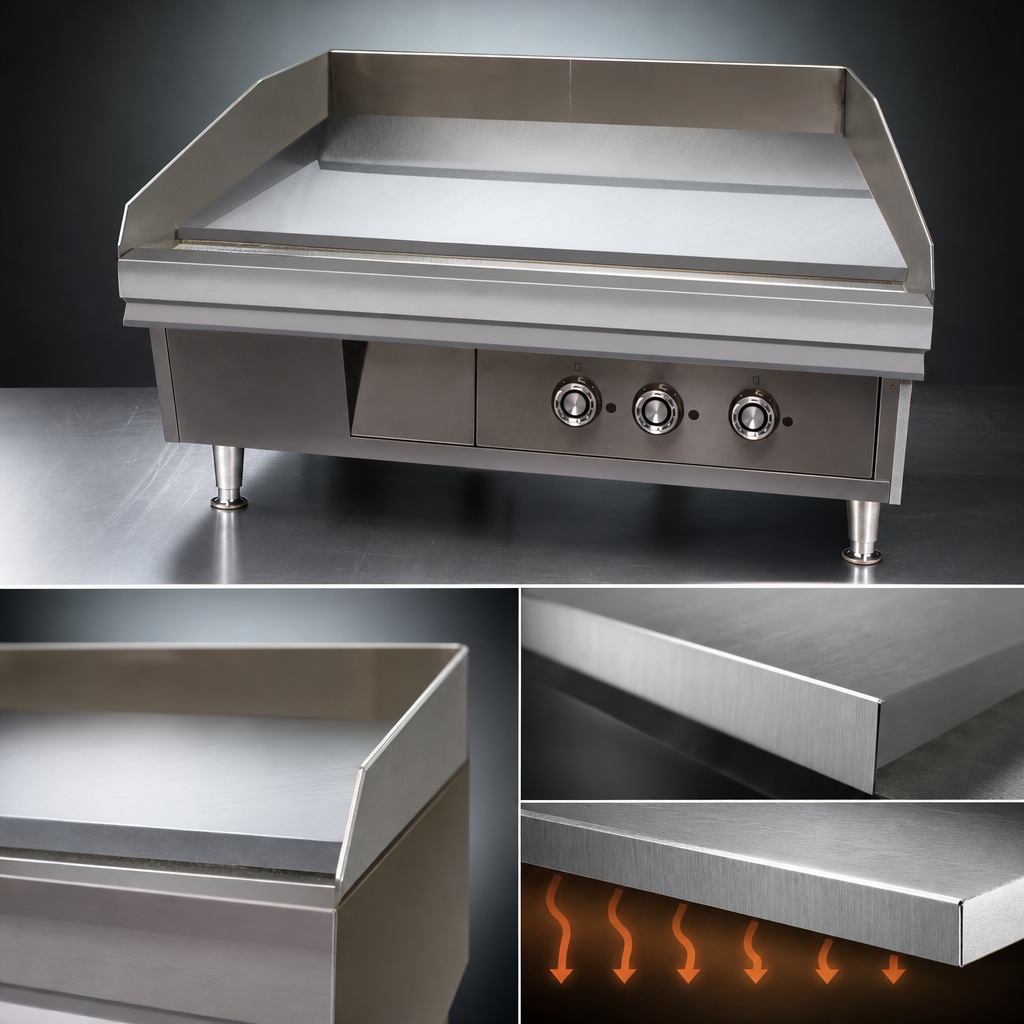

- 1" (25 mm) thick polished steel plate stores heat for lightning-fast recovery on full loads.

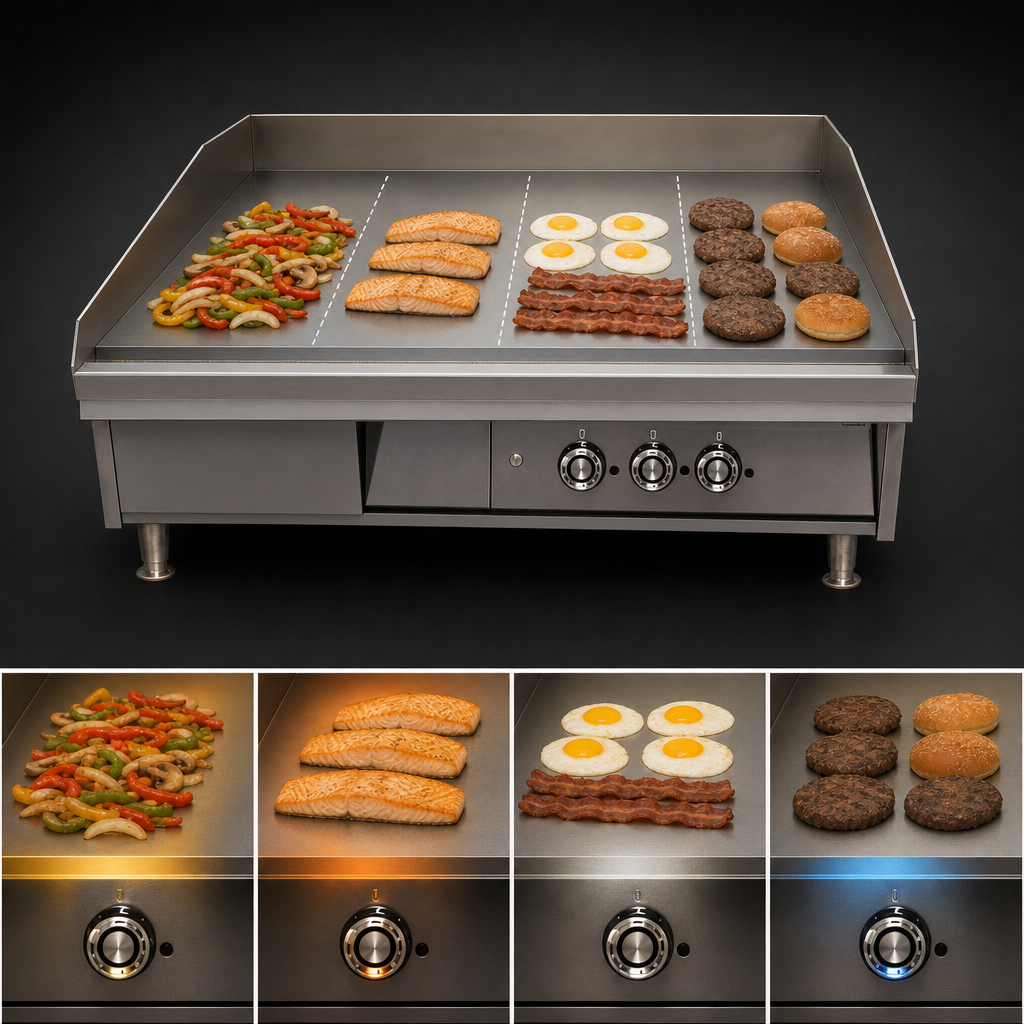

- Accu-Temp™ snap-action thermostats on every 12" section; set from 200–550 °F and hold ±15 °F.
- Four Incoloy-sheathed elements supply 24 kW total (6 kW per zone) for even, edge-to-edge heat.
- Welded steel frame with all-stainless exterior stands up to daily commercial abuse.
- 5" tapered, wrap-around splash guard keeps grease and debris contained.
- 3.5"-wide grease trough feeds a removable 8 qt drawer for fewer trips to the dumpster.
- 4" stainless legs with 1-5⁄8" adjustment simplify leveling on any prep line.
- NSF & cETLus listed and proudly Made in the USA.
At-a-Glance Specs
| Cooking Surface | 48" W × 23" D (1220 mm × 584 mm) |
|---|---|
| Overall Dimensions | 48" W × 28.5" D × 18.8" H |
| Plate Thickness | 1" polished steel |
| Heat Zones | 4 (one every 12") |
| Temperature Range | 200 °F – 550 °F (93 °C – 288 °C) |
| Total Electrical Load | 24 kW; field convertible 208 V / 240 V 1 Ø or 3 Ø (hard-wire) |
| Grease Drawer Capacity | 8 qt (7.6 L) |
| Certifications | NSF, cETLus |
| Warranty | 2 years parts & labor on griddle; 5 years against chrome peeling (chrome models) |
Why Operators Choose Lang
- Embedded thermostat probes for faster reaction than bottom-mounted designs.
- Optional chrome or grooved plates let you tailor the grill to menu and workflow needs.
- Backed by nationwide Middleby service network and 800-number technical support.
