Lang Manufacturing (Middleby) 148S LG Series Electric Griddles
Description

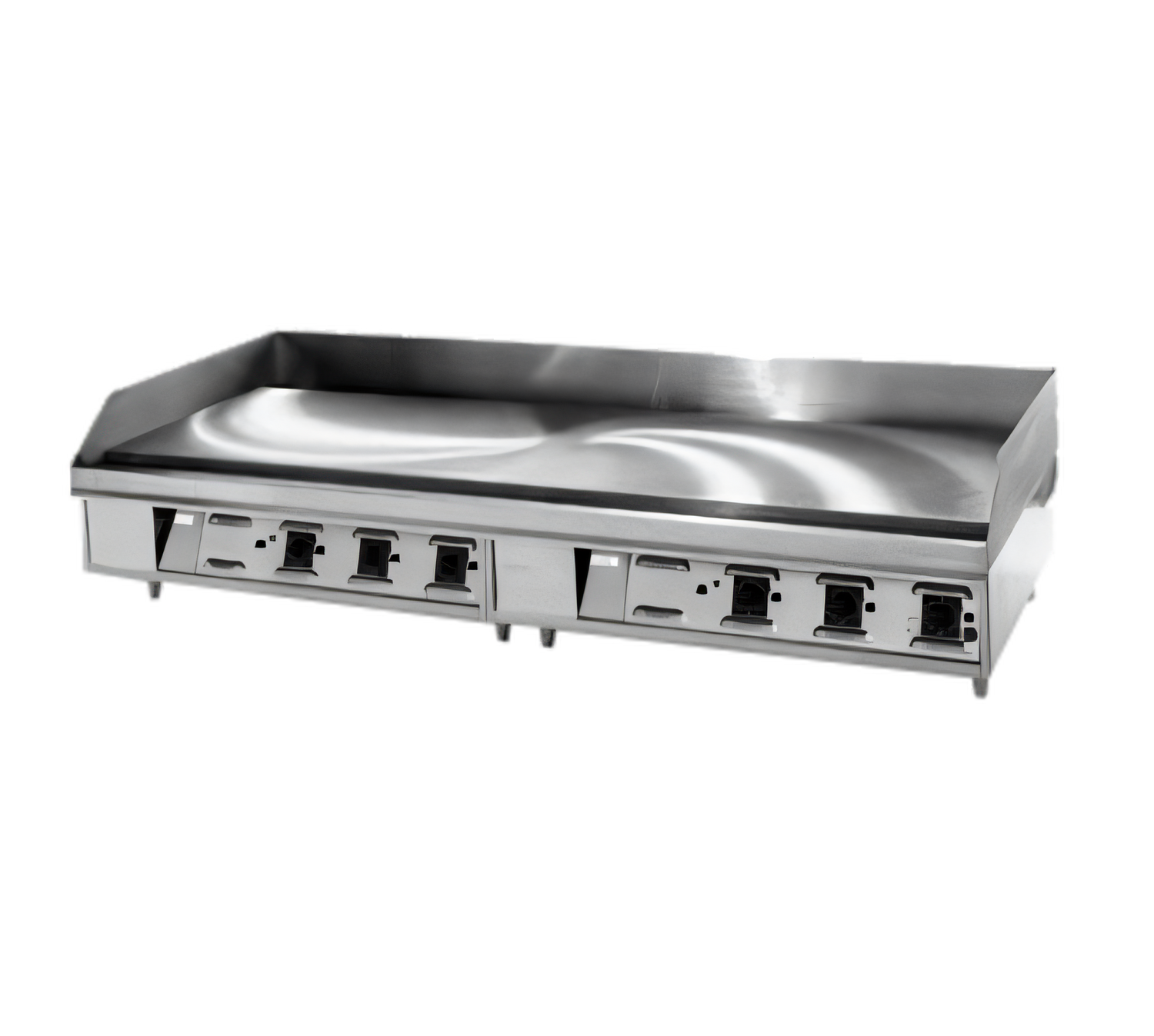

Lang LG Series 48" Electric Countertop Griddle
Selectronic™ precision • 1" polished steel plate • Made in USAEngineered for high-volume kitchens that refuse to compromise on consistency, the Lang LG Series 48" electric griddle delivers 24 kW of responsive heat across four independent 12" zones. The result is faster recovery, tighter temperature control (±4 °F) and the versatility to sear burgers at one end while gently toasting tortillas at the other.
Key Performance Features

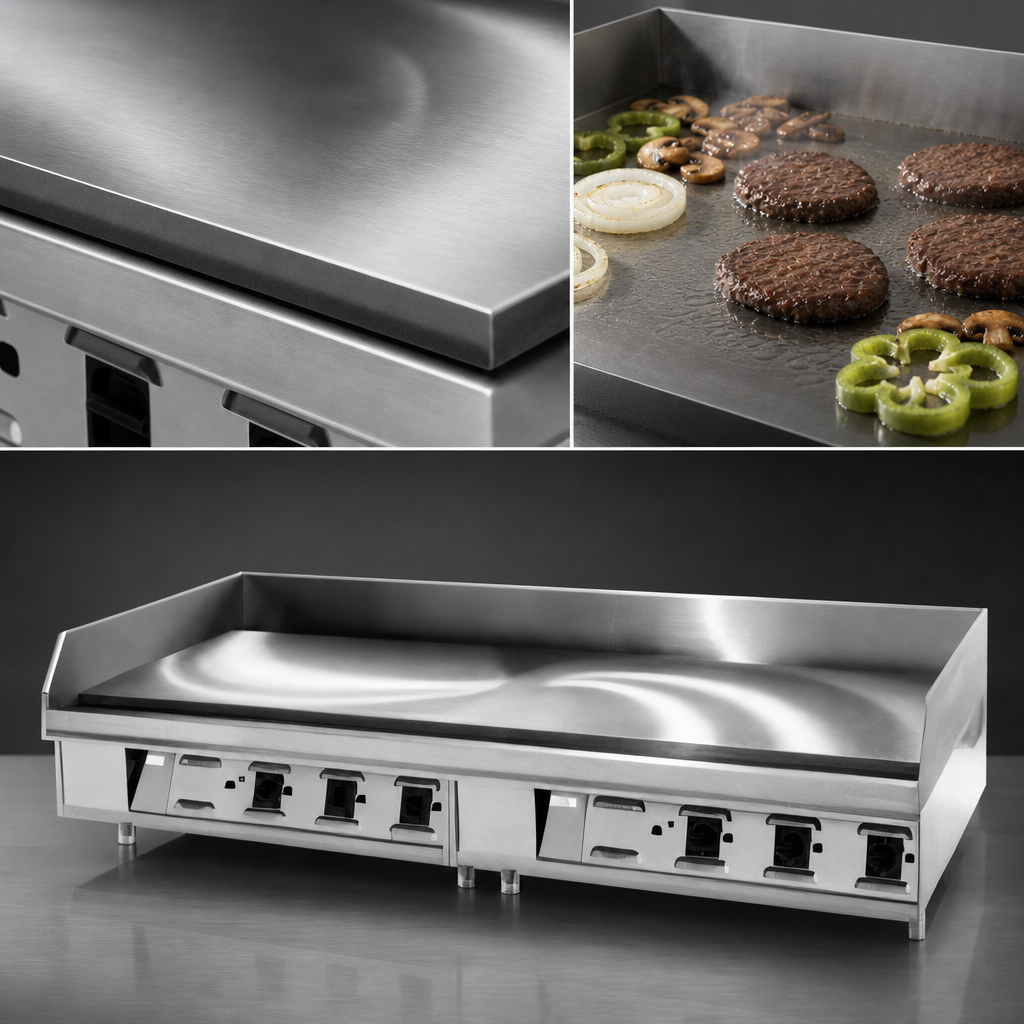

- 1" thick, highly polished steel plate retains heat for rapid recovery and even browning.
- Selectronic™ solid-state controls react to changes as small as 1 °F, maintaining a 175 – 450 °F surface range within ±4 °F.

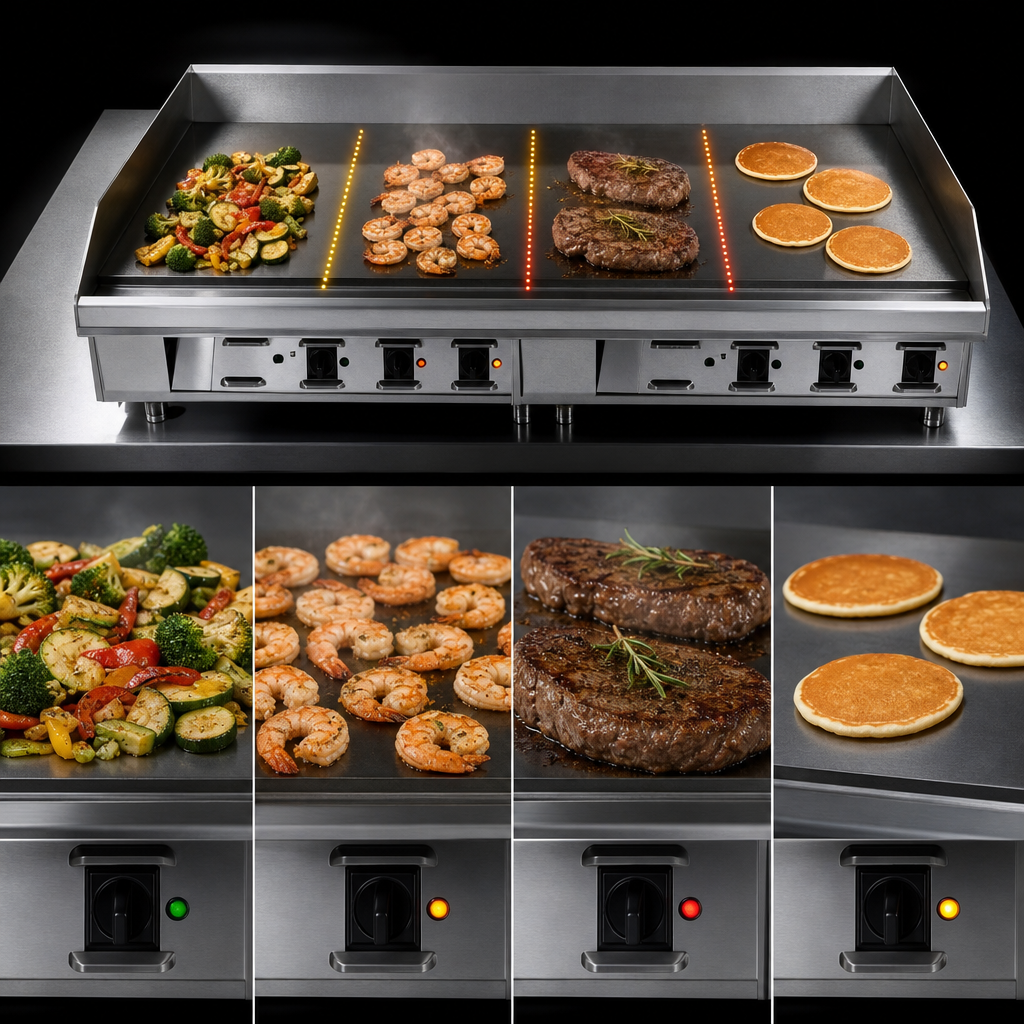

- Four separately controlled 12" zones (6 kW each) let you mix low- and high-temp production on the same deck.
- 5.5" integrated rear & side splashes contain grease and food debris.
- Full-width 3.5" × 1" grease trough and oversized drawer speed end-of-shift clean-up.
- All-stainless exterior with 4" adjustable legs stands up to constant commercial use.
- Ships ready to hard-wire; field convertible between 208 V/1- or 3-phase, 240 V/1- or 3-phase, or 480 V/3-phase.
- NSF listed & cETLus certified for safety and sanitation.
- Proudly built in Smithville, Tennessee.
Technical Specifications
| Model | LG Series 48" (factory number 148S) |
|---|---|
| Cooking Surface | 48" W × 23" D (4 sq ft) |
| Plate Material / Thickness | Polished steel, 1" thick |
| Controls | Selectronic™ solid-state, one per 12" zone |
| Temperature Range | 175 – 450 °F (±4 °F accuracy) |
| Total Power | 24 kW (6 kW per zone) |
| Electrical | 208/240 V 1 Φ or 3 Φ • 480 V 3 Φ option Hard-wire connection required |
| Amps (208 V) | 1 Φ : 115 A | 3 Φ : 76/76/50 A (L1/L2/L3) |
| Overall Dimensions | 48" W × 28.5" D × 18.8" H |
| Clearances | 2" rear & sides |
| Net / Shipping Weight | 428 lb / 520 lb |
| Certifications | NSF, cETLus |
| Warranty | 2-year parts & labor on entire unit |
Built-In Advantages
- One-Step Installation: Countertop design slides into existing cooklines without additional ventilation modifications.*
- Lower Operating Costs: Embedded thermocouples reduce overshoot, cutting utility usage compared with mechanical thermostats.
- Menu Flexibility: Hold proteins, breakfast favorites or delicate seafood on a single deck without flavor transfer.
- Easy Cleaning: Smooth steel surface, welded splash guards and a front-access grease drawer streamline nightly breakdown.
*Always confirm local code requirements before installation.
