Lang Manufacturing (Middleby) 148CMW Cheese Melters
Description

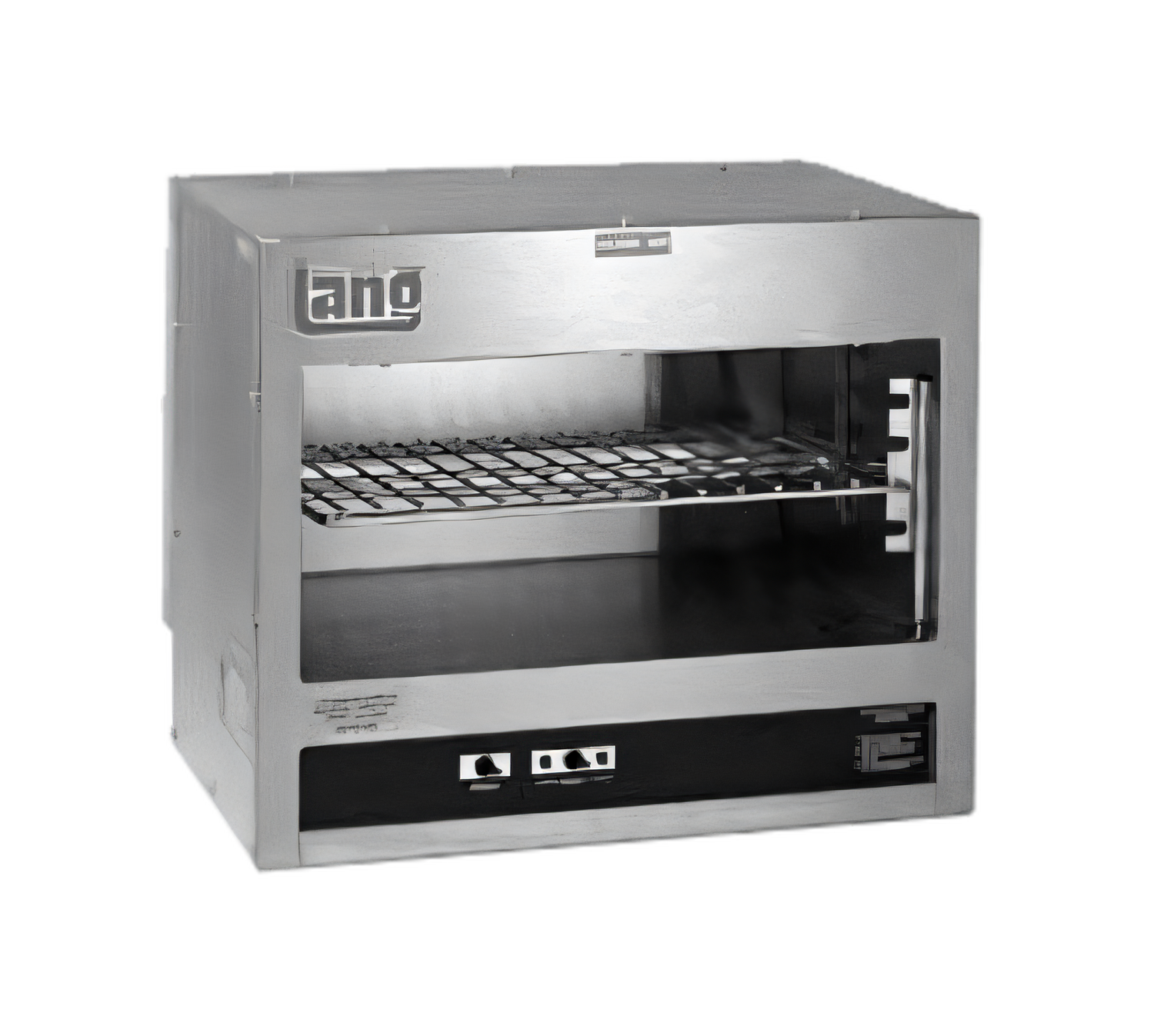

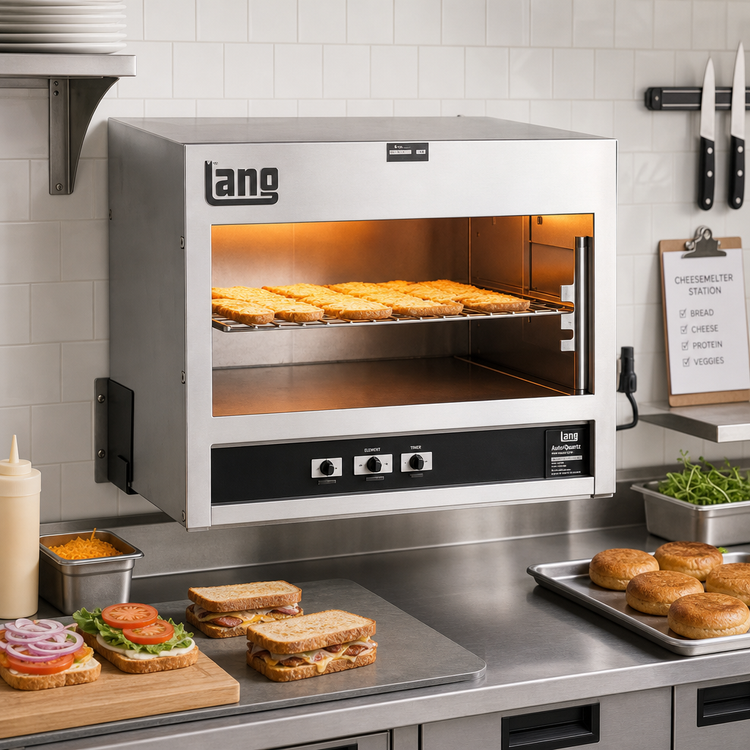

Lang 148CMW Electric Cheesemelter – 48" Wall-Mount
High-speed infrared finishing with independent left & right zonesFinish burgers, nachos, French onion soup or any plated item in seconds. The Lang 148CMW electric cheesemelter delivers instant, energy-efficient infrared heat in a 48-inch footprint that mounts over a cook line or sits on a countertop with optional legs.
Key Features & Benefits

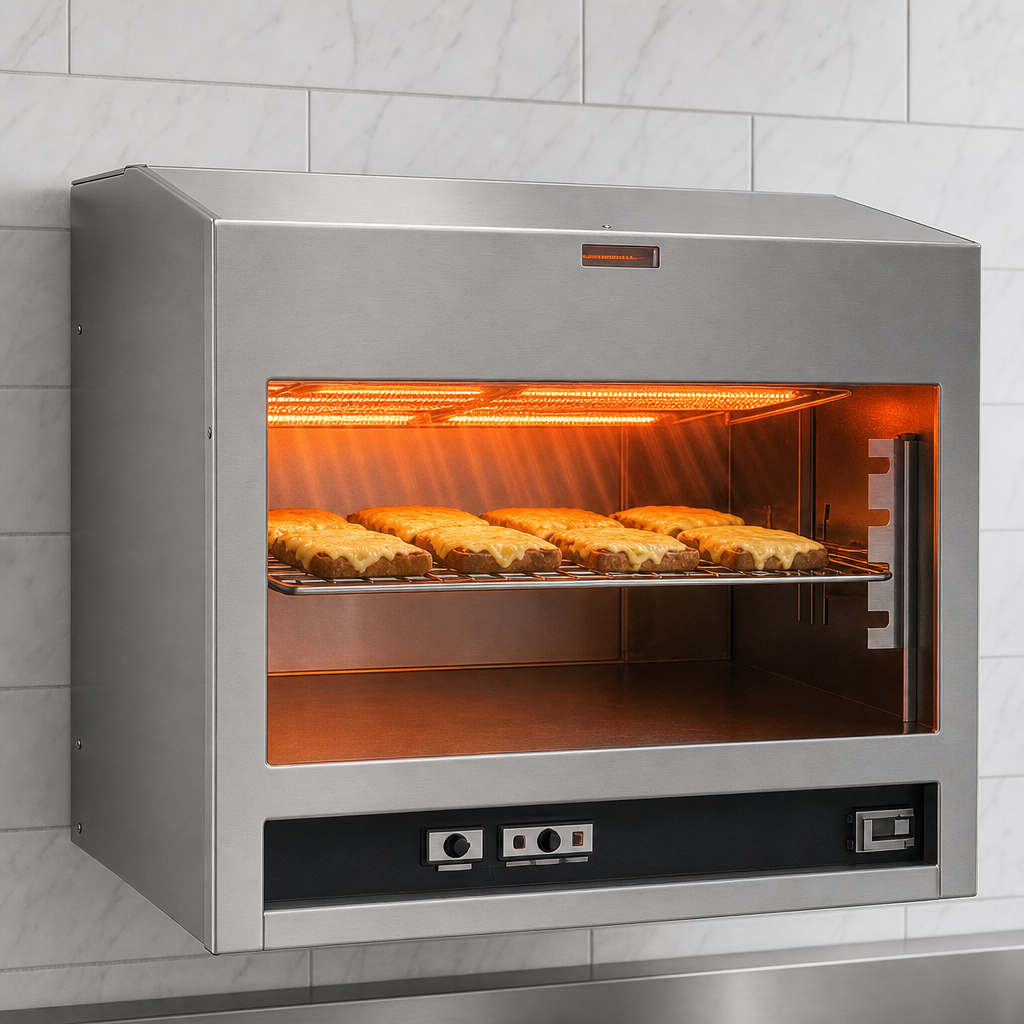

- Infrared quartz elements reach 1,650 °F / 899 °C with no pre-heat required.
- Powerful 1,200 W per foot (4.8 kW total) for rapid, even browning.

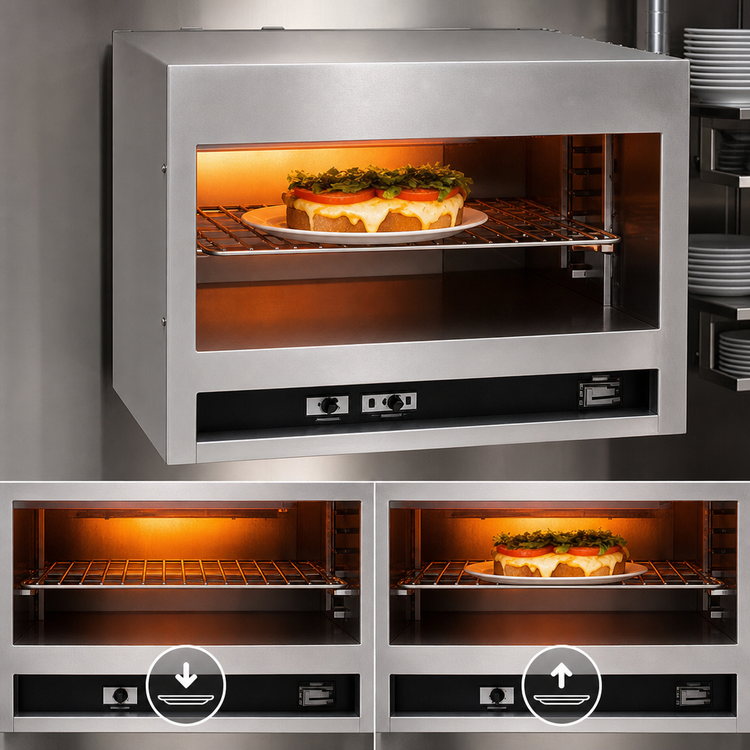

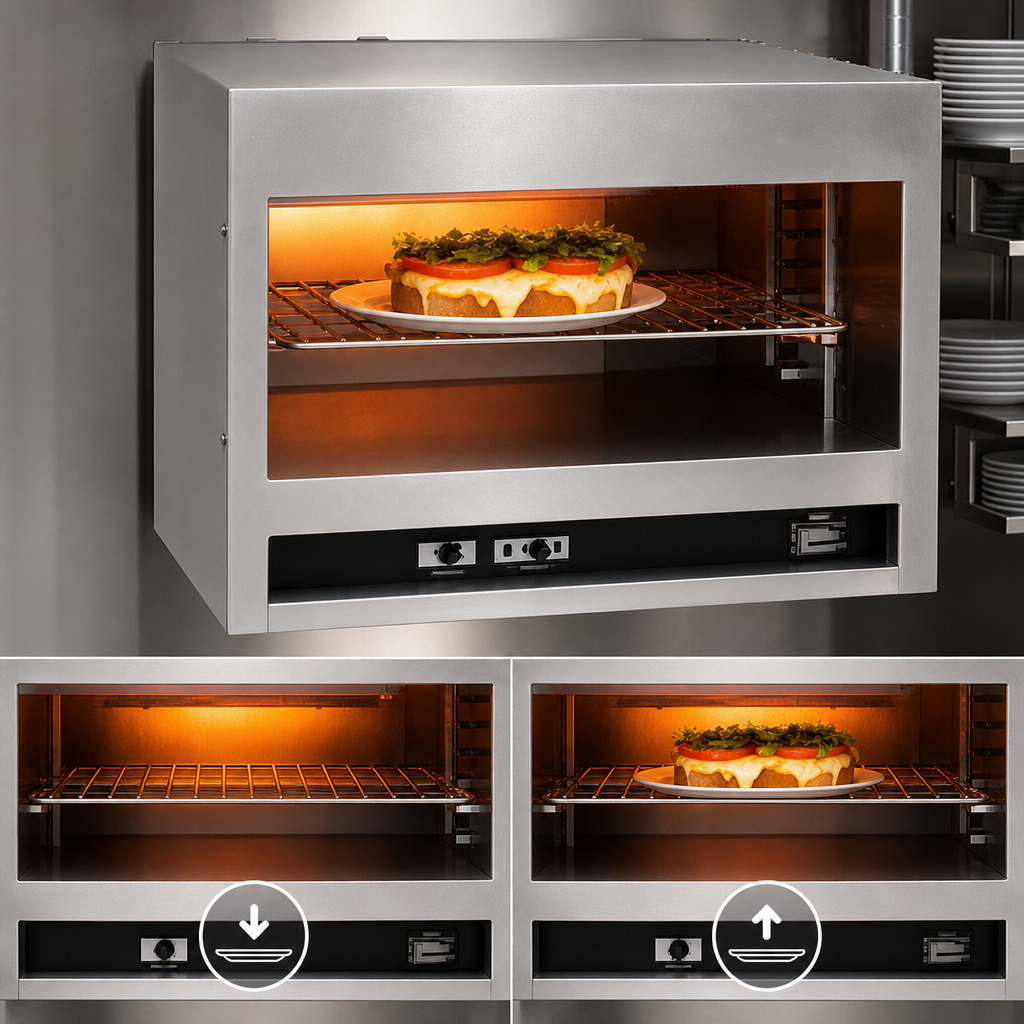

- Plate-activated sensor turns heat on only when food is present; constant-heat mode available for batch work.
- 48" model provides independent left & right controls to reduce energy use during slower periods.
- Four-position chrome-plated rack handles everything from shallow platters to deep soup crocks.
- Rugged stainless-steel interior & exterior with aluminized-steel rear panel for long service life.
- Removable rear panel converts unit to a pass-through for line-to-expedite service.
- Universal mounting kit included – heavy-duty wall brackets plus provisions for 4" legs & bottom heat shield (sold separately).
- cULus Listed & NSF Certified for safe, sanitary operation.
- Made in the USA.
Specifications
| Model | 148CMW |
|---|---|
| Overall width | 48 in / 1,219 mm |
| Overall height | 21.6 in / 549 mm |
| Overall depth | 28.5 in / 724 mm |
| Opening width | 45 in / 1,143 mm |
| Rack positions | 4 levels |
| Heat zones | 2 – independent left & right |
| Total power | 4.8 kW (1,200 W / ft) |
| Electrical options |
208 V 1-ph 23.1 A 240 V 1-ph 20 A 208 V 3-ph 11.5 / 20 / 11.5 A 240 V 3-ph 10 / 17.3 / 10 A |
| Shipping weight | 180 lb / 81.6 kg |
| Installed weight | 145 lb / 65.8 kg |
| Certifications | cULus, NSF |
What’s Included
- Wall-mount brackets (factory installed)
- Universal mounting provisions for optional 4" legs & bottom heat shield
- Removable rear panel for pass-through configuration
- Operator & installation manual
Warranty
1-year parts & labor on the complete unit.
Quartz heating elements carry a 90-day warranty.
Specifications subject to change without notice and not intended for installation planning.
