Lang Manufacturing (Middleby) 136ZTD LG Series Electric Griddles
Description

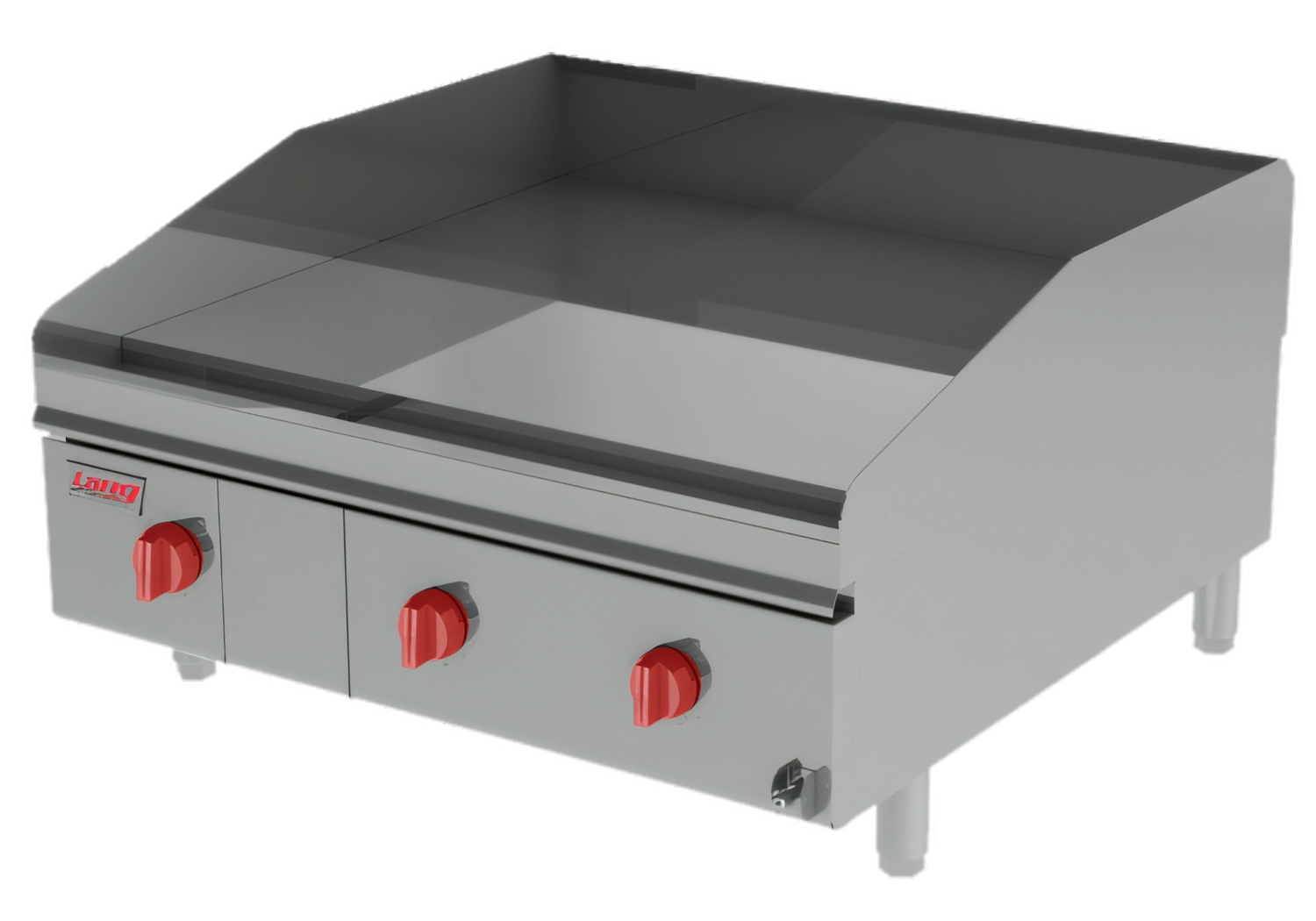

Lang LG Series 36" Electric Heavy-Duty Griddle
Model 136 – Extra-Deep 30" Plate | 3 Independent Heat ZonesPurpose-built for high-volume diners, hotels, and institutional kitchens, the Lang LG Series 36" electric griddle combines a full 1" thick precision-machined plate with fast-acting Accu-Temp™ snap-action thermostats every 12". The result? Lightning-quick recovery, rock-solid temperature accuracy, and the muscle to keep tickets moving during your busiest rush.
Why you’ll love it
- 36" W × 30" D extra-deep cooking surface delivers 25 % more capacity than standard 24" plates.

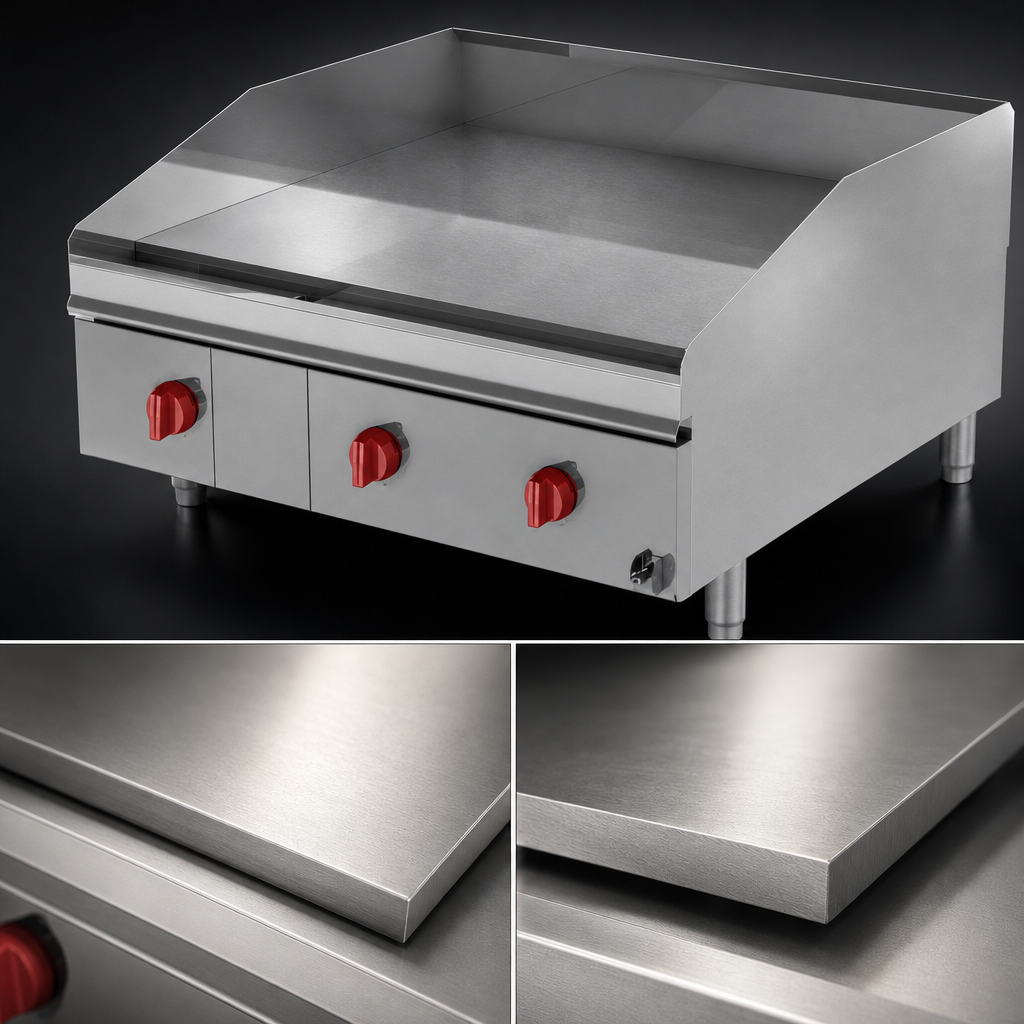

- 1" thick polished steel plate stores massive heat for faster recovery and even browning.

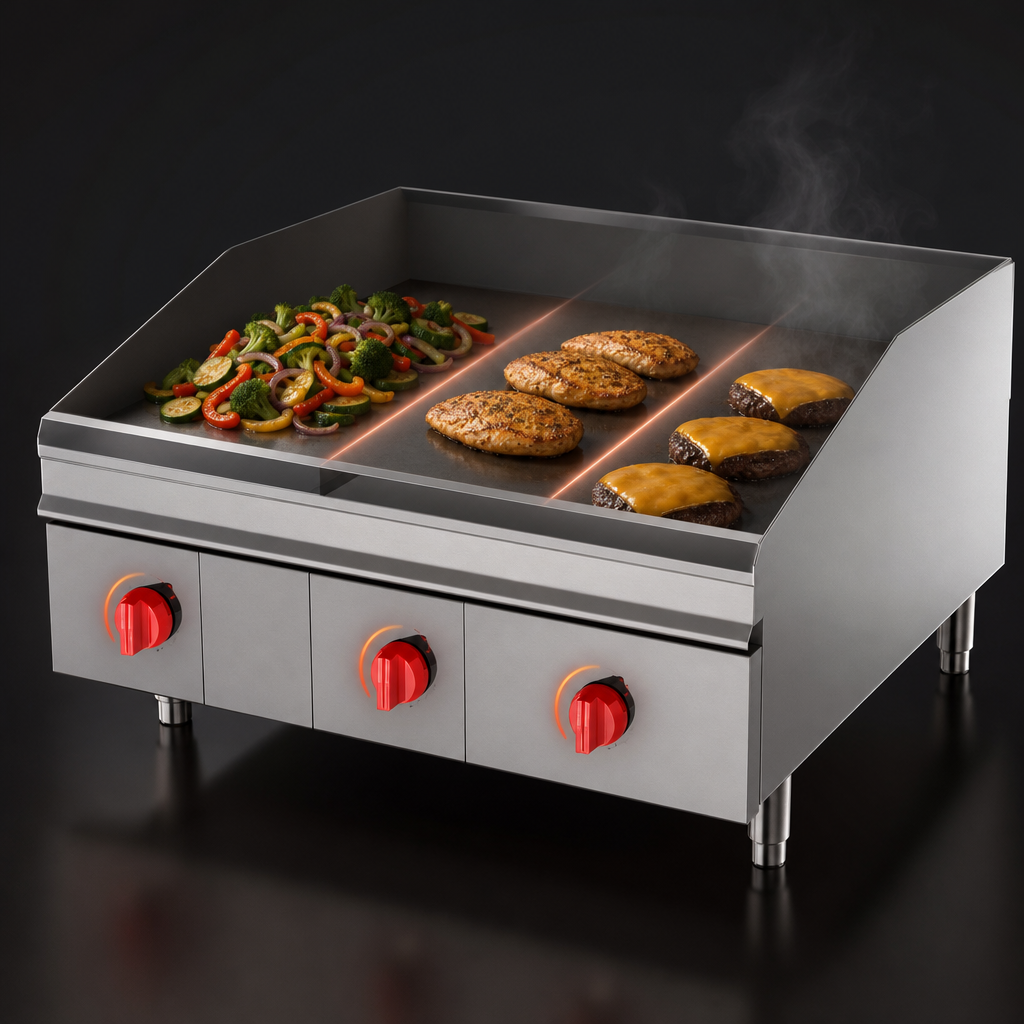

- Three embedded Accu-Temp™ snap-action thermostats (150-450 °F, ±15 °F) give independent zone control.
- Embedded incoloy elements pressure-clamped to the plate bottom ensure uniform heat transfer.
- Highly polished surface seasons quickly and wipes clean for rapid turnarounds.
- Stainless steel front, sides, and fully welded splash shields stand up to daily abuse.
- 3½"-wide grease trough & 8 qt. fully enclosed drawer keep the line clean and safe.
- 4" adjustable legs level the unit on any countertop.
- ETL & ETL-Sanitation listed for electrical and food-safety compliance.
Need a special finish? Factory options include mirror chrome plating or custom grooving for char-marks.
Performance metrics
- 6 kW per foot of griddle delivers intense, even heat across the entire plate.
- Embedded probes react instantly to surface changes for consistent results shift after shift.
- Power-to-element pilot lights give at-a-glance status for each zone.
Specifications
| Cooking surface (W × D) | 36" × 30" / 914 mm × 762 mm |
|---|---|
| Overall dimensions (W × D × H*) | 36" × 35.25" × 16.57" |
| Heat zones | 3 (one every 12") |
| Thermostat range | 150-450 °F (66-232 °C) |
| Plate thickness / material | 1" polished steel |
| Total input | 18 kW |
| Electrical options | 208 V or 240 V; 1- or 3-phase (hard-wired) |
| Max amps per line | 208 V / 3 Ø 50 A | 240 V / 3 Ø 43.3 A | 208 V / 1 Ø 86.5 A | 240 V / 1 Ø 75 A |
| Grease drawer capacity | 8 qt. / 7.6 L |
| Certifications | ETL, ETL-Sanitation |
*Height shown without legs; add 4" (102 mm) with supplied adjustable legs.
Warranty
3-year parts & labor coverage on the entire griddle. Optional chrome plates carry an additional 5-year no-peel surface warranty. See Lang’s official warranty statement for full details.
Upgrade your cookline with the precision, capacity, and rugged build of the Lang LG Series—because every order that hits your window deserves griddle-top perfection.
