Lang Manufacturing (Middleby)

Lang LG Series 36-Inch Electric Countertop Extended-Depth Griddle with Chrome-Plated Surface and Solid State Controls

SKU: 136ZSDC
$22,580.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Lang LG Series 36-Inch Electric Countertop Extended-Depth Griddle with Chrome-Plated Surface and Solid State Controls

30-Inch Deep Cooking Surface, Stainless Steel Exterior

Built for high-volume service, this extended-depth electric griddle combines a 1-inch chrome plate, precise solid-state temperature control, and durable stainless steel construction for consistent results and easy cleanup.

  • 36" W x 30" D extended-depth cooking surface provides plenty of usable griddle space.
  • 1-inch chrome-plated steel plate helps retain heat, recover quickly, and clean up easily without seasoning.
  • Solid-state thermostat control delivers precise 175°F to 450°F temperature management every 12 inches.
  • 6,000W heating elements and Incoloy-sheathed construction support even heating and long service life.
  • Welded steel frame with all stainless steel exterior is built for demanding commercial kitchens.
  • 5-inch tapered wrap-around splash guard and 8-quart grease drawer help simplify cleanup.
  • 4-inch stainless steel legs with 1-5/8-inch adjustment are included; stand option available.

Overall Dimensions:

36.0"W x 35.25"D x 16.57"H

Product Weight:

470.0 lb

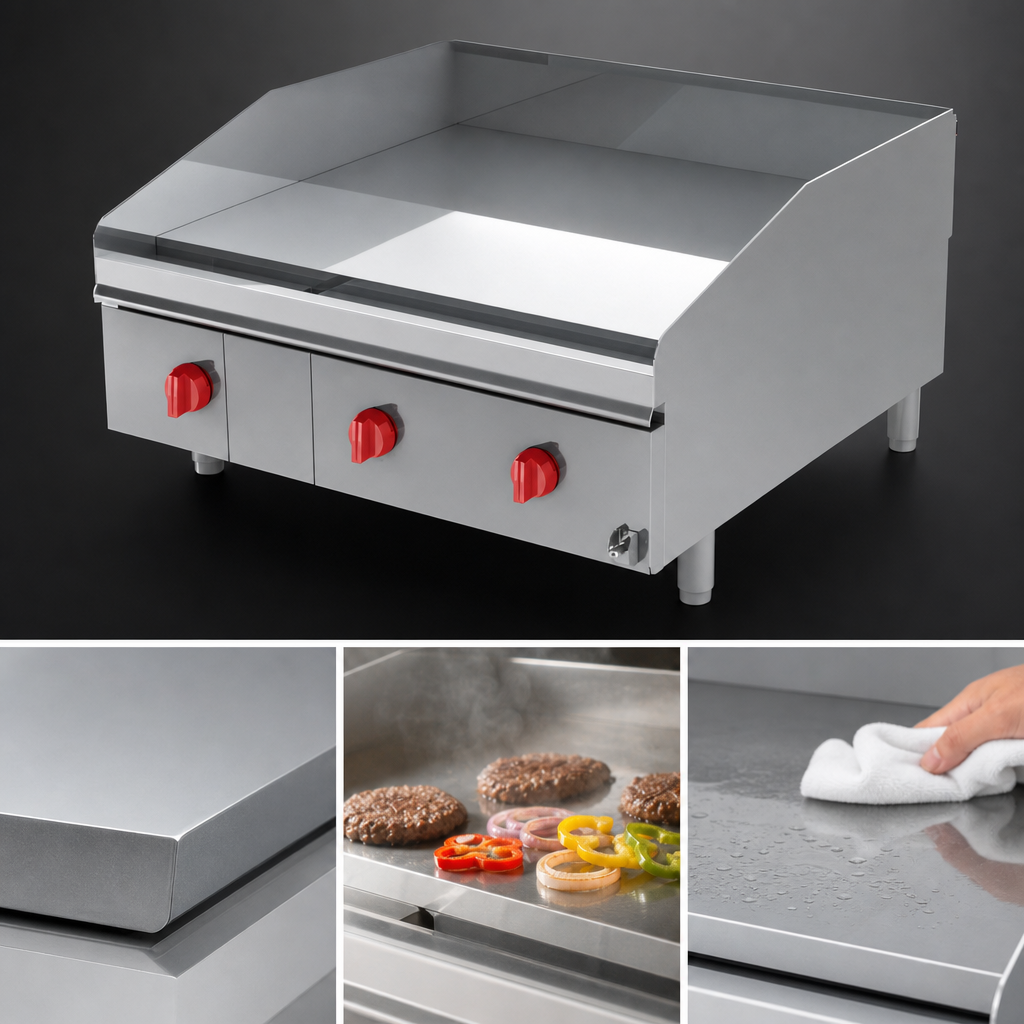

Chrome-Plated 1-Inch Griddle Plate

The 1-inch thick chrome-plated steel surface delivers excellent heat retention, fast cleanup, and no seasoning requirement.

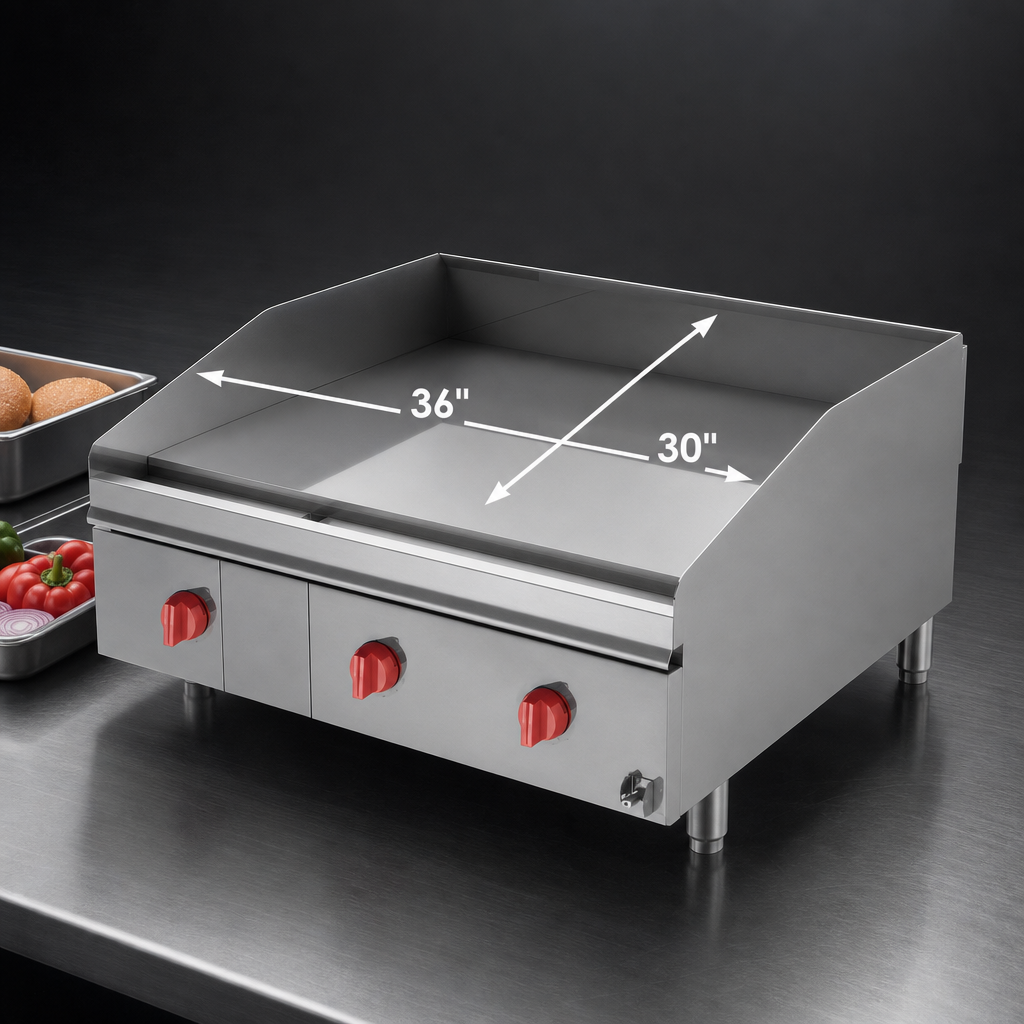

Extended-Depth Cooking Surface

A 36-inch wide by 30-inch deep cook surface gives operators more usable cooking area for busy service.

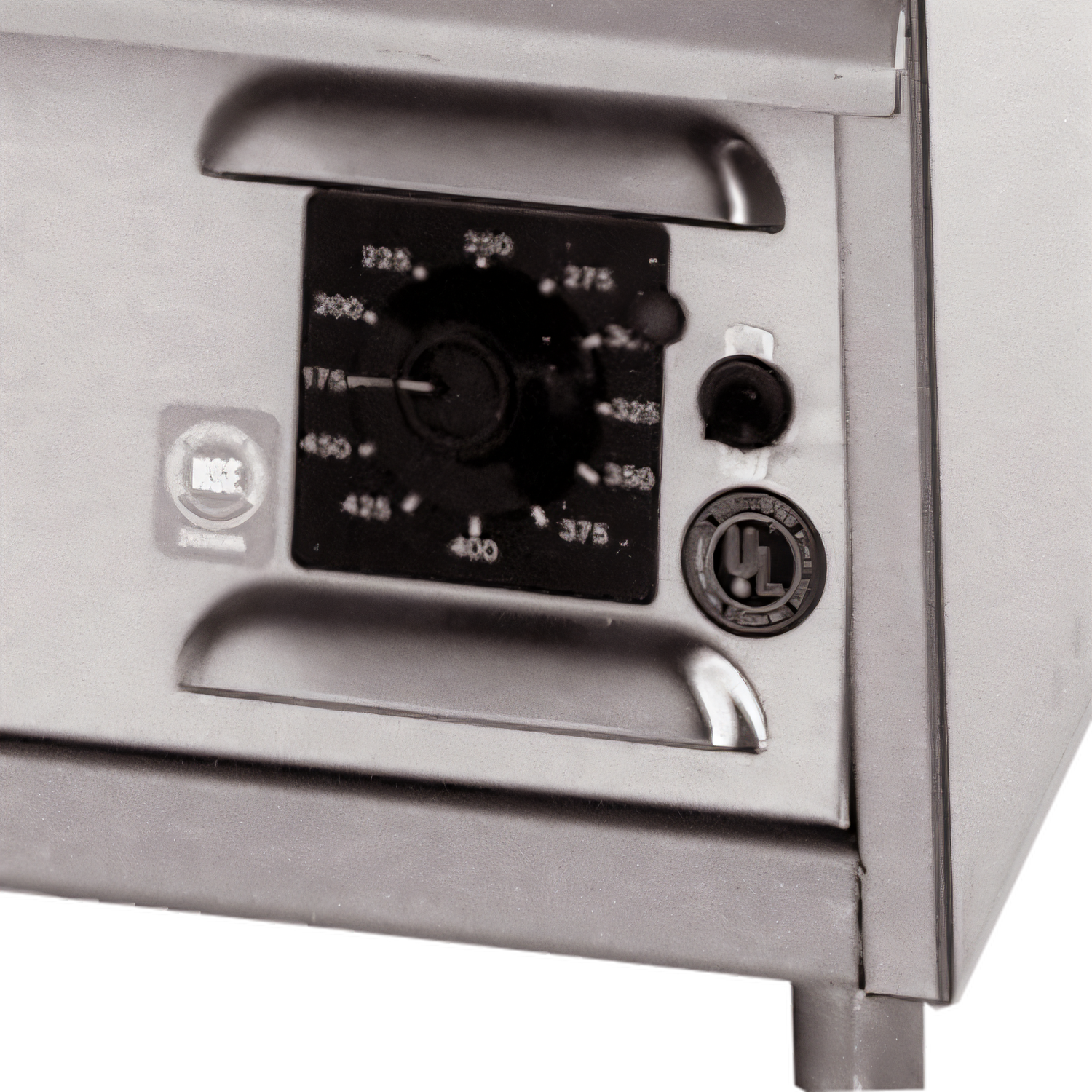

Solid State Thermostat Control

Precise solid-state controls provide a 175°F to 450°F range with temperature control every 12 inches.

18 kW Electric Heating System

6,000W elements every 12 inches and Incoloy-sheathed heating components are designed for even heating and long life.

Stainless Steel Exterior and Welded Frame

A welded steel frame with all stainless steel exterior adds durability and a clean professional appearance.

5-Inch Wrap-Around Splash Guard

The tapered splash guard helps contain grease and food debris during cooking.

8-Quart Grease Drawer

A removable grease drawer with enclosed sleeve supports easier cleanup and grease management.

Adjustable Legs Included

Four-inch stainless steel legs with 1-5/8-inch adjustment help level the unit; a stand option is also available.

Type Griddle
Style Extended Depth
Installation Type Countertop
Controls Solid State Thermostat
Temperature Range 175°F to 450°F
Cooking Surface Width 36 Inches
Cooking Surface Depth 30 Inches
Thickness 1 Inch
Watts 18 kW
Voltage 208 Volts
Phase 3-Phase
Amps 50 Amps
Material Stainless Steel
Finish Chrome Plated
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 36 Inches
Shipping Height 17 Inches
Shipping Weight 470 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Chrome griddle surfaces: 5 years; parts and labor warranty varies by document.

Frequently Asked Questions

The griddle has a 36-inch wide by 30-inch deep cooking surface.
The solid-state thermostat controls the griddle from 175°F to 450°F.
The unit is listed at 208V, 3-phase, and the installation sheet says it is field convertible to 240V or 1-phase.
It includes an 8-quart grease drawer with a removable enclosed sleeve and a front grease trough for easier cleanup.
The documents show chrome griddle surface coverage for 5 years against peeling or when ordered, while the parts and labor warranty is listed as 2 years in the warranty sheet and 3 years on the cutsheet.
