Lang Manufacturing (Middleby)  |  Lang® Marine  |  SKU: 136TDIG

Lang Manufacturing (Middleby) 136TDIG Lang® Marine Electric Griddles

$13,079.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Griddles Commercial Grills Electric Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

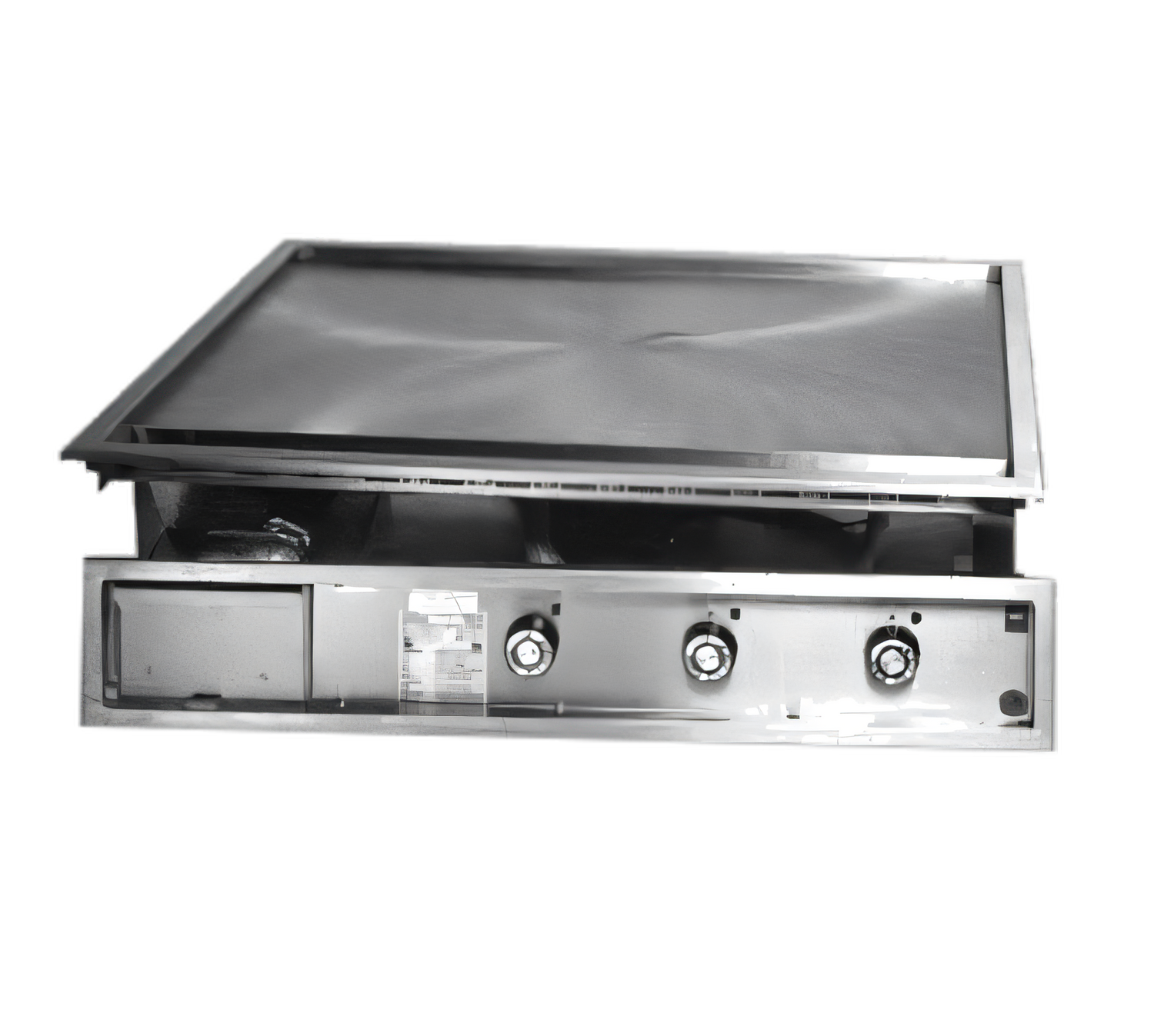

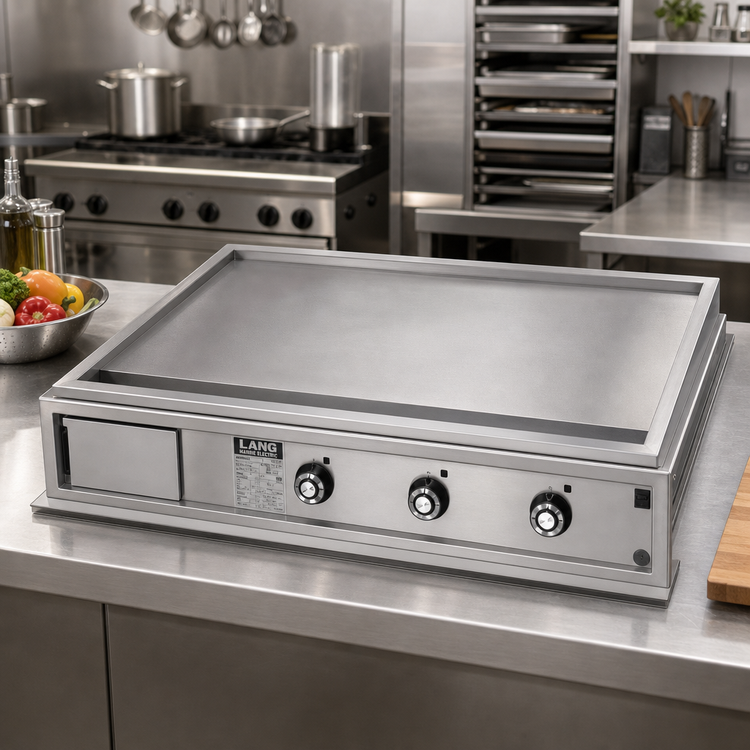

Lang Marine 36″ Drop-In Electric Griddle (Model 136TDIG)

Mil-Spec Type 3 construction for shipboard galleys & offshore kitchens

Built to thrive in demanding marine environments, the Lang Marine 36″ Drop-In Griddle delivers precise, zone-by-zone temperature control, rugged stainless-steel durability and an ultra-smooth 1″ thick cooking surface that handles everything from breakfast rush to late-night service.

Key Features

  • 36″ W × 24″ D cooking surface with 3 independent 12″ temperature zones

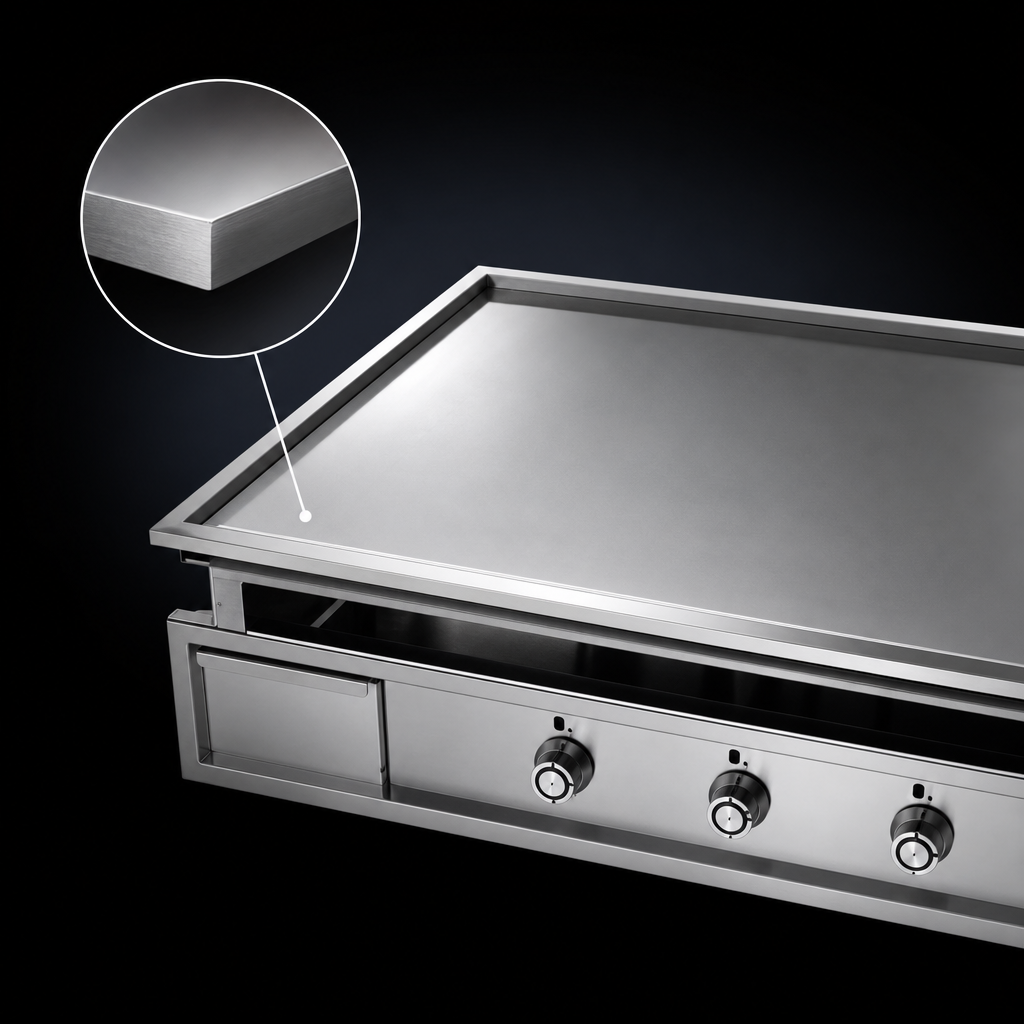

  • 1″ (25 mm) thick highly polished steel plate for superior heat retention & easy cleanup

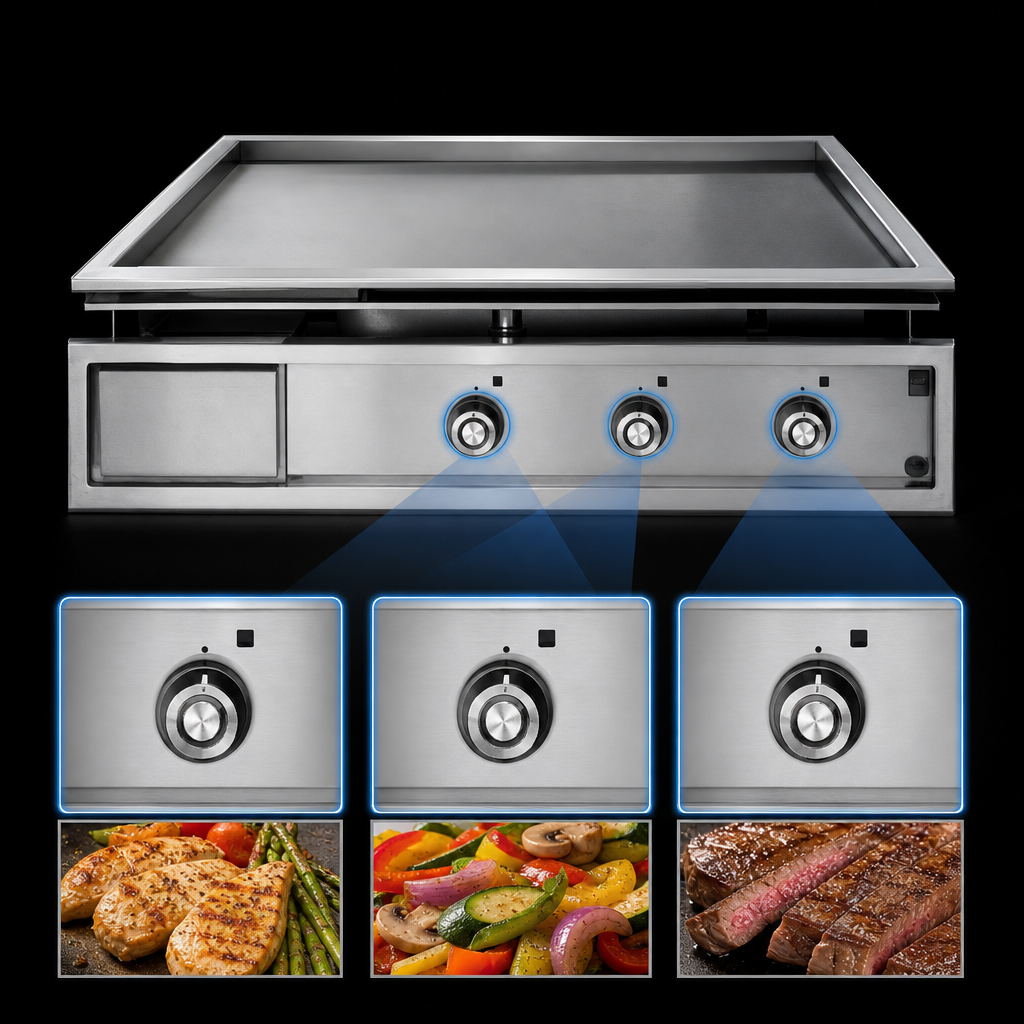

  • Accu-Temp snap-action thermostats every 12″; adjustable 175 – 450 °F (79 – 232 °C)
  • 6 kW heating power per zone – 18 kW total; Incoloy sheathed elements pressure-clamped to plate
  • Full-perimeter stainless mounting flange for a clean, flush install in the counter top
  • 3-1/2″ wide × 1″ deep front grease trough plus 8 qt fully enclosed grease drawer with marine latch
  • Recessed, fully enclosed control module protects knobs from accidental damage
  • Marine-cUL listed, NSF certified & compliant with Military Type 3 specifications
  • Rugged, all-stainless exterior resists corrosion caused by salt-air and humidity
  • Backed by Lang’s 2-year parts & labor warranty for Marine equipment

Specifications

Model 136TDIG
Cooking Surface 36″ W × 24″ D (914 mm × 610 mm)
Plate Thickness 1″ (25 mm) polished steel
Temperature Range 175 °F – 450 °F (79 °C – 232 °C)
Controls Accu-Temp mechanical thermostats, one per 12″ zone
Heating Power 18 kW total (6 kW per zone)
Voltage / Phase 208 V, 240 V, 440 V or 480 V, 3-phase
Rough-In Opening (W × D × H) 36.8″ × 29.8″ × 6.1″ (935 mm × 756 mm × 156 mm)
Control Module Cut-Out Width 35.0″ (889 mm)
Shipping / Installed Weight 345 lb / 295 lb (156 kg / 134 kg)
Certifications Marine-cUL, NSF, Mil-Spec Type 3
Warranty 2 years parts & labor

Clearances: 2″ sides, 2″ back. Always verify local marine codes prior to installation.

Why Lang Marine?

  • Designed, built & supported in the USA
  • Engineered specifically for the vibration, pitch & corrosion challenges of sea-going vessels
  • Supported worldwide by Lang-authorized service agencies
Need financing? Middleby Equipment Financing can turn today’s purchase into affordable monthly payments – ask your sales rep for details.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Lang® Marine

Certifications

NSF

Height

11.1in

Width

36.8in

Depth

28.5in

Shipping Weight

345.0lbs

Cooking Surface Depth (front - back)

20" - 24"

Control Type

thermostatic

Cooking Surface Width (side - side)

30" - 36"

Griddle Plate Finish

smooth steel

Exterior Finish

all stainless steel exterior

Specifications

Lang® Marine Griddle, electric, Drop-In, 36"W x 24"D cooking surface, 1" thick highly polished steel griddle plate, Accu-Temp mechanical thermostatic control every 12", stainless steel exterior, Mil Spec. type III, size2, Marine-cUL, NSF
