Description

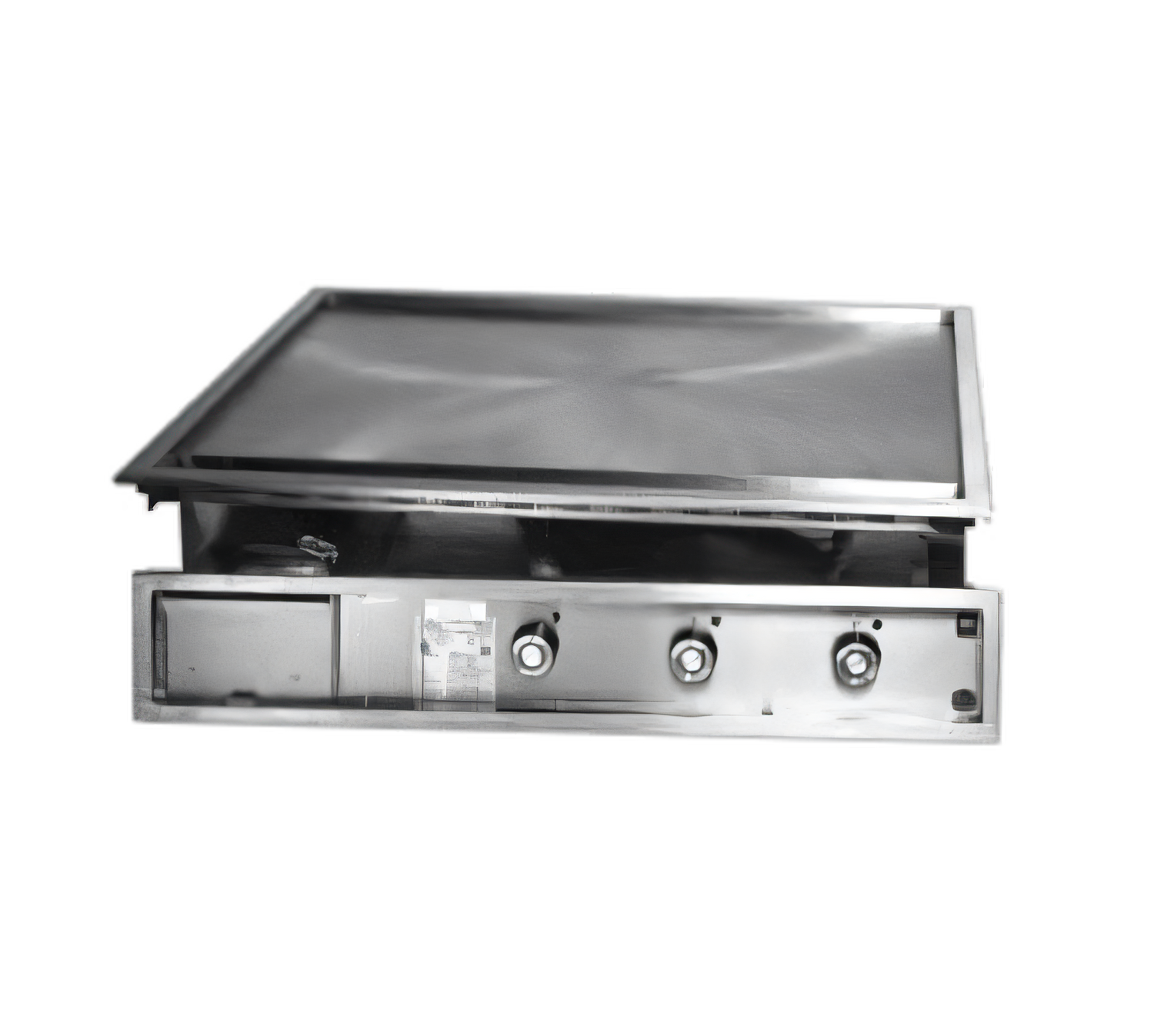

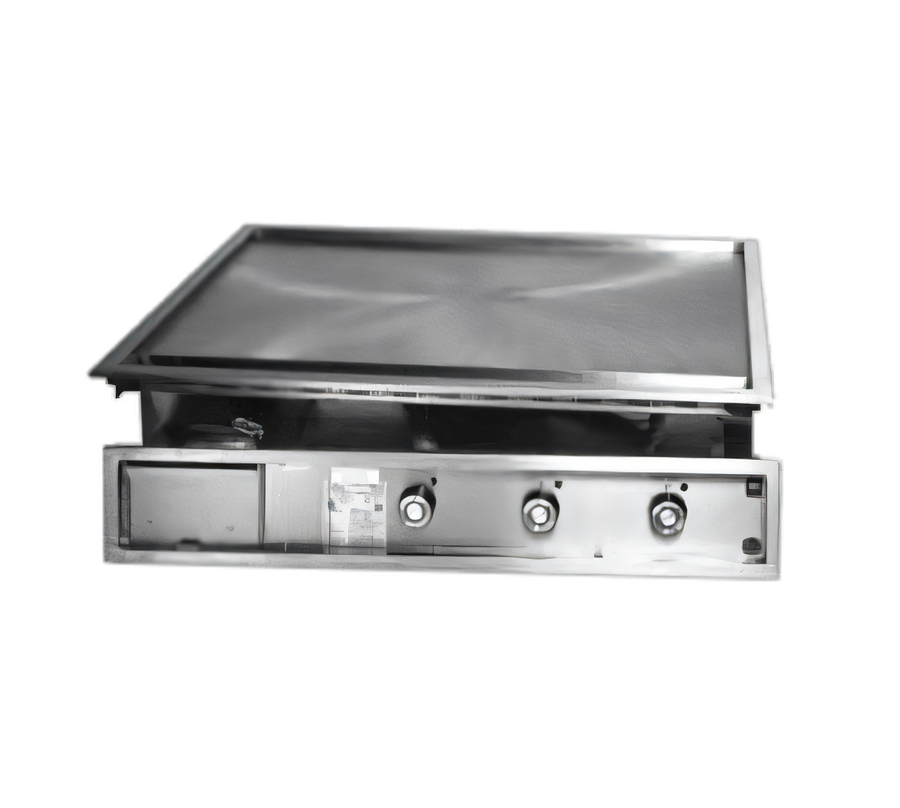

Lang 136TDI Drop-In Electric Griddle – 36"

1" polished steel plate with Accu-Temp ±2 °F solid-state controls

Bring consistent, high-volume production to your cookline while saving valuable counter space. The Lang 136TDI delivers lightning-fast recovery, edge-to-edge heat and effortless clean-up— all in a drop-in format ready for your chef’s counter, kiosk or marine galley.

Key Features

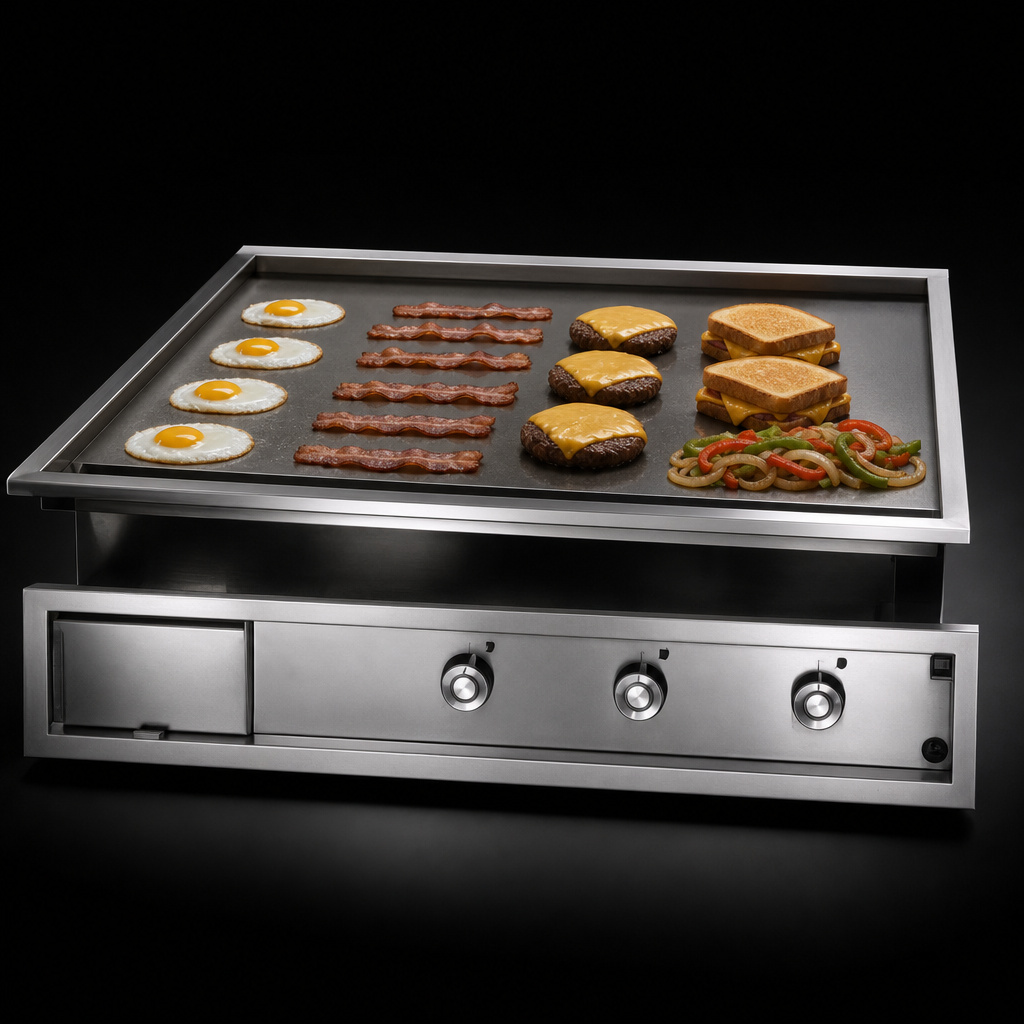

  • 36" W x 28.2" D cooking surface (828 in²) fits a standard 3-ft cooking zone.

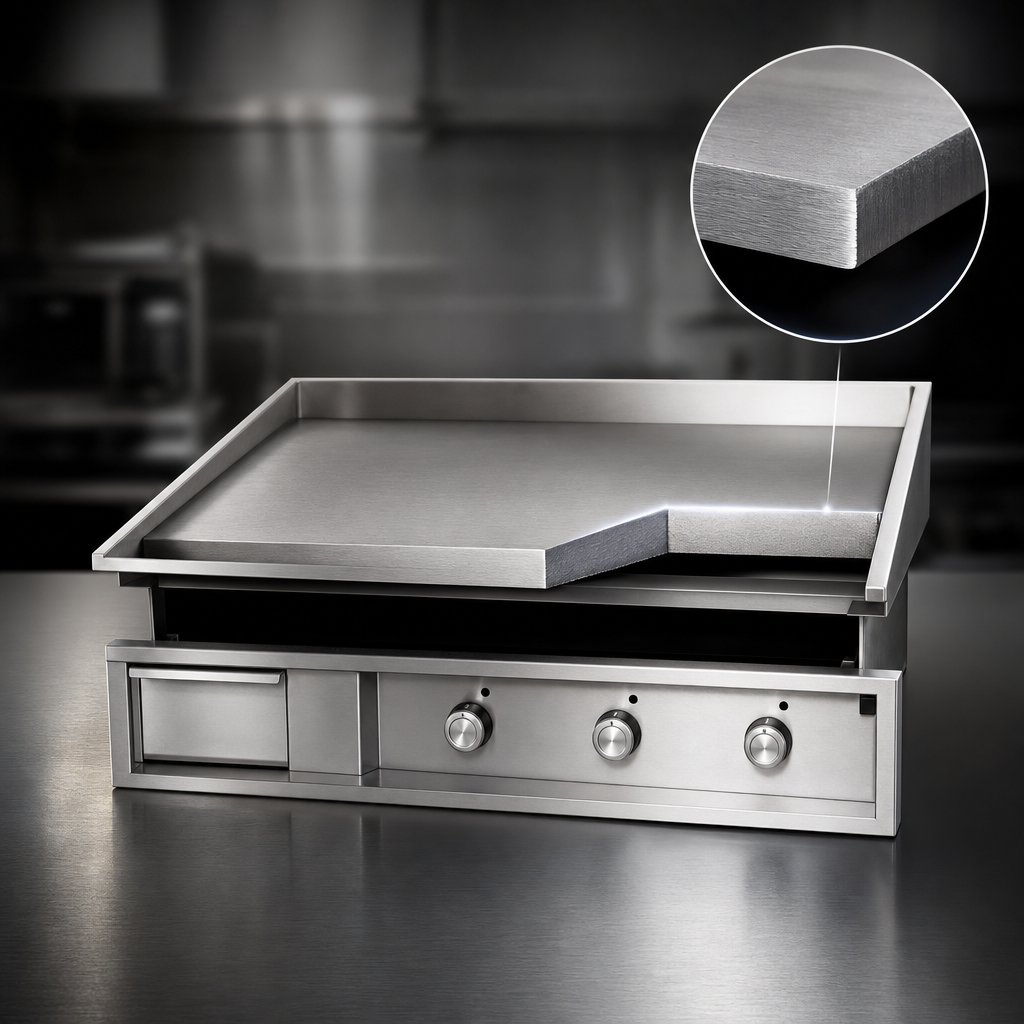

  • 1" (25 mm) precision-machined polished steel plate retains heat and minimizes hot/cold spots.
  • Accu-Temp solid-state thermostat every 12" keeps surface ±2 °F from set point (175–450 °F).
  • Incoloy-sheathed elements pressure-clamped to plate for even distribution—6 kW of power per foot.
  • 8 qt fully enclosed grease drawer with removable sleeve for quick, mess-free disposal.
  • Full-perimeter stainless-steel flange drops flush into cabinetry for a clean, sanitary install.
  • Separate, insulated control module with recessed panel protects electronics from heat & splatter.
  • cETLus & NSF listed; made in the USA and backed by a 2-year parts & labor warranty.
Specifications
Model 136TDI
Cooking surface 36" W × 23" D plate (28.2" overall depth)
Surface area 828 in²
Plate thickness 1" polished steel
Controls Accu-Temp solid-state, 1 per 12" zone
Temperature range 175 – 450 °F (±2 °F)
Total heat input 18 kW (6 kW/ft)
Electrical service 208 V / 240 V 3-phase (field-convertible to 1-phase) or 480 V 3-phase
Amps @ 208 V 86.5 A (3-ph) · 50 A (1-ph)
Amps @ 240 V 75.0 A (3-ph) · 43.3 A (1-ph)
Amps @ 480 V 21.7 A (3-ph)
Grease capacity 8 qt drawer, fully enclosed & removable
Cut-out (W×D×H) 36.8" × 26.8" × 6.5"
Installed weight ≈ 263 lb (120 kg)
Certifications cETLus, NSF
Standard warranty 2 years parts & labor
Precision You Can Taste

Accu-Temp embeds thermocouples inside the plate and drives the elements with a solid-state board that reacts instantly to surface changes. Expect:

  • Up to 4× tighter temperature swing than mechanical thermostats.
  • Even browning across the entire plate—even during heavy rushes.
  • Reduced energy spikes and longer element life.
Installation Note: This drop-in unit must be mounted in an approved cabinet or fabricated work center beneath a compliant ventilation hood, with 2" side & rear clearances. Verify available power and phase before ordering.

Need more capacity? 48" (148TDI) and 60" (160TDI) versions are also available.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Certifications

NSF, cETL

Height

11.1in

Width

36.8in

Depth

28.5in

Shipping Weight

410.0lbs

Exterior Finish

all stainless steel exterior

Control Type

solid state

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

30" - 36"

Cooking Surface Depth (front - back)

25" - 36"

Specifications

Griddle, electric, Drop-In, 36"W x 28.2"D cooking surface, 1" thick highly polished steel griddle plate, 8 qt capacity grease trough with removable fully enclosed sleeve, Accu-Temp solid state controls (±2°F) every 12", stainless steel flange, cETL, NSF
