Lang Manufacturing (Middleby)

36-Inch Electric Wall-Mounted Cheesemelter with 4-Position Chrome Rack

SKU: 136CMW
$5,758.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

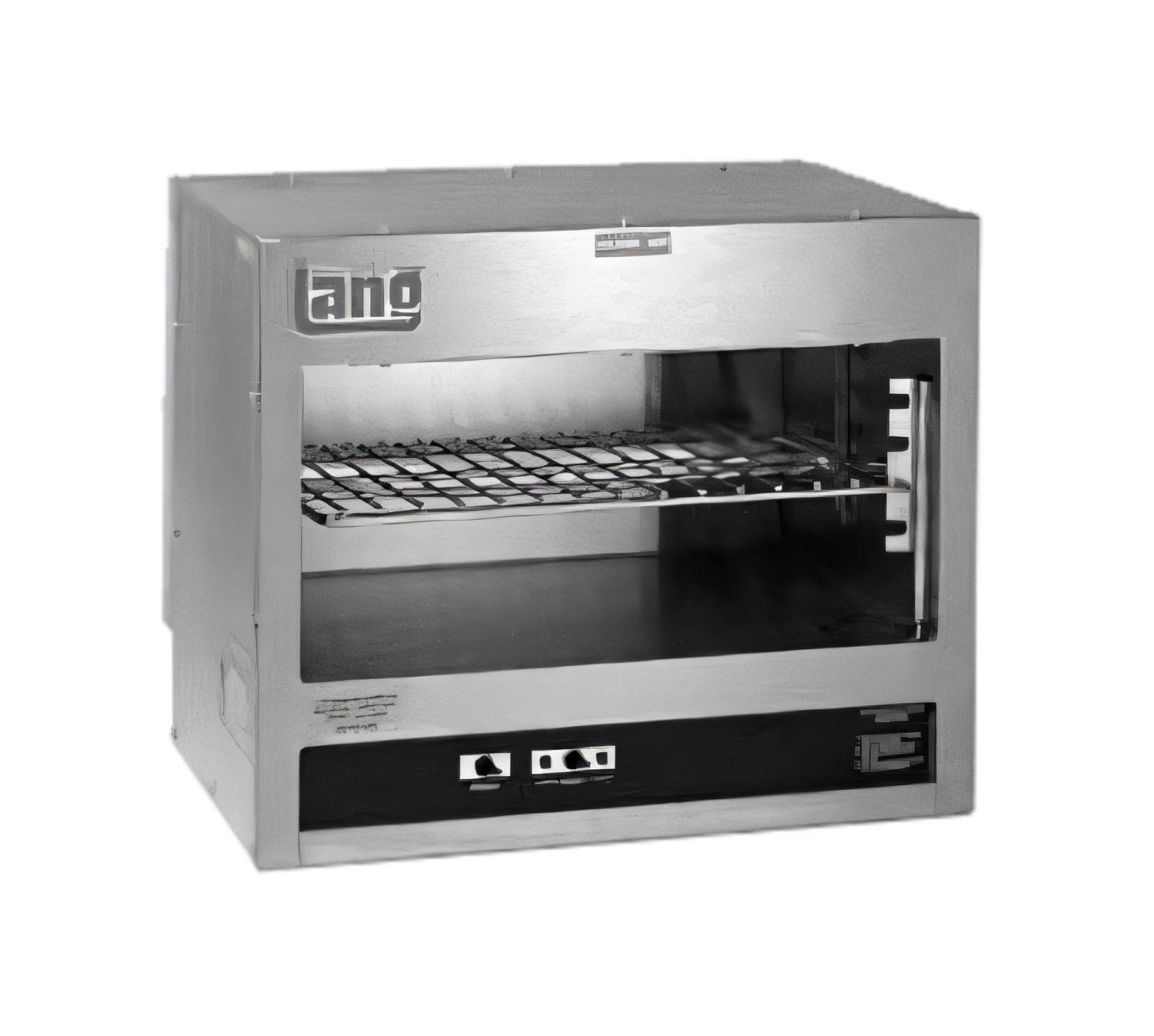

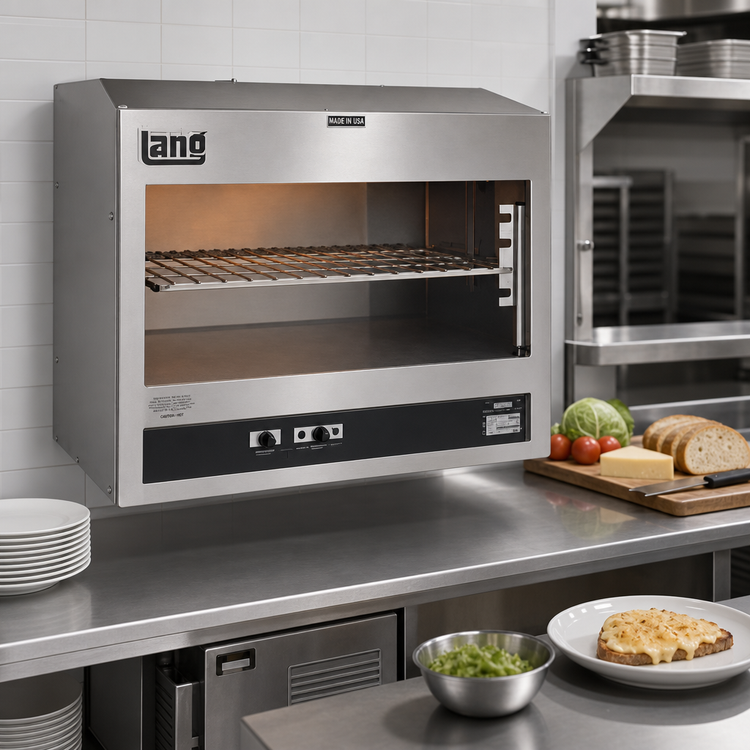

36-Inch Electric Wall-Mounted Cheesemelter with 4-Position Chrome Rack

Pass-Through Capable, 208/240V, 1-Phase

This 36-inch electric cheesemelter delivers rapid infrared quartz heat and weight-activated control to finish menu items fast with less wasted energy.

  • Infrared quartz heaters heat in seconds for fast finishing with no preheat delay.
  • Weight-sensing instant on/off helps reduce energy use during busy service.
  • Four-position chrome-plated rack provides flexible placement and browning control.
  • Ships as a wall-mounted unit with universal wall and counter mounting included.
  • Removable rear panel supports optional pass-through operation.
  • Stainless steel exterior and interior with an aluminized steel back add durability.
  • Operates on 208/240V, 1-phase power with a 3.6 kW output.

Overall Dimensions:

36.0"W x 28.5"D x 21.6"H

Product Weight:

130.0 lb

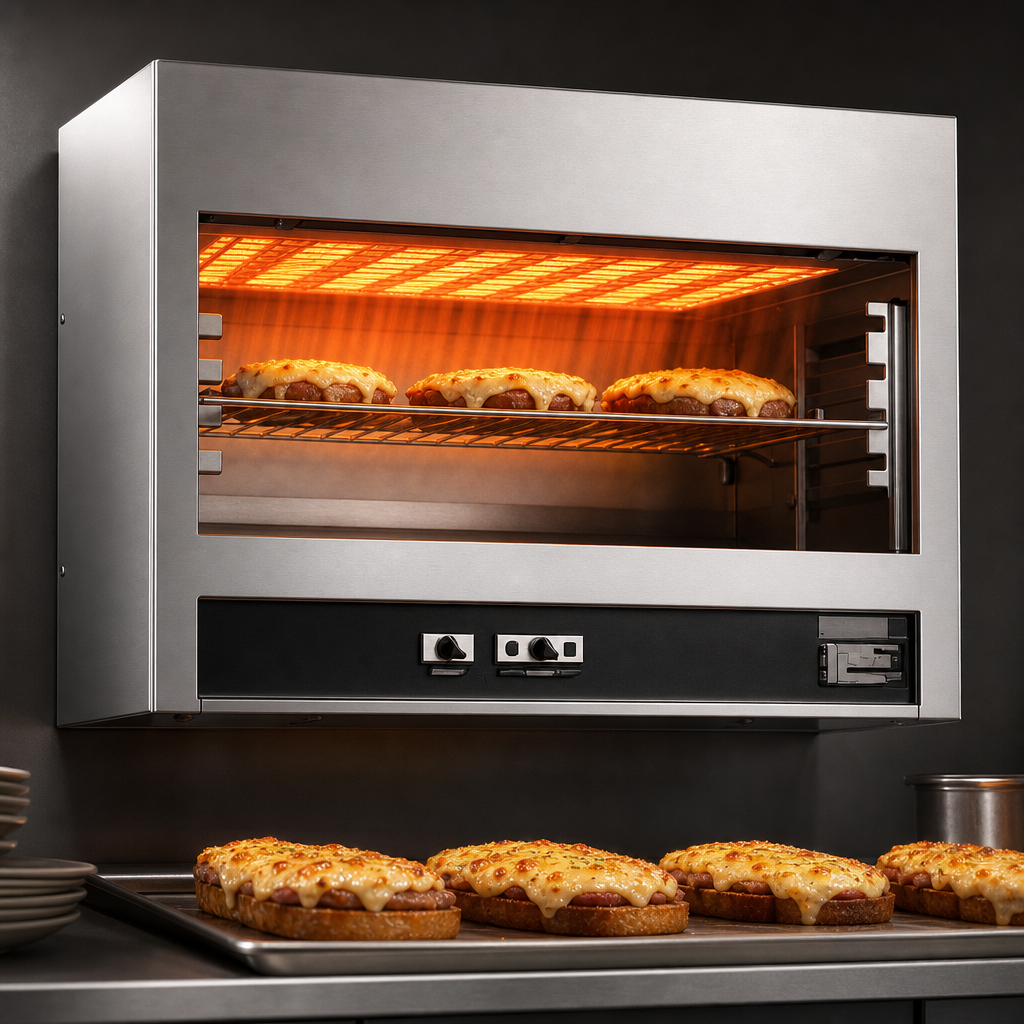

Rapid Infrared Quartz Heating

Quartz heaters operate at 1650°F and heat fully in seconds for quick finishing.

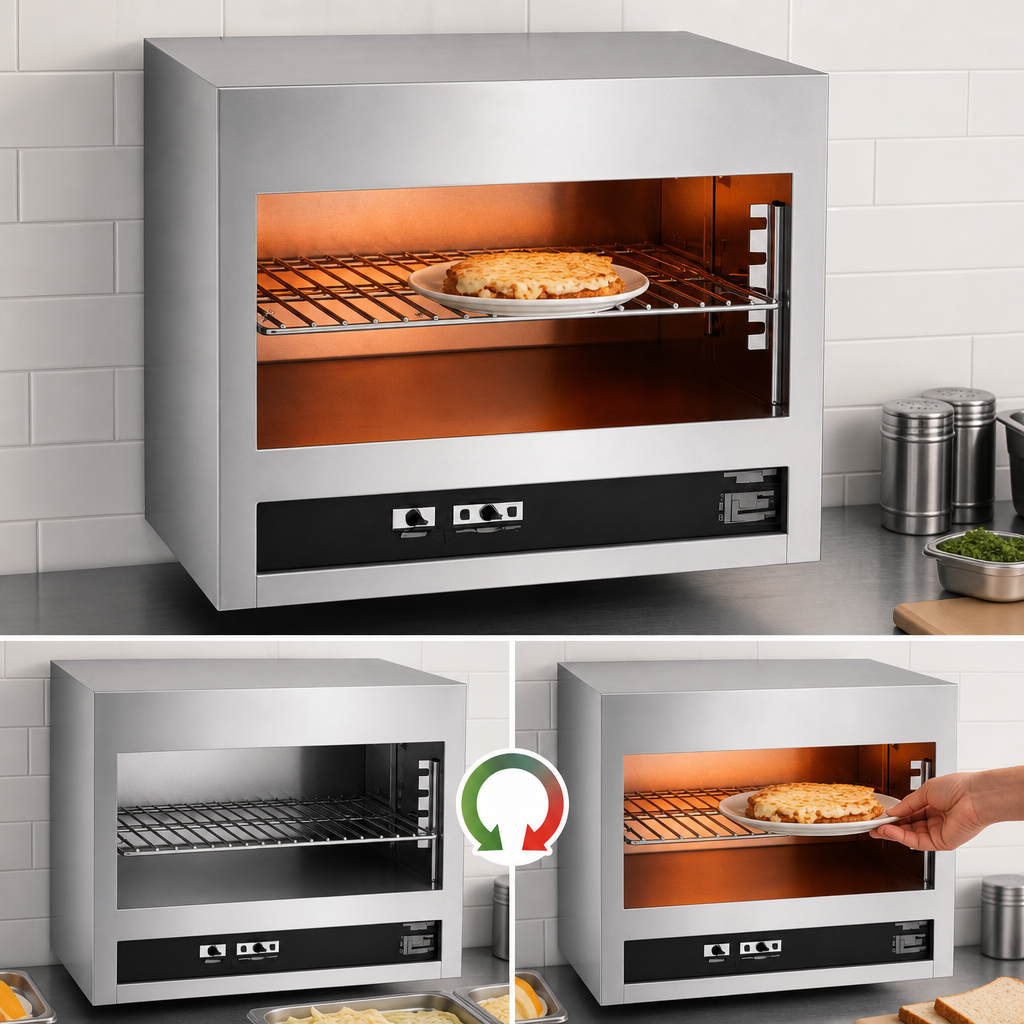

Energy-Saving Instant On/Off Control

The plate-activated system turns heat on when loaded and off when food is removed.

Four-Position Adjustable Rack

A chrome-plated wire rack offers four positions for better control over holding and browning.

Flexible Mounting Options

The unit ships as a wall-mount version and includes universal wall and counter mounting support.

Pass-Through Capability

The removable rear panel allows optional pass-through use.

Durable Stainless Steel Construction

Built with a stainless steel exterior and interior plus an aluminized steel rear cover for durability.

Type Cheesemelter
Style Pass-Through Capable
Installation Type Wall Mounted
Heat Type Infrared Quartz Heaters
Controls Weight Activated
Rack Positions 4
Voltage 208/240 Volts
Amps 17.3 Amps at 208 Volts / 15 Amps at 240 Volts
Watts 3.6 kW
Phase 1-Phase
Material Stainless Steel
Interior Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 29 Inches
Shipping Height 22 Inches
Shipping Weight 130 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor; 90-day warranty on quartz heaters.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It operates on 1-phase 208V or 240V power.
Yes. Optional four 4-inch legs are available for countertop use, and universal wall and counter mounting is included.
Yes. The rear panel can be removed for optional pass-through operation.
It includes a four-position adjustable chrome-plated wire rack.
It comes with a one-year parts and labor warranty, and the quartz heaters carry a 90-day warranty.
