Lang Manufacturing (Middleby) 124TM Lang® Marine Electric Griddles
Description

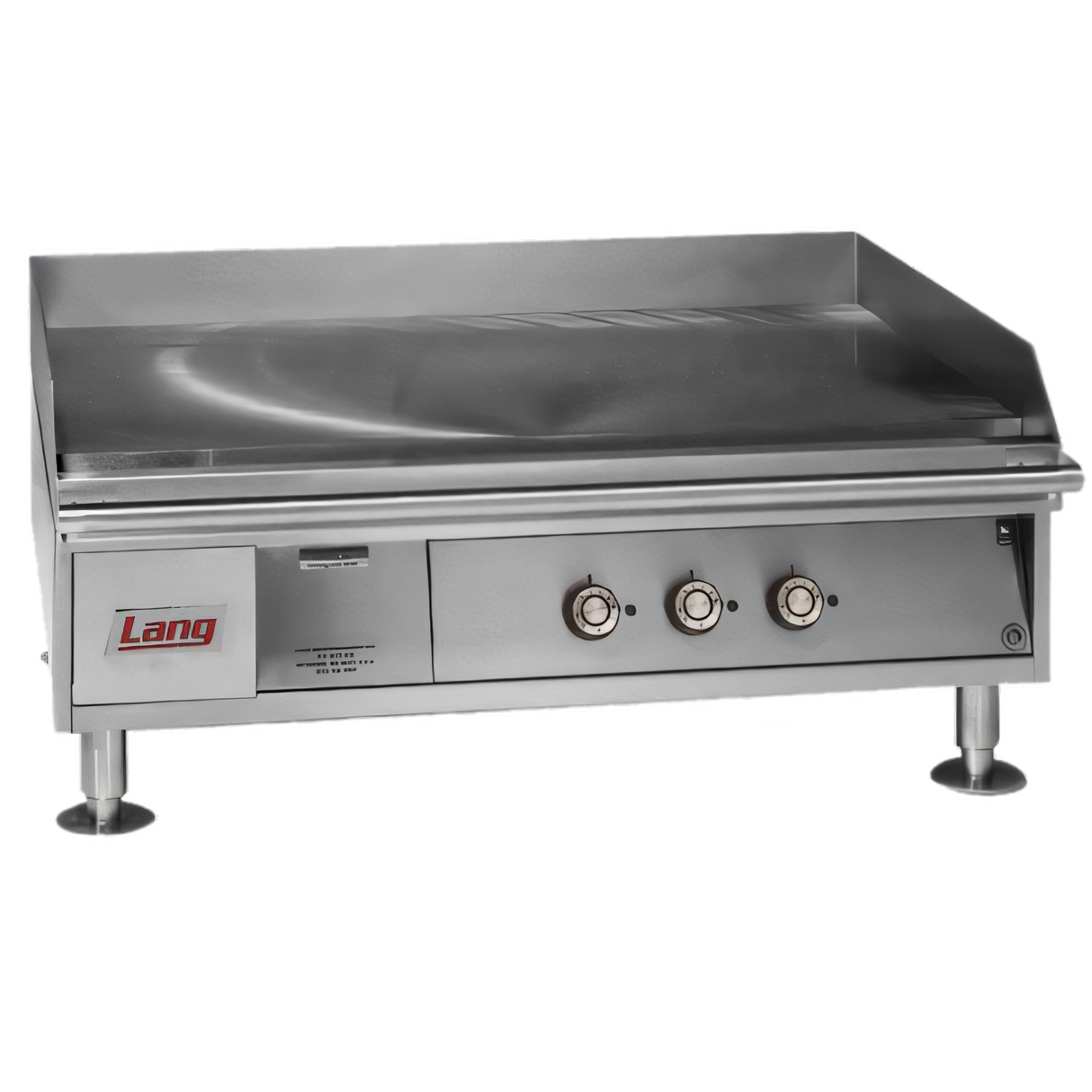

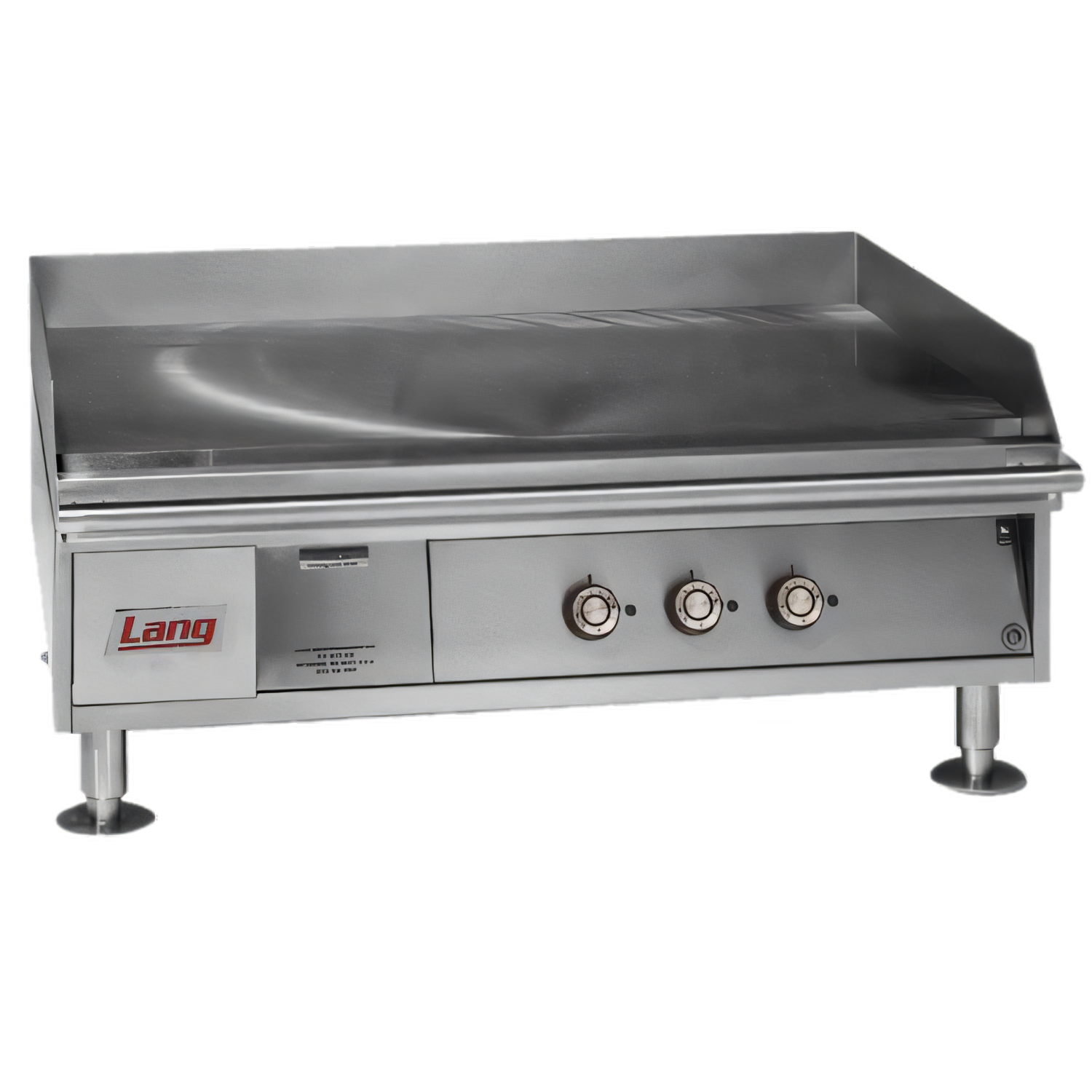

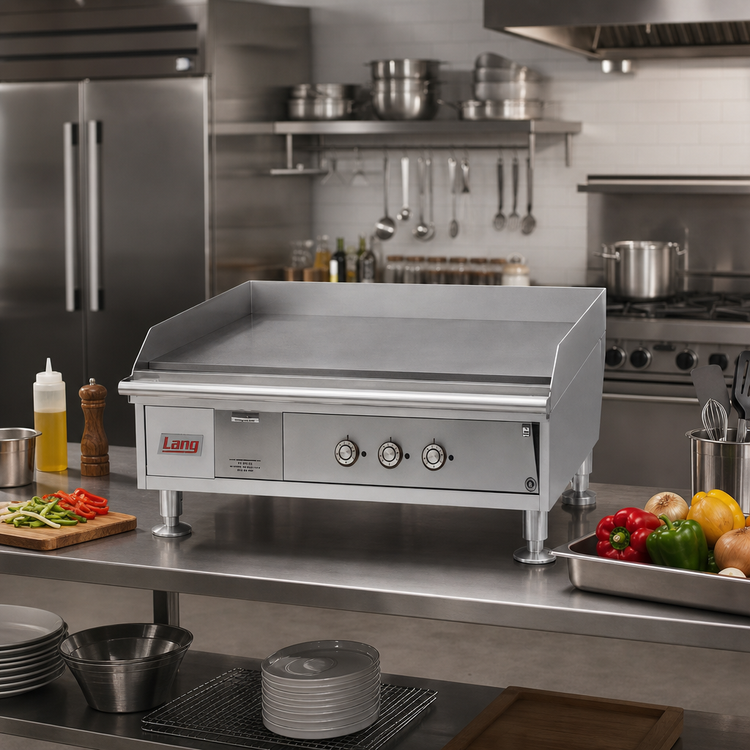

Lang® Marine 24" Electric Countertop Griddle
Heavy-Duty, USCG-Approved Shipboard PerformanceBuilt for the relentless pace of commercial galleys, the Lang® Marine 24" Heavy-Duty Griddle delivers rock-solid temperature control, rugged construction and easy clean-up—everything you need to keep crews well-fed and on schedule.
Key Features

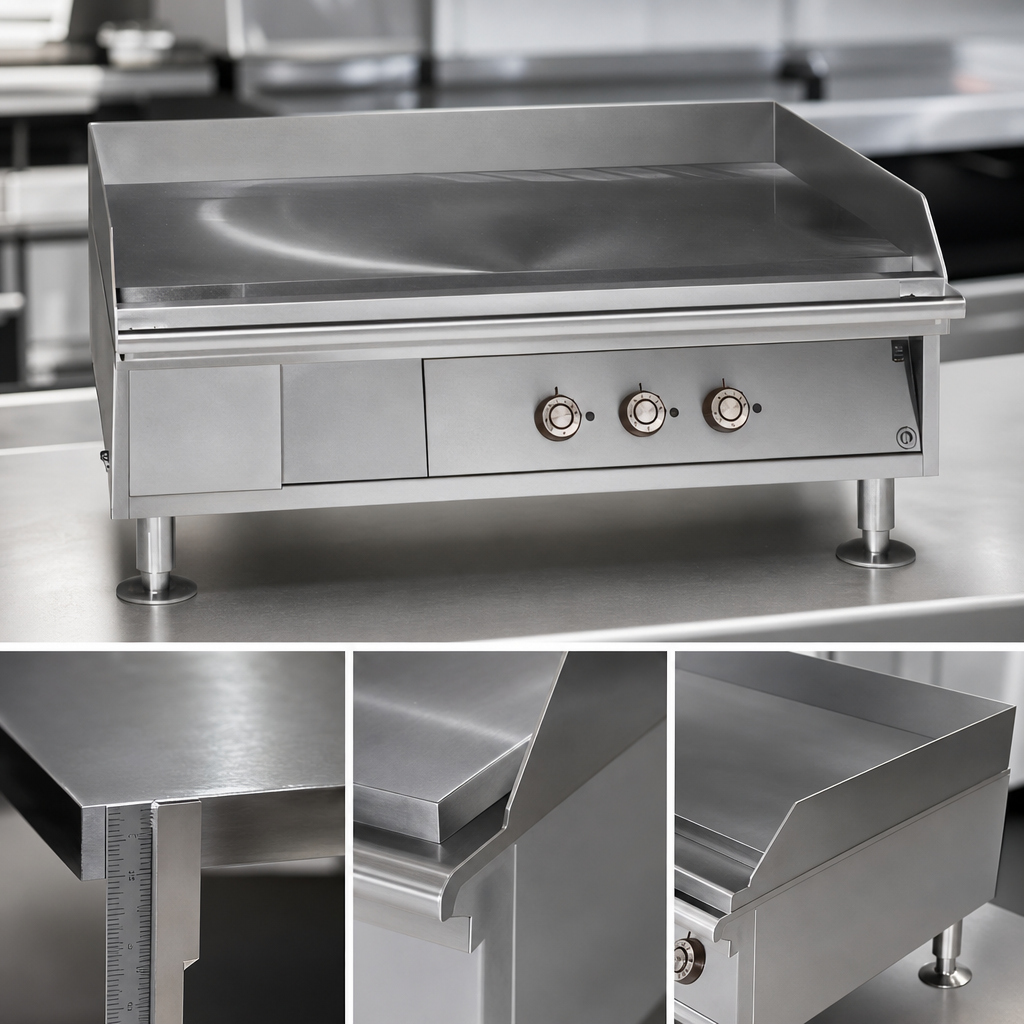

- 1" (25 mm) thick polished griddle plate for exceptional heat retention & even searing

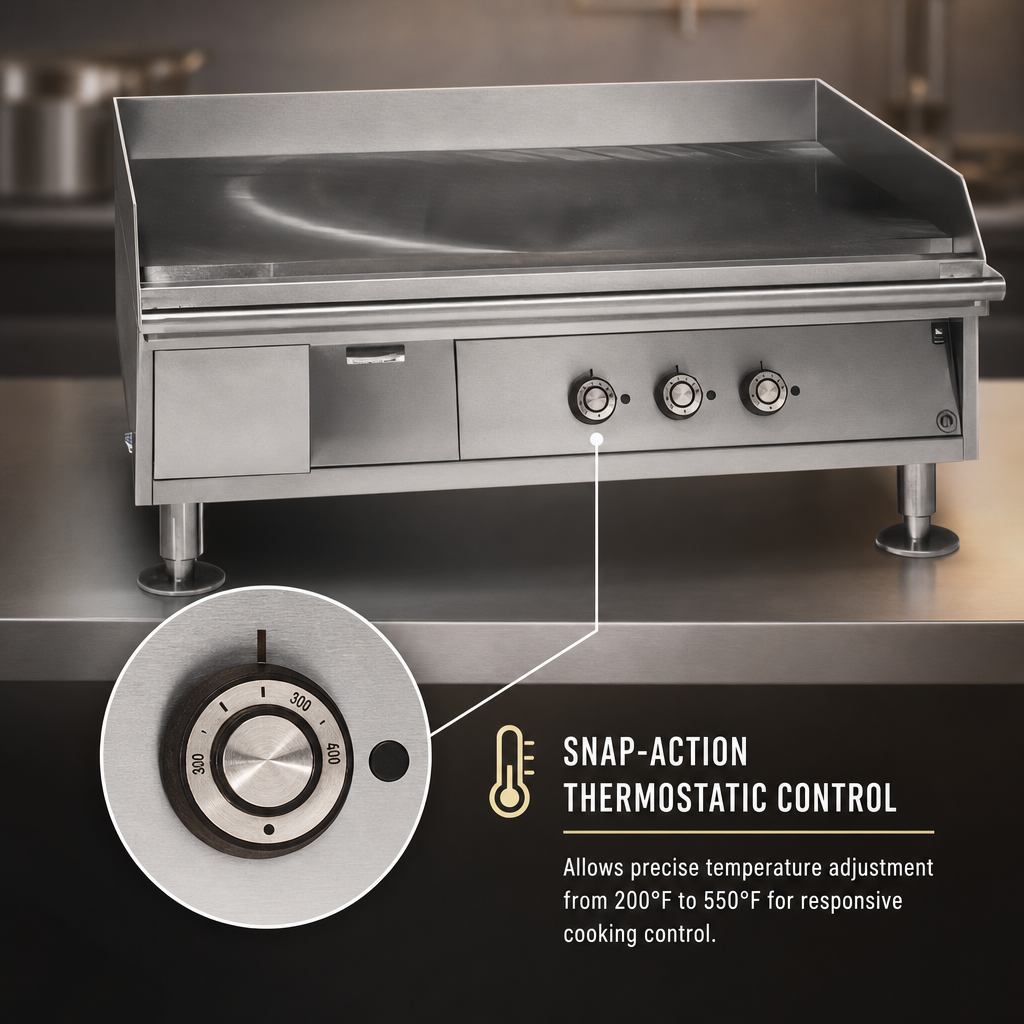

- Accu-Temp snap-action thermostat: 200 °F – 550 °F (93 °C – 288 °C) with lightning-fast recovery
- Two 6 kW Incoloy-sheathed elements (12 kW total)—one every 12" of plate
- 5" tapered, wrap-around splash guard plus full-width front grab bar for safe operation at sea
- 8 qt. front grease drawer with 3.5" trough & locking tab to stay secure in heavy seas
- All-welded steel frame clad in 304 stainless steel—corrosion-resistant & easy to sanitize
- Flanged 4" bolt-down legs meet MIL-SPEC marine mounting requirements
- Fully enclosed control compartment protects components from wash-downs
- ETL Marine & NSF listed; Made in the USA
At-a-Glance Specs
| Cooking surface | 24" W × 23" D (552 in² / 3565 cm²) |
|---|---|
| Plate thickness | 1" polished steel |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Total power | 12 kW (2 × 6 kW zones) |
| Electrical | 208 / 240 / 440 / 480 V, 3-ph (field-convertible to 1-ph) |
| Amps (3-ph) | 50 A @ 208 V • 43.3 A @ 240 V • 23.6 A @ 440 V • 21.7 A @ 480 V |
| Grease management | 3.5" trough, 8 qt. drawer, locking tab |
| Splash guard | 5" rear & side, tapered |
| Clearances | 2" sides & back (combustible) |
| Ship / installed weight | 380 lb (172 kg) / 330 lb (150 kg) |
| Certifications | ETL Marine, NSF |
| Warranty | 2 years parts & labor |
Engineered for the Open Water
- USCG-approved for vessels over 65 ft—perfect for offshore platforms, naval ships & commercial fleets
- Flanged legs bolt directly to stainless countertops or welded mounting plates to prevent shifting
- Snap-action controls stay dialed-in despite vibration or pitch
- High capacity grease drawer minimizes trips to disposal, reducing galley traffic
Finance It the Easy Way
Preserve cash flow with affordable monthly payments through Middleby Equipment Financing. Ask your sales rep for details.
Want a larger model? 36", 48", 60" & 72" widths are also available.
